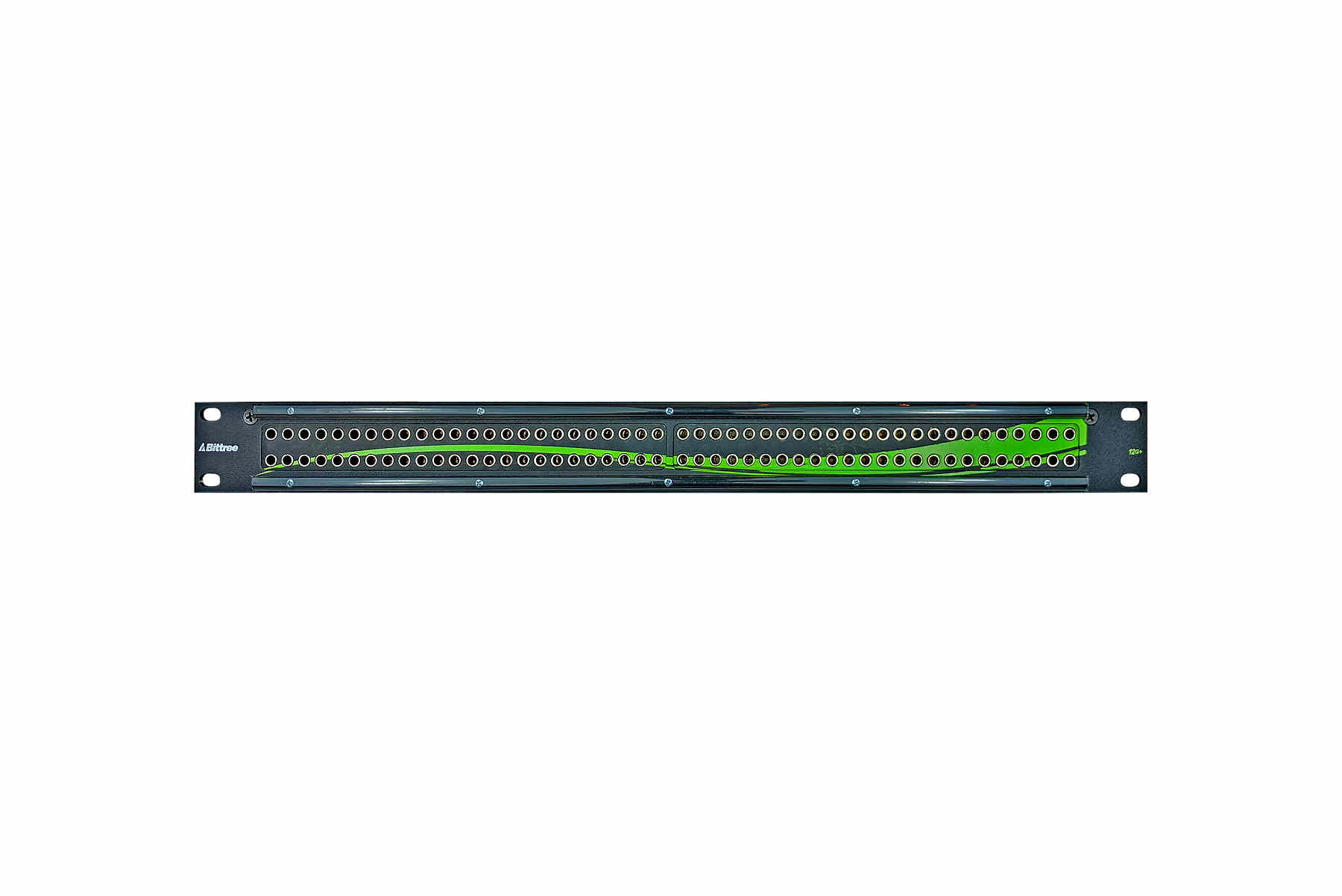

•  S96S-2MVTBK Micro-Video-32-01.jpg

    S96S-2MVTBK Micro-Video-32-01.jpg

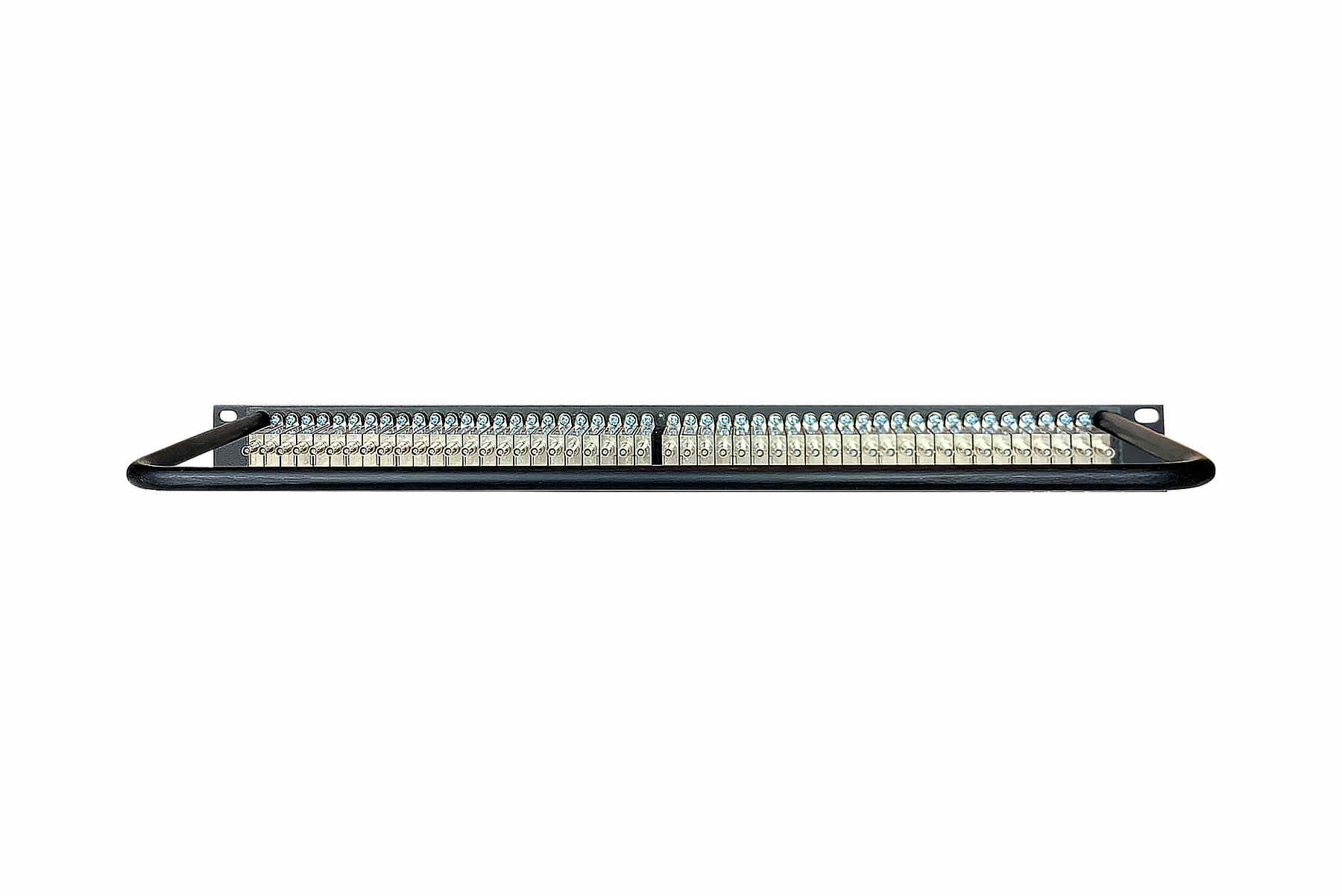

  •  S96S-2MVTBK Micro-Video-32-02.jpg

    S96S-2MVTBK Micro-Video-32-02.jpg

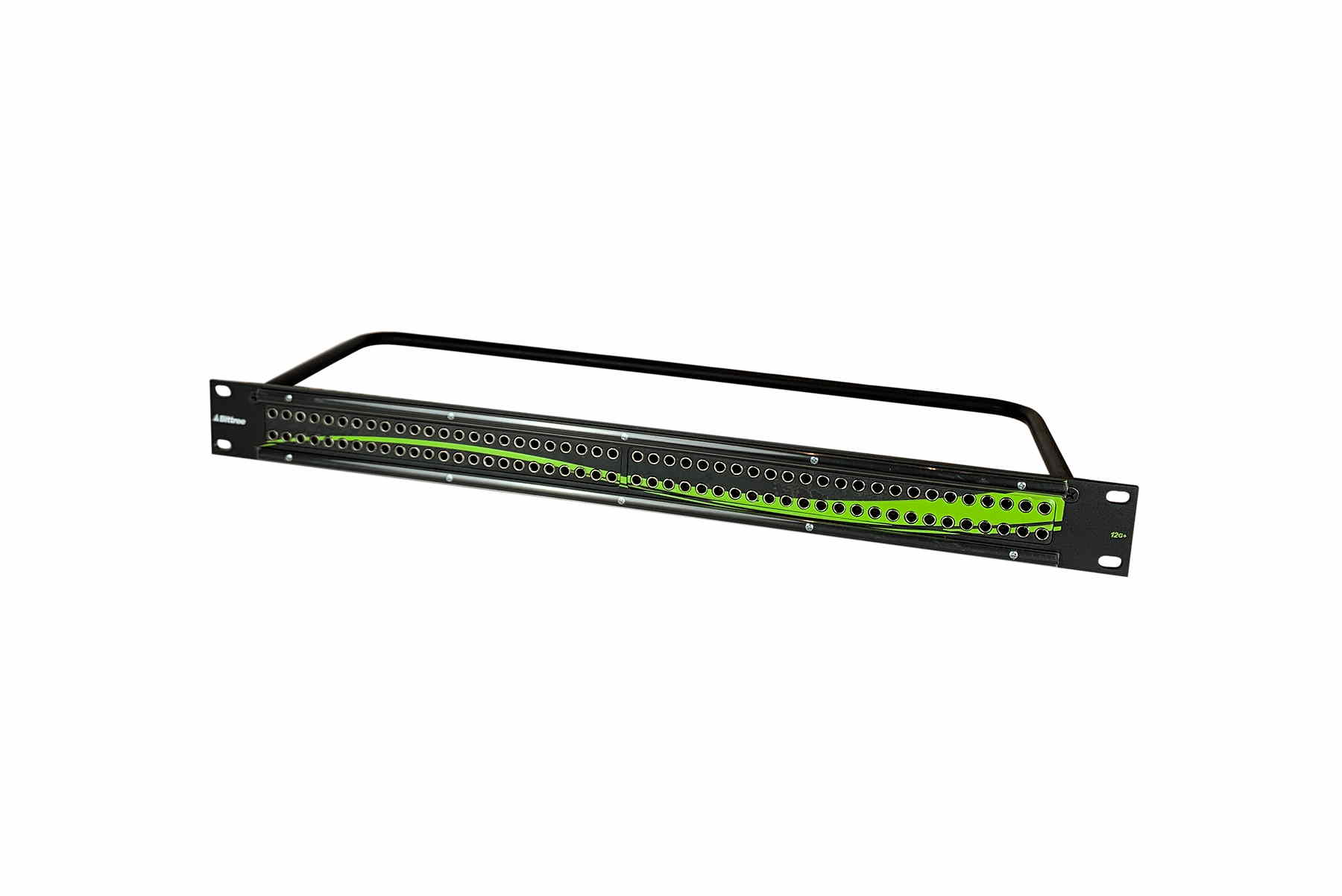

  •  S96S-2MVTBK Micro-Video-32-03.jpg

    S96S-2MVTBK Micro-Video-32-03.jpg

BITTREE 12G+ MICRO-VIDEO PATCHBAY

The S96S Series is 2X32 Micro-Video Patchbay enclosed in a 1RU chassis. 24 GHz high-bandwidth video jacks provide the best possible path for all signals including SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR. Offering true 75 ohm impedance, these patchbays pass SMPTE's 292M, 424M, 2081-1, and 2082-1 specifications for fully uncompressed HD signals.




S96S-2MVTMK
1RU Chassis
Full Normal and Terminated
Rear Interface HD-BNC (Micro BNC)
Price $4,694.00
Add to Cart


S96S-2MVTDK
1RU Chassis
Full Normal and Terminated
Rear Interface Rear Interface DIN 1.0/2.3
Price $4,074.00
Add to Cart


S96S-1MVNMK
1RU Chassis
No Normal and No Termination
Rear Interface HD-BNC (Micro BNC)
Price $4,694.00
Add to Cart


S96S-1MVNDK
1RU Chassis
No Normal and No Termination
Rear Interface Rear Interface DIN 1.0/2.3
Price $4,074.00
Add to Cart



  • 12G+ Mini-WECO Video Jack Properties:
  • 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
  • Single link compatible
  • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
  • True 75 ohm impedance with low return loss
  • Life Cycle Rating: 30,000 cycles
  • Options:
  • Normalling and termination can be achieved through the use of looping and termination plugs
  • Panel Features:
  • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
  • Rear-mounted jack modules
  • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
  • Extruded aluminum bars with clear plastic snap-over caps
  • Staggered BNC Rear Interface
  • RoHS Compliant
