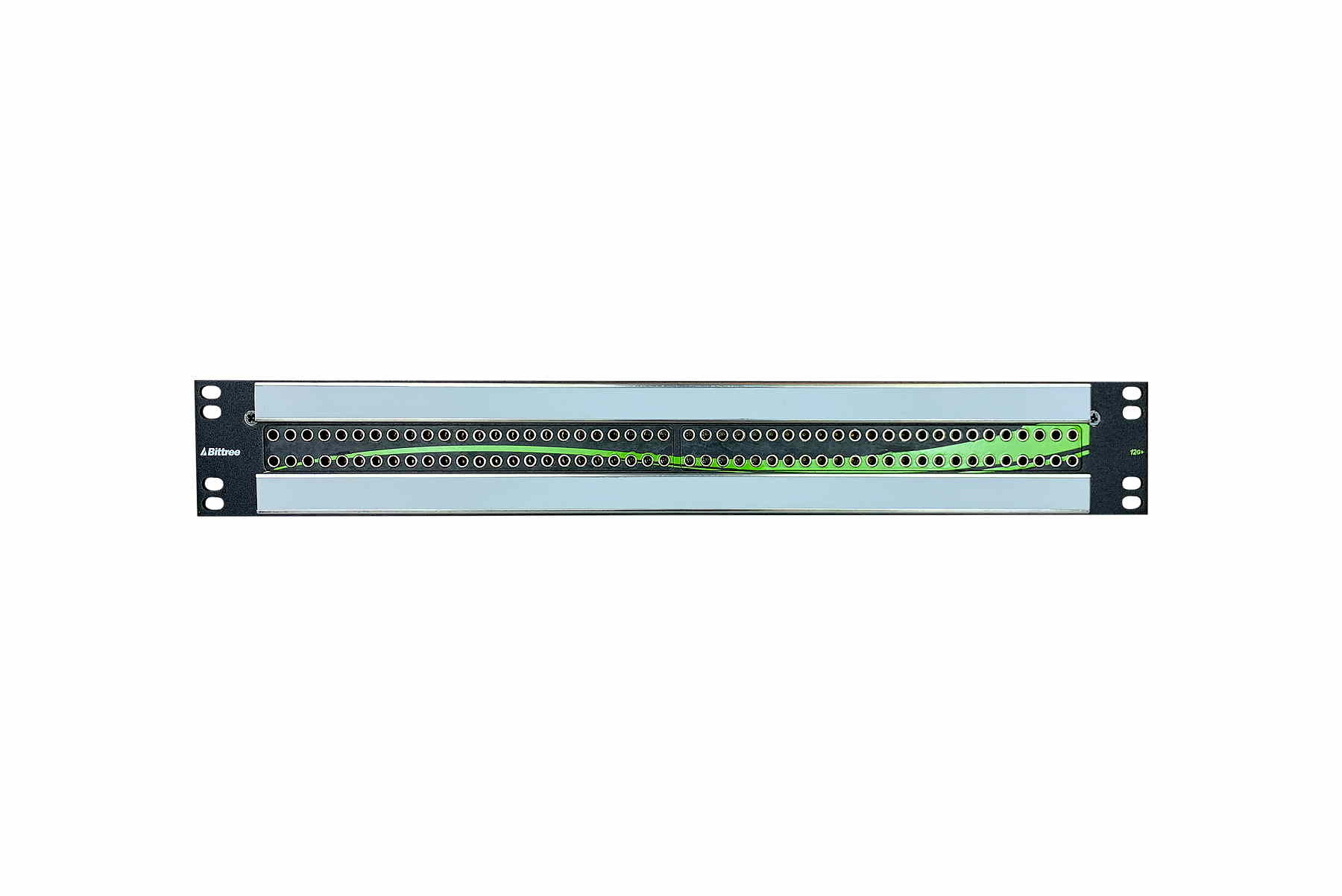

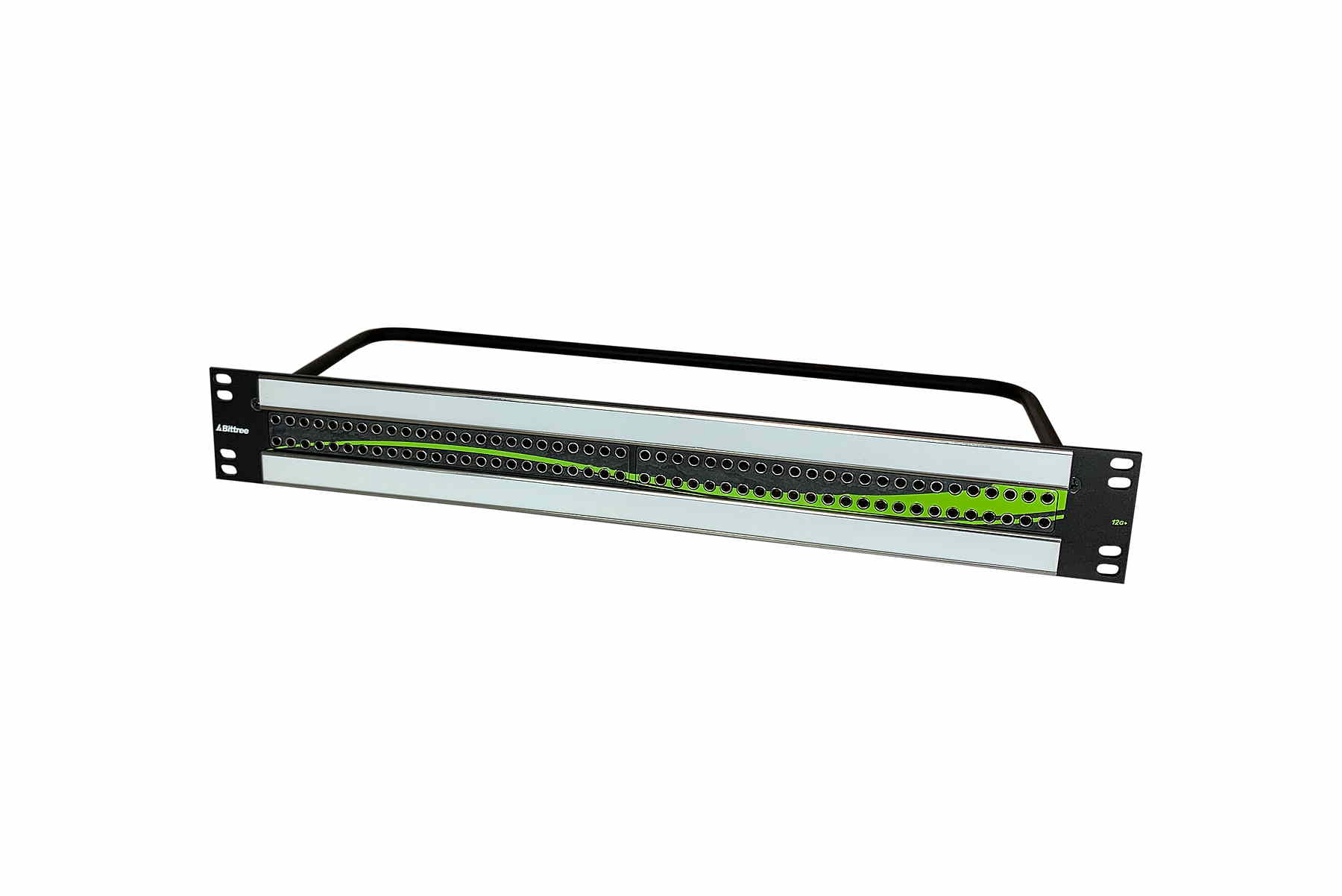

BITTREE 12G+ MICRO-VIDEO PATCHBAY
The S96H is 2X48 Micro-Video Patchbay enclosed in a 1.5RU chassis. 24 GHz high-bandwidth video jacks provide the best possible path for all signals including SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR. Offering true 75 ohm impedance, these patchbays pass SMPTE's 292M, 424M, 2081-1, and 2082-1 specifications for fully uncompressed HD signals.
S96H-2MVTMK
1.5RU Chassis
Full Normal and Terminated
Rear Interface HD-BNC (Micro BNC)
Price $4,694.00
Add to Cart
S96H-2MVTDK
1.5RU Chassis
Full Normal and Terminated
Rear Interface Rear Interface DIN 1.0/2.3
Price $4,074.00
Add to Cart
S96H-2MVNMK
1.5RU Chassis
No Normal and No Termination
Rear Interface HD-BNC (Micro BNC)
Price $4,694.00
Add to Cart
S96H-2MVNDK
1.5RU Chassis
No Normal and No Termination
Rear Interface Rear Interface DIN 1.0/2.3
Price $4,074.00
Add to Cart
- 12G+ Mini-WECO Video Jack Properties:
- 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
- Single link compatible
- SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
- True 75 ohm impedance with low return loss
- Life Cycle Rating: 20,000 cycles
- Options:
- Normalling and termination can be achieved through the use of looping and termination plugs
- Panel Features:
- 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- Extruded aluminum bars with clear plastic snap-over caps

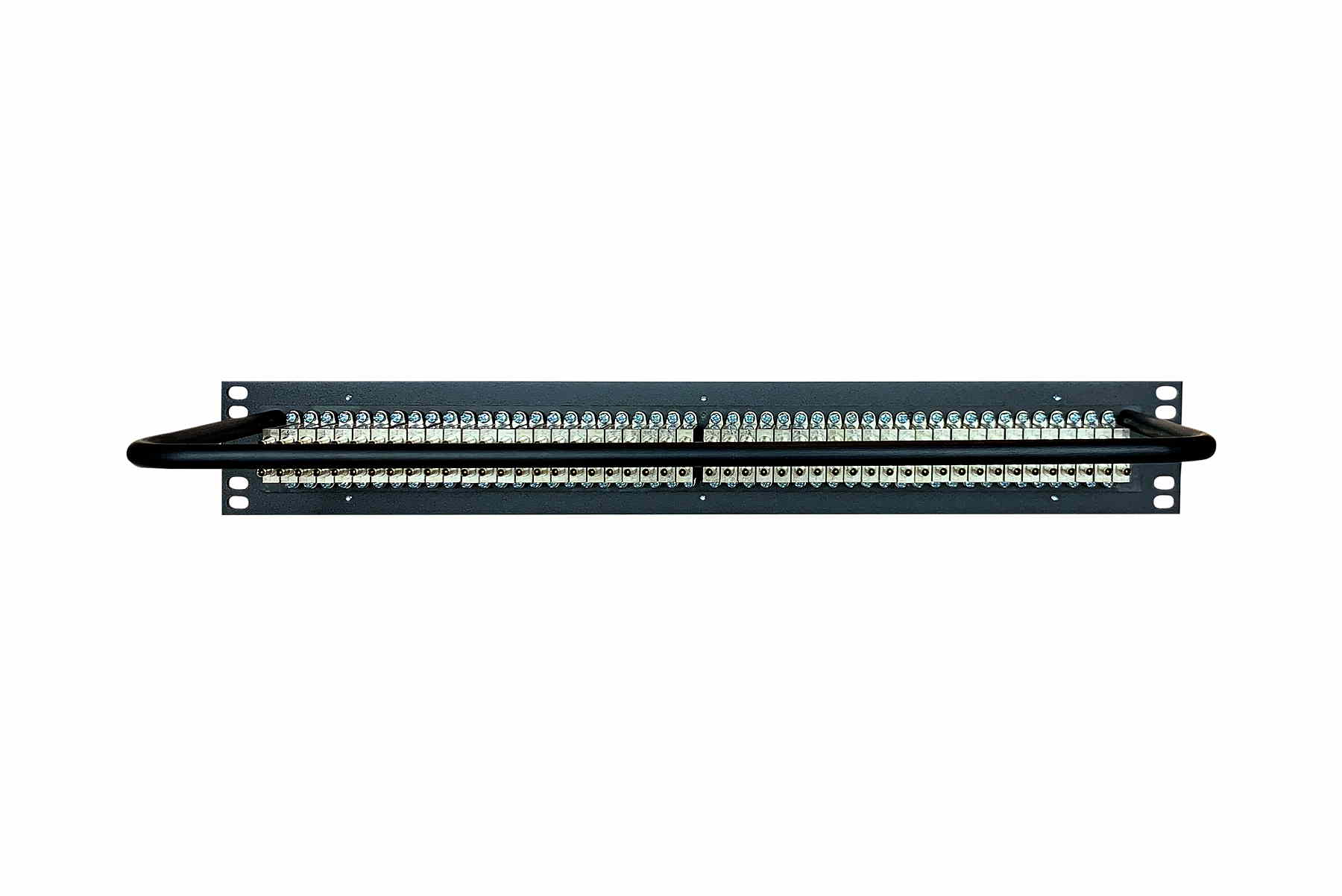

- Staggered BNC Rear Interface
- RoHS Compliant
