BITTREE S64H Series 12G+ MICRO-VIDEO PATCHBAY

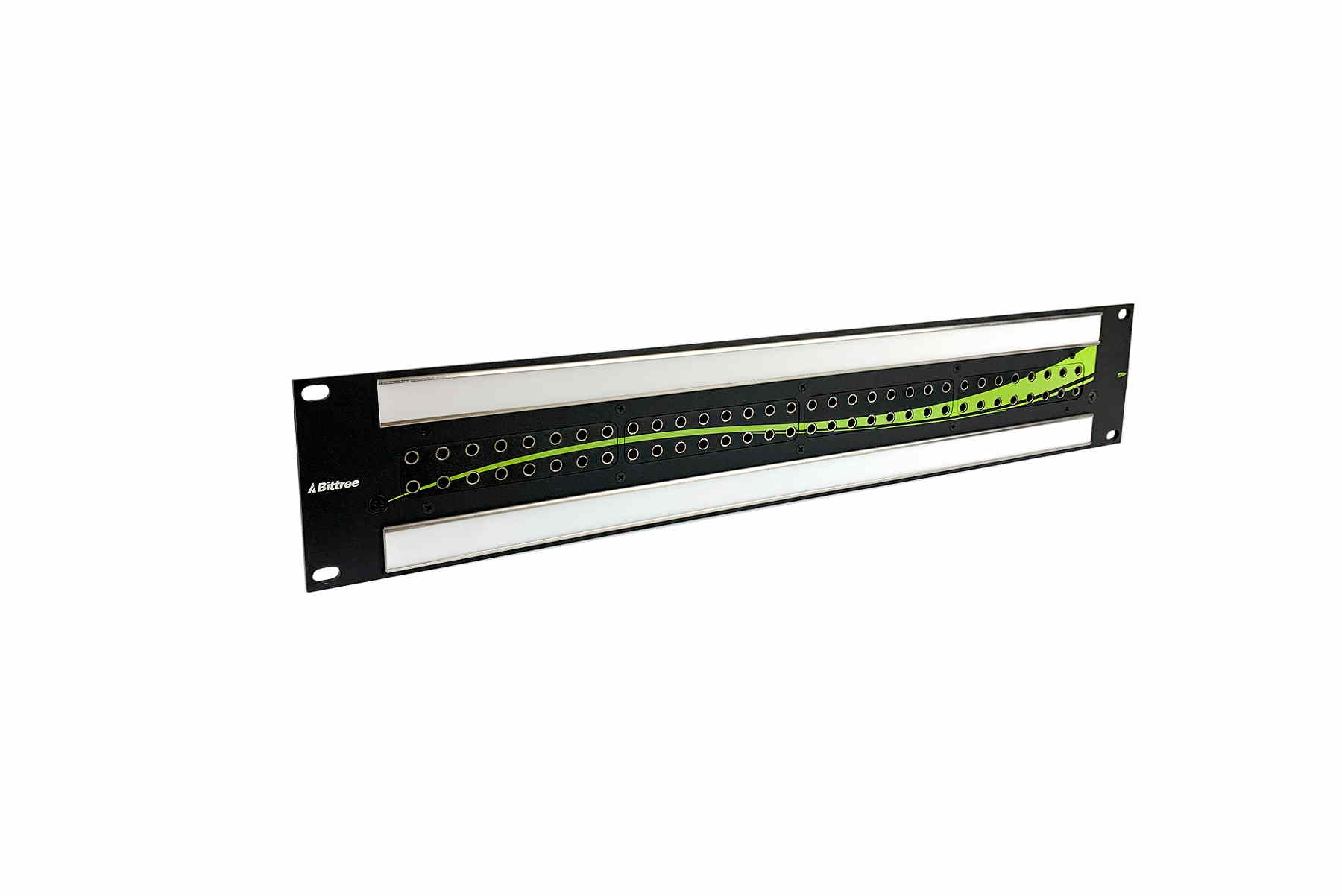

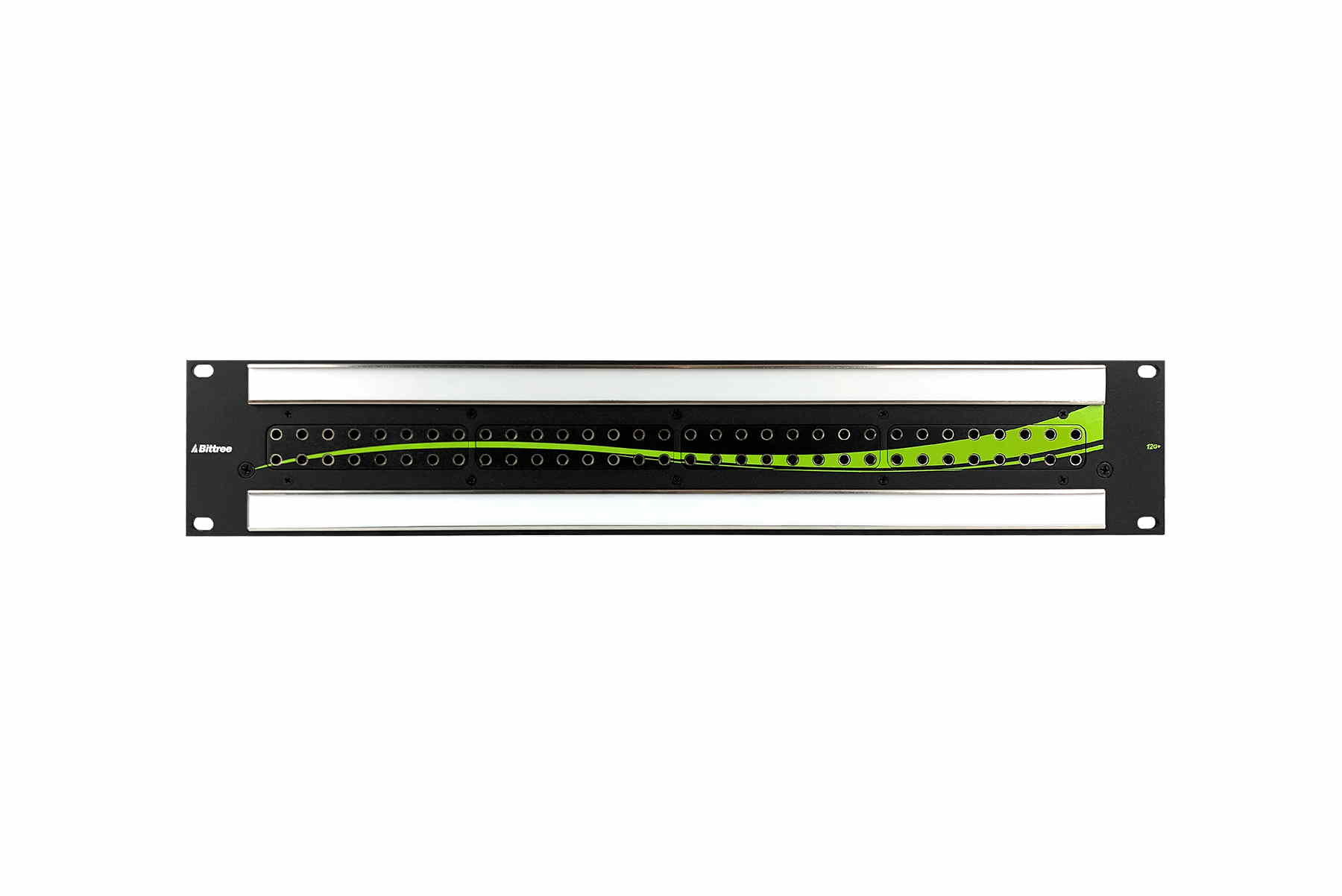

The Bittree S64T Series is 2X32 Micro-Video Patchbay enclosed in a 2RU chassis. 24 GHz high-bandwidth video jacks provide the best possible path for all signals including SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR. Offering true 75 ohm impedance, these patchbays pass SMPTE's 292M, 424M, 2081-1, and 2082-1 specifications for fully uncompressed HD signals.

S64T-2MVTBK
2RU Chassis
Full Normal and Terminated

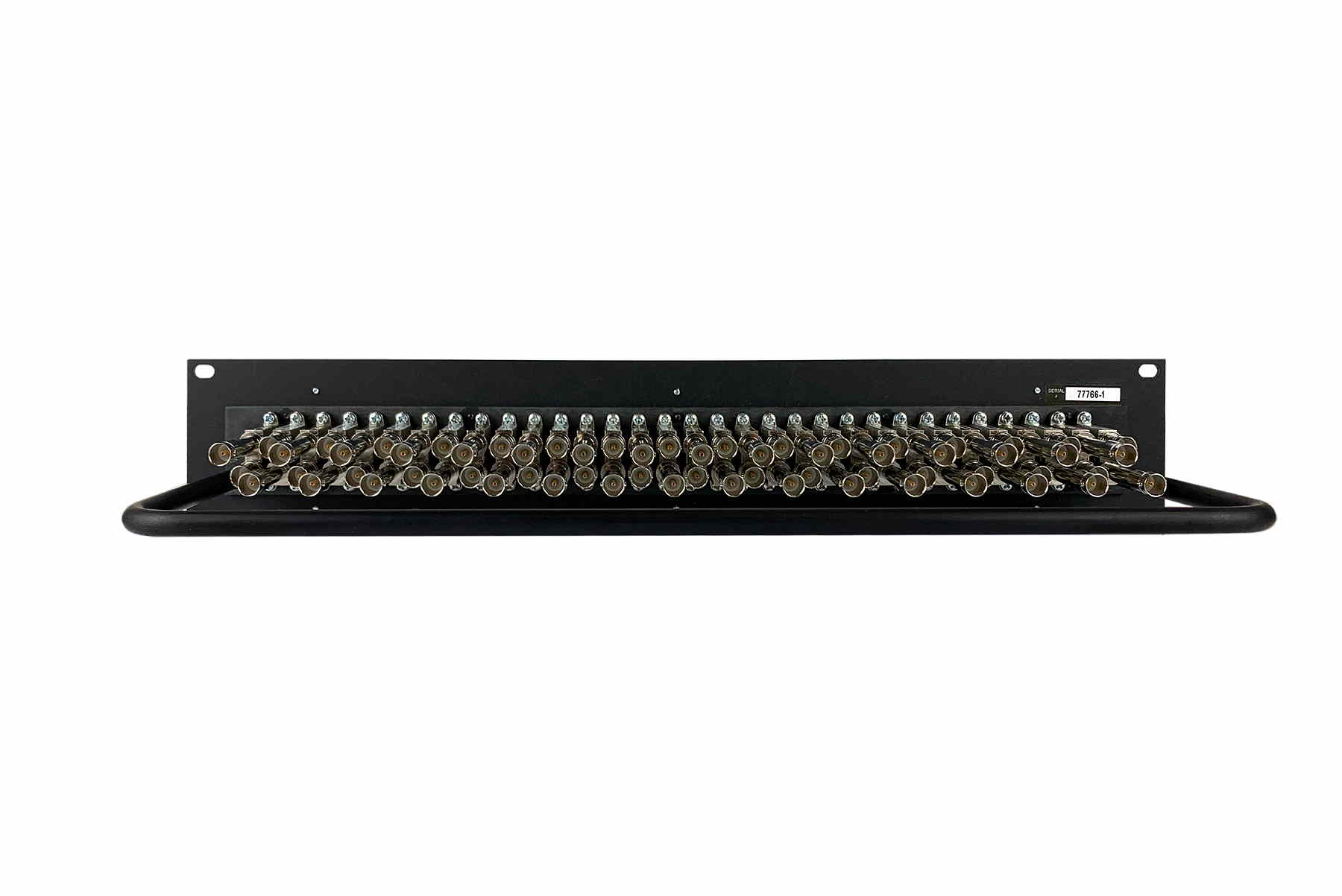

Rear Interface BNC
Price $3,129.00
Add to Cart


S64T-2MVTMK
2RU Chassis
Full Normal and Terminated
Rear Interface HD-BNC (Micro BNC)
Price $3549.00
Add to Cart


S64T-2MVTDK
2RU Chassis
Full Normal and Terminated
Rear Interface DIN 1.0/2.3
Price $2814.00
Add to Cart

S64T-1MVNBK
2RU Chassis
No Normal and No Termination
Rear Interface BNC
Price $3,129.00
Add to Cart


S64T-1MVNMK
2RU Chassis
No Normal and No Termination
Rear Interface HD-BNC (Micro BNC)
Price $3549.00
Add to Cart


S64T-1MVNDK
2RU Chassis
No Normal and No Termination
Rear Interface DIN 1.0/2.3
Price $2814.00
Add to Cart


  • Properties:
  • HD-BNC® (Micro), and DIN (1.0/2.3) back panel connectivity options
  • 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
  • Single link compatible
  • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
  • True 75 ohm impedance with low return loss
  • Life Cycle Rating: 20,000 cycles
  • Options:
  • Rack Heights: 1 RU, 1.5 RU, 2RU
  • HD-BNC® (Micro), and DIN (1.0/2.3) back panel connectivity options
  • Compliance:
  • RoHS Compliant
