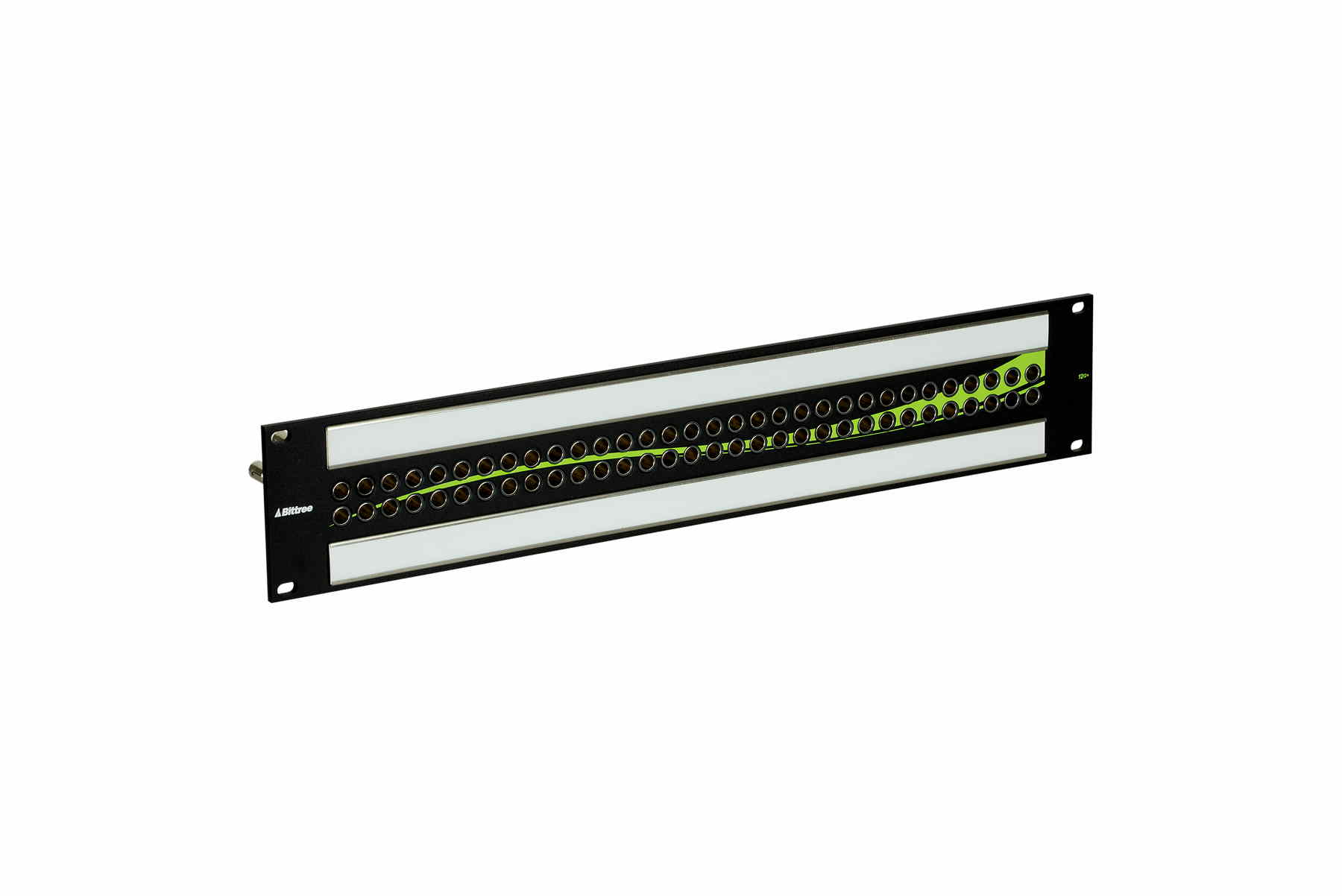

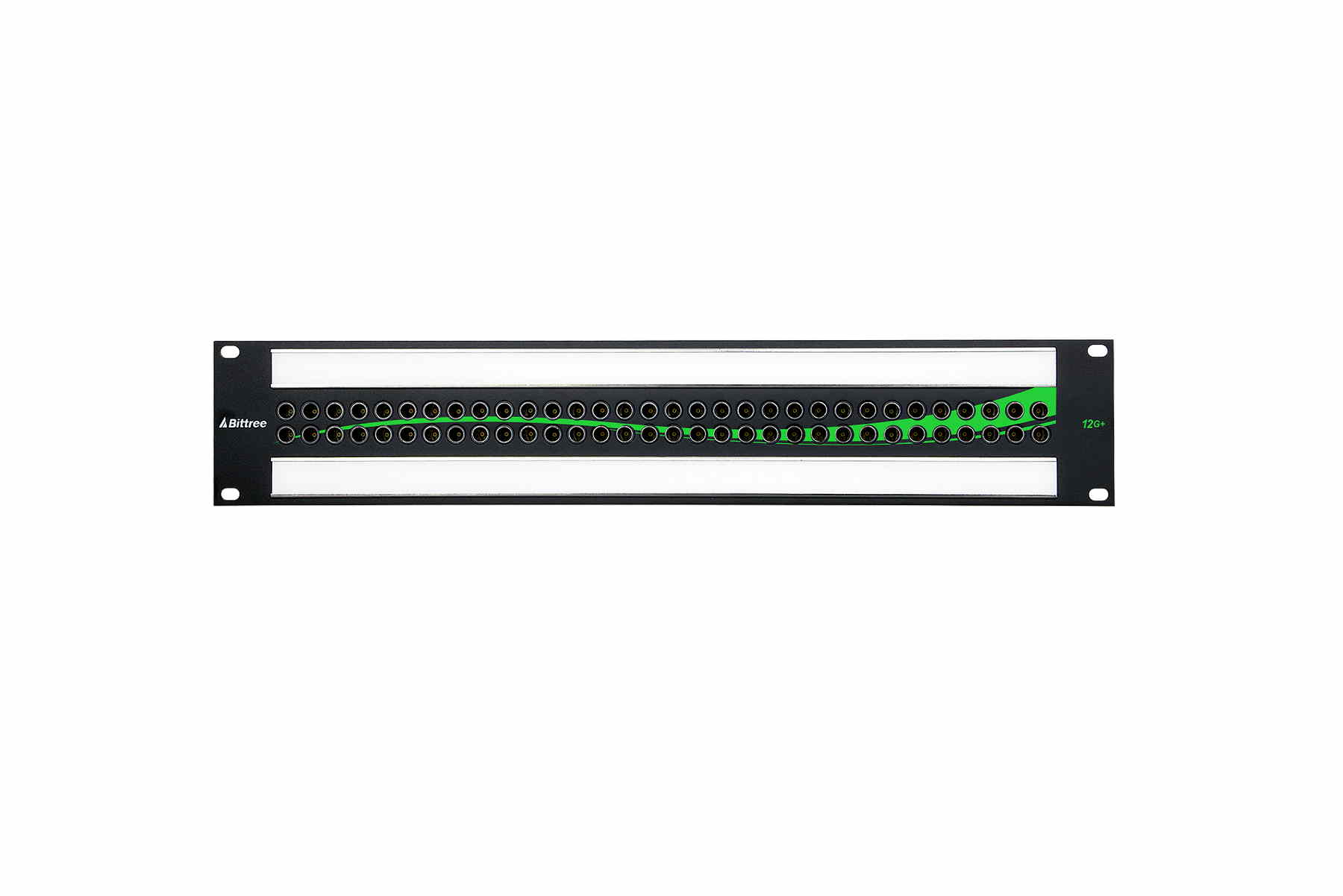

BITTREE 12G+ MINI-WECO MIDSIZE VIDEO PATCHBAY

The S64T-1MWNBK 2RU Video Patchbay is a Midsize Video Patchbay 2X32 Mini-Weco jacks enclosed in 2RU chassis. 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications. The BNC jacks are 75 ohm impedance, these patchbays also pass SMPTE 292M, 424M, 2081-1, and are 2082-1 compliant.

S64T-1MWNBK MINI-WECO MIDSIZE VIDEO PATCHBAY
64 Channels 2RU
Price $1487.00
Add to Cart


  • 12G+ Mini-WECO Video Jack Properties:
  • 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
  • Single link compatible
  • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
  • True 75 ohm impedance with low return loss
  • Life Cycle Rating: 30,000 cycles
  • Panel Features:
  • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
  • Rear-mounted jack modules
  • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel • 2 x DS870-10 Designation Strips: - Stainless-steel sliders with white styrene and non-glare Lexan inserts
  • Staggered BNC Rear Interface
  • Options:
  • Termination can be achieved through the use of termination plugs
  • Compliance:
  • RoHS Compliant
