BITTREE 12G+ MINI-WECO MIDSIZE VIDEO PATCHBAY
The S64S-1MWNBK 1RU Video Patchbay is a Midsize Video Patchbay 2X32 Mini-Weco jacks enclosed in a single space 1RU chassis. 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications. The BNC jacks are 75 ohm impedance, these patchbays also pass SMPTE 292M, 424M, 2081-1, and are 2082-1 compliant.

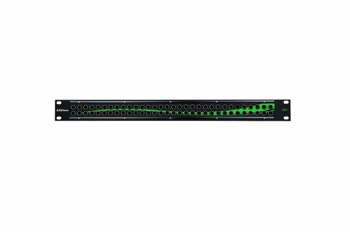

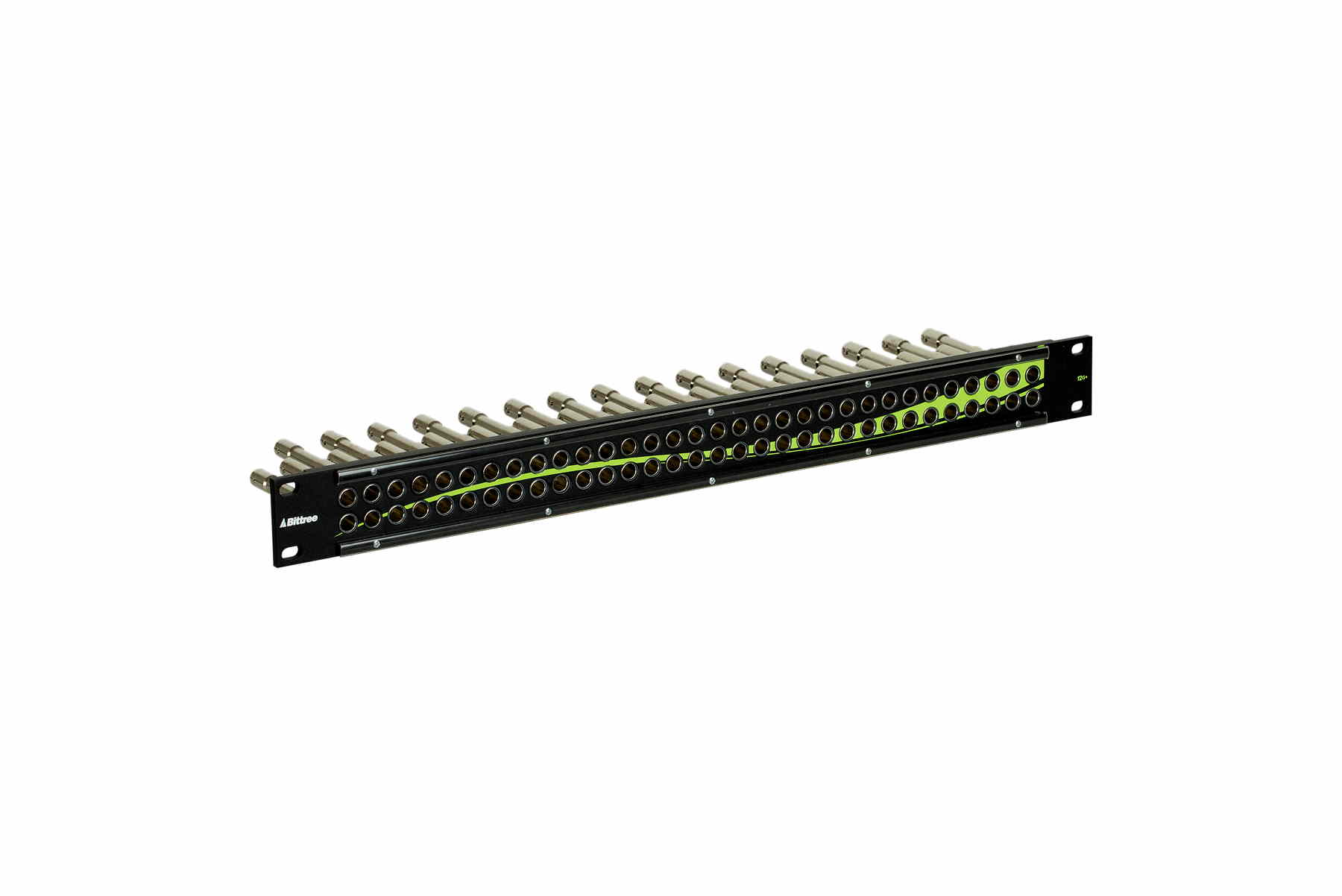

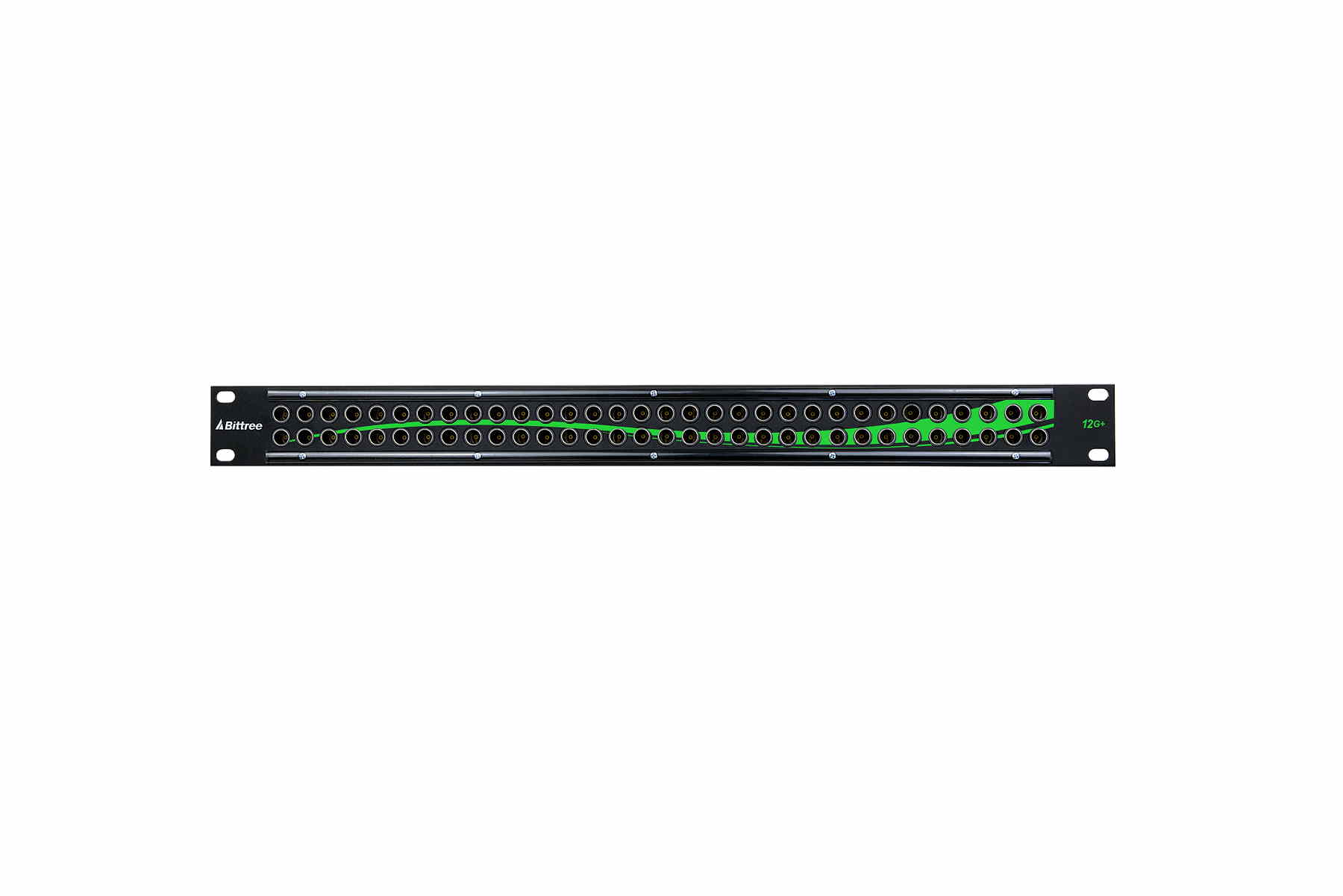

S64S-1MWNBK MINI-WECO MIDSIZE VIDEO PATCHBAY
64 Channels 1RU
Price $1487.00
Add to Cart
- 12G+ Mini-WECO Video Jack Properties:
- 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
- Single link compatible
- SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
- True 75 ohm impedance with low return loss
- Life Cycle Rating: 30,000 cycles
- Panel Features:
- 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel • 2 x DS250-10 Designation Strips: - Extruded aluminum bars with clear plastic snap-over caps

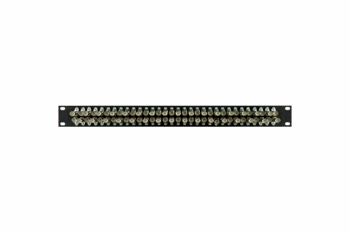

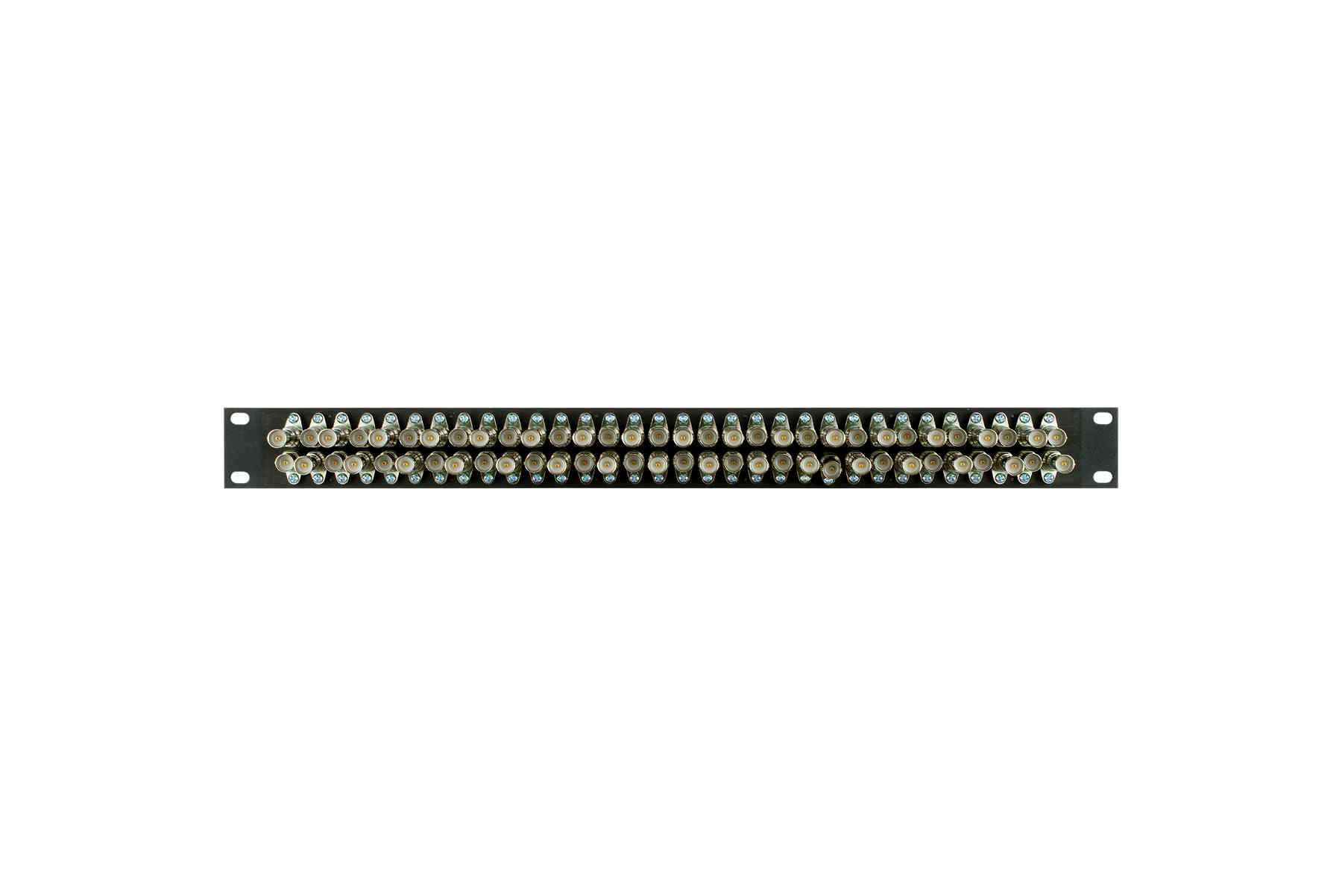

- Staggered BNC Rear Interface
- Options:
- Termination can be achieved through the use of termination plugs
- Compliance:
- RoHS Compliant
