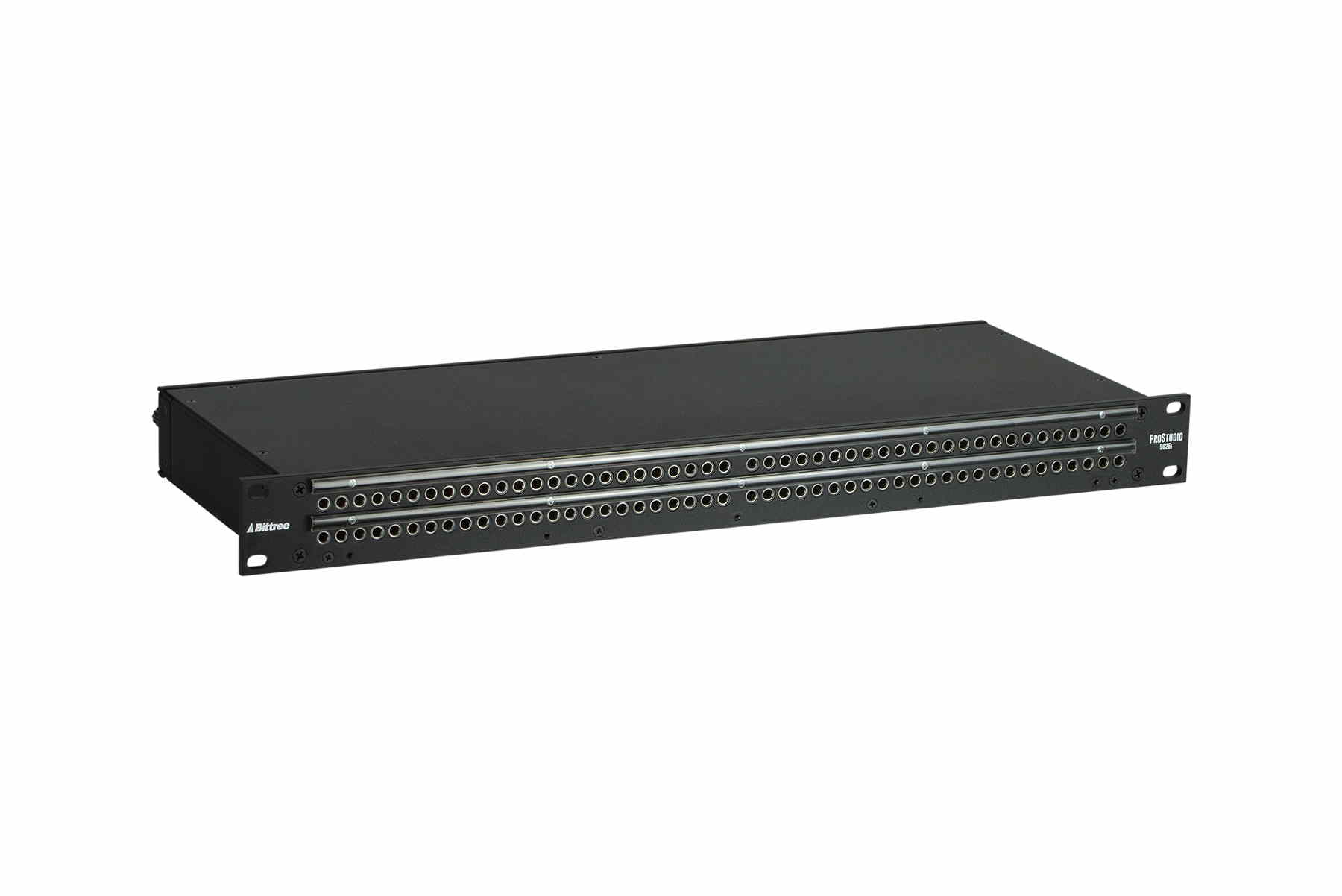

The Bittree PS96DB25I ProStudio Patchbay provides 96 channels of audio TT patching. This 1RU patchbay with internal selectable programable normaling, grounding and busses, makes it easy to change normals by removing the top of the chassis. The unit has 2x48 TT channels on the front and 12 DB-25 connectors on the rear. Db-25 pinout is the Tascam, ProTools standard.

Bittree ProStudio 96 Point Patchbay
1RU 2x48 TT to DB-25
PS96DB25I
Price $1193.00
Add to Cart

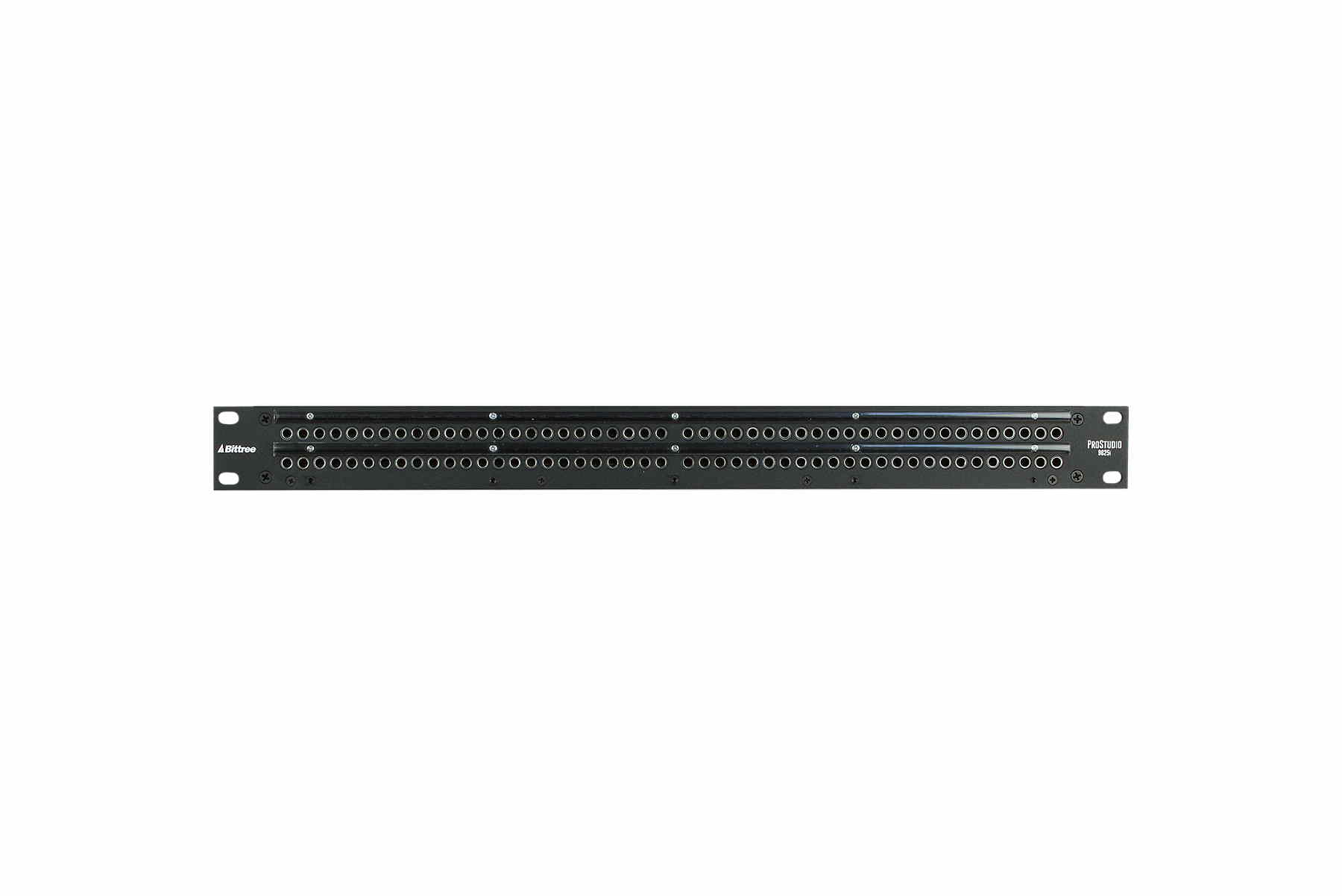

  • High-density 2x48 jack configuration with mono (even) jack spacing

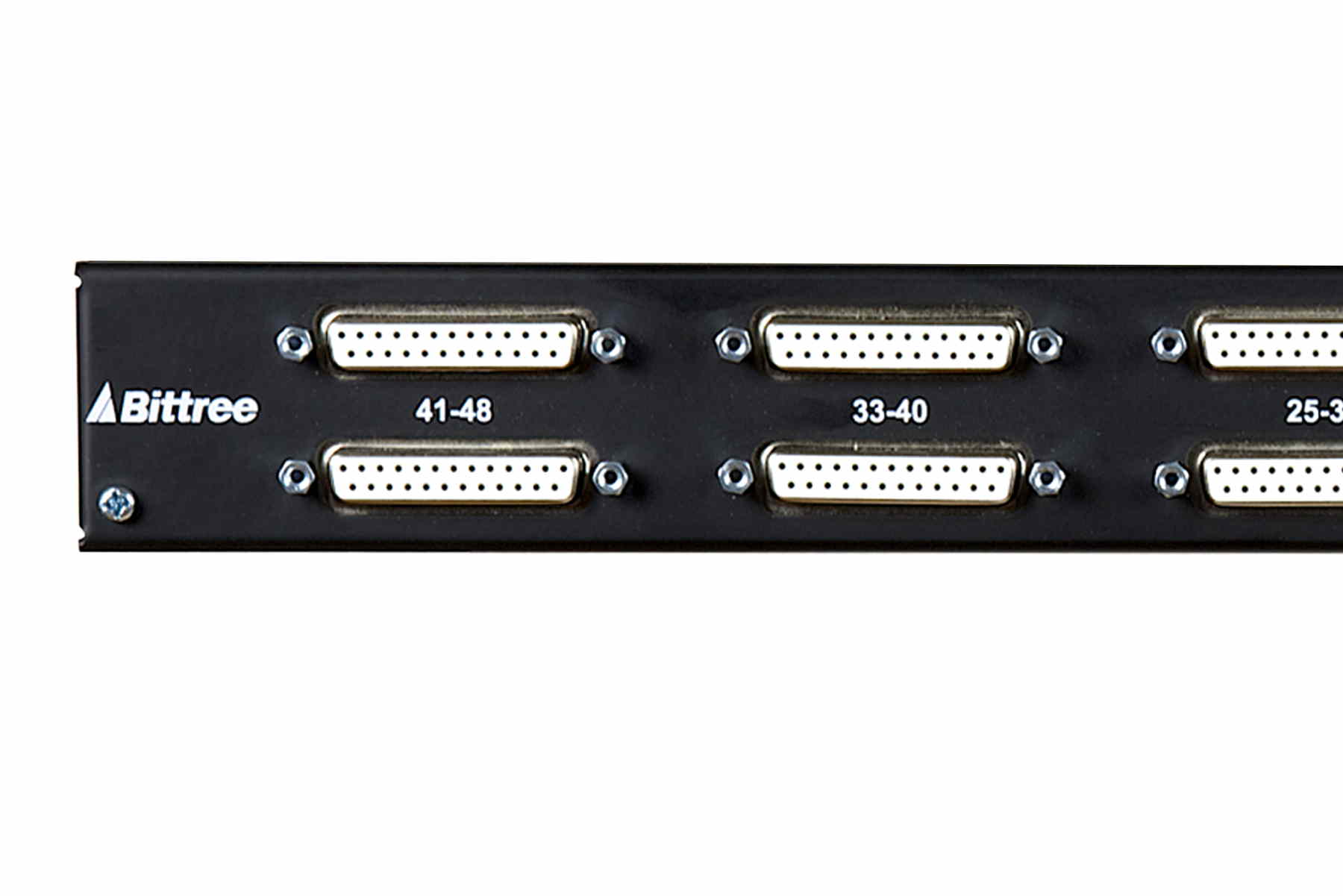

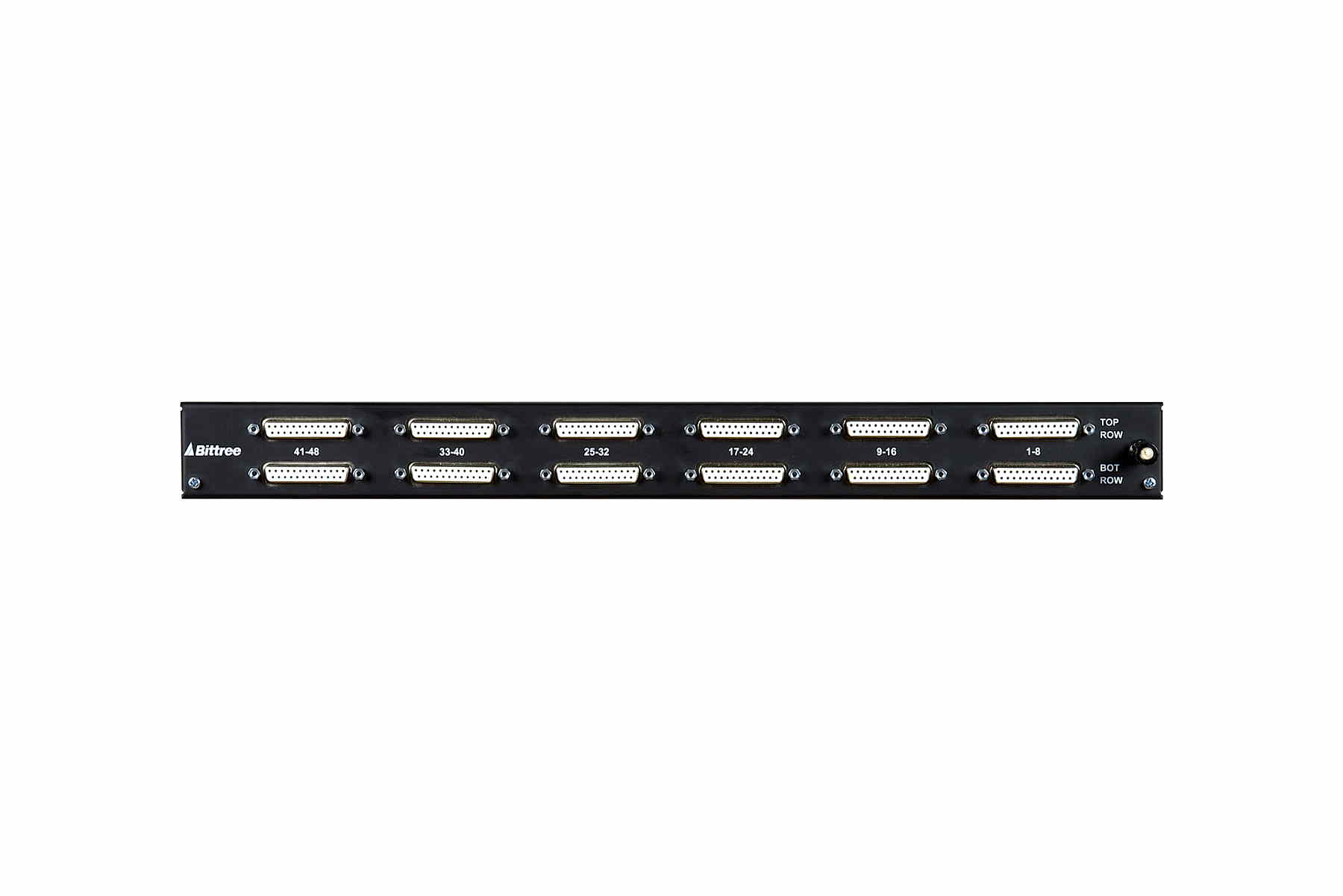

  • DB25 rear interface (12 x 25-pin female DB25 connectors)
  • Protools®, Tascam® DB25 Pinout
  • Selectable normalling and grounding
  • Ships full normal with bussed grounds

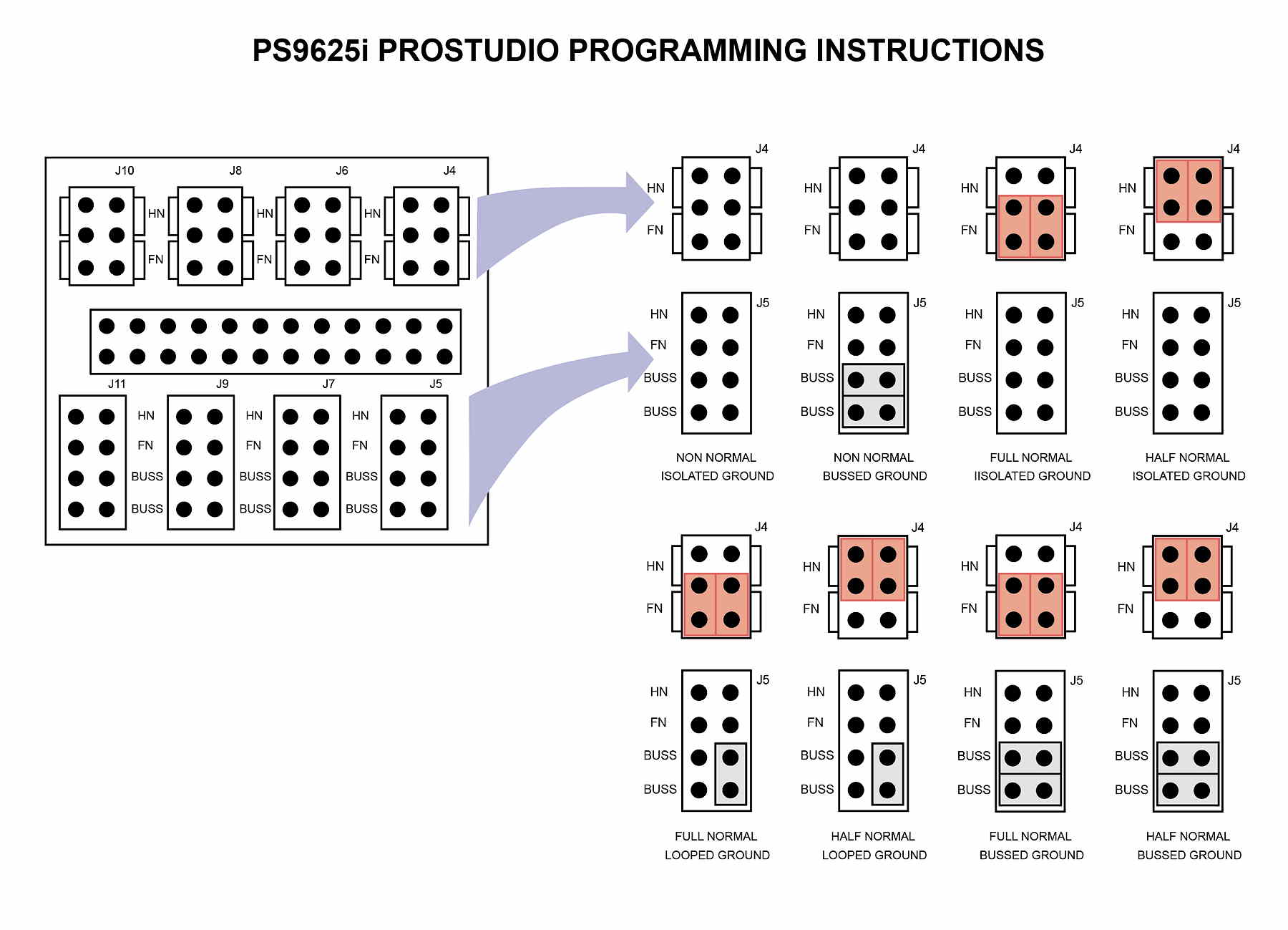

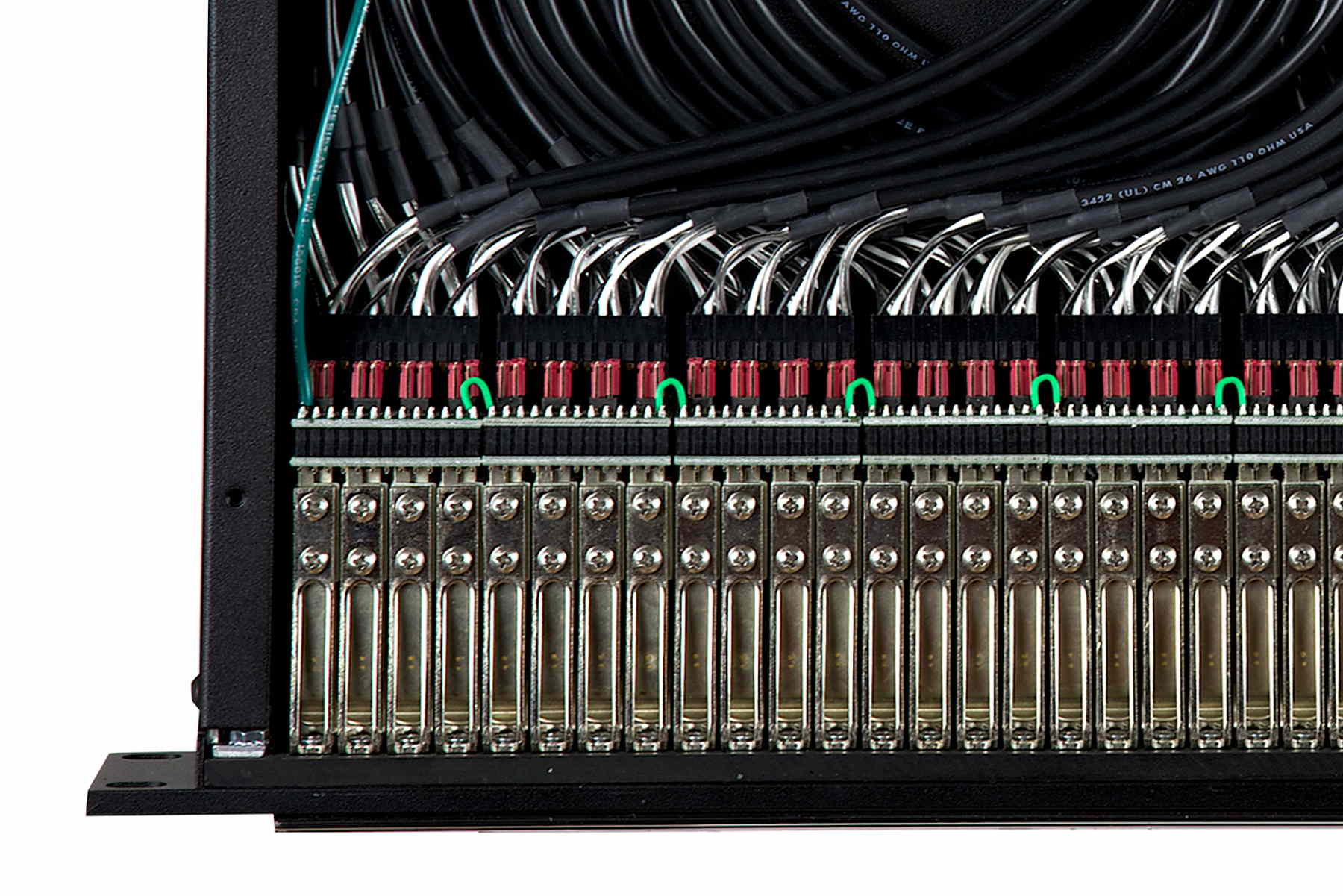

  • Circuits can be easily changed via shunts under both designation strips
  • Normalling – circuits can be set to full normal, half normal or non-normal
  • Analog and Digital 110 ohm compatible
  • 1-48 left-to-right numbering on front panel for easy circuit identification
  • 2 x DS800-10 designation strips, "Over/Under" orientation
  • Analog and Digital 110 ohm compatible
  • 1-24 left-to-right numbering on front panel for easy circuit identification
  • 2 x DS250-10 designation strips, "Over/Over" orientation
  • 7" (17.78 cm) deep fully enclosed chassis
  • RoHS Compliant
