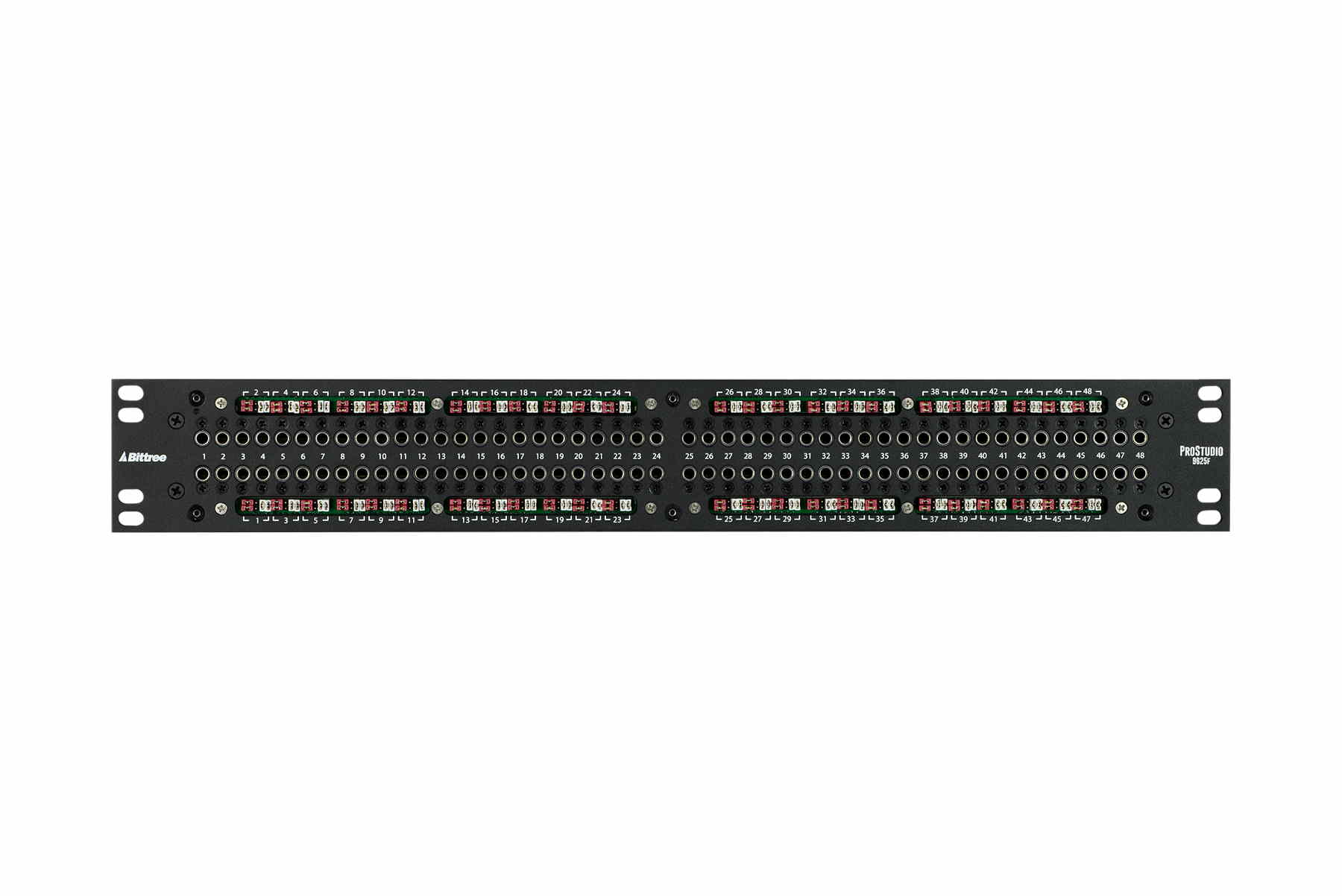

PS96DB25F 2x48 TT to DB-25 ProStudio Patchbay-003
-
PS96DB25F 2x48 TT to DB-25 ProStudio Patchbay-005
-

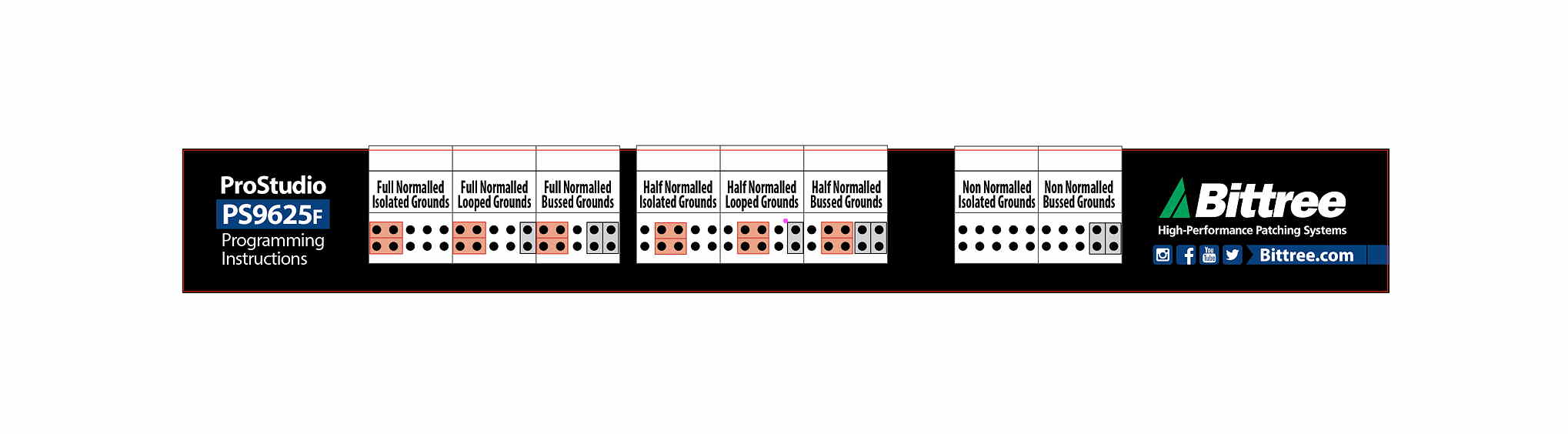

PS96DB25F 2x48 TT to DB-25 ProStudio Patchbay-006
The Bittree PS96DB25F ProStudio Patchbay provides 96 channels of audio TT patching. With front selectable normaling, grounding and busses, it is easy to make changes quickly without having to remove the patchbay from your gear rack or access the rear if using in desktop mode. The unit has 2x48 TT channels on the front and Six DB-25 connectors on the rear. Db-25 pinout is the Tascam, ProTools standard.
Bittree ProStudio 96 Point Patchbay
1.5RU 2x48 TT to DB-25
PS96DB25F
Price $1499.00
Add to Cart
- High-density 2x48 jack configuration with mono (even) jack spacing
- DB25 rear interface (12 x 25-pin female DB25 connectors)
- Protools®, Tascam® DB25 Pinout
- Selectable normalling and grounding
- Ships full normal with bussed grounds
- Circuits can be easily changed via shunts under both designation strips
- Normalling – circuits can be set to full normal, half normal or non-normal
- Analog and Digital 110 ohm compatible
- 1-48 left-to-right numbering on front panel for easy circuit identification
- 2 x DS800-10 designation strips, "Over/Under" orientation
- Analog and Digital 110 ohm compatible
- 1-24 left-to-right numbering on front panel for easy circuit identification
- 2 x DS-PS4825/S designation strips, "Over/Under" orientation
- 7" (17.78 cm) deep fully enclosed chassis
- RoHS Compliant
