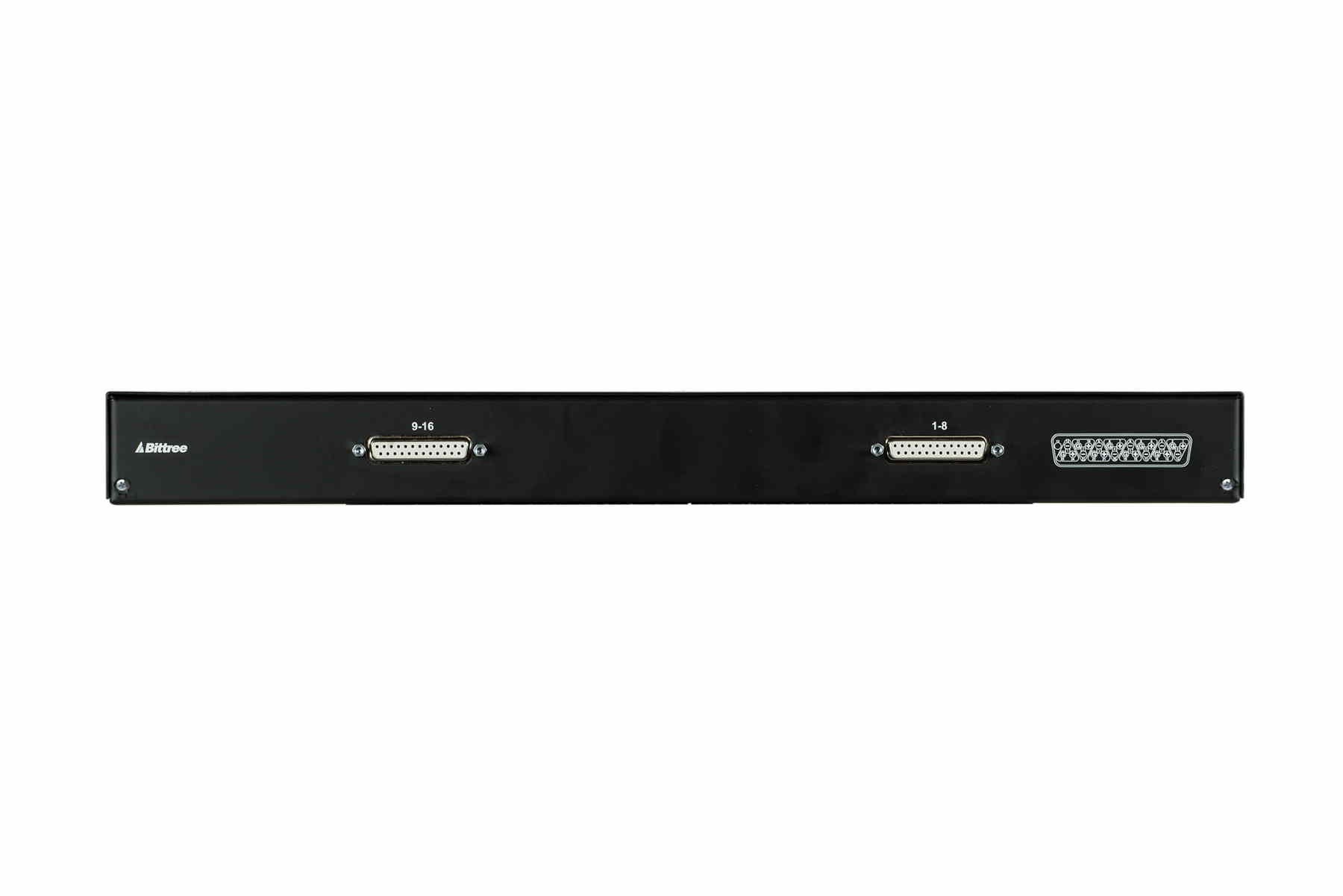

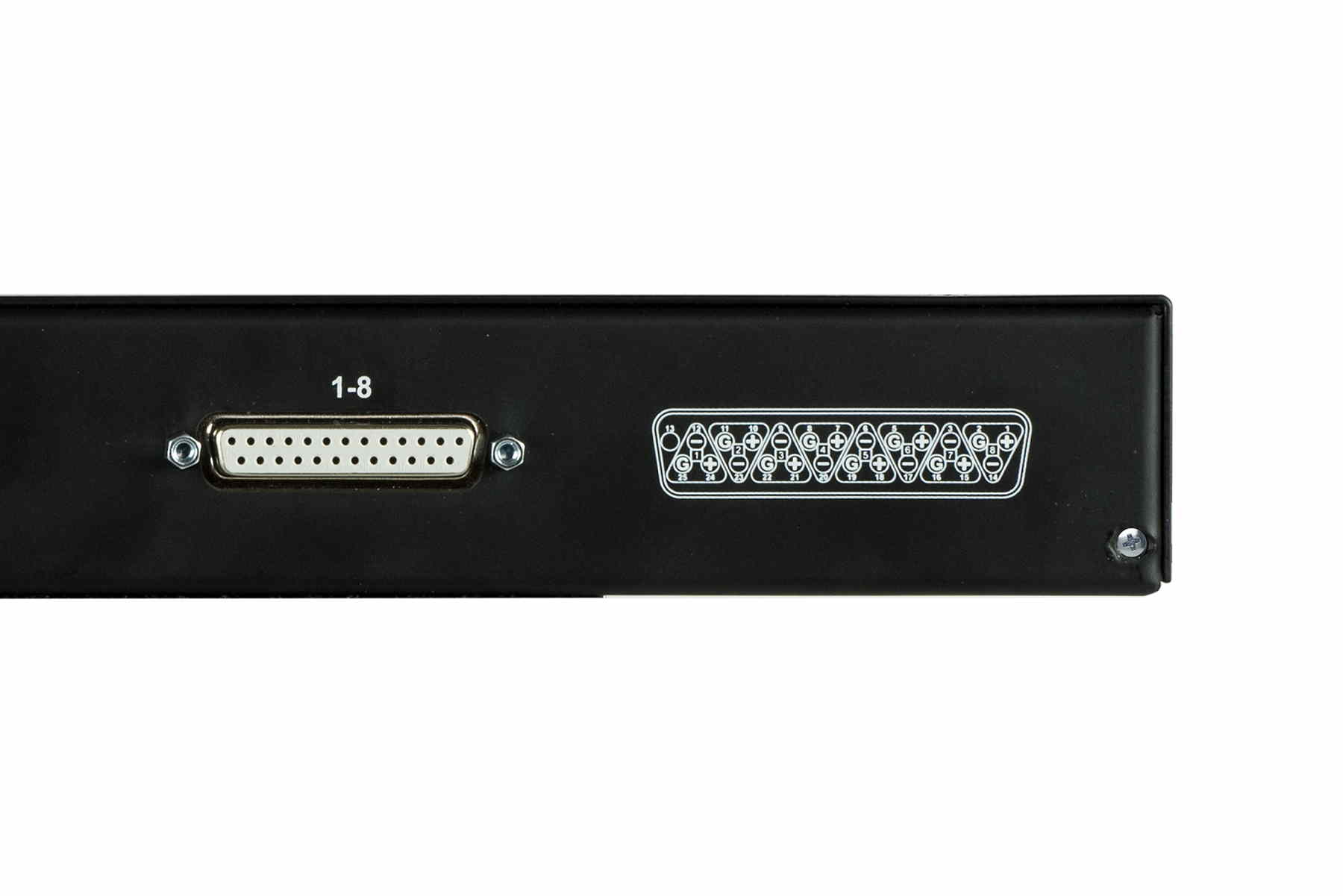

The Bittree PS16DB25QXM 1x16 1RU XLR to DB-25 Pass-Through Patchbay provides 16 channels of audio patching. This 1RU patchbay is available in five configurations. These patchbays have either XLR or TRS jacks on the front and 2 DB-25 connectors on the rear. Db-25 pinout is the Tascam, ProTools standard.


1RU XLR-M to DB-25
XLR-Male to DB-25 Pass-Through Patchbay
PS16DB25QXM
Price $487.00
Add to Cart


  • BittreeĀ® PS16DB25QX Audio pass-through in 1 RU with 1x16 connector configuration
  • Panels come pre-populated with your choice of:

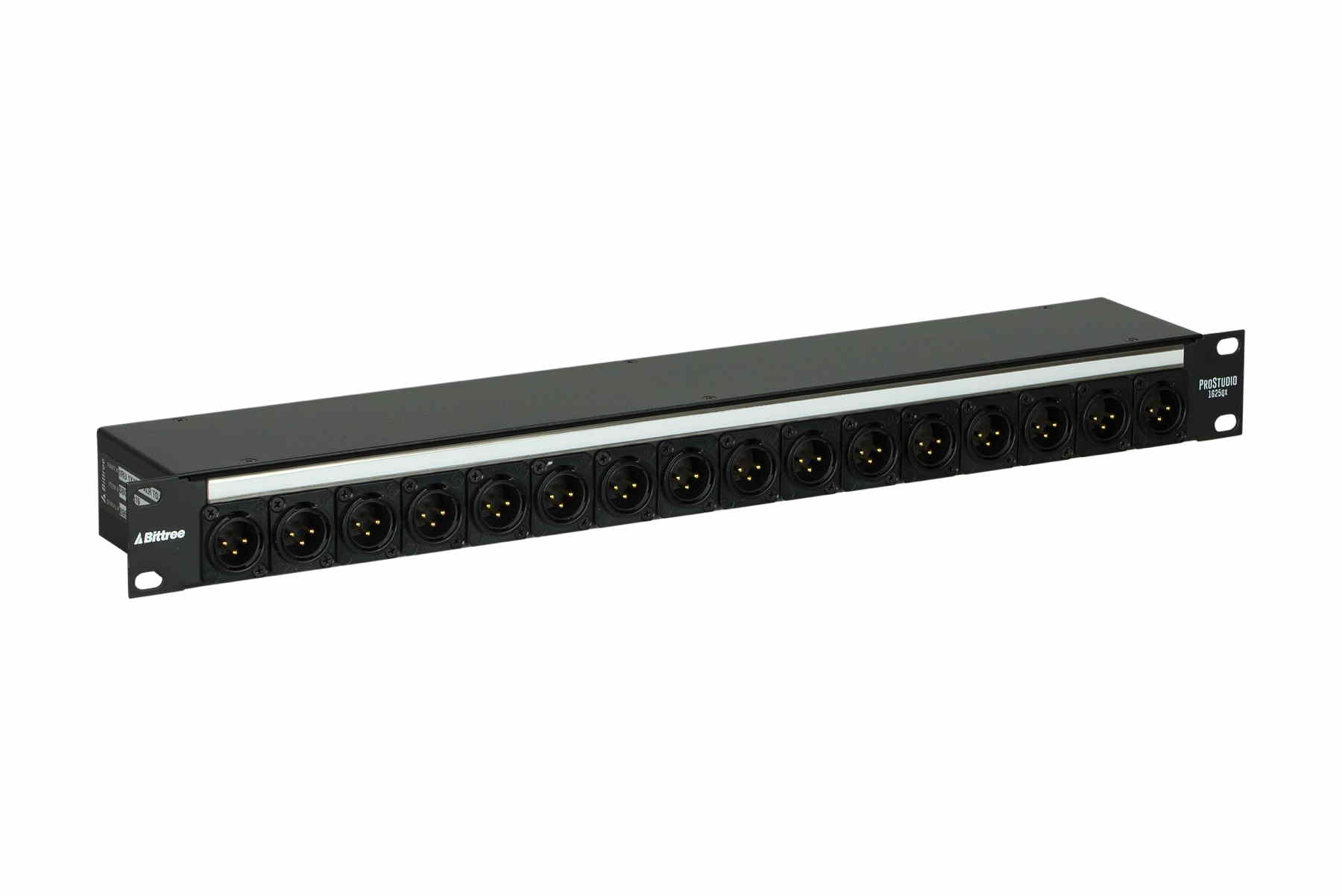

  • 16 male XLR connector modules

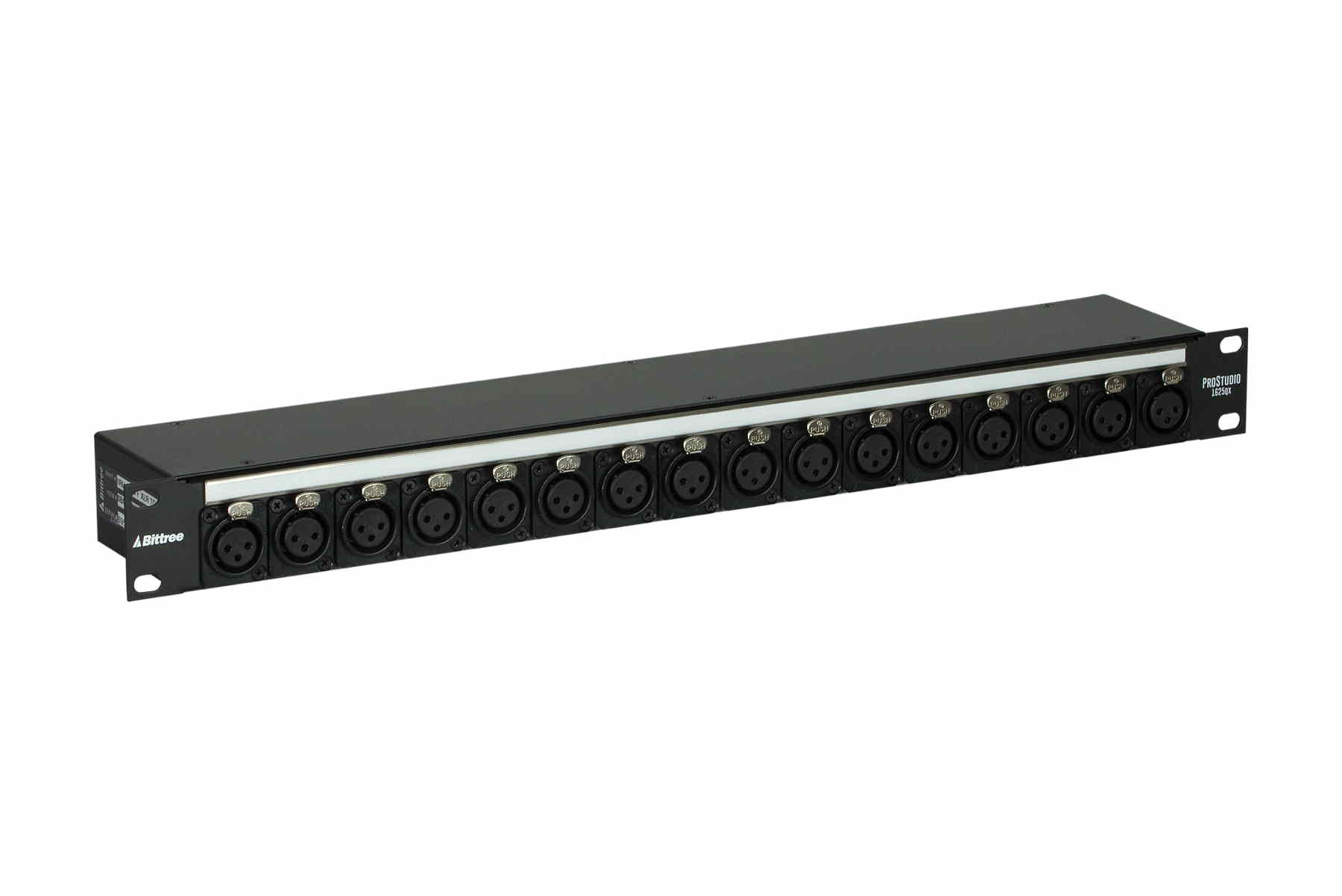

  • 16 female XLR connector modules

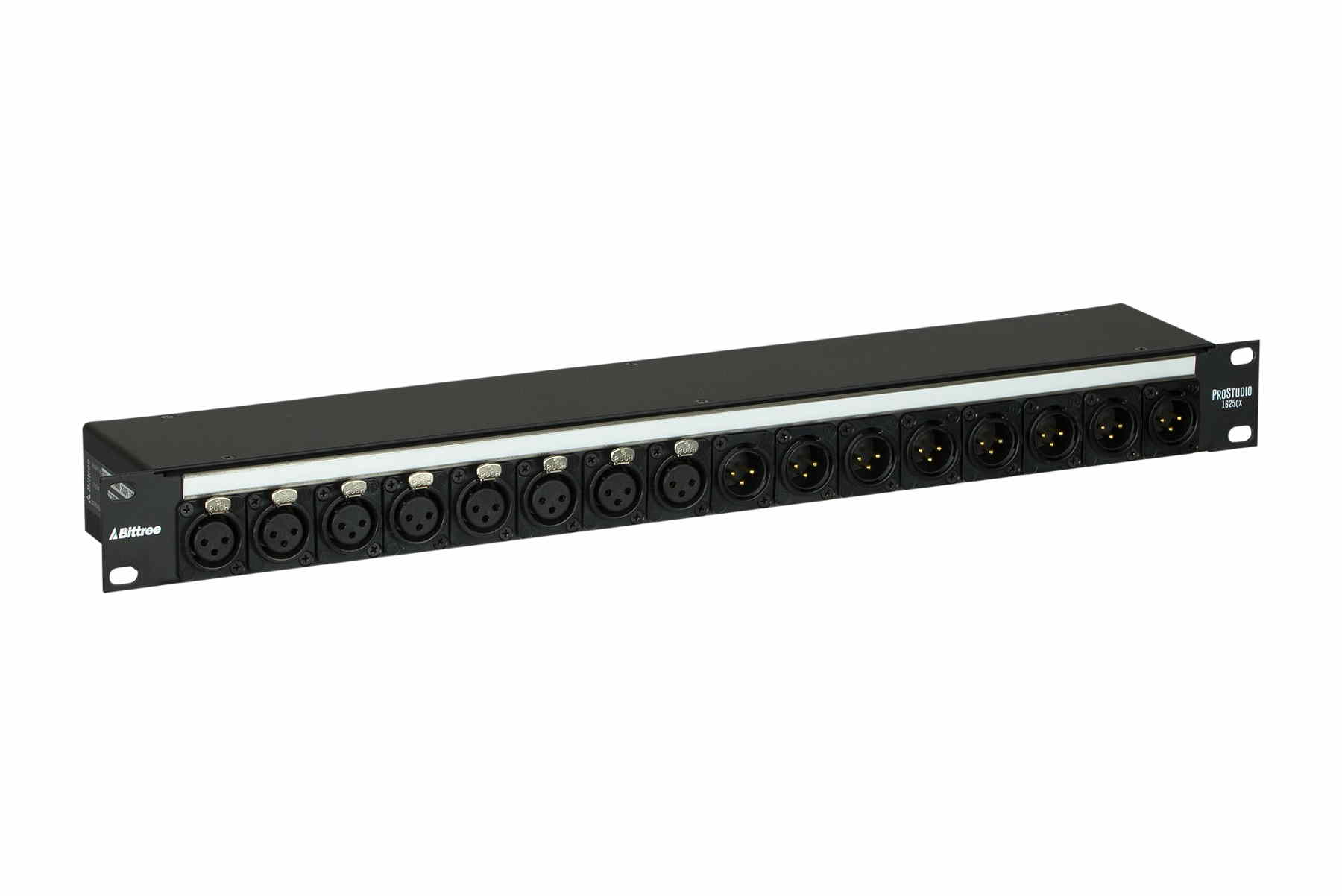

  • 8 male and 8 female XLR connector modules

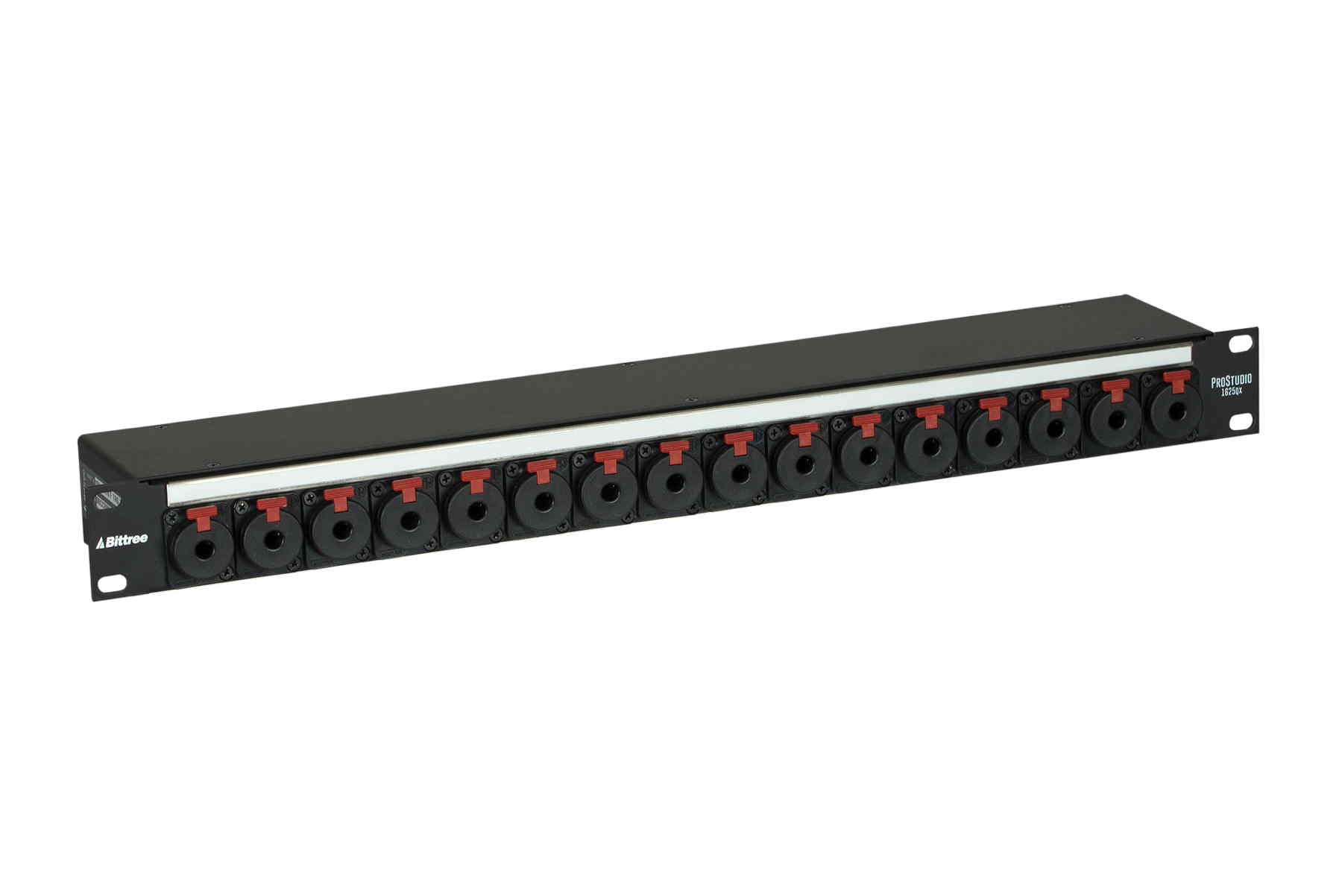

  • 16 female 1/4" TRS musician-type jacks (not compatible with b-gauge 1/4" long-frame patch cables)
  • custom connector configuration available
  • Analog and Digital 110 ohm compatible
  • Digital AES wire used for internal wiring
  • Circuit paths are isolated from the chassis
  • 1 x DS380-10 designation strip
  • Panel Features:
  • Formed aluminum front panel with a durable black powder-coat finish
  • Two piece fully enclosed "tub" style chassis, 3" (7.62 cm) deep
  • Top and sides can be removed easily for internal customization
  • RoHS Compliance
