Bittree Flush Mount Modular Keystone Panel

The DSKP124B-LC provides Duplex LC to LC Fiber in a 1RU panel with 1x24 access. These panels come pre-populated with Blue Jack Modules for simplified termination and integration. This Flush Mount Modular Keystone Panel is also ANSI/TIA-568-C and UL 1863 compliant. Chassis available in Black or 40th Anniversary Nickel

DSKP124B-LC
Blue Fiber-Mount Modular Jacks
1RU 1X24
Price $412.00
Add to Cart

DSKP124N-LC
Blue Fiber-Mount Modular Jacks
1RU 1X24
Price $412.00
Add to Cart


  • Coupler/Adaptor Properties:
  • Duplex LC to LC
  • Zirconia (ceramic) alignment sleeve for compatibility with angle polished cables
  • Supports both multi-mode and single-mode applications
  • Small form factor style and adaptor body enables higher density patching
  • ANSI/TIA-568-C and UL 1863 compliant
  • Panel Features:
  • Keystone jacks mount flush with the surface of the panel
  • Accommodates high-density (HD) keystone inserts with up to a 17 mm width
  • Folded steel front panel with a durable black powder-coat finish
  • Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks

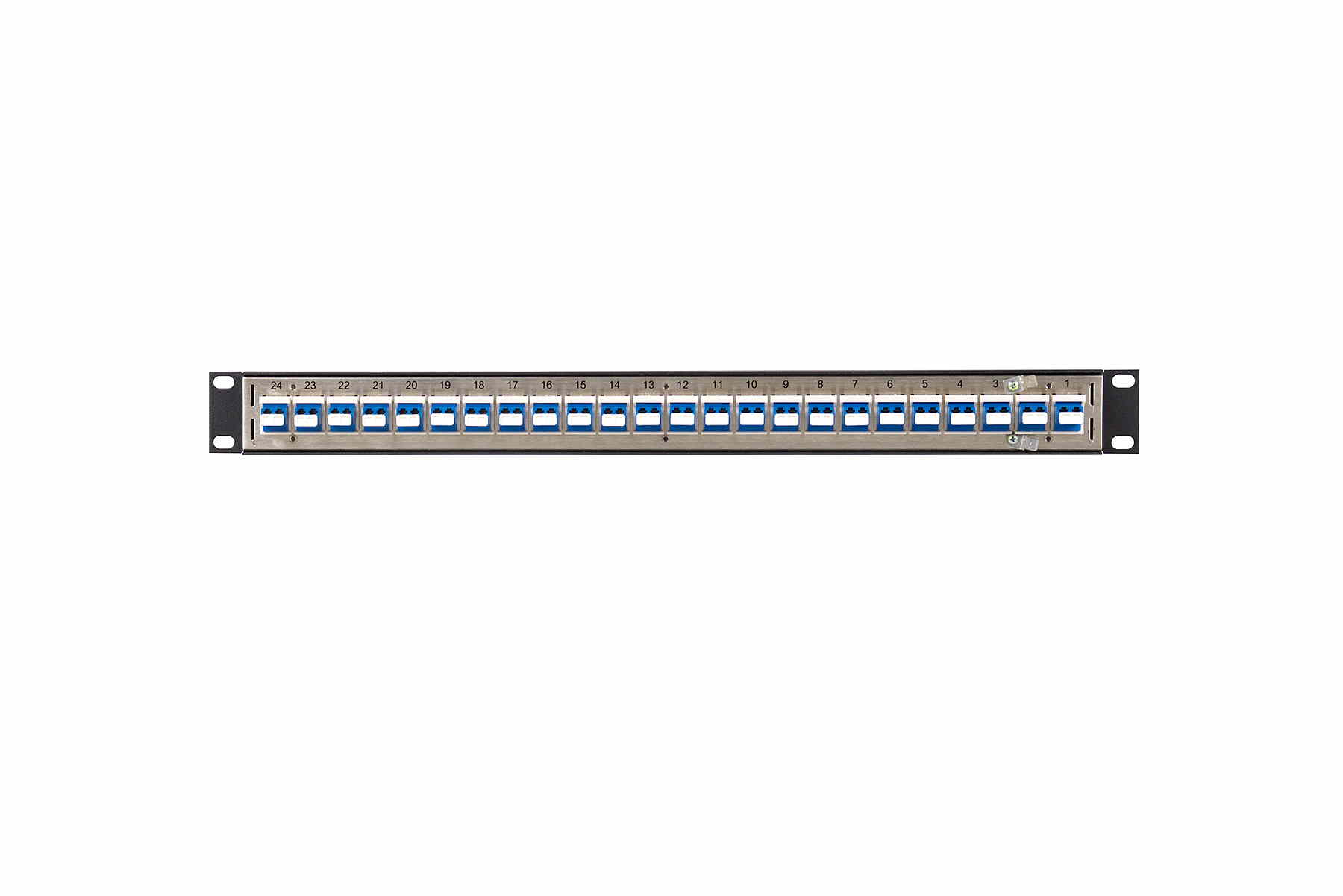

  • Silk screened circuit numbering on the rear
  • 1 x DS430-10 designation strip on the front (bar and cap design)

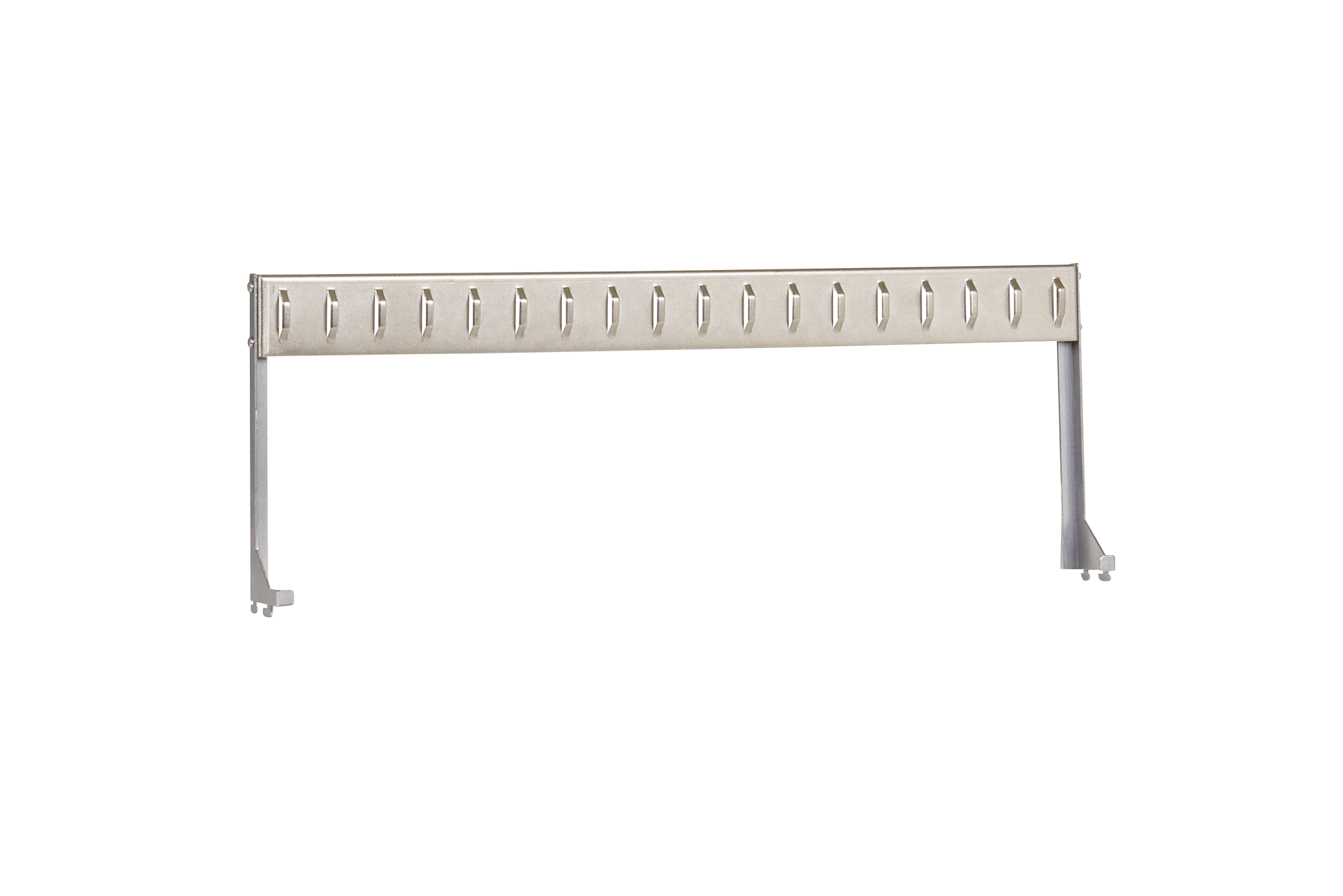

  • 6" (15.24 cm) deep removable rear lacing bar for cable dressing
  • RoHS Compliance
