BITTREE 12G+ Video Distribution Amplifier Chassis


The DAF32X Distribution Amplifier Frame holds up to 32 1-in by 4-out distribution amps housed in a 2RU chassis. Modules are available as coaxial cards or hybrid configurations that join coax with fiber or SMPTE ST 2110-compliant IP network connectivity. For use with DABX Video Distribution Cards, Sold Separately.

DAF32X Distribution Amplifier Frame
Accepts all Bittree X modules
Up to 32 Channels 2RU
Price $2305.00
Add to Cart


  • DAF32X Video Distribution Amplifier Frame:
  • The DAF32X is a 2RU frame which houses the DABX video distribution amplifiers
  • Up to 32 1-in by 4-out distribution amps per frame
  • Accepts all Bittree X modules
  • Wideband frame for sd-sdi, and hd-sdi & 4K UHD 12G SDI

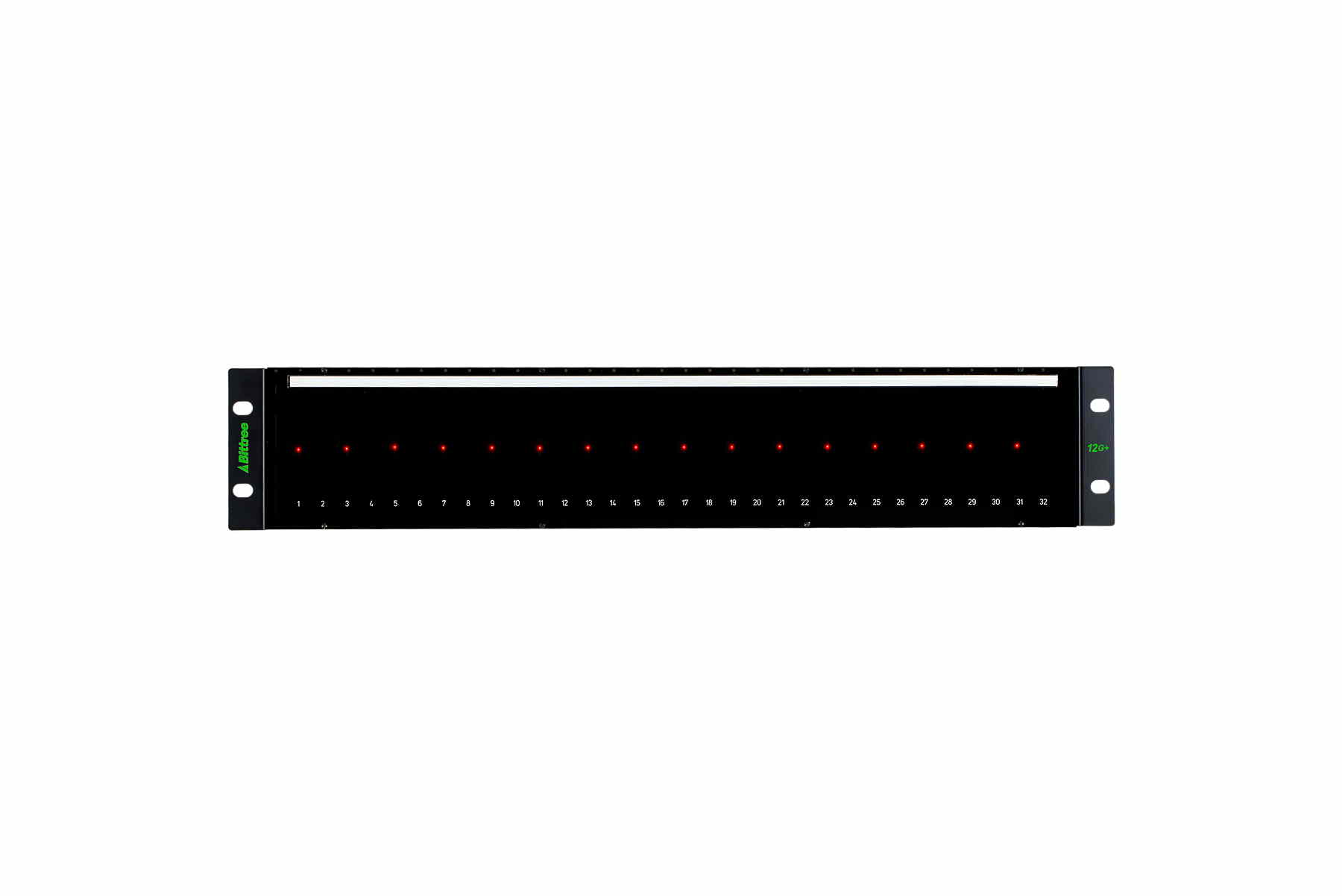

  • See thru front cover allows quick status indication
  • Input Coax
  • Connectors DIN 1.0/2.3, 75 ohm
  • Number of inputs up to 32
  • Number of outputs up to 128
  • RoHS Compliant
