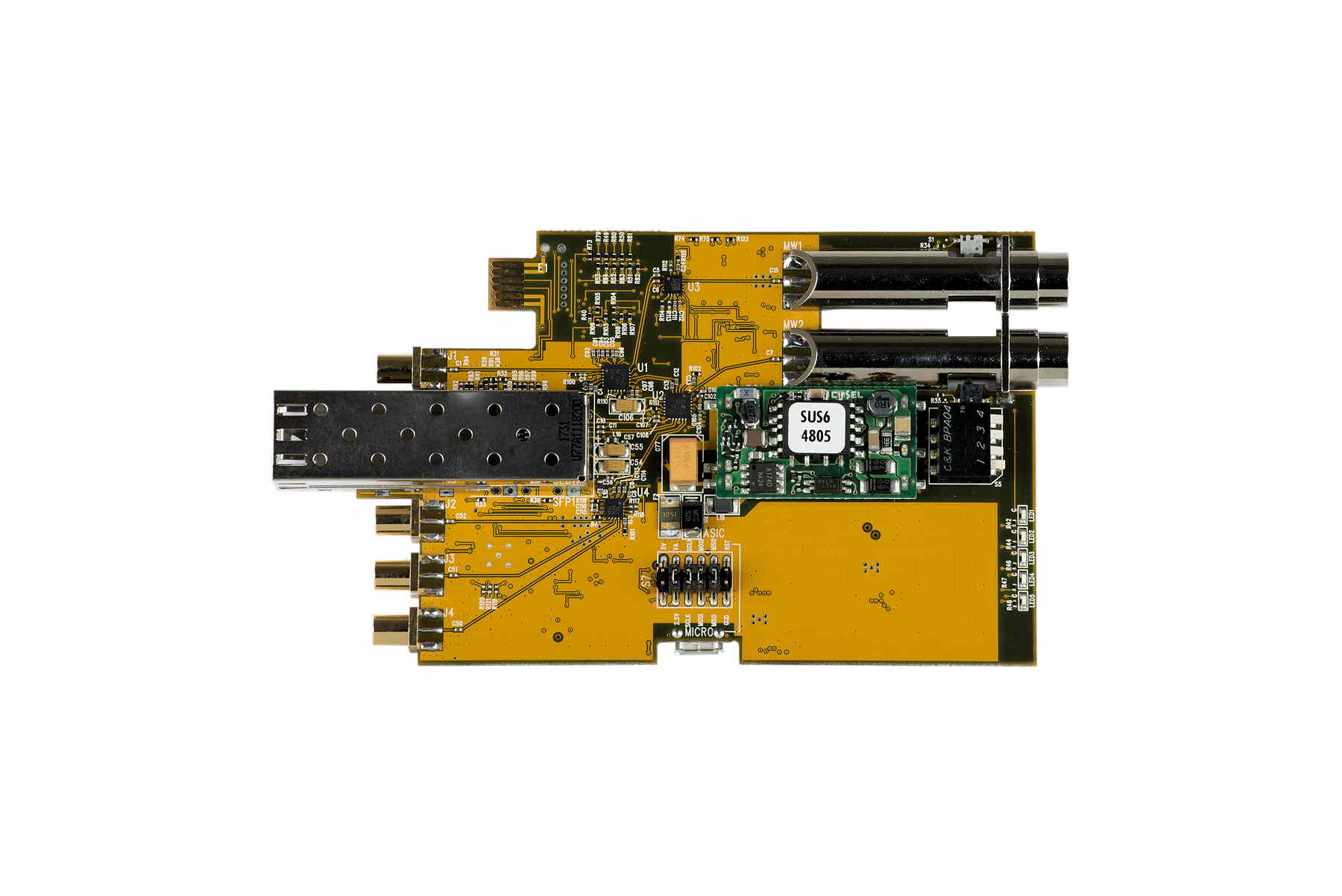

•  DABFX-Distribution-Amp-DA-CARD-01

    DABFX-Distribution-Amp-DA-CARD-01

  •  DABFX-Distribution-Amp-DA-CARD-05

    DABFX-Distribution-Amp-DA-CARD-05

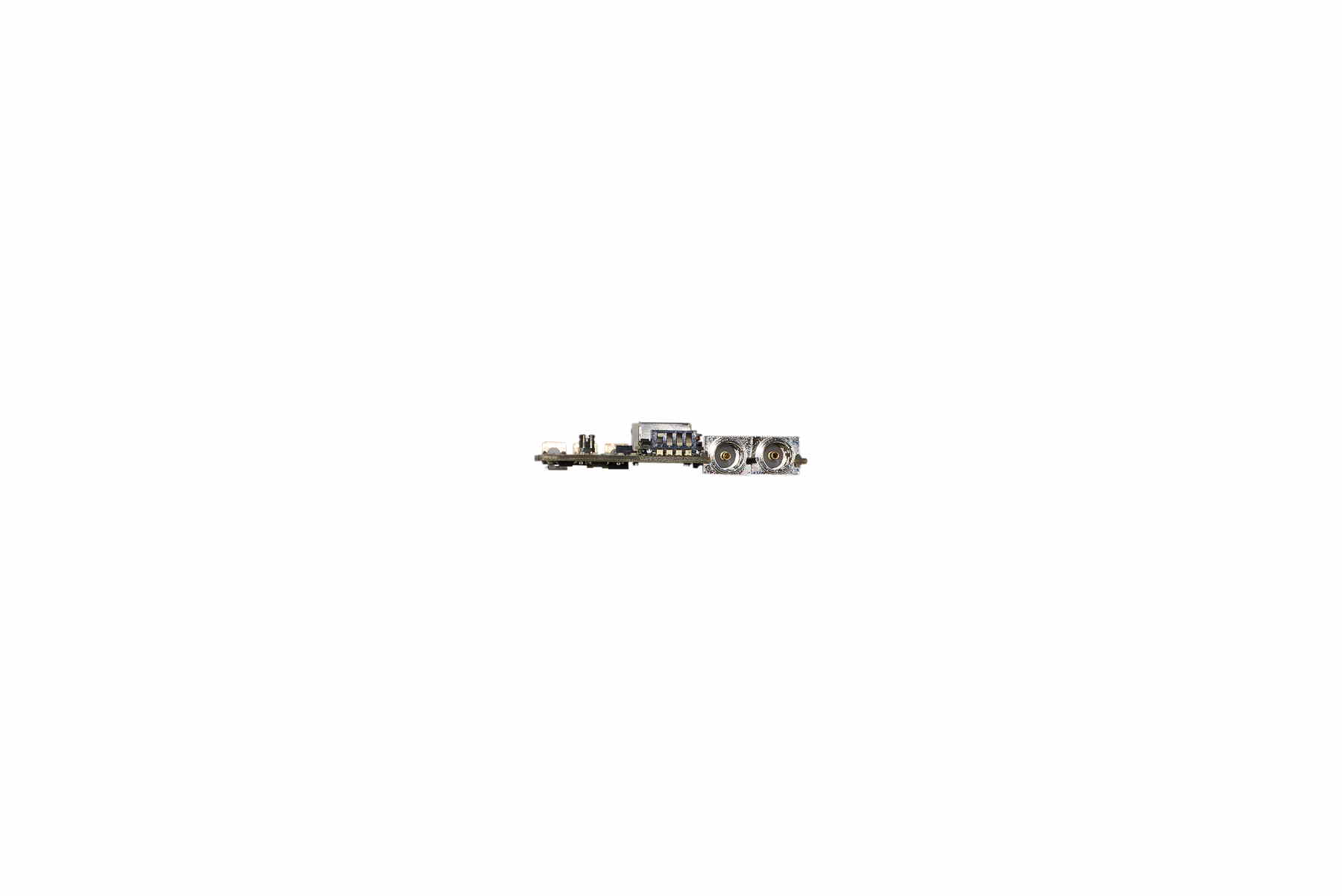

  •  DABFX-Distribution-Amp-DA-CARD-02

    DABFX-Distribution-Amp-DA-CARD-02

  •  DABFX-Distribution-Amp-DA-CARD-03

    DABFX-Distribution-Amp-DA-CARD-03

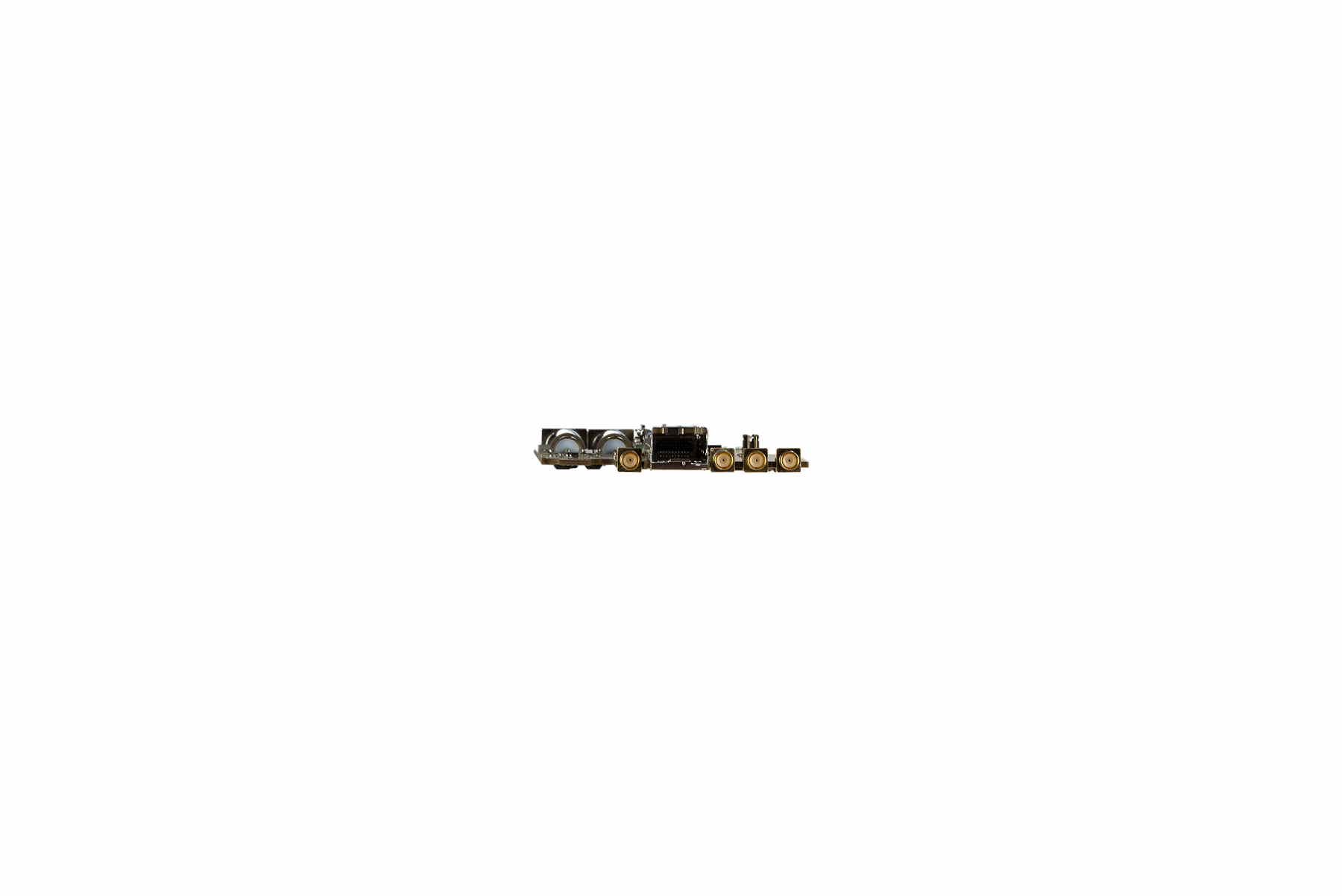

  •  DABFX-Distribution-Amp-DA-CARD-04

    DABFX-Distribution-Amp-DA-CARD-04

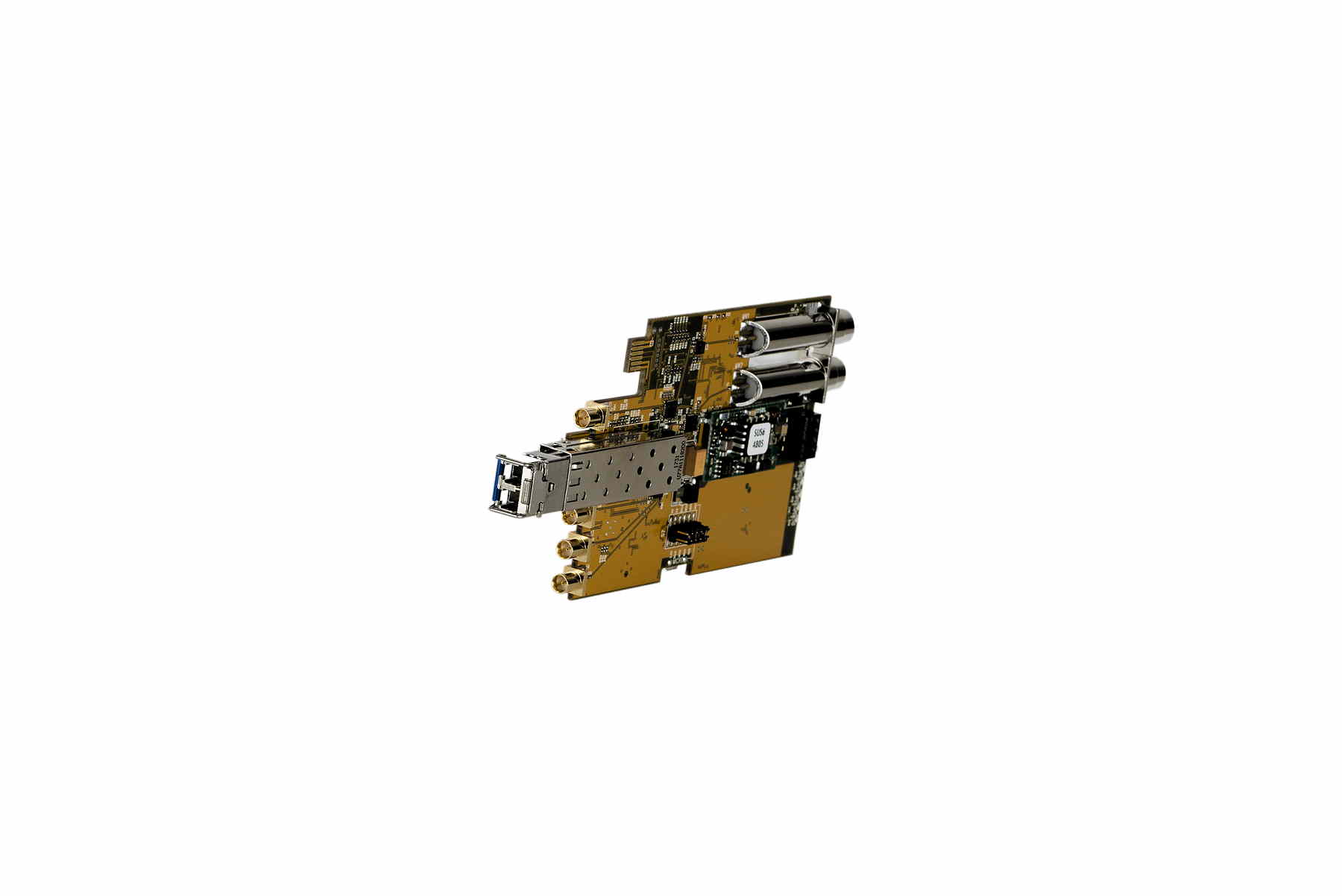

  •  DABFX-Distribution-Amp-DA-CARD-06

    DABFX-Distribution-Amp-DA-CARD-06

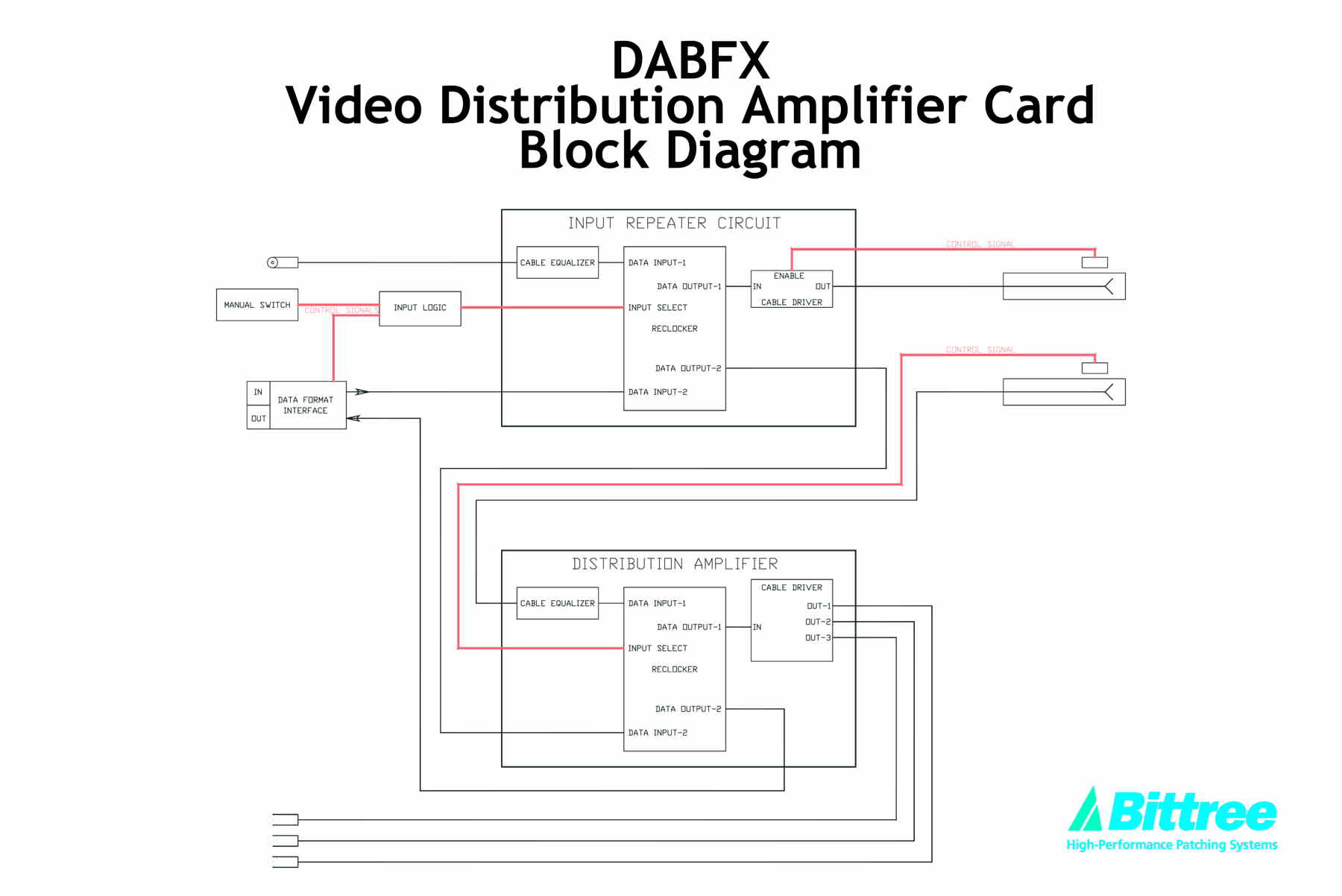

  •  distro-amp-block-diagram-01

    distro-amp-block-diagram-01

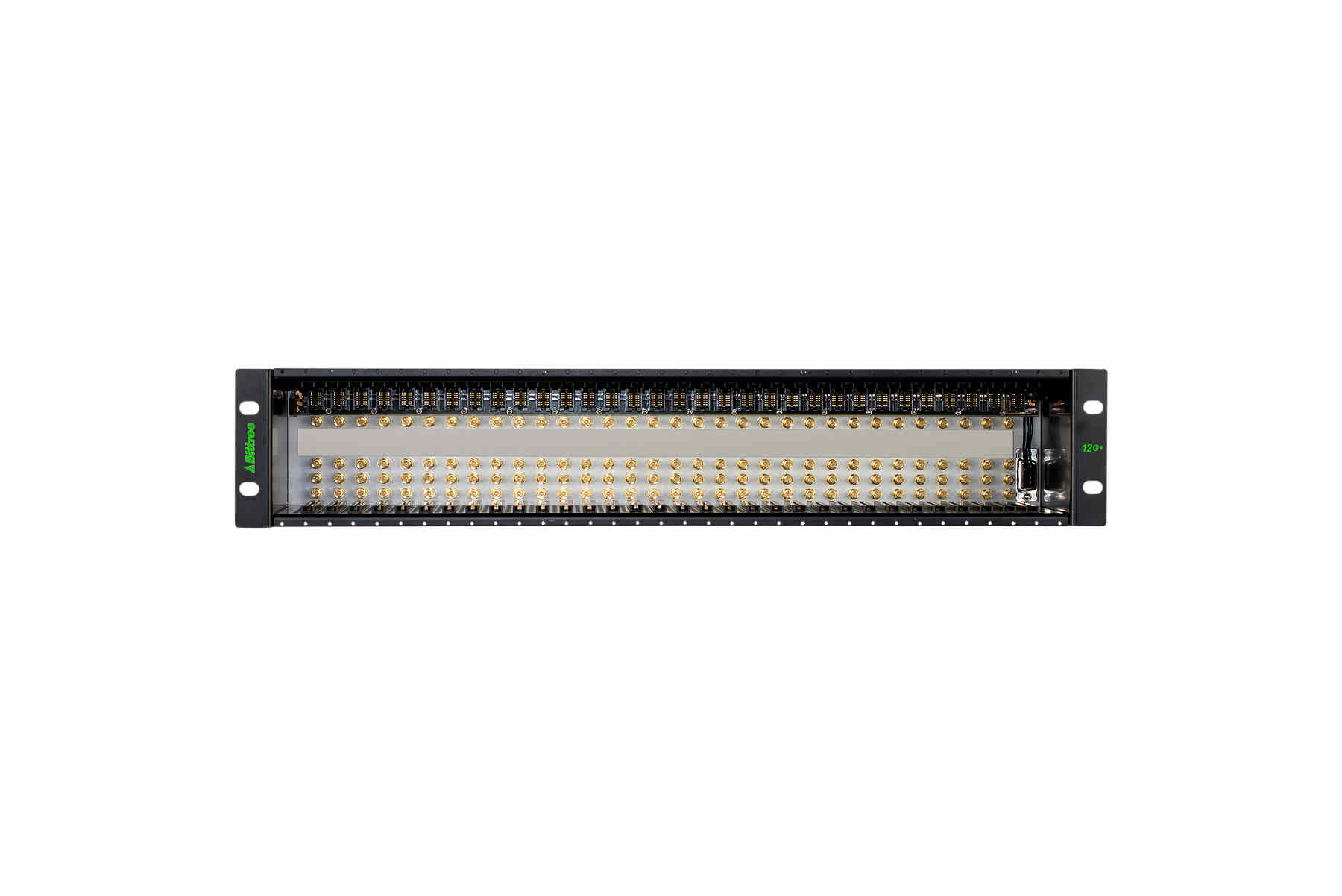

  •  DAF32FX-VIDEO-DISTRIBUTION-AMPLIFIER-FRAME-07

    DAF32FX-VIDEO-DISTRIBUTION-AMPLIFIER-FRAME-07

Bittree Video Distribution Amplifier Card


The DABX Distribution Amplifier Card (DA) is a half normal card with 1 in x 4 out. Hybrid Capable of being IP Host to Digital Video (w/optional SFP). The DABX is for use with the DAF32X frame.

DABX Distribution Amplifier Card
Input Connection DIN
Outputs 3 Coax, 1 Fiber
Price $688.00
Add to Cart


  • Technical Specifications:
  • 1 in x 4 out
  • Coax in and out
  • Auto equalizing
  • Multi-rate reclocking up to 12Gb/s
  • Supports all HD/SD formats
  • Supports AES & Madi
  • Input
  • Number of Inputs 1
  • Input Connection DIN 1.0/2.3 or Fiber/Copper (w/optional SFP)
  • Input Impedance 75 Ohm
  • Input Return Loss > 15dB to 1.5GHz > 10dB to 3GHz > 5dB to 12GHz
  • Signal Level 800mV +/-10%
  • Signal Level 800mV +/-10%
  • Output
  • Outputs 4 Coax
  • Output Connection Din)
  • Output Impedance 75 Ohm
  • Output Return Loss > 15dB to 1.5GHz > 10dB up to 3GHz > 5dB to 12GHz
  • Performance
  • Standards SMPTE 424M, 292M, 259M, 344M, ST2081, ST2082, ST2110
  • Data Rates 143, 177, 270, 360, 540, 1485, 2970, 5940, 11880 Mb/s
  • Max Cable Length @ 11.88 GHz - Belden 4855R 149FT / 45M - Belden 4505R 208FT / 63M
  • Equalization Mode Automatic Multi-Rate Reclocking
  • Signal Level 800mV Nominal
  • DC Offset 0V +/-0.5V
  • Rise & Fall Time 200ps nominal
  • Overshoot < 10% of amplitude
  • RoHS Compliance
