Bittree Video Distribution Amplifier Card

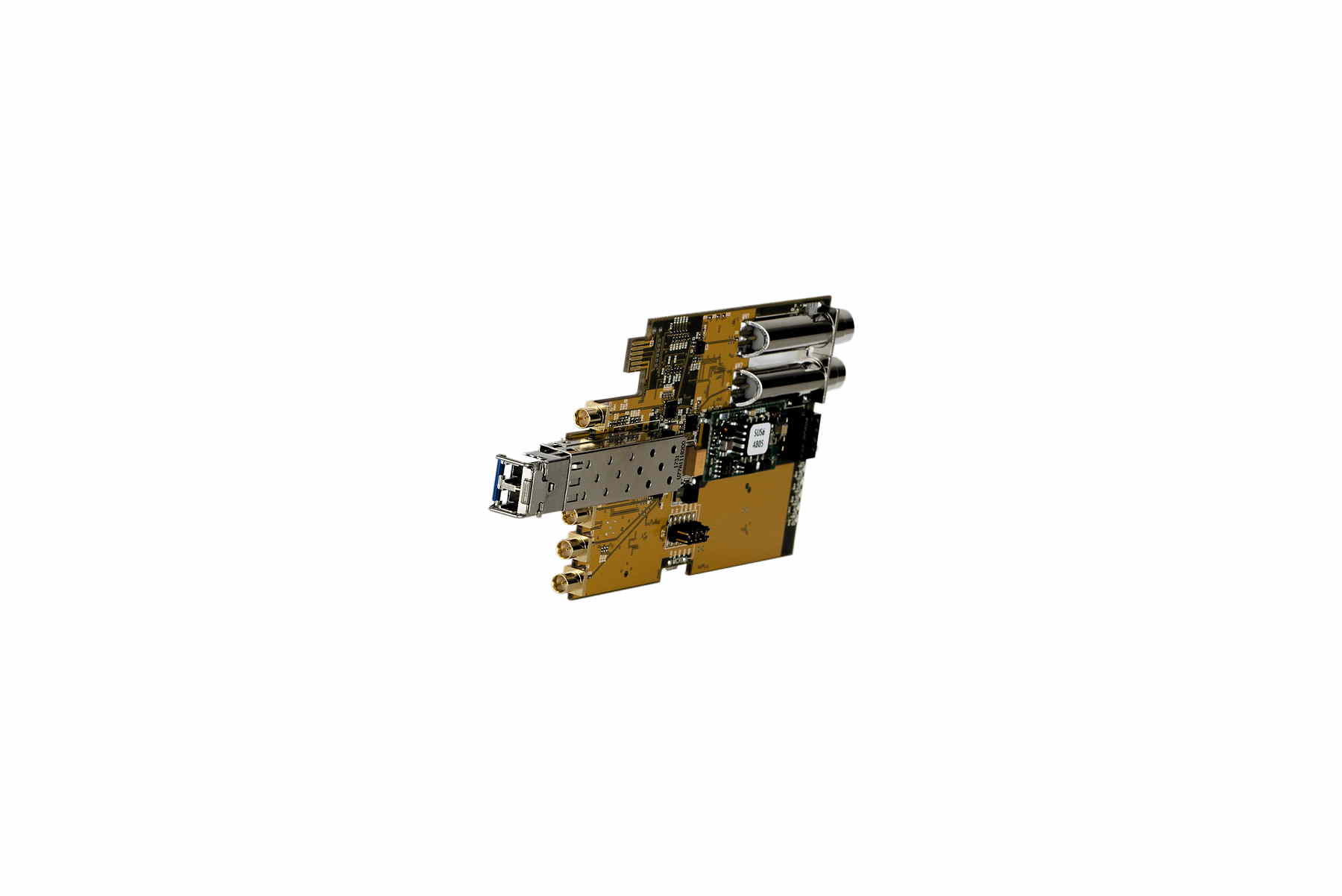

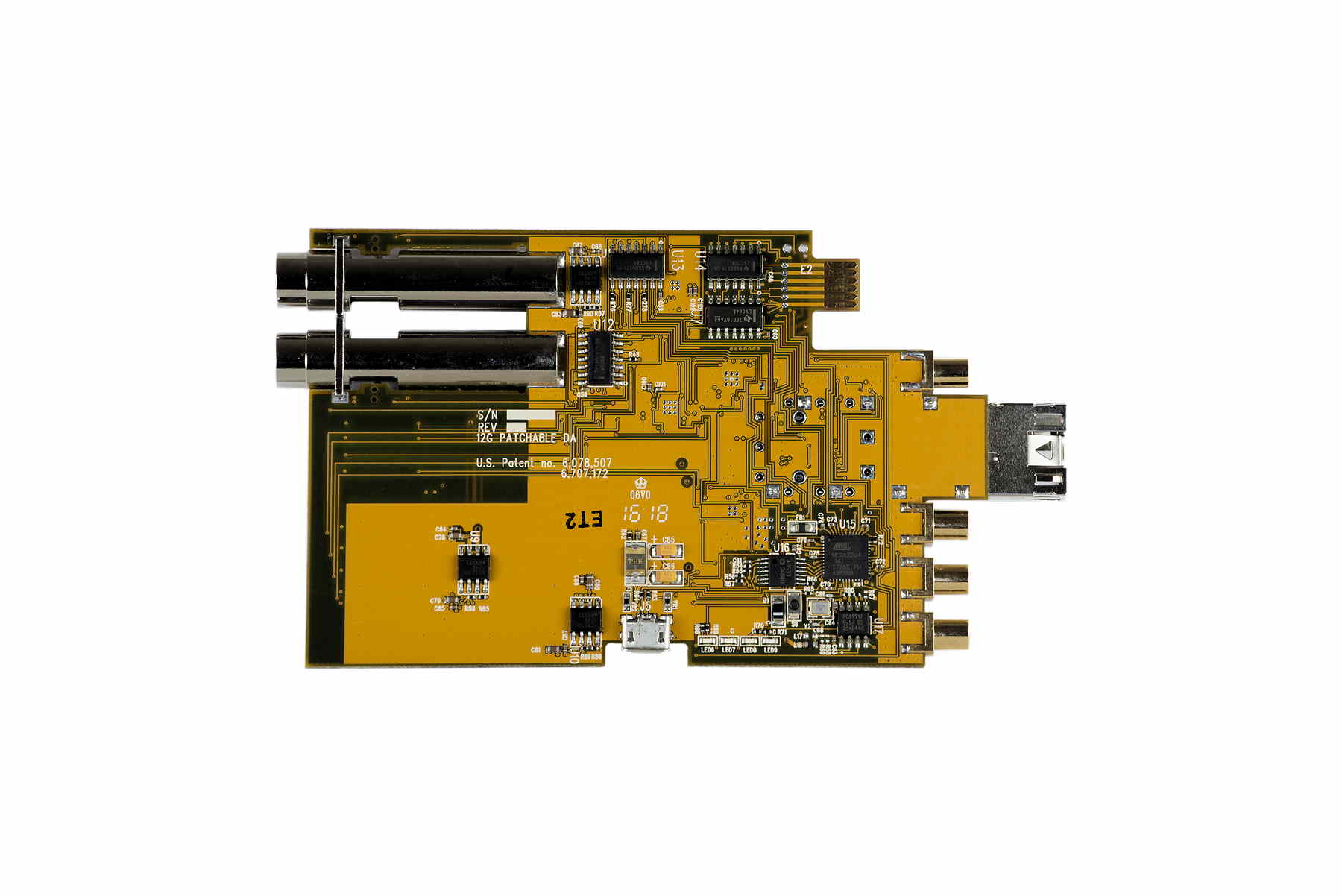

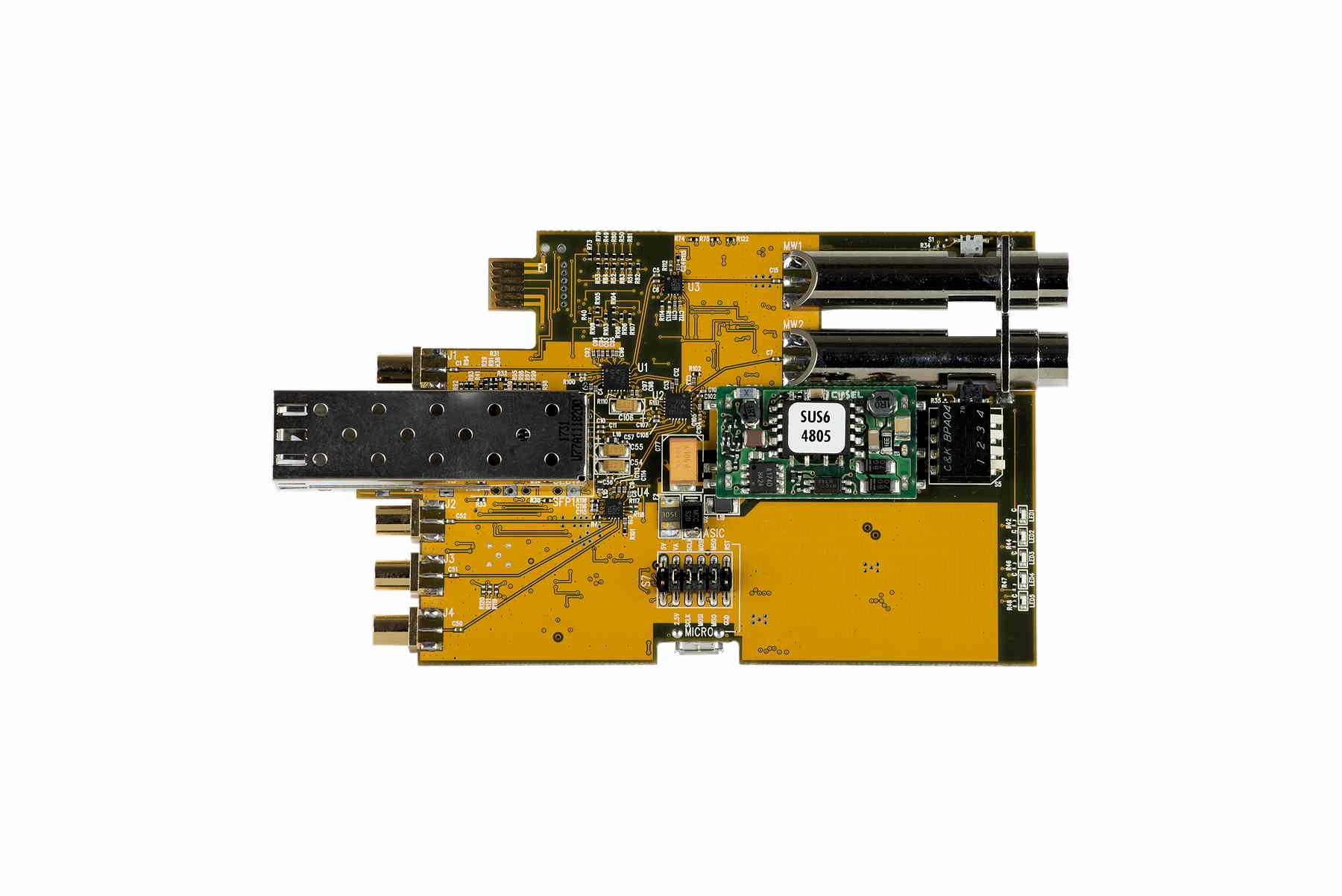

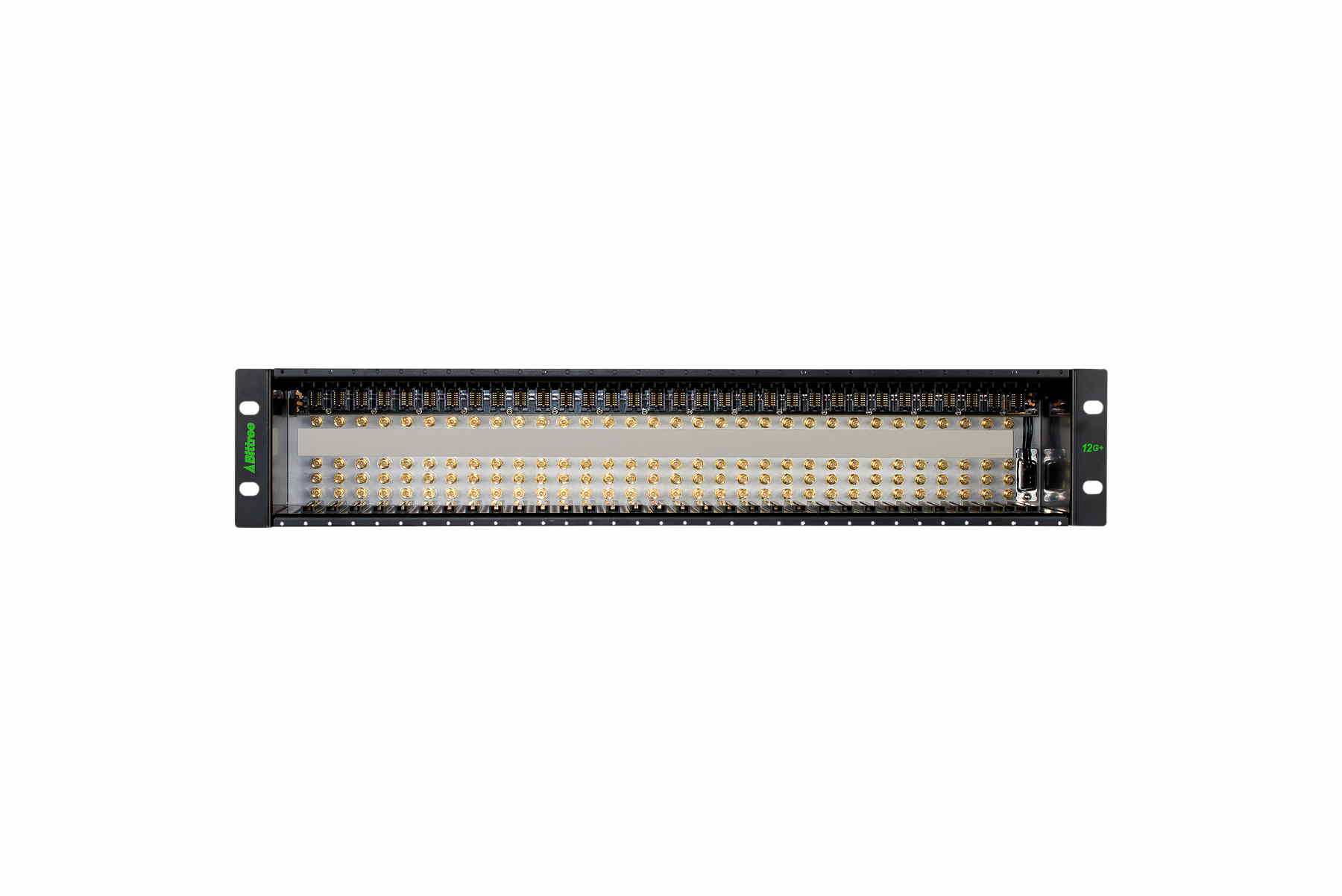

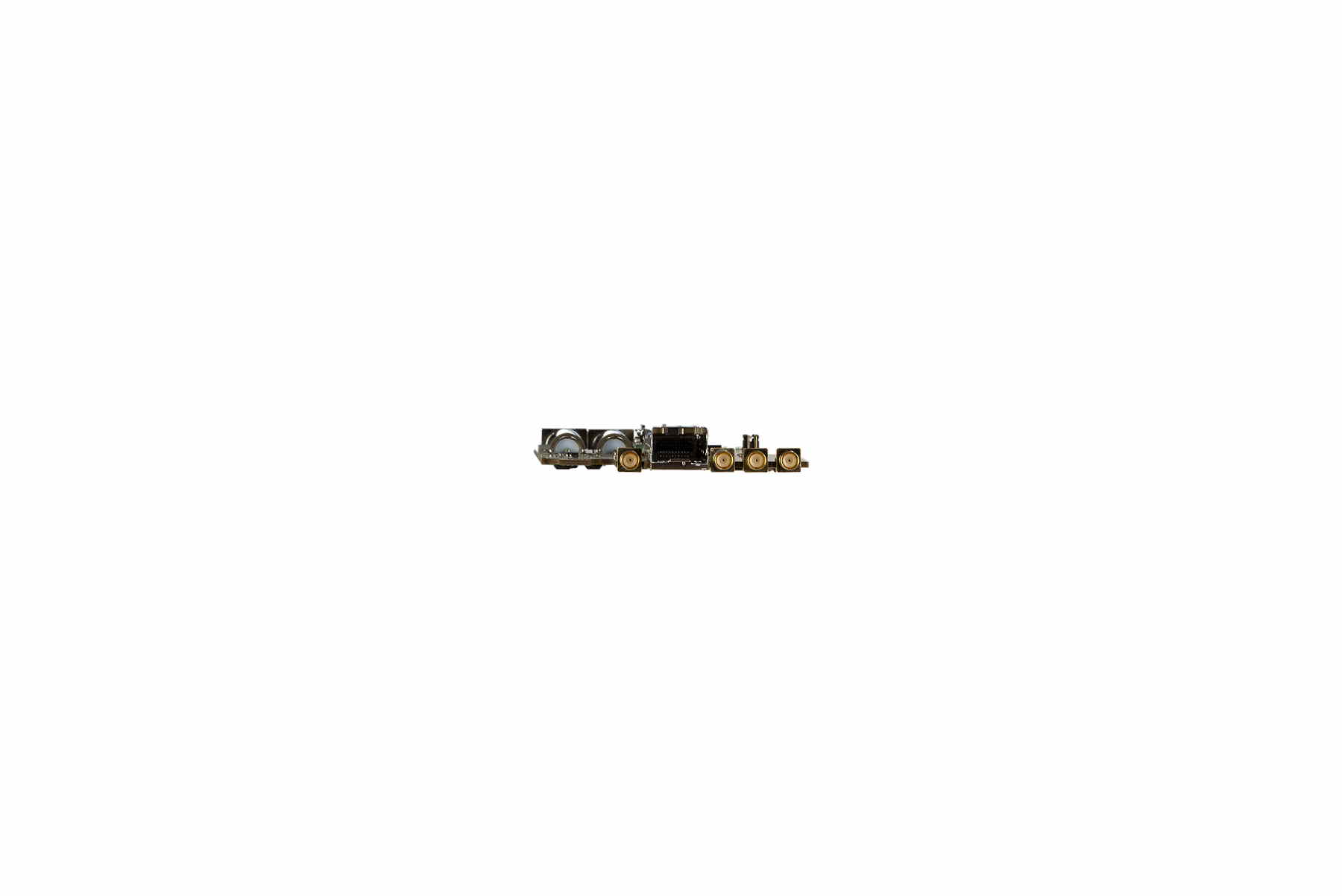

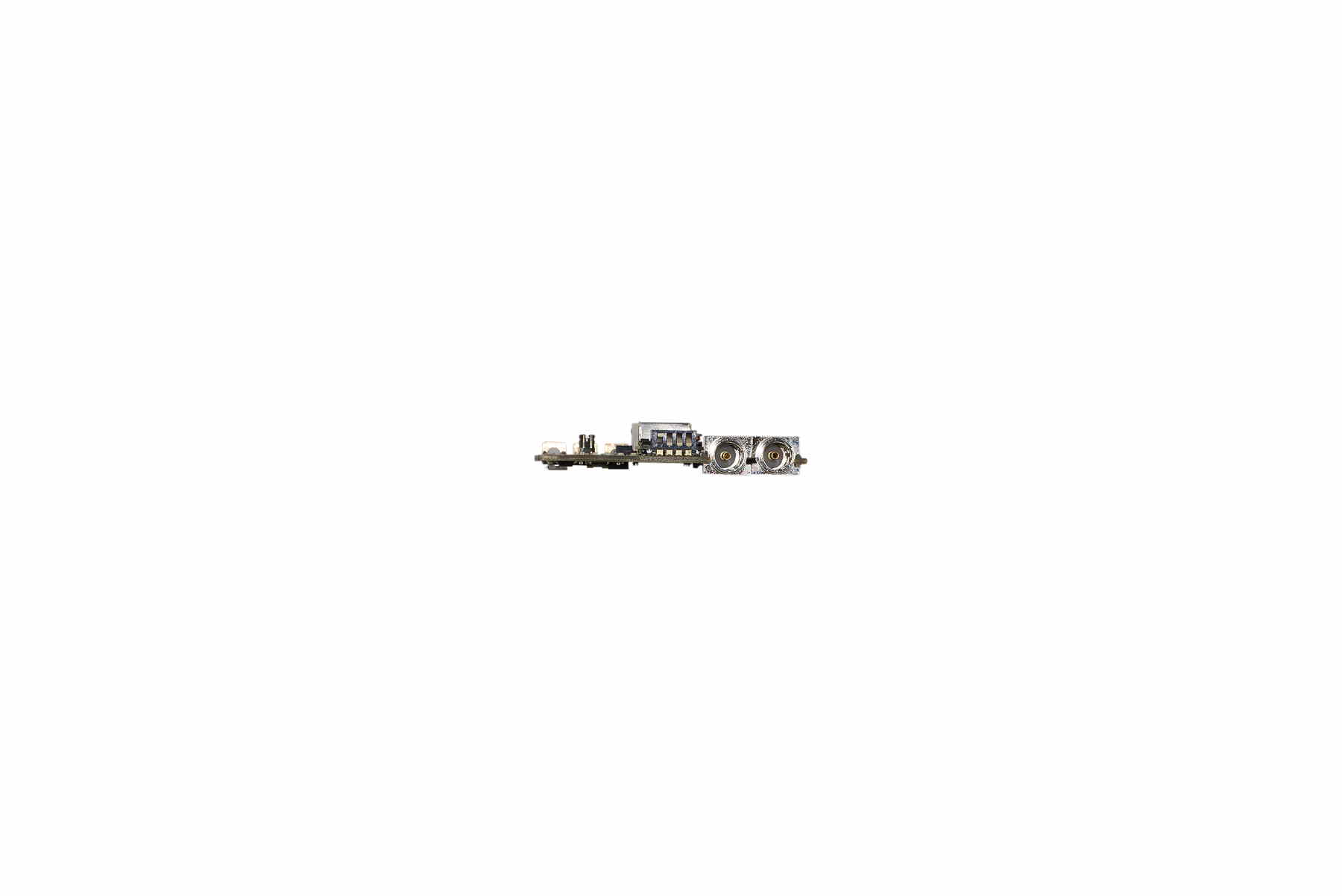

The DABFX Distribution Amplifier Card (DA) is a half normal card with 1 in x 4 out. Hybrid Capable of being IP Host to Digital Video (w/optional SFP). The DABFX is for use with the DAF32FX frame.

DABFX Distribution Amplifier Card
Input Connection DIN
Outputs 3 Coax, 1 Fiber
Price $803.00
Add to Cart


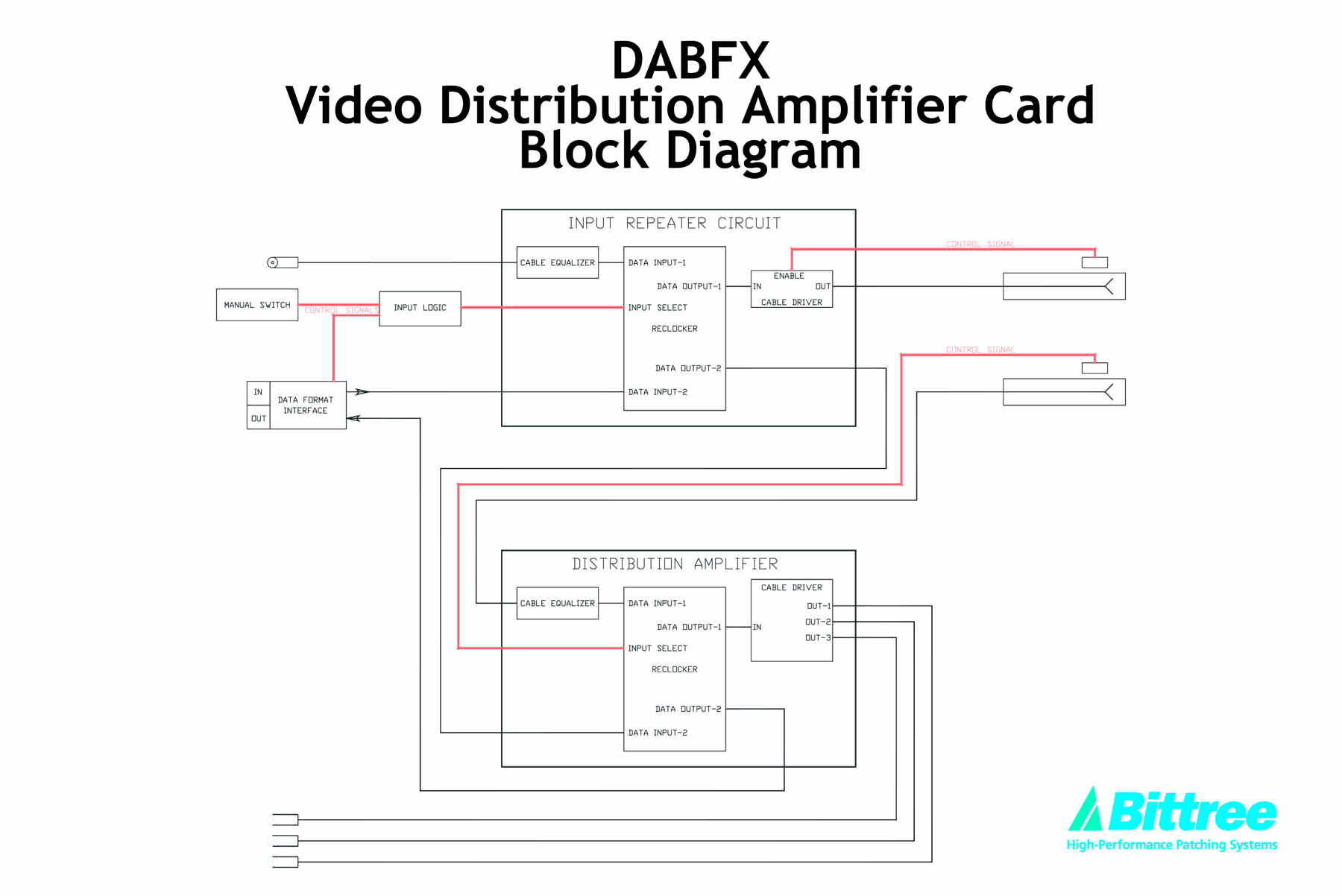

  • Technical Specifications:
  • 1 in x 4 out
  • Half normaling source jack
  • DA input jack
  • Copper or Fiber in (w/optional SFP)

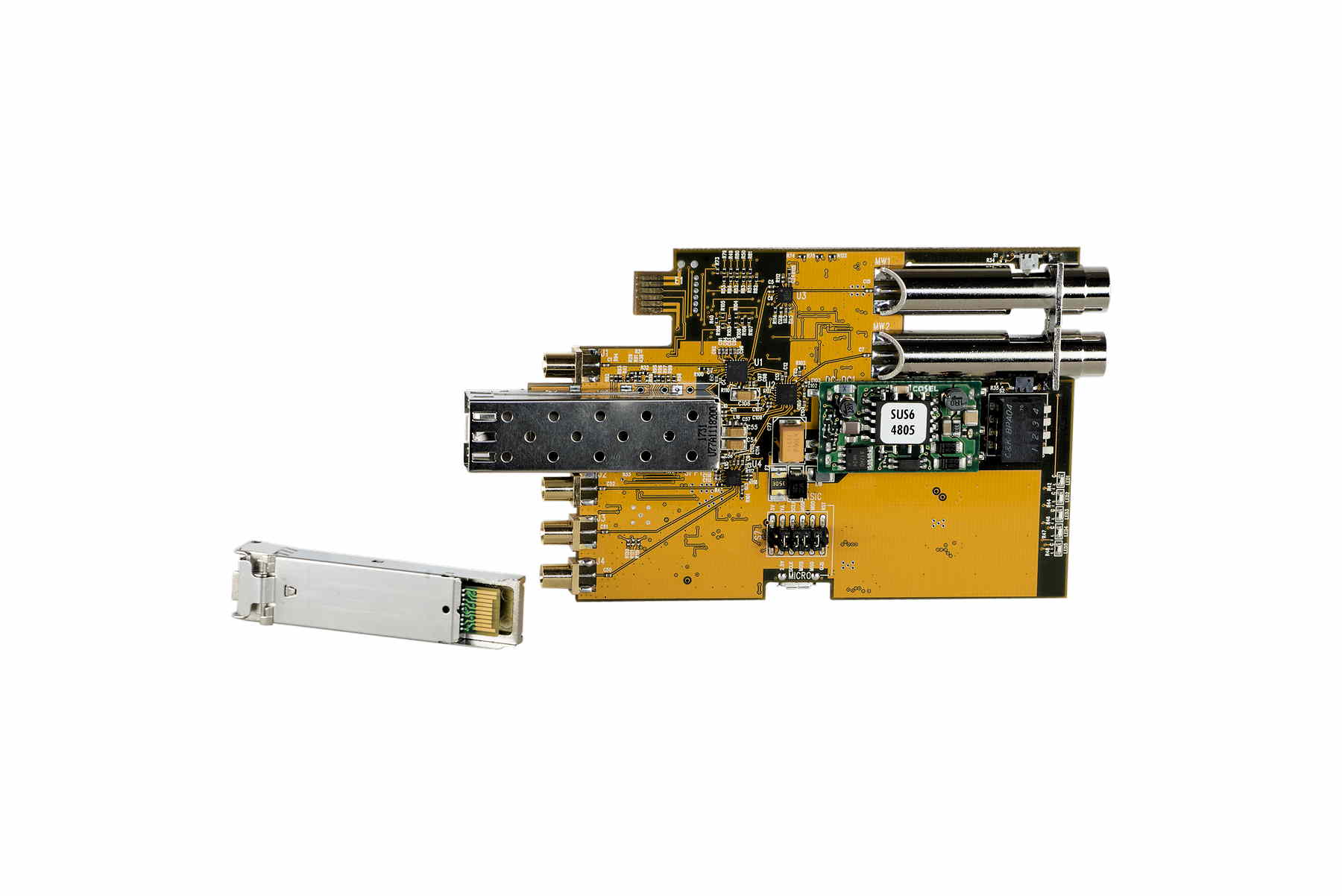

  • Copper and Fiber out (w/optional SFP)
  • Hybrid Capable of being IP Host to Digital Video (w/optional SFP)
  • Auto equalizing
  • Multi-rate reclocking up to 12Gb/s
  • Supports all HD/SD formats
  • Supports AES & Madi
  • Input
  • Number of Inputs 1
  • Input Connection DIN 1.0/2.3 or Fiber/Copper (w/optional SFP)
  • Input Impedance 75 Ohm
  • Input Return Loss > 15dB to 1.5GHz > 10dB to 3GHz > 5dB to 12GHz
  • Signal Level 800mV +/-10%
  • Bulleted List Item
  • Output
  • Outputs 3 Coax, 1 Fiber
  • Output Connection Din or Fiber/Copper (w/optional SFP)
  • Output Impedance 75 Ohm
  • Output Return Loss > 15dB to 1.5GHz > 10dB up to 3GHz > 5dB to 12GHz
  • Performance
  • Standards SMPTE 424M, 292M, 259M, 344M, ST2081, ST2082, ST2110
  • MSA standard SFP pinout - Non MSA standard SFP pinout available upon request - Note: All dual input or output SFP's are non MSA standard - Recommend medium haul 10KM fiber SFP non reclocking type
  • Max Cable Length @ 11.88 GHz - Belden 4855R 149FT / 45M - Belden 4505R 208FT / 63M - Fiber cable length dependant on SFP and fiber type utilized
  • Equalization Mode Automatic Multi-Rate Reclocking
  • Signal Level 800mV Nominal
  • DC Offset 0V +/-0.5V
  • Rise & Fall Time 200ps nominal
  • Overshoot < 10% of amplitude
  • Wideband Jitter < 0.1 UI @ 3G
  • RoHS Compliance
