Bittree Mini-Triax Bulkhead Patchbay Kit

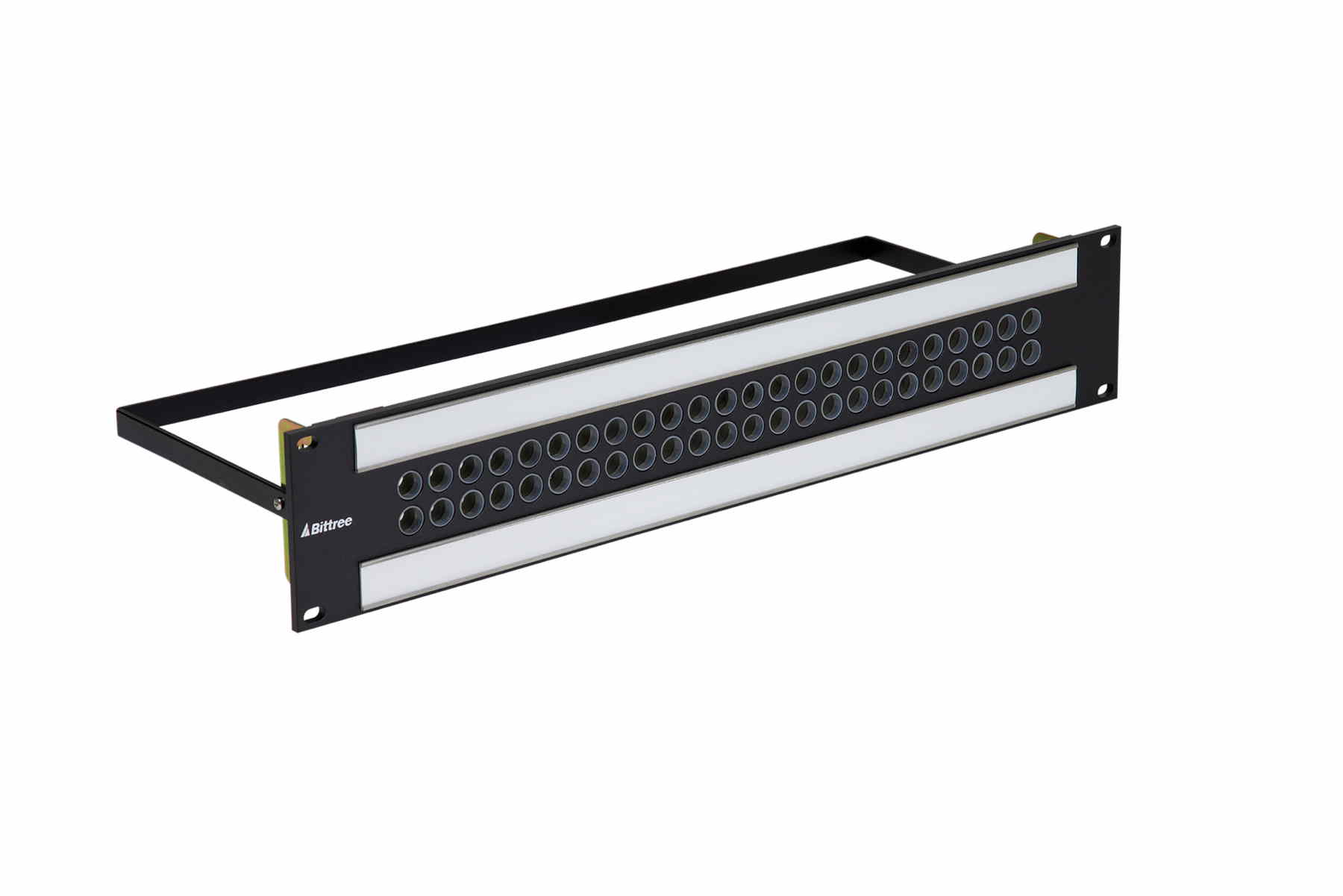

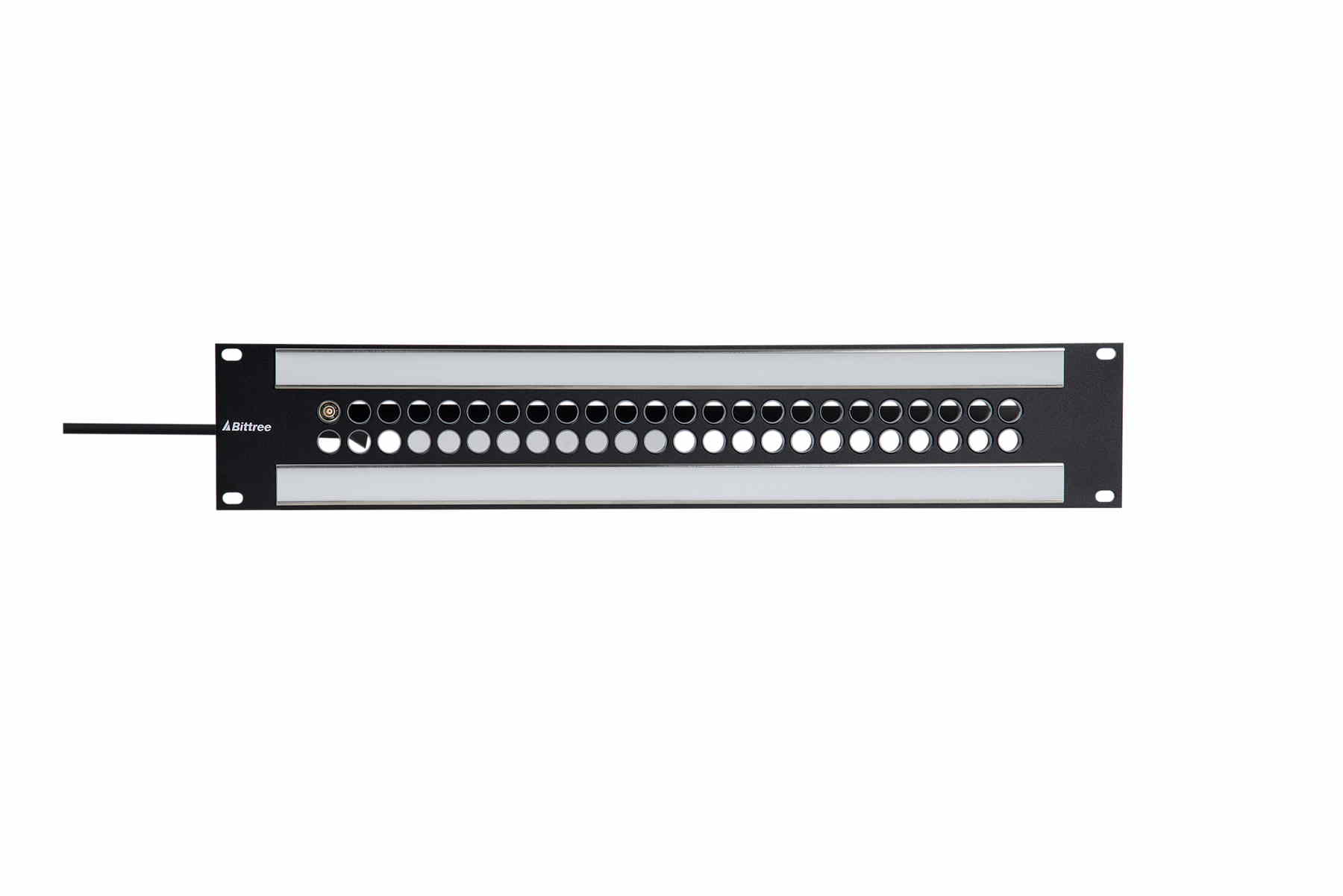

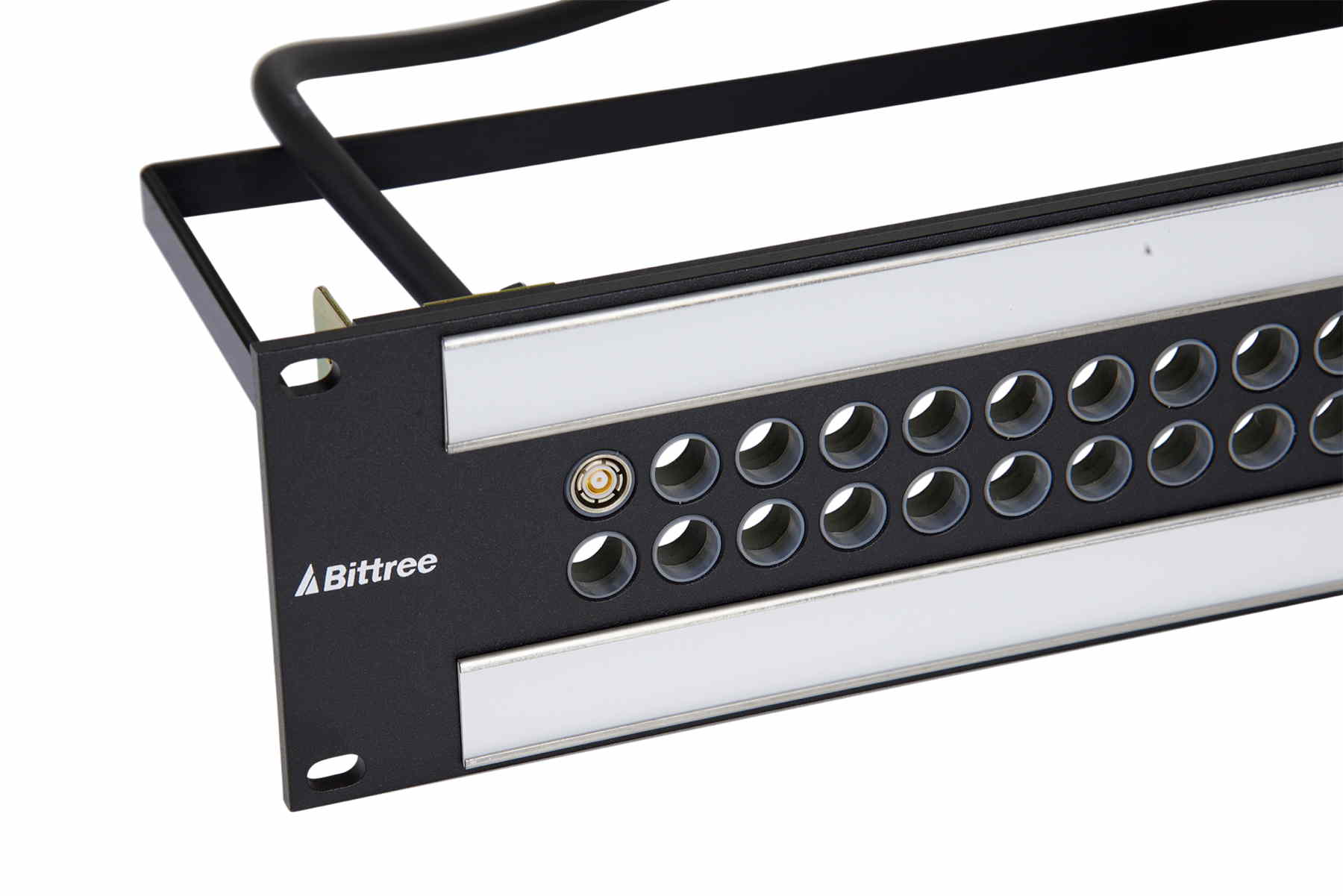

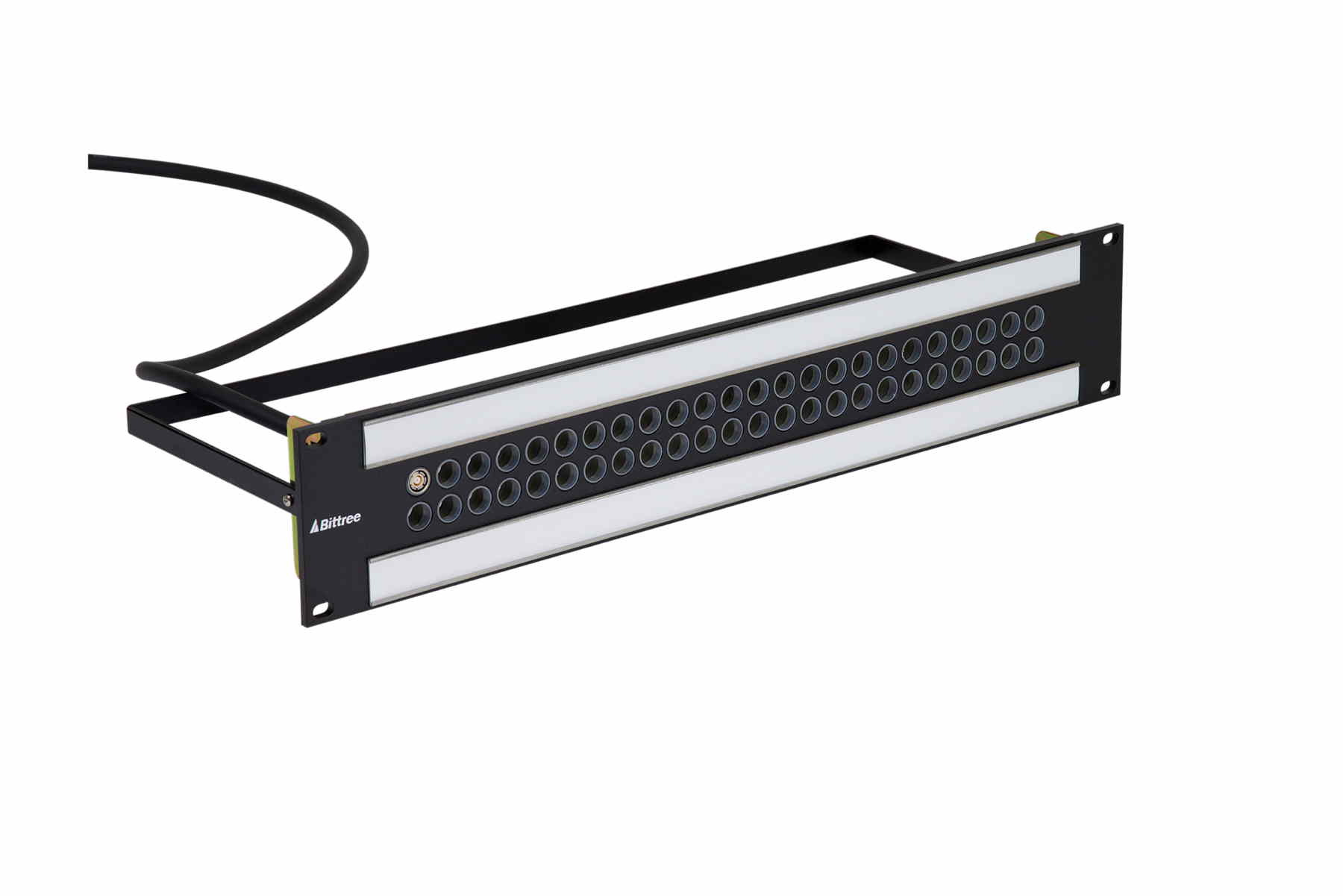

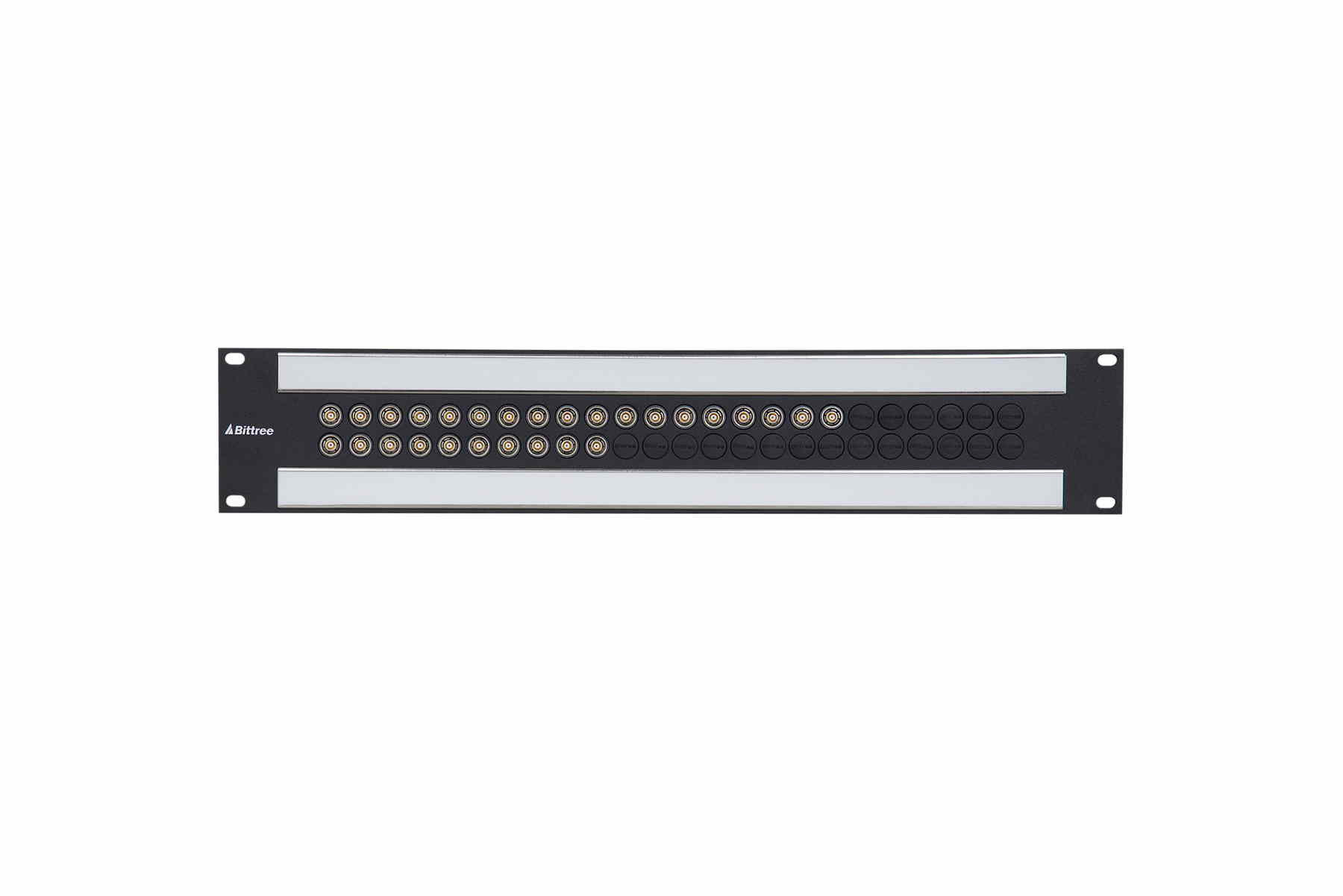

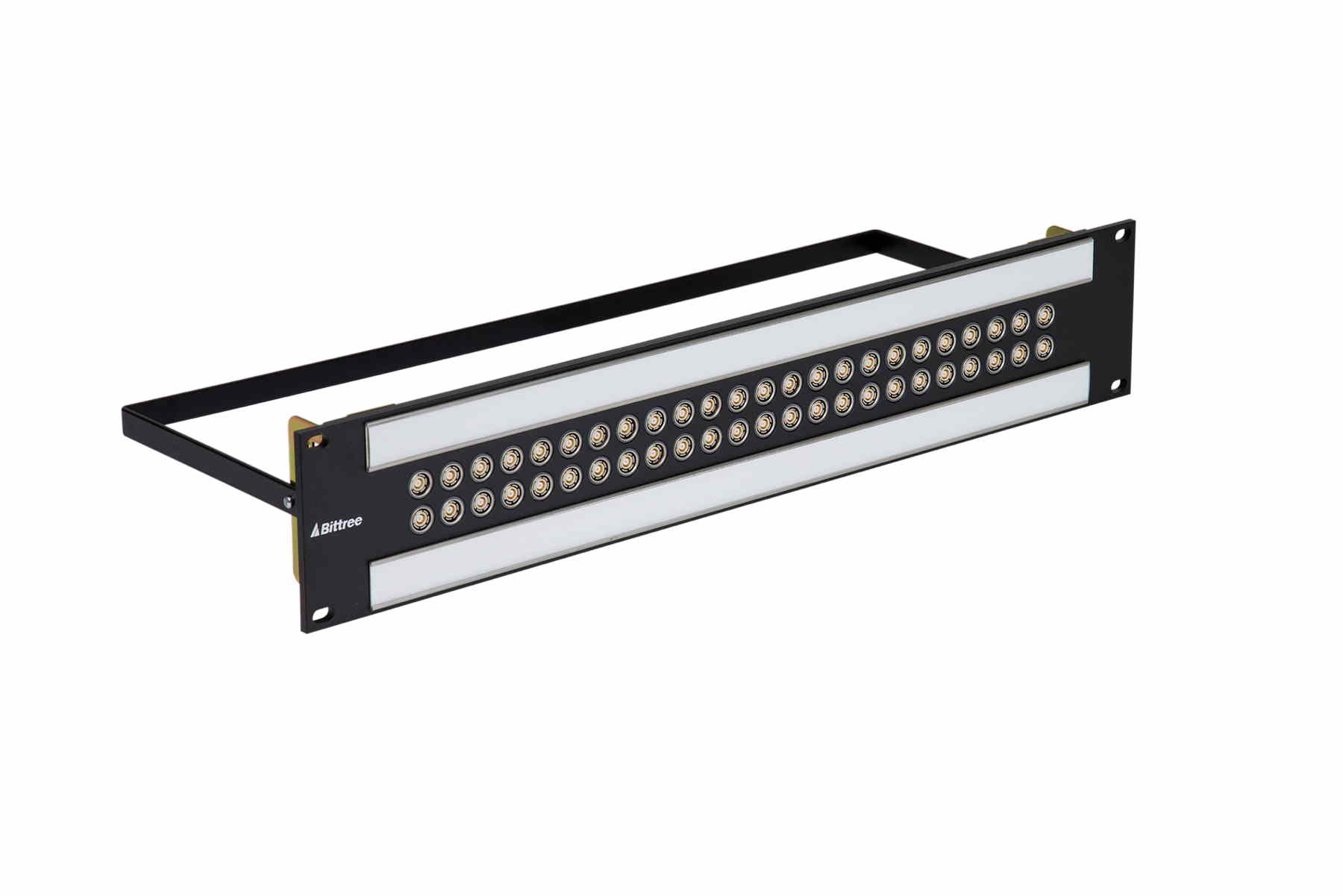

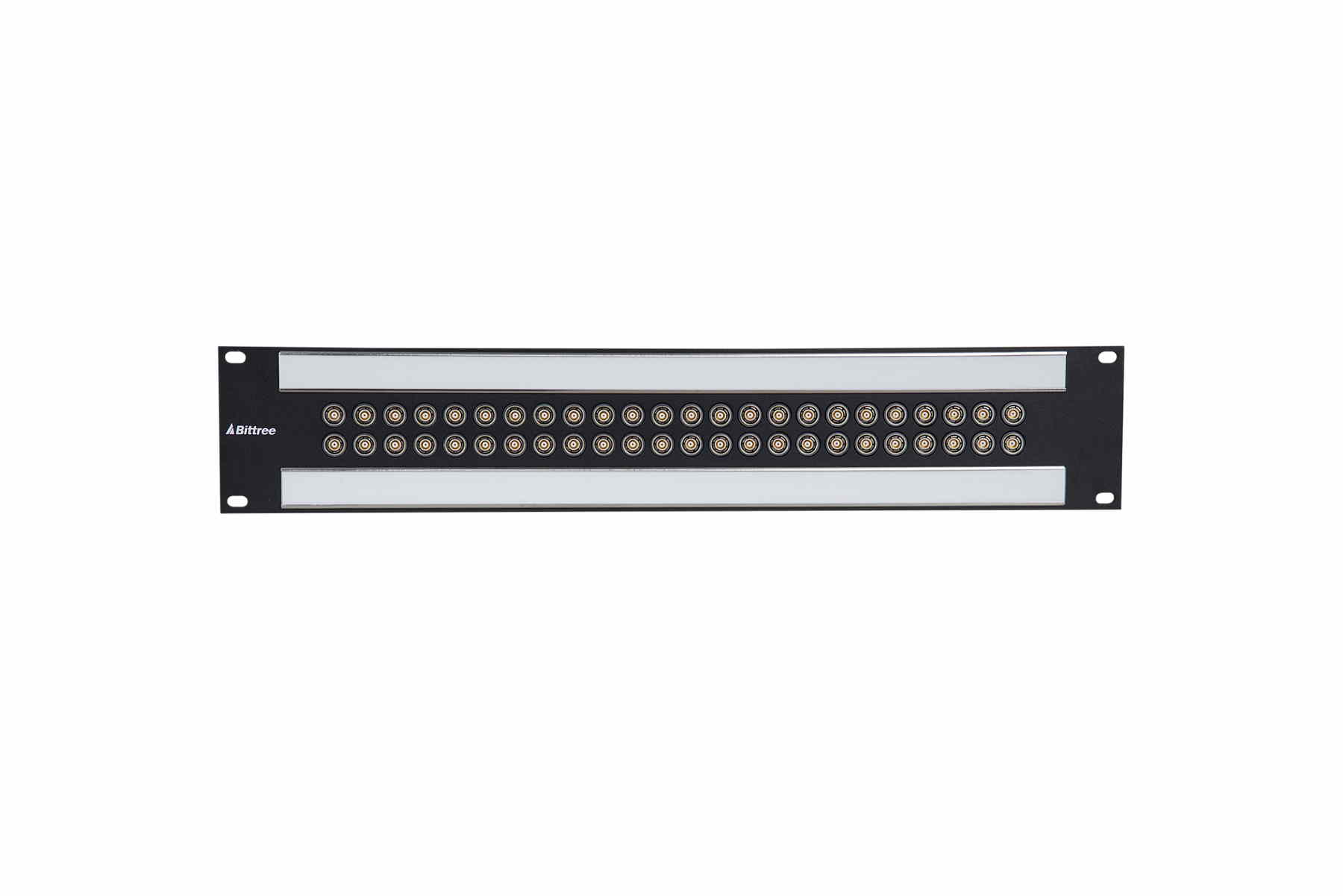

The CVP3507 Mini-Triax Bulkhead Patchbay Kit has a 2X24 jack configuration with 28 I/O enclosed in a 2RU chassis. The jacks have 3 GHz bandwidth for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
Want your chassis grey? Just ask.

CVP3507
Mini-Triax Bulkhead Patchbay Kit
2RU 2X24 28 I/O
Price $5661.00
Add to Cart

  • Mini-Triax Video Jack Properties:
  • High velocity of propagation with a 3 GHz bandwidth for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
  • SMPTE 259M, 292M and 424M compliant
  • Gold-plated center pin and inner shield contact
  • Straight-through non-normalling, non-terminating
  • True 75 ohm impedance with low return loss
  • Panel Features:
  • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
  • Rear-mounted jack modules
  • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
  • 2 x DS870-10 Designation Strips:
  • Stainless-steel sliders with white styrene and non-glare Lexan inserts
  • 6" (15.24 cm) deep rear lacing bar included
  • Cable Features:
  • Durable gas-injected foam polyethylene dielectric resists damage due to crushing
  • Two isolated copper braids (shields) provide outstanding RF/EMI shielding Kit components include:

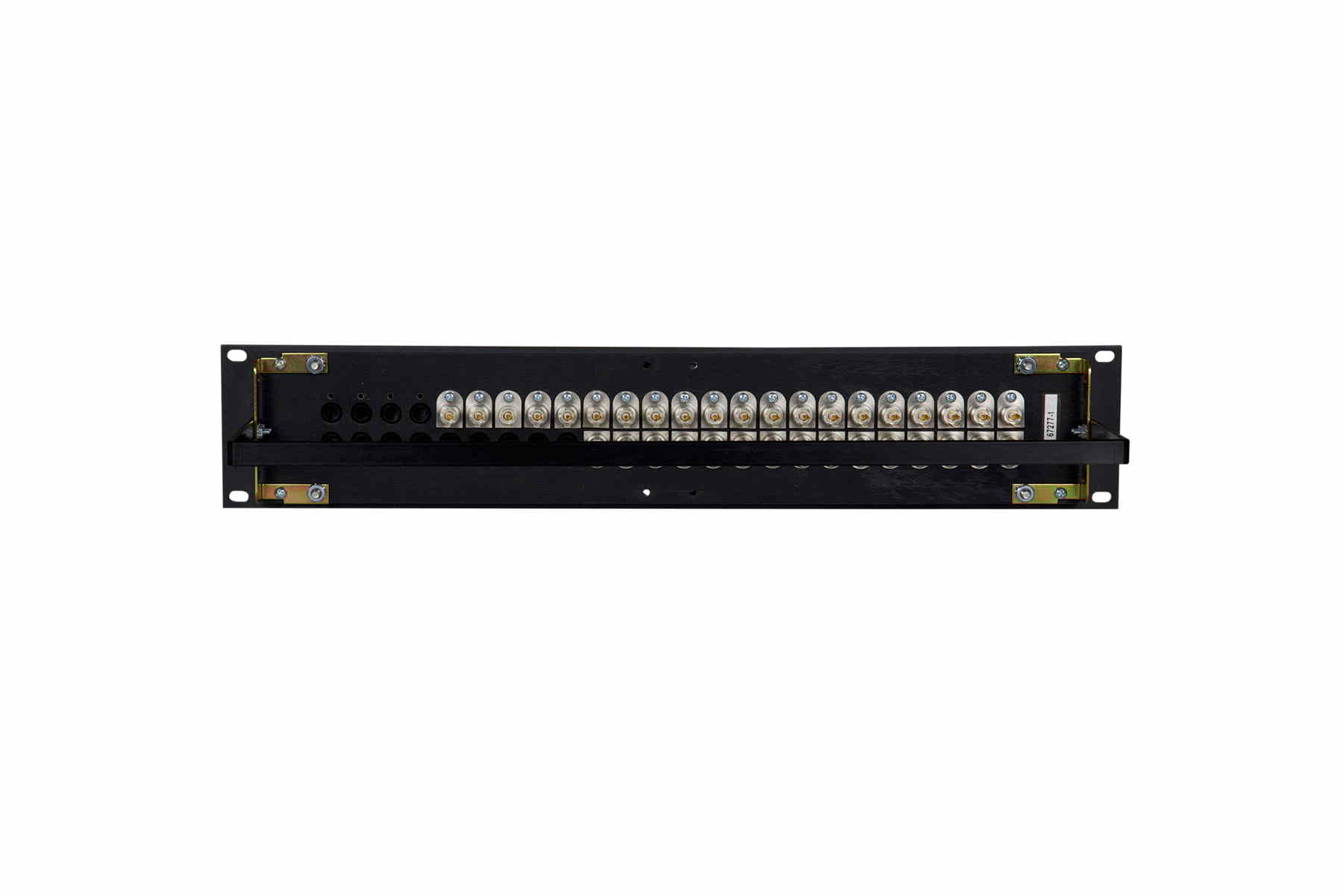

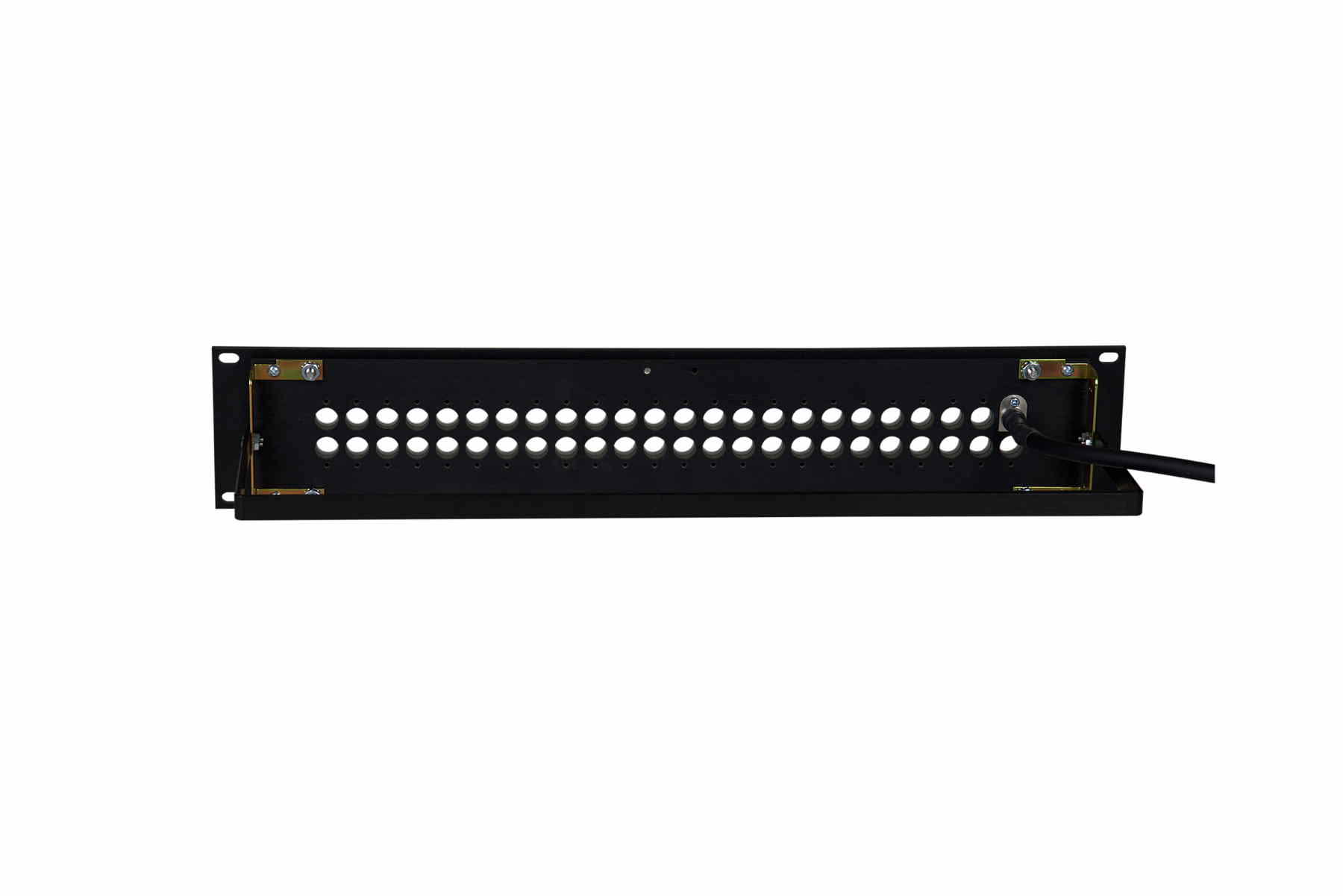

  • 28 x CCAJ7230 - Mini triax jack soldered to blunt cut cable; 0.360" (9.14 mm) OD, 30 ft. (9.144 m) length
  • 20 x BITWPLUG - Hole plugs for remaining unpopulated positions
  • 28 x Jack mounting screws
  • Components packaged separately for easy integration
  • Options:
  • Front Panel Color – Black or Gray scratch resistant powder-coat finish
  • Cable Length – Custom lengths available
  • Cable Diameter – Other cable diameters available
  • RoHS Compliance
