BITTREE 12G+ MICRO BNC COAXIAL FEED-THROUGH PATCH PANEL

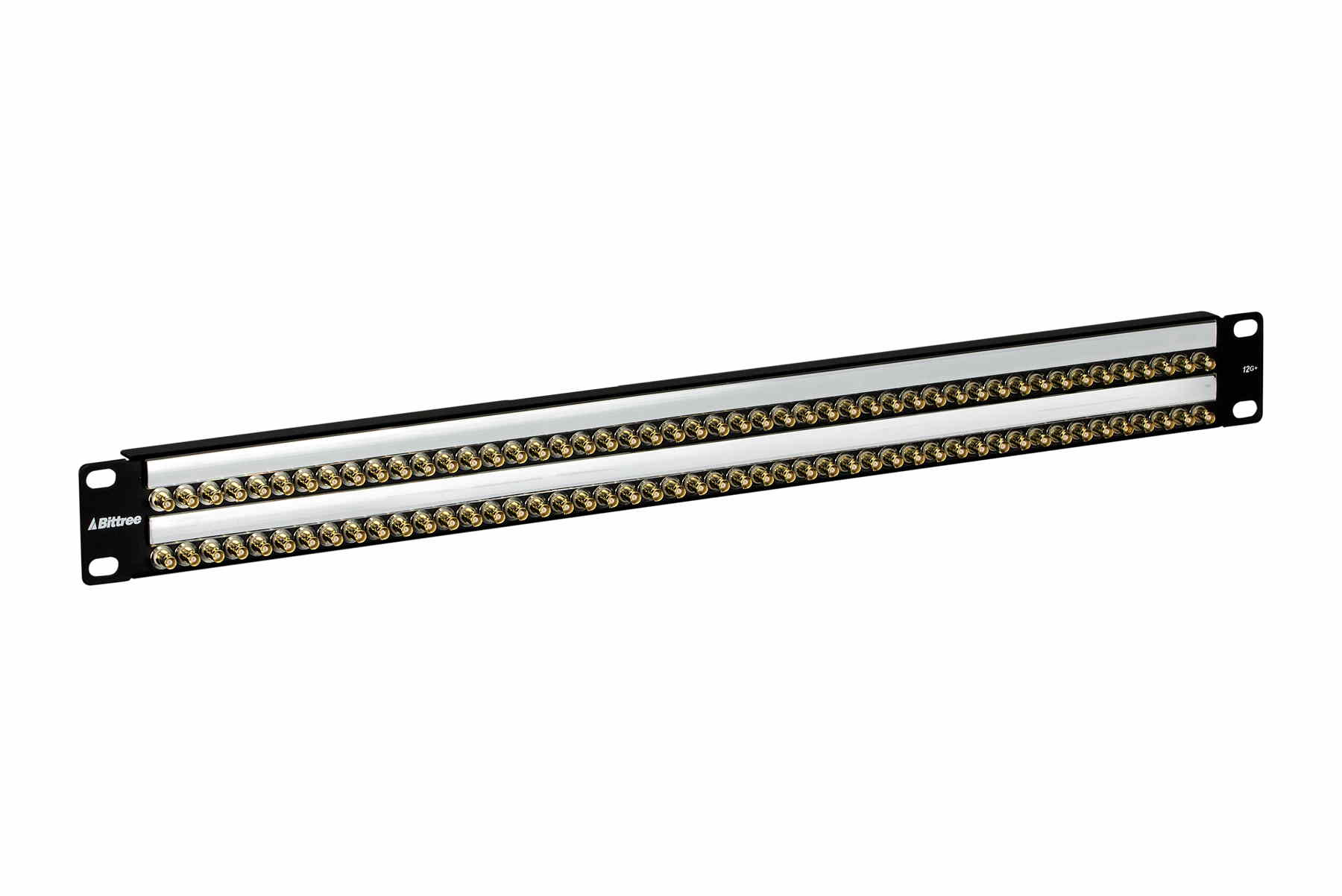

The BH-B248A0B12M is a 1RU Feed-Though Video Panel 2X48 with Micro BNC jacks enclosed in 1RU chassis. 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K applications. The BNC jacks are 75 ohm impedance with low return loss. These patchbays also pass SMPTE 292M, 424M, 2081-1, and are 2082-1 compliant. Also compatible with HD-BNC.



BH-B248A2B12M Micro BNC Feed Through

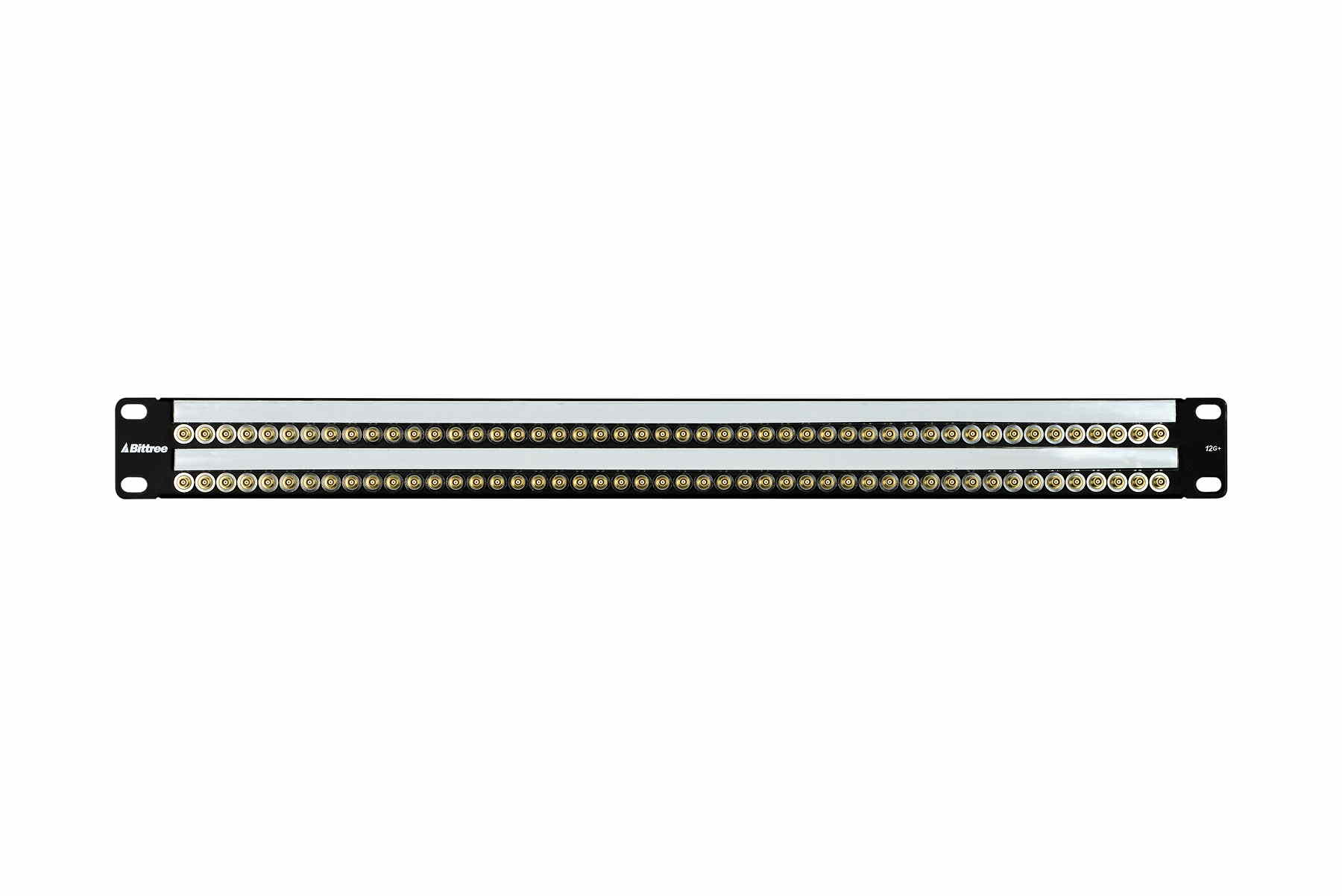

Standard Designation Strips
96 Channels 1RU
Price $968.00
Add to Cart

BH-B248A0B12M Micro BNC Feed Through

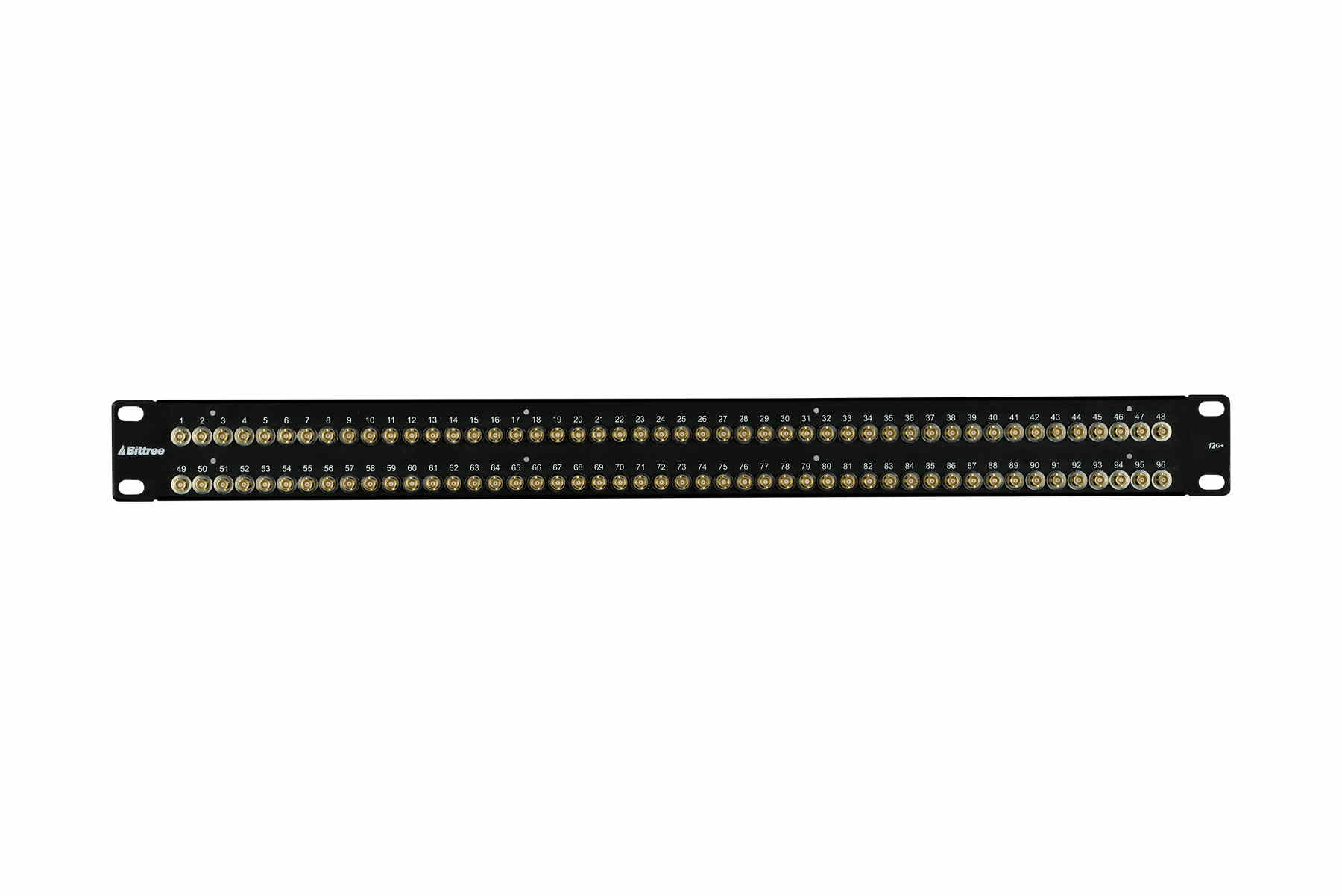

Silk Screen Numbering
96 Channels 1RU
Price $922.00
Add to Cart


  • Micro BNC Jack Properties:
  • 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
  • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
  • 75 ohm impedance with low return loss
  • 500 Mating cycles
  • Operating temperature: -35 to +165°C
  • IP64 (mated)
  • Panel Features:
  • 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
  • Micro BNC connectors on both the front and back of the panel; compatible with HD-BNC® hardware and connectors
  • Silk screened circuit numbering on both the front and back with optional designation strip available for the front
  • Two 3" (7.62 cm) deep lacing bars for cable dressing (both are removable)
  • Alternative 6" (15.24 cm) deep lacing bars available
  • Options:
  • Front Panel Circuit Identification: - Silk screened numbering only, or - 2 x DS430-15 designation strips (extruded aluminum bars with clear plastic snap-over caps)
  • Compliance:
  • RoHS Compliant
