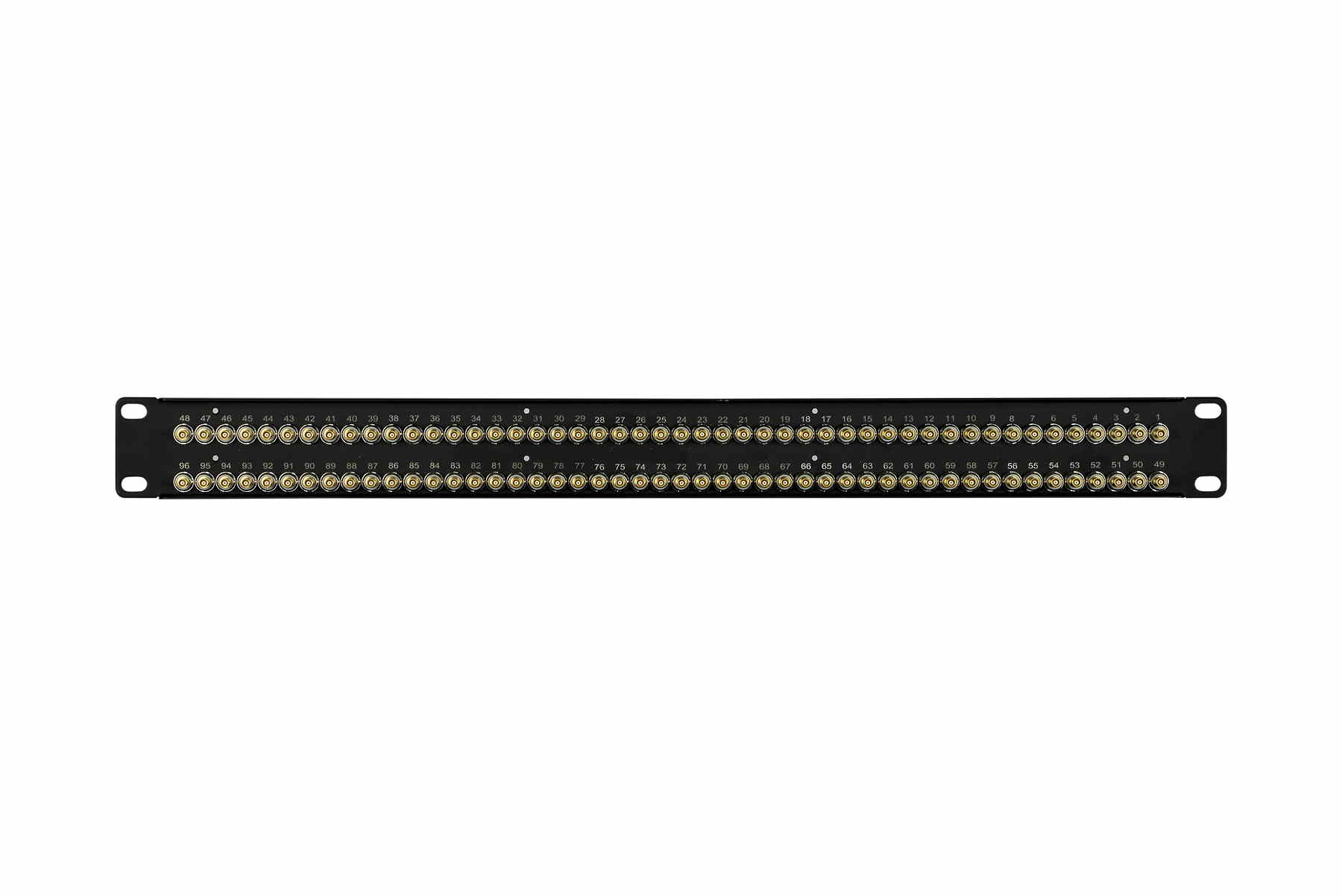

BH-B248A2B12D BNC DIN Feed Through Panel-02
-
BH-B248A2B12D BNC DIN Feed Through Panel-03
BITTREE 12G+ High-Density DIN 1.0/2.3 Coaxial Bulkhead Panel in 1RU with 2x48 Connector Configuration
The Bittree BH-B248A2B12D is a BNC Coaxial Bulkhead Panel 2X48 with DIN 1.0/2.3 jacks enclosed in 1RU chassis. 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K applications. The BNC jacks are 75 ohm impedance with low return loss. These patchbays also pass SMPTE 292M, 424M, 2081-1, and are 2082-1 compliant. Also compatible with HD-BNC.
BH-B248A2B12D DIN Coaxial Bulkhead Panel
Standard Designation Strips
96 Channels 1RU
Price $968.00
Add to Cart
BH-B248A0B12D DIN Coaxial Bulkhead Panel
Silk Screen Numbering
96 Channels 1RU
Price $922.00
Add to Cart
- DIN 1.0/2.3 Jack Properties:
- 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
- SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
- 75 ohm impedance with low return loss
- 500 Mating cycles
- Operating temperature: -35 to +165°C
- IP64 (mated)
- Panel Features:
- 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
- DIN 1.0/2.3 connectors on both the front and back of the panel
- Silk screened circuit numbering on both the front and back with optional designation strip available for the front
- Two 3" (7.62 cm) deep lacing bars for cable dressing (both are removable)
- Alternative 6" (15.24 cm) deep lacing bars available
- Options:
- Front Panel Circuit Identification: - Silk screened numbering only, or Front Panel Circuit Identification:
- 2 x DS430-15 designation strips (extruded aluminum bars with clear plastic snap-over caps)
- Compliance:
- RoHS Compliant
