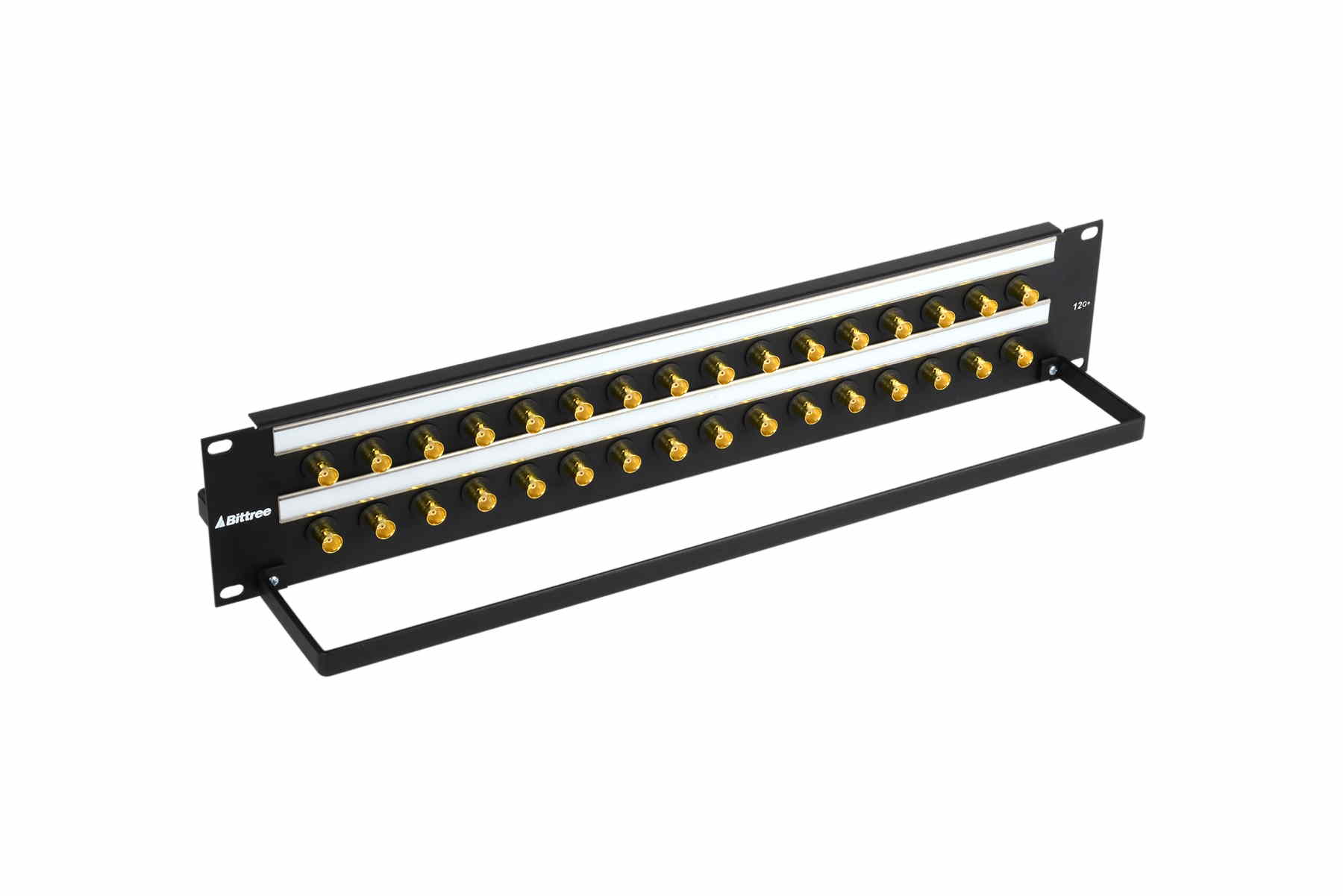

BNC-12G-FV-3Q-BH-B216A1B12-01
-

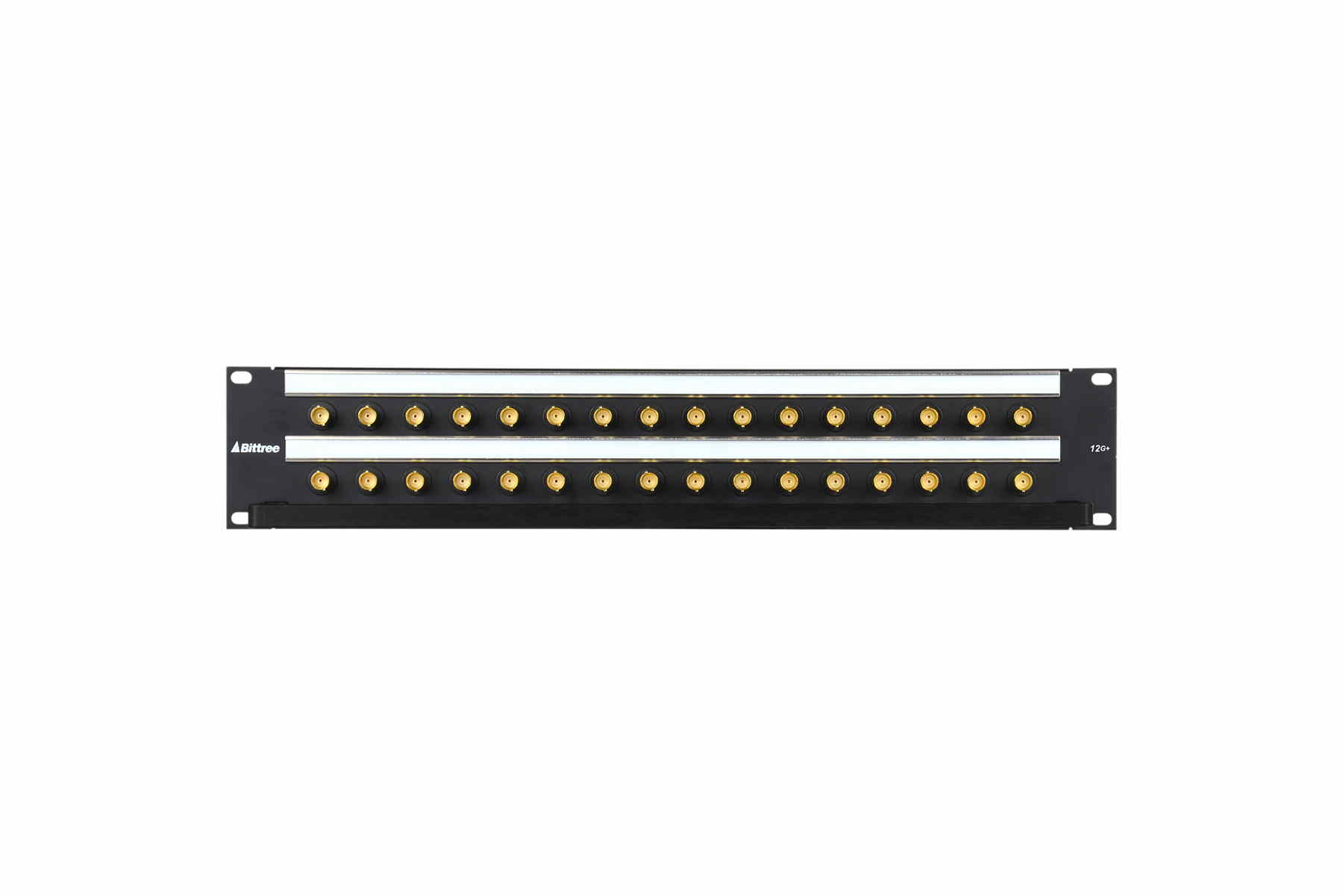

BNC-12G-FV-3Q-BH-B216A1B12-02
-

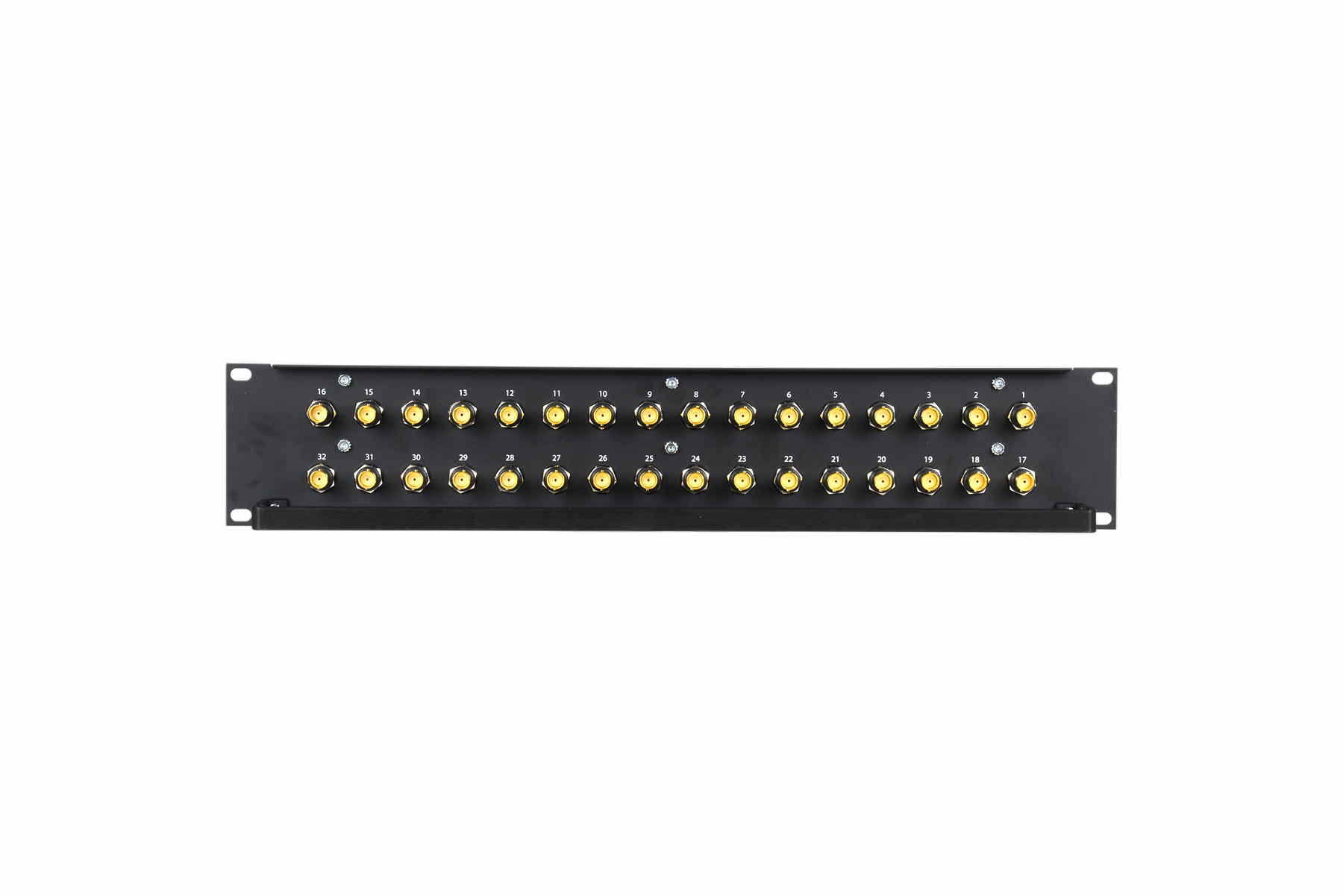

BNC-12G-FV-3Q-BH-B216A1B12-03
-
-

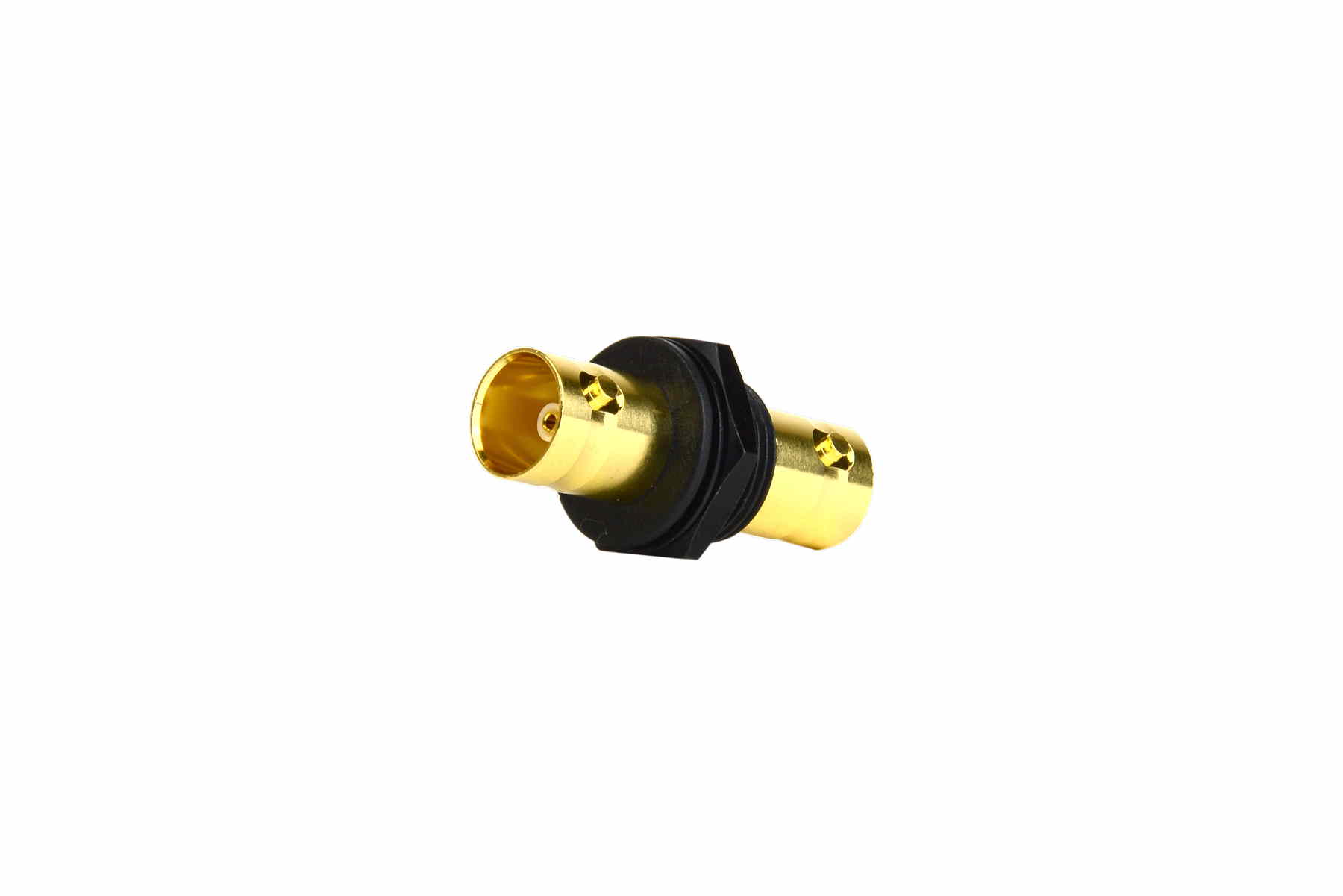

Bittree-BNC-12G-JACK-06
-

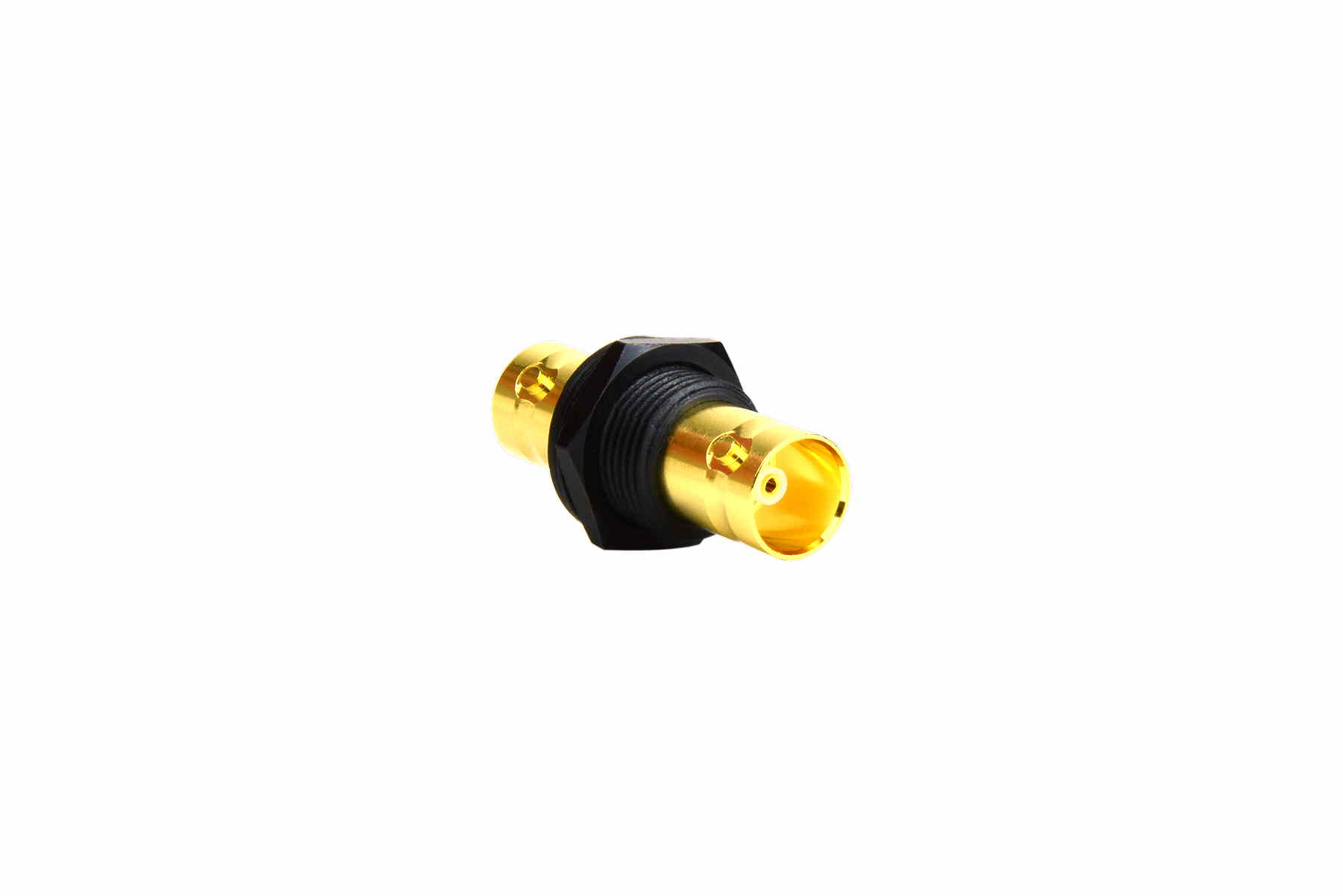

Bittree-BNC-12G-JACK-07
BITTREE 12G+ BH-B216A2B12 BNC Coaxial Bulkhead
The Bittree BH-B216A2B12 is a BNC Coaxial Bulkhead Panel 2X16 enclosed in a 2RU chassis. 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K applications. The BNC jacks are 75 ohm impedance with low return loss. These patchbays also pass SMPTE 292M, 424M, 2081-1, and are 2082-1 compliant.
BH-B216A2B12 BNC Coaxial Bulkhead
Standard Designation Strips
32 Channels 2RU
Price $586.00
Add to Cart

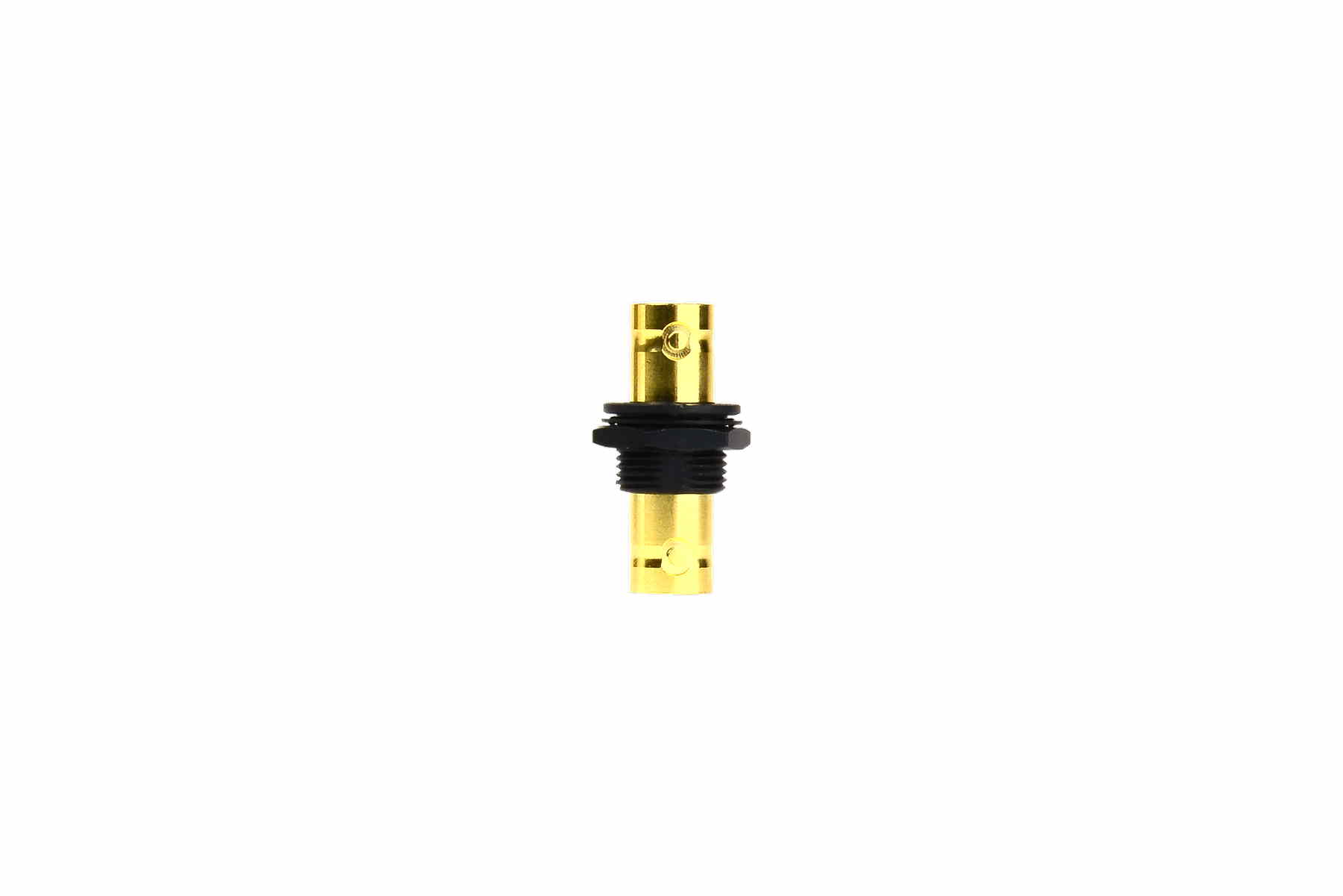

- Micro BNC Jack Properties:
- 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
- SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
- 75 ohm impedance with low return loss
- 500 Mating cycles
- Operating temperature: -35 to +165°C
- IP64 (mated)
- Panel Features:
- 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
- BNC connectors on both the front and back of the panel
- Silk screened circuit numbering on both the front and back with optional designation strip available for the front
- Two 3" (7.62 cm) deep lacing bars for cable dressing (both are removable)
- Alternative 6" (15.24 cm) deep lacing bars available
- Options:
- Front Panel Circuit Identification: - Silk screened numbering only, or - 2 x DS580-20 Designation Strip (stainless-steel slider with white styrene and non-glare Lexan inserts)
- Compliance:
- RoHS Compliant
