BITTREE 12G+ BH-B132A0B12 BNC Coaxial Bulkhead

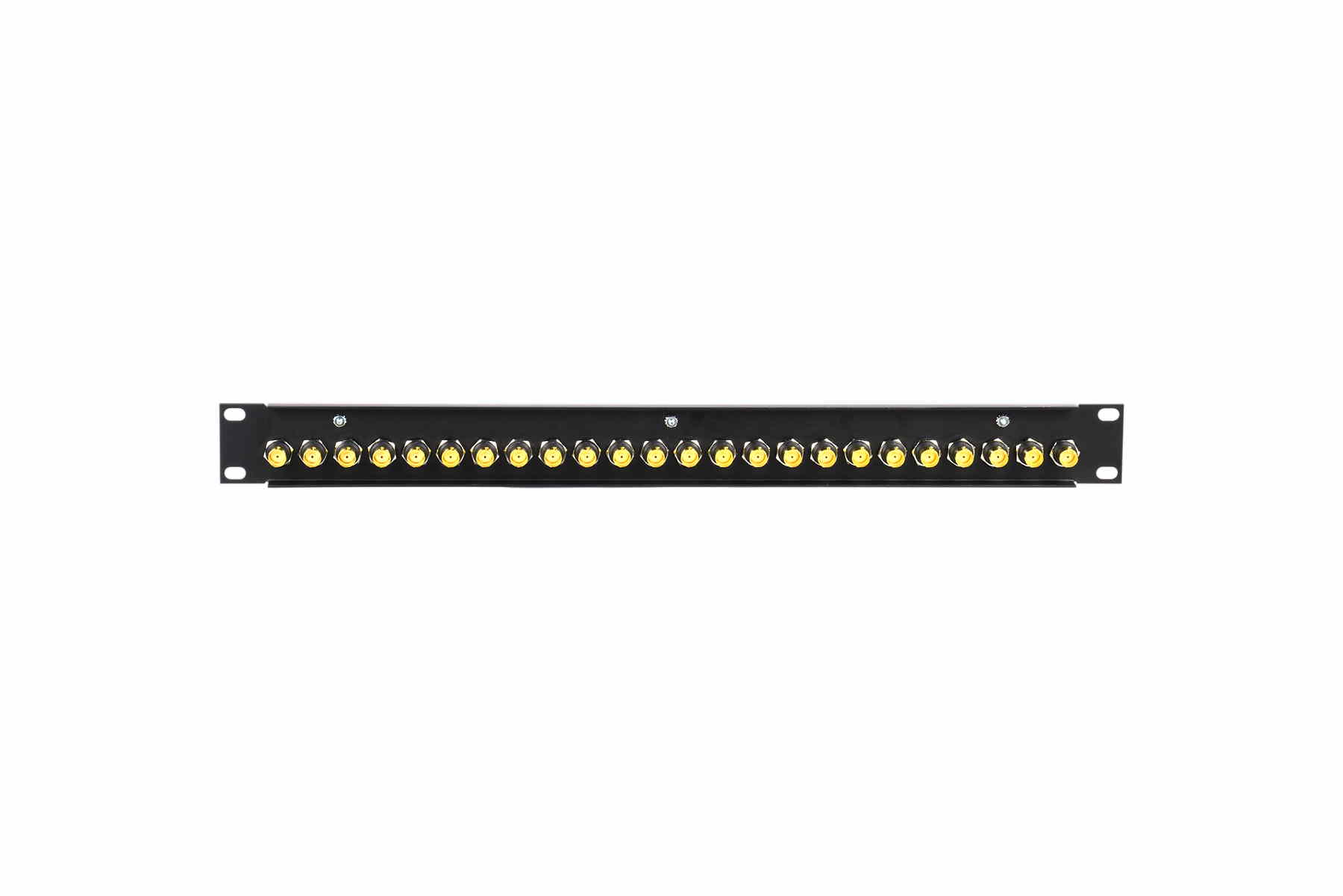

The BH-B124A1B12 1RU 1x24 Coaxial Bulkhead is a BNC Coaxial Bulkhead Panel 2X24 enclosed in a 1RU chassis. 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K applications. The BNC jacks are 75 ohm impedance with low return loss. These patchbays also pass SMPTE 292M, 424M, 2081-1, and are 2082-1 compliant.

BH-B124A1B12 BNC Coaxial Bulkhead
Standard Designation Strips
24 Channels 1RU
Price $440.00
Add to Cart

BH-B124A0B12 BNC Coaxial Bulkhead
Silk Screen Designation
24 Channels 1RU
Price $426.00
Add to Cart


  • Micro BNC Jack Properties:
  • 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
  • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
  • 75 ohm impedance with low return loss
  • 500 Mating cycles
  • Operating temperature: -35 to +165°C
  • IP64 (mated)
  • Panel Features:
  • 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
  • BNC connectors on both the front and back of the panel
  • Silk screened circuit numbering on the front with optional designation strip available
  • Compliance:
  • RoHS Compliant
