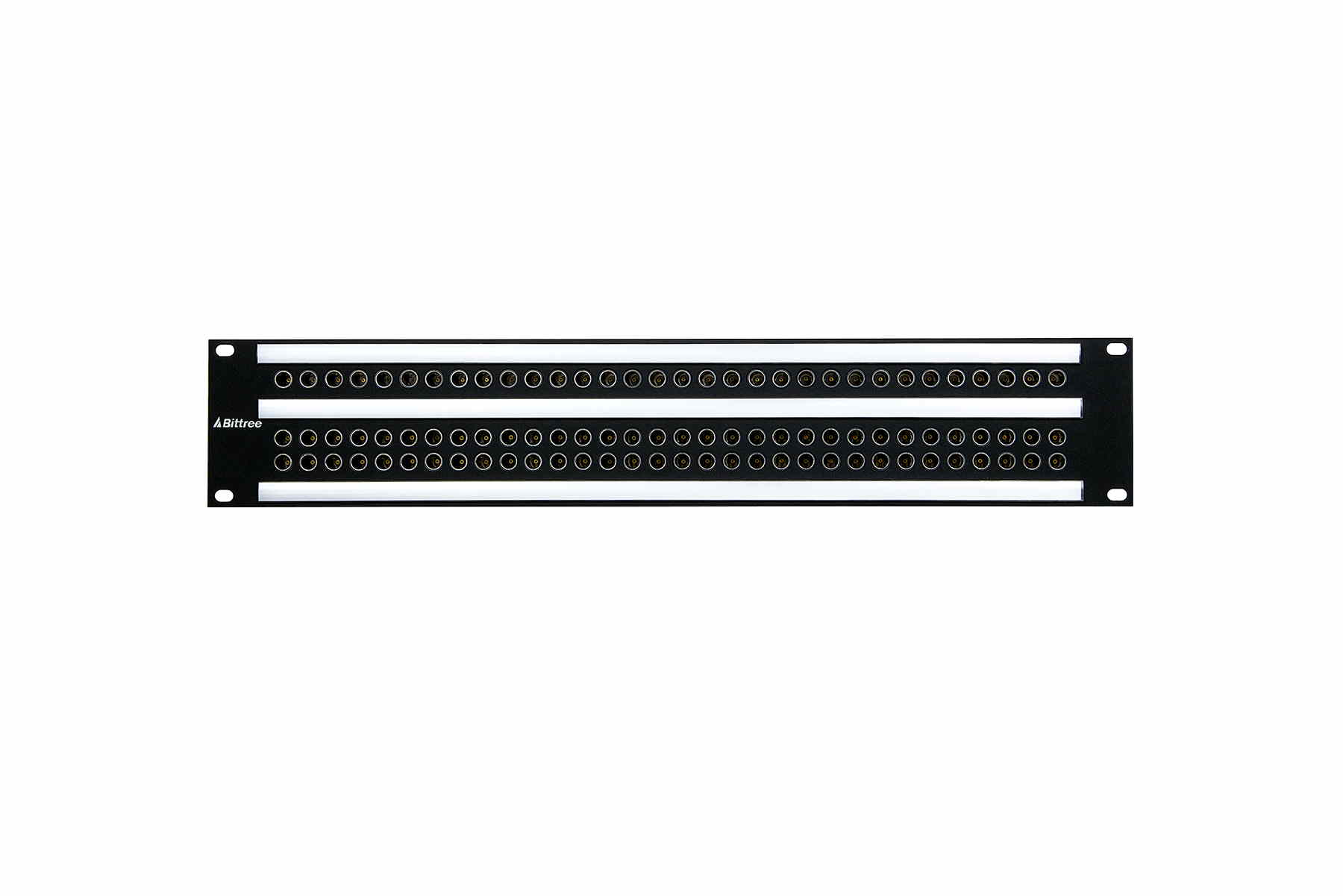

Bittree High-Density Micro-Video Patchbay

The B96T-2MWTHD is a 2RU Midsize Video Patchbay with 3X32 jack configuration with Micro-Video jacks enclosed in a 2RU chassis. The jacks are 75 ohm impedance are compliant with SMPTE 259M, 292M and 424M.
Want your chassis grey? Just ask.

B96T-2MWTHD
Full Normal Terminated
2RU 96 Points

Price $2642.00
Add to Cart


B96T-2MWNHD
Full Normal Non-Terminating
2RU 96 Points

Price $2361.00
Add to Cart

B96T-1MWTHD
No Normal Terminated
2RU 96 Points

Price $2642.00
Add to Cart


B96T-1MWNHD
No Normal Non-Terminating
2RU 96 Points

Price $2466.00
Add to Cart


  • Mini-WECO Video Jack Properties:
  • High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
  • SMPTE 259M, 292M and 424M compliant
  • True 75 ohm impedance with low return loss
  • Panel Features:
  • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
  • Rear-mounted jack modules
  • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
  • 3 x DS430-10 Designation Strips:
  • Stainless-steel sliders with white styrene and non-glare Lexan inserts

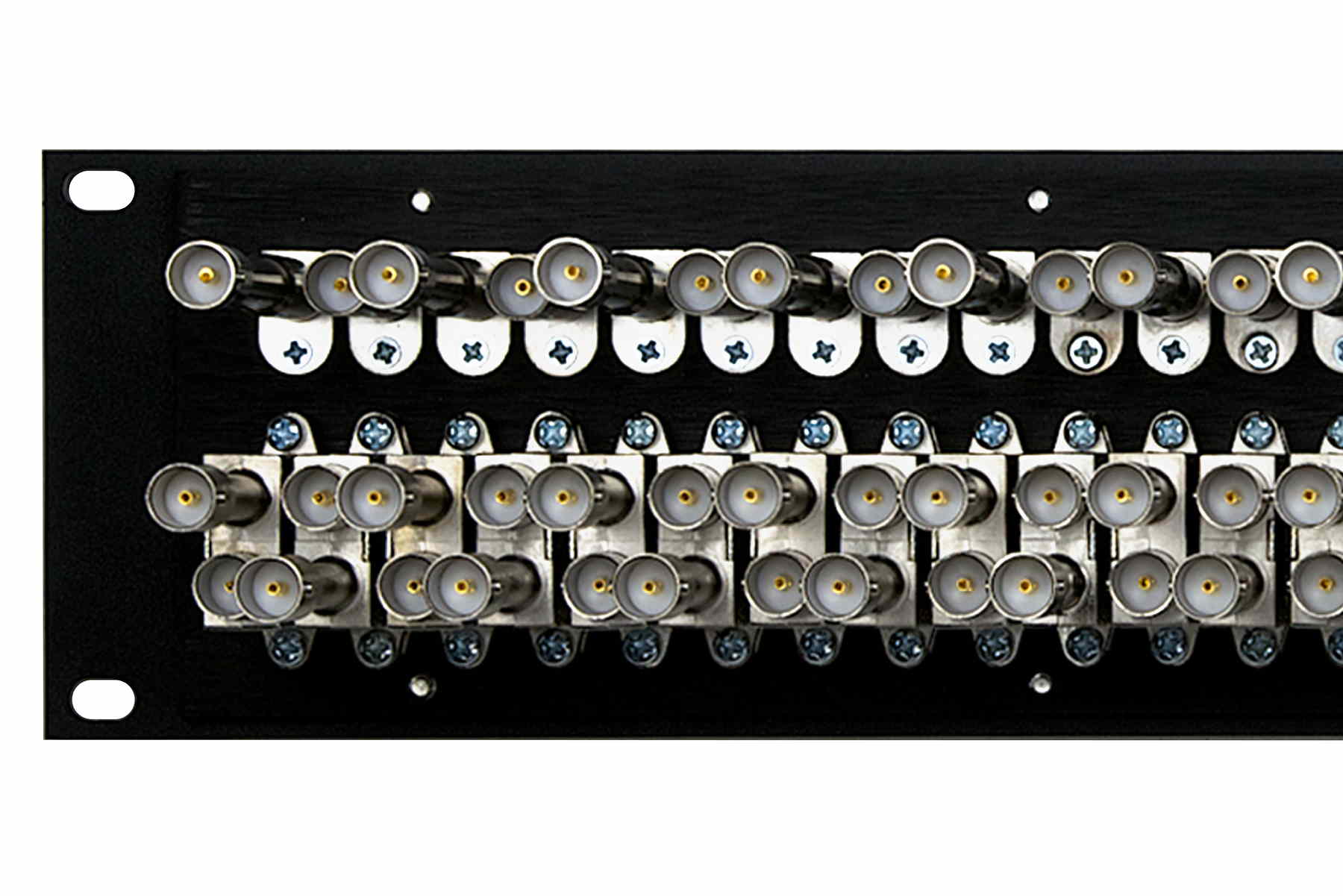

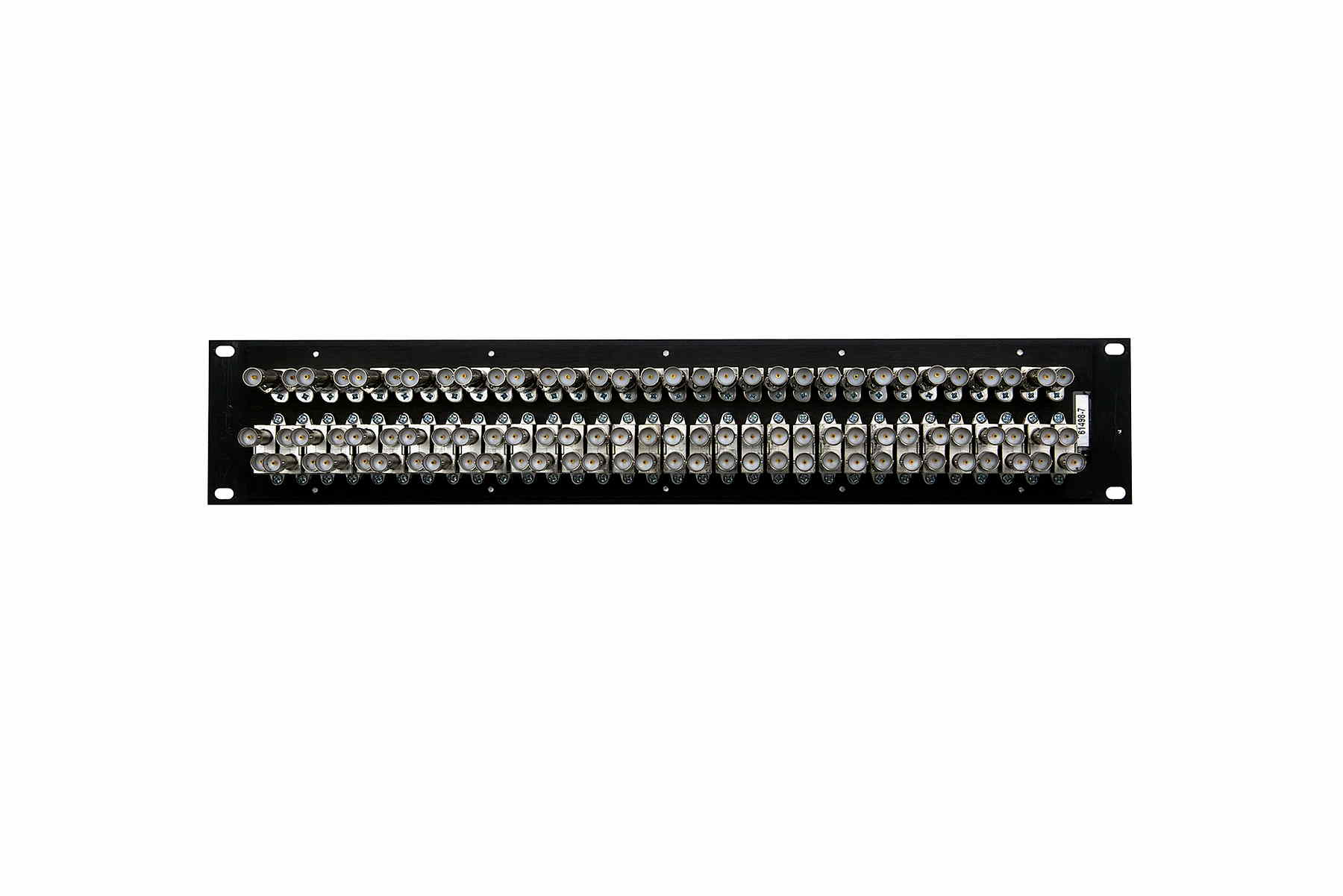

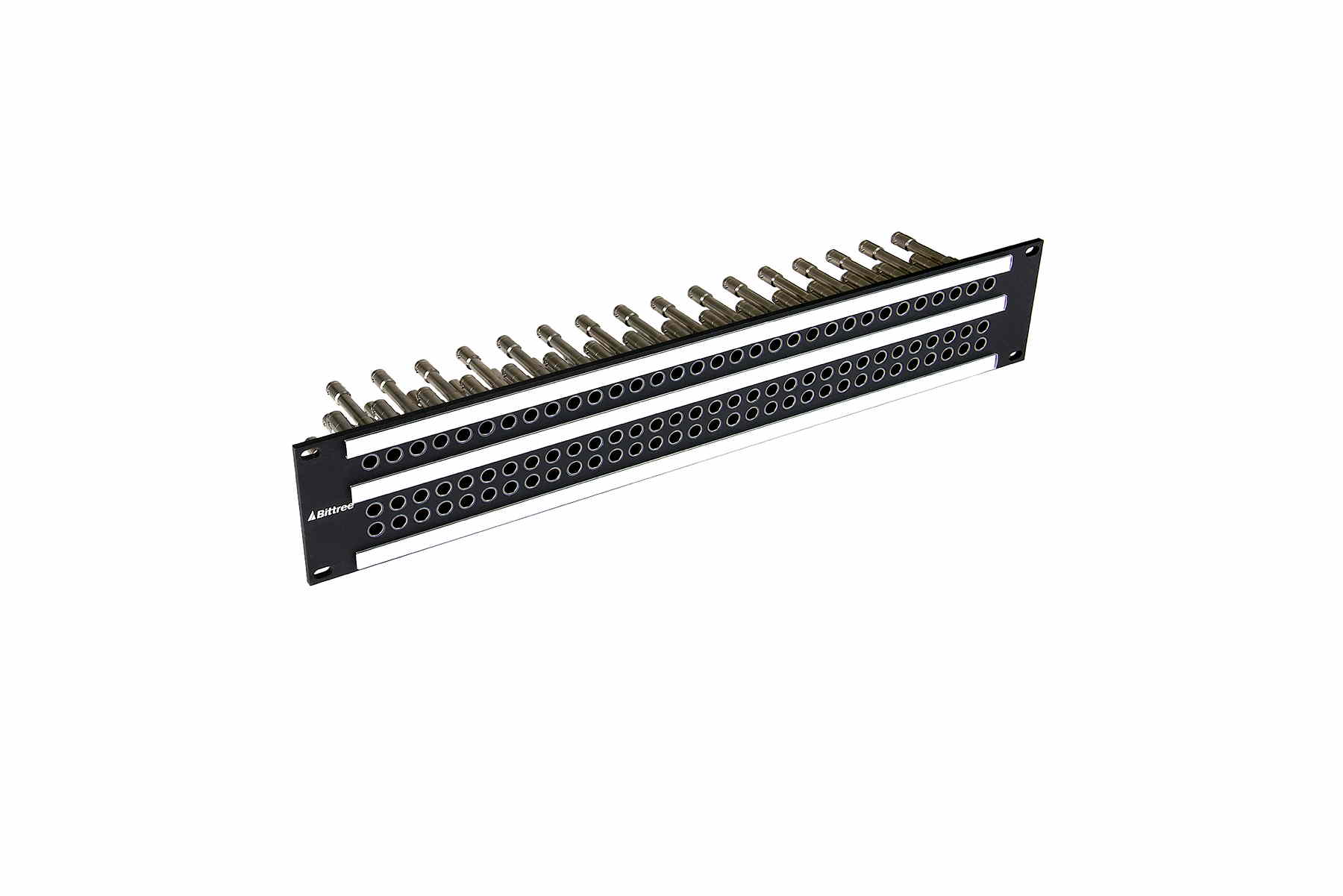

  • Staggered BNC Rear Interface
  • Options:

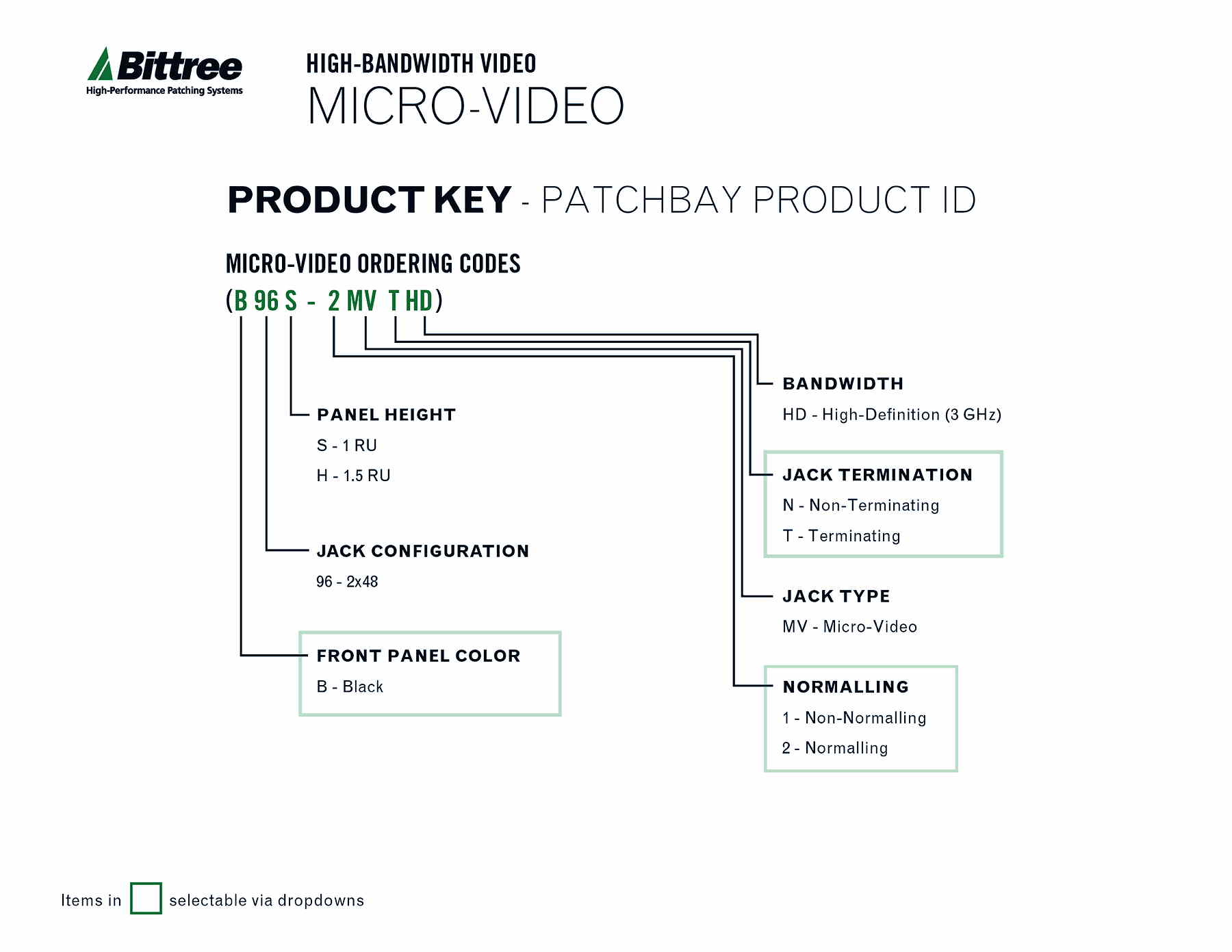

  • Mini-WECO video jacks may be ordered in four different configurations:
  • Self-normalling with 75 ohm termination (2MWTHD)
  • Self-normalling, non-terminating (2MWNHD)
  • Non-normalling (straight-through) with 75 ohm termination (1MWTHD)
  • Non-normalling (straight-through), non-terminating (1MWNHD)
  • Additional jack configurations available; please contact Mr. Patchbay for details

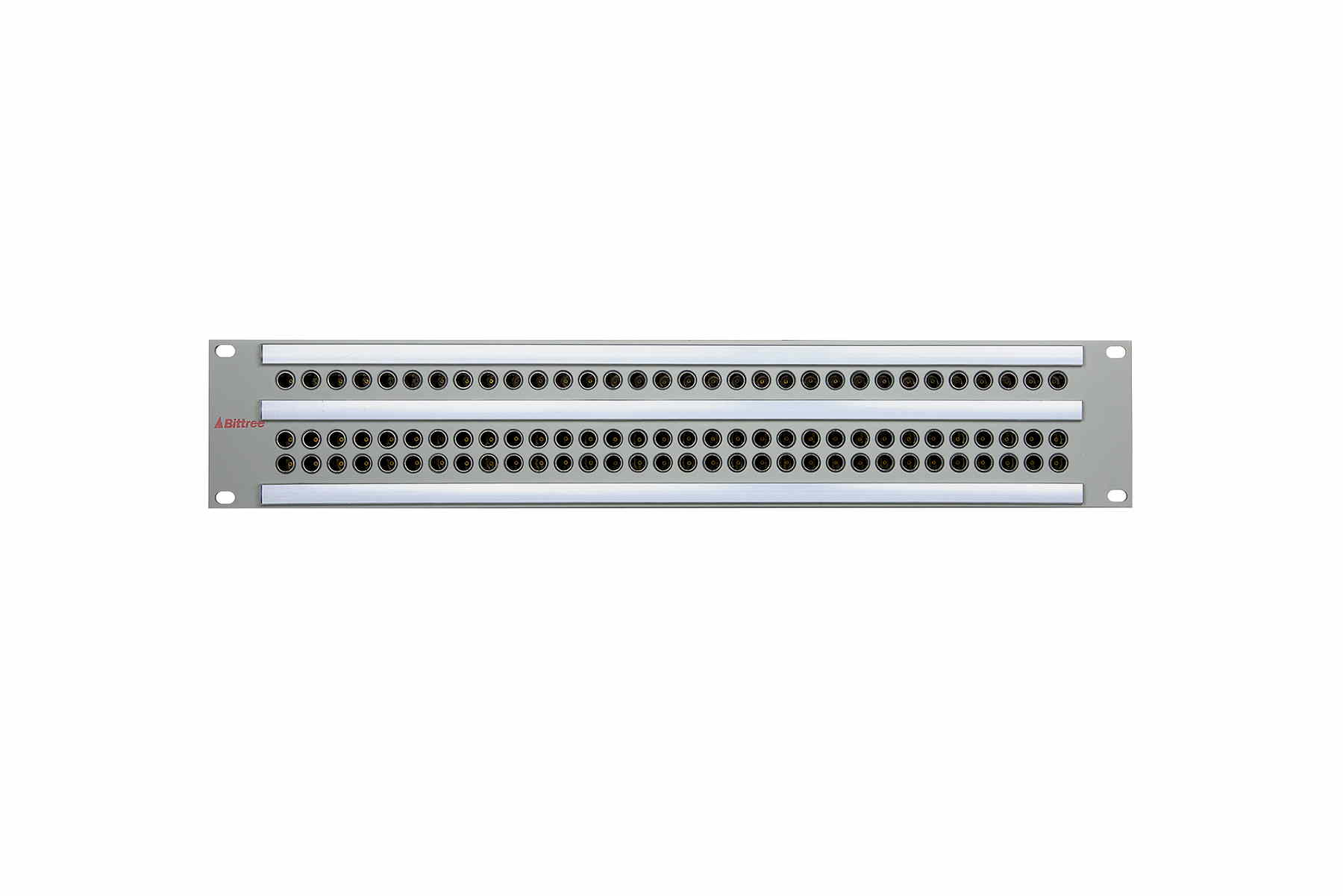

  • Front Panel Color – Black or Gray scratch resistant powder-coat finish
  • RoHS Compliant
