Bittree High-Density Micro-Video Patchbay

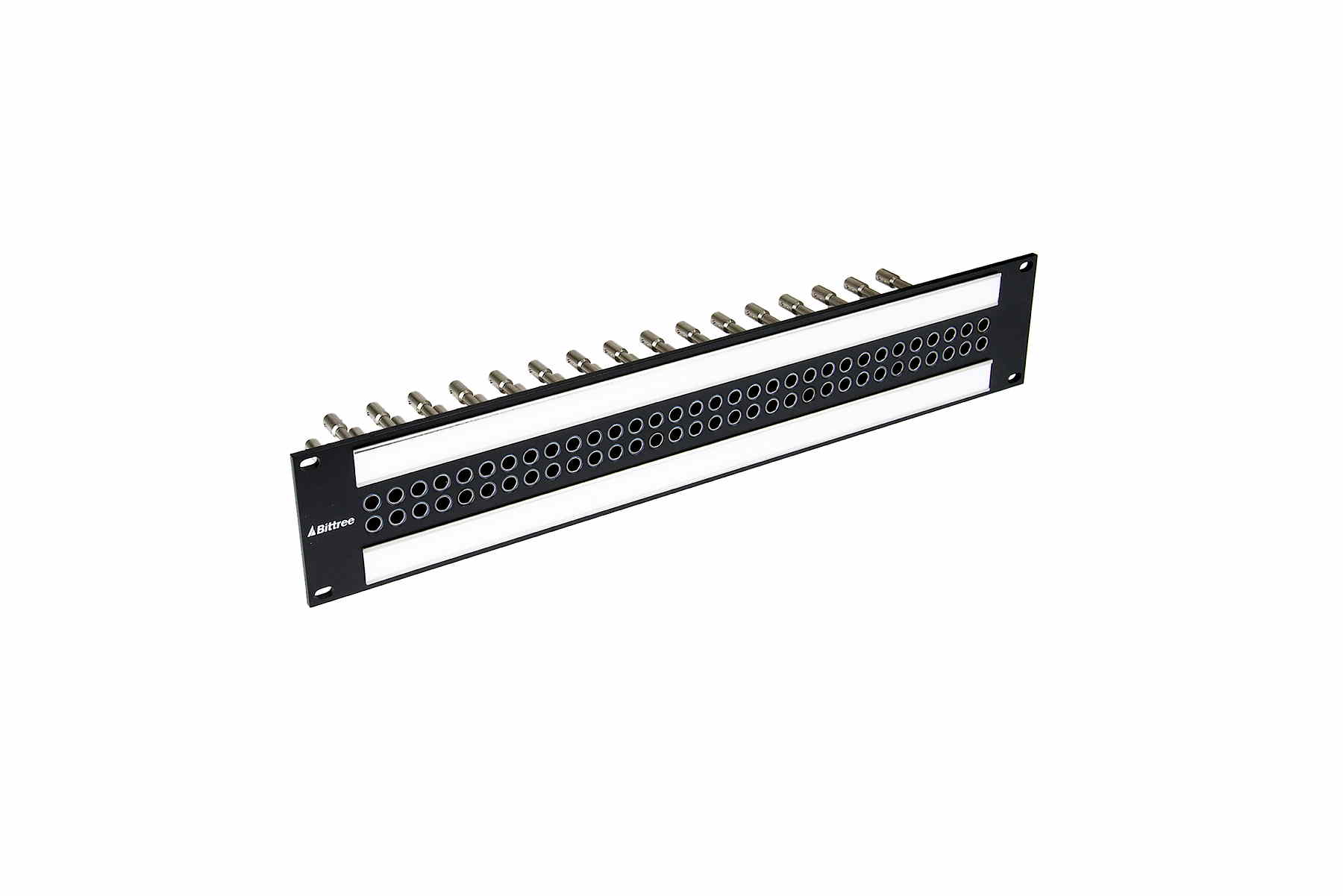

The B64T-2MWTHD is a 2RU Midsize Video Patchbay with 2X32 jack configuration with Micro-Video jacks enclosed in a 2RU chassis. The jacks are 75 ohm impedance are compliant with SMPTE 259M, 292M and 424M.
B64T-2MWTHD
Full Normal Terminated
2RU 64 Points
Price $1526.00
Add to Cart
B64T-2MWNHD
Full Normal Non-Terminating
1.5RU 64 Points
Price $1526.00
Add to Cart
B64T-1MWTHD
No Normal Terminated
2RU 64 Points
Price $1526.00
Add to Cart
B64T-1MWNHD
No Normal Non-Terminating
2RU 64 Points
Price $1526.00
Add to Cart
- Mini-WECO Video Jack Properties:
- High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
- SMPTE 259M, 292M and 424M compliant
- True 75 ohm impedance with low return loss

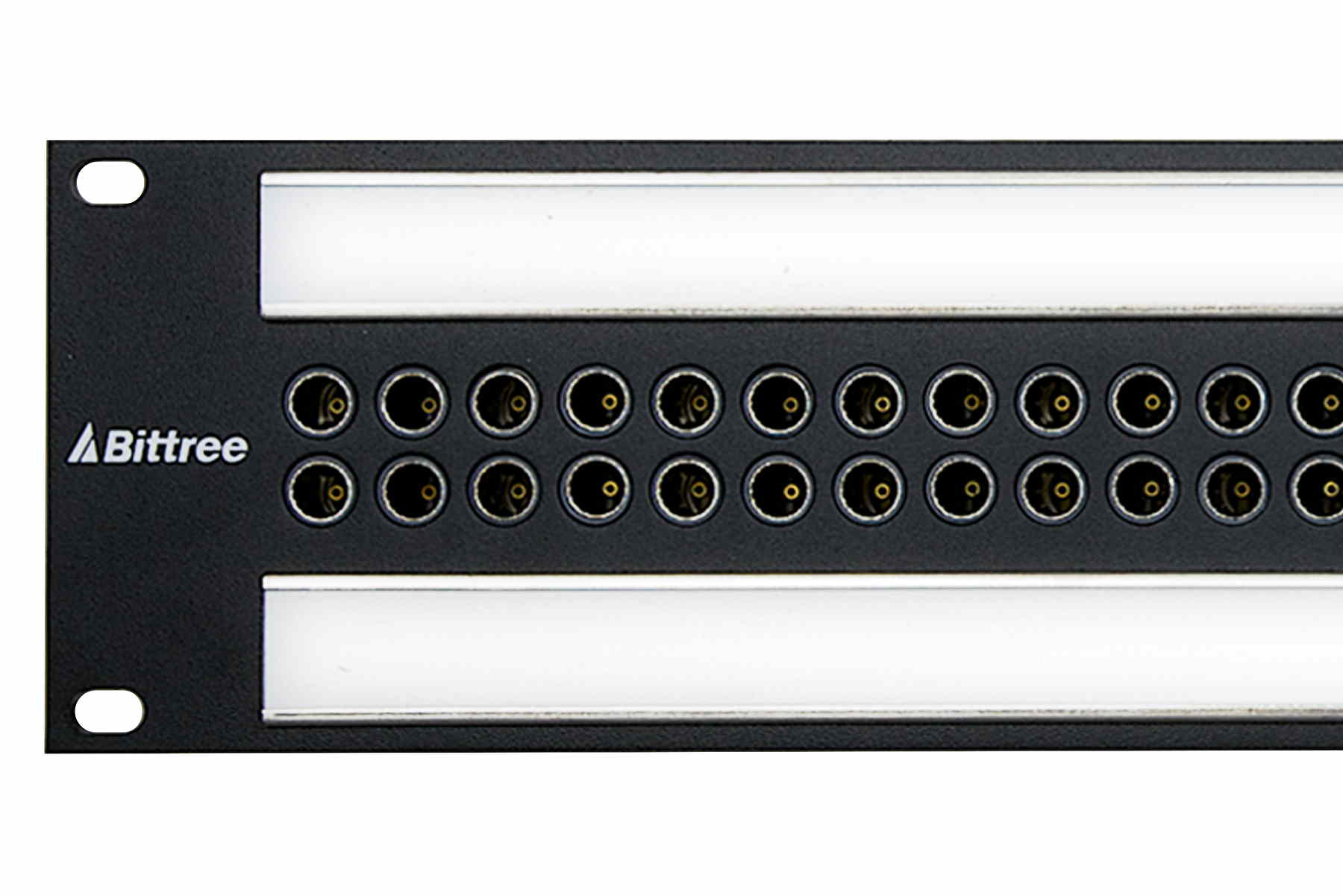

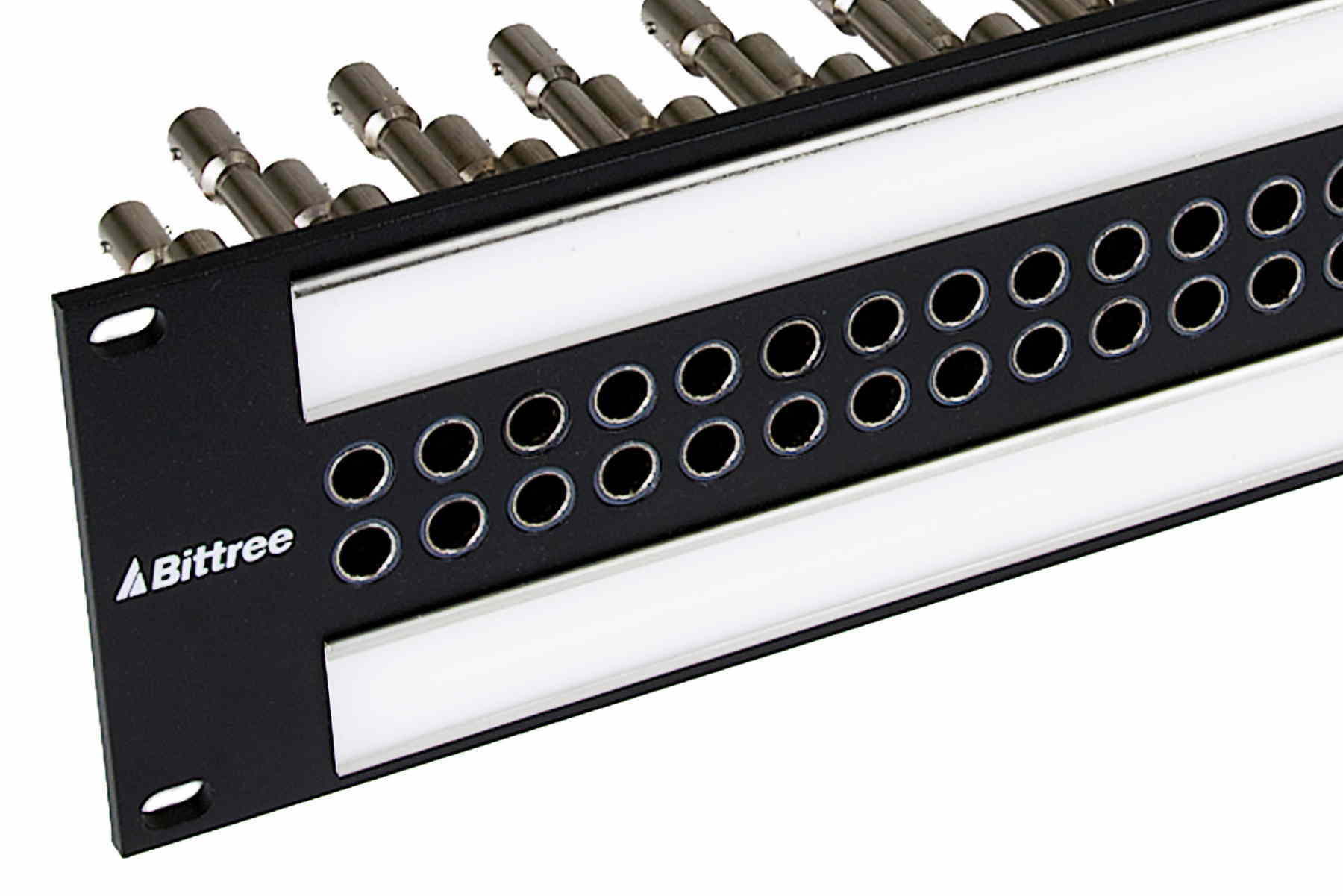

- Panel Features:
- 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- 2 x DS870-10 Designation Strips:
- Stainless-steel sliders with white styrene and non-glare Lexan inserts

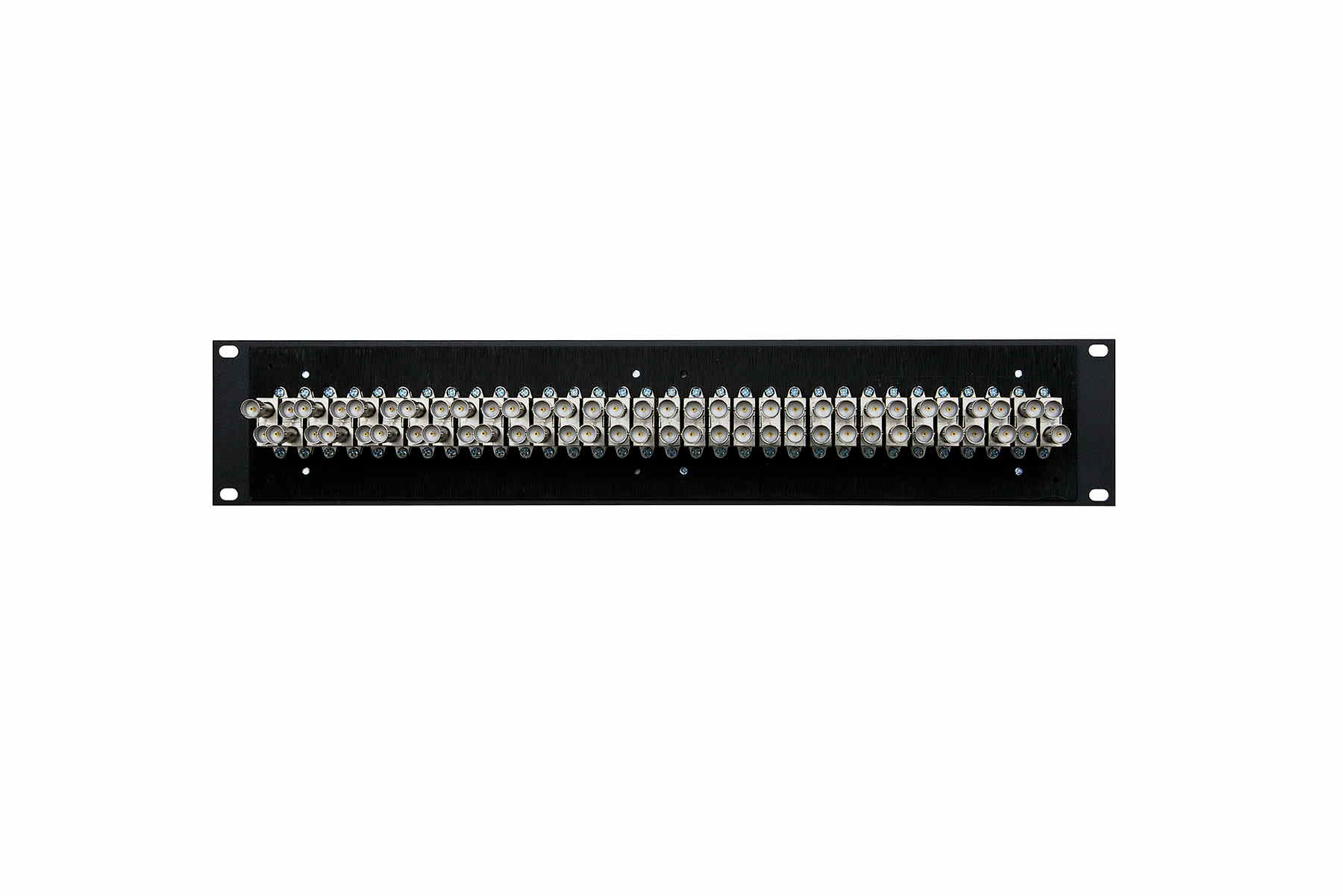

- Staggered BNC Rear Interface
- Options:

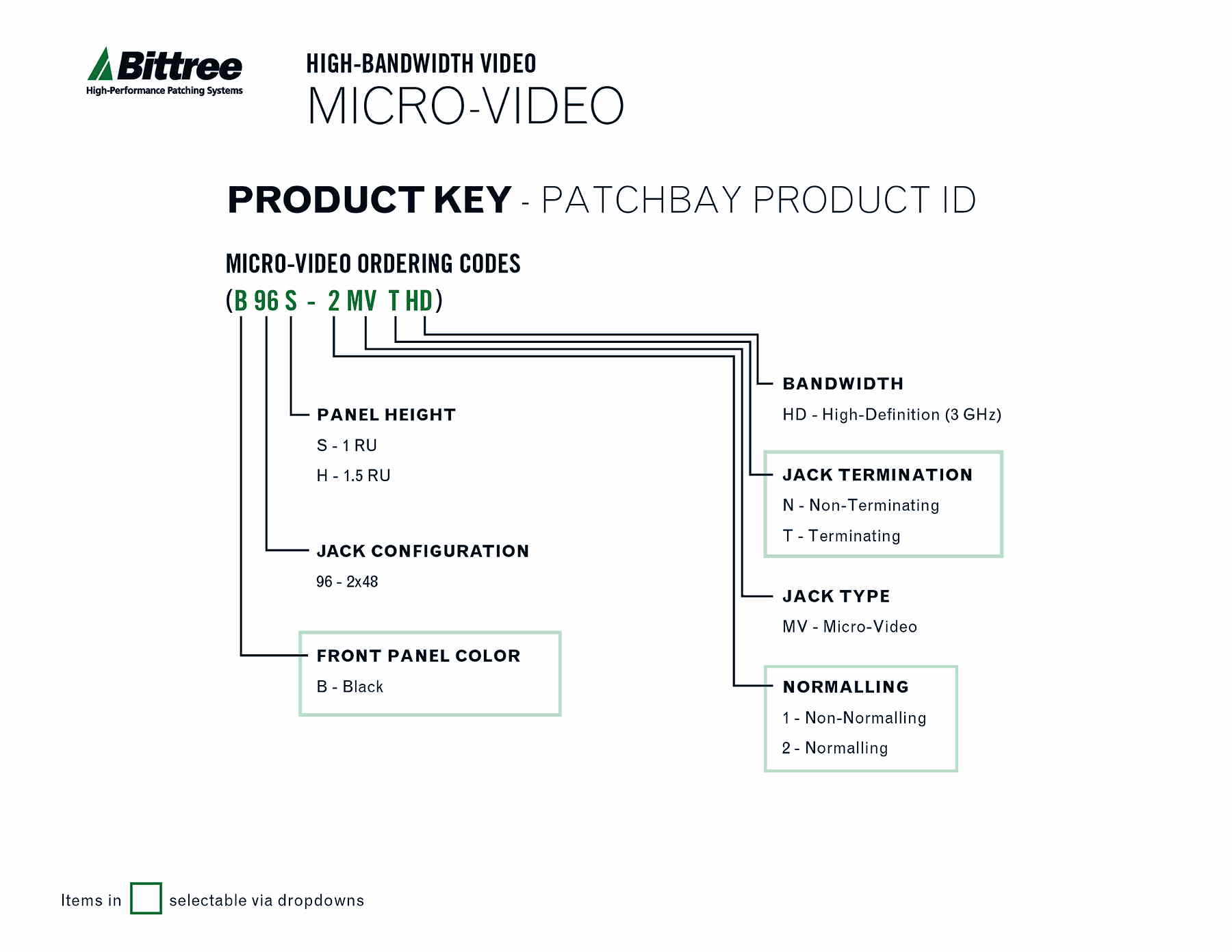

- Mini-WECO video jacks may be ordered in four different configurations:
- Dual body, self-normalling with 75 ohm termination (2MWTHD)
- Dual body, self-normalling, non-terminating (2MWNHD)
- Dual body, non-normalling (straight-through) with 75 ohm termination (1MWTHD)
- Dual body, non-normalling (straight-through), non-terminating (1MWNHD)

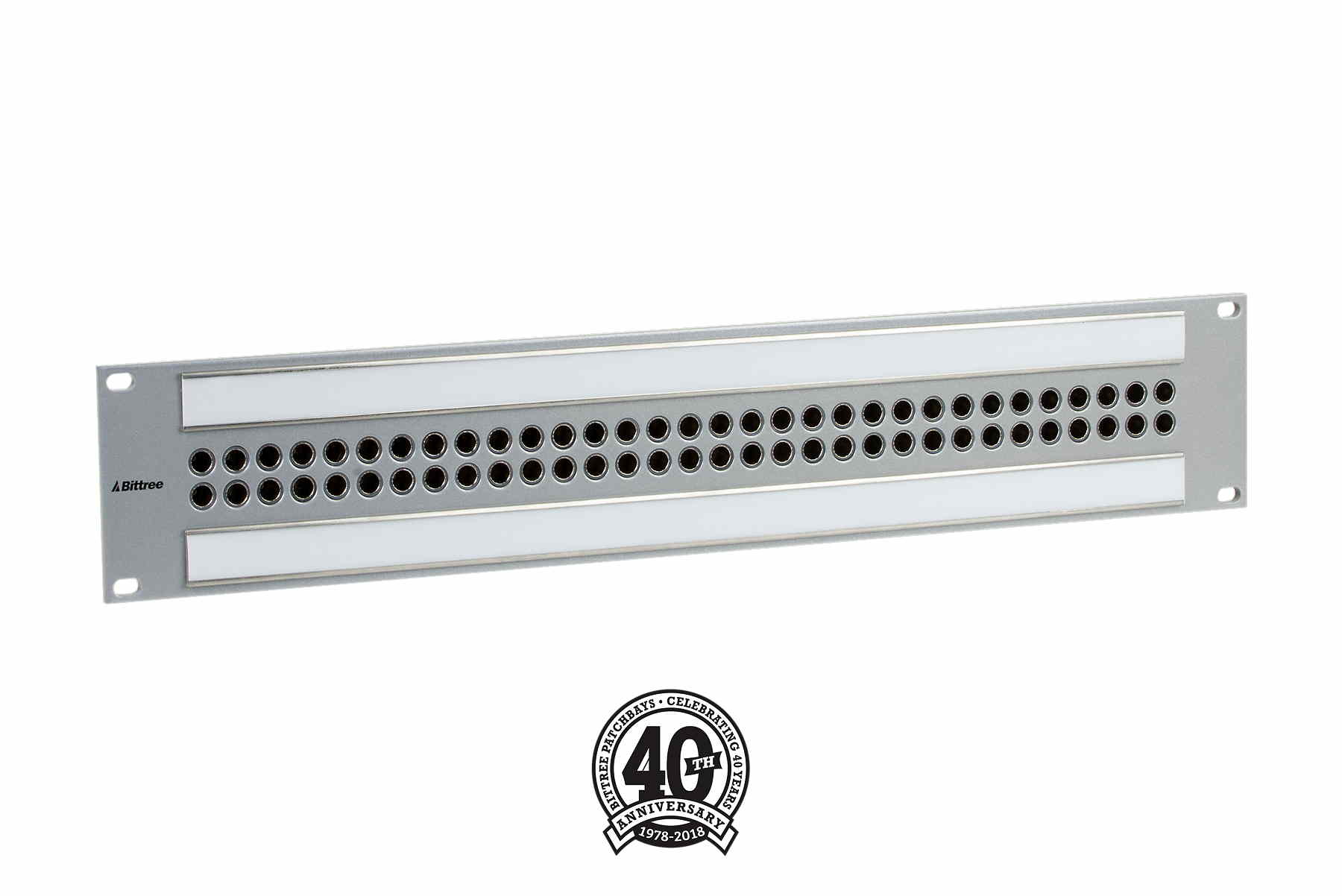

- Front Panel Color – Black or Gray scratch resistant powder-coat finish
- RoHS Compliant
