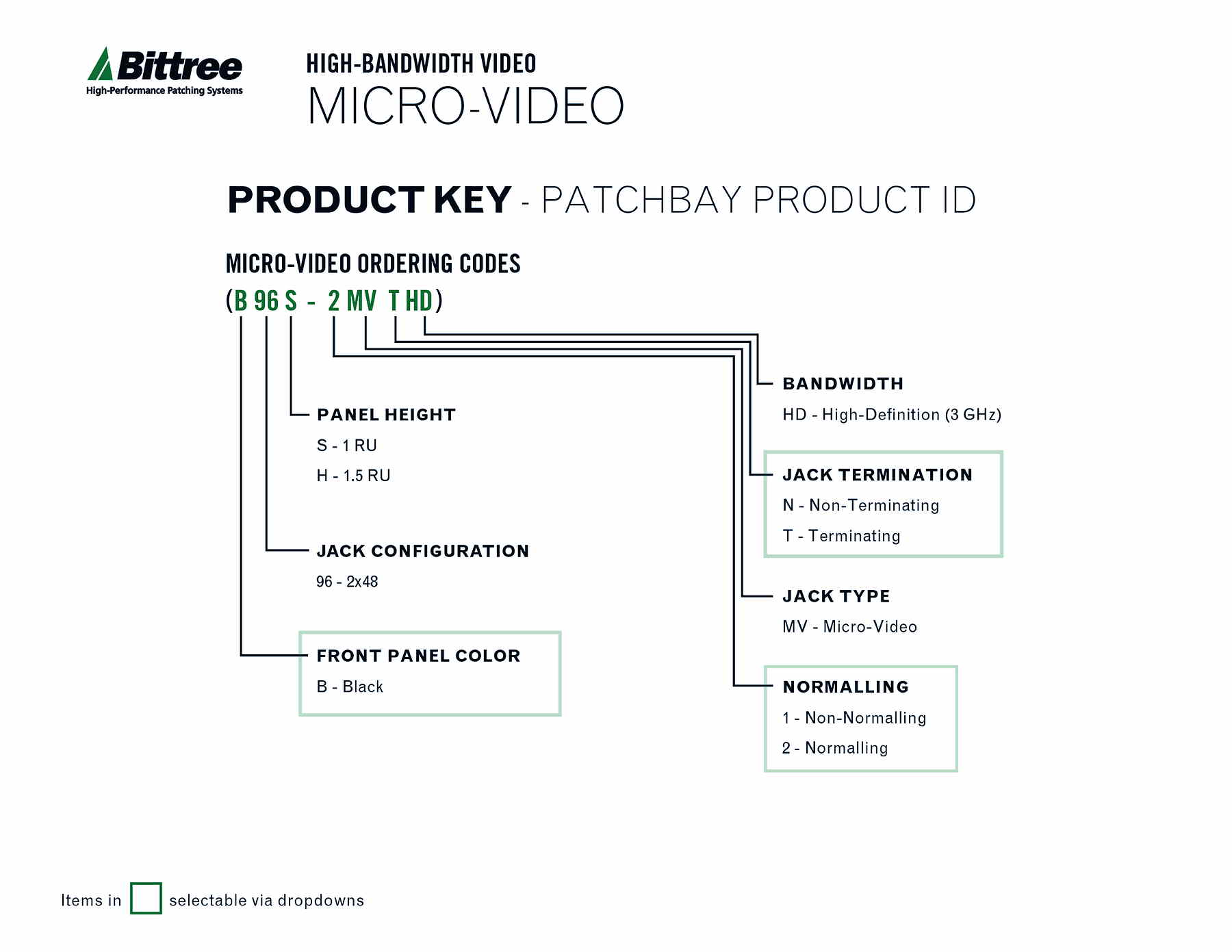

    Product-Key-Diagrams-micro-video

  •  42a-B96S-2MVTHD-HIGH-DENSITY-MICRO-VIDEO-2X48-1RU-001

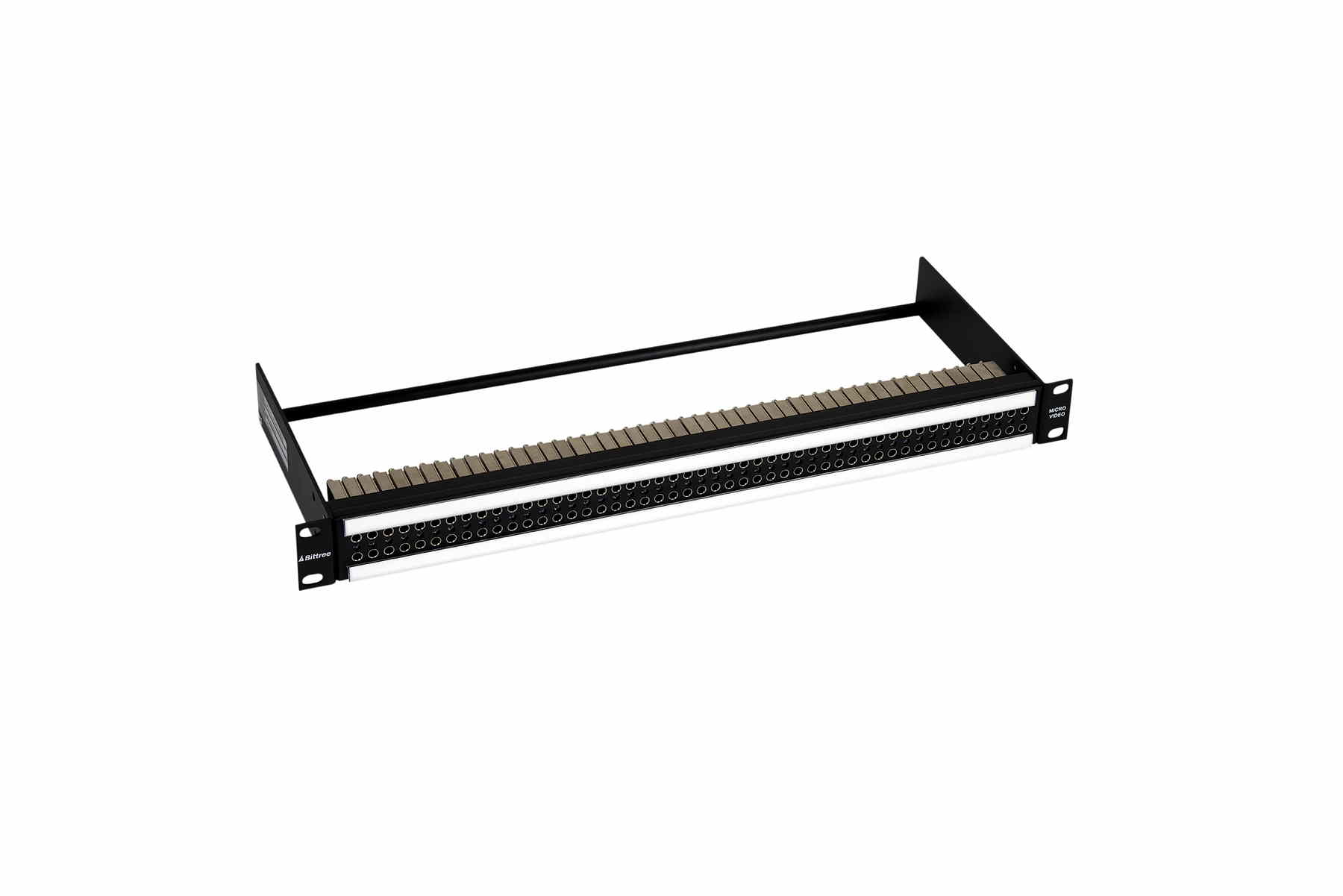

    42a-B96S-2MVTHD-HIGH-DENSITY-MICRO-VIDEO-2X48-1RU-001

  •  42a-B96S-2MVTHD-HIGH-DENSITY-MICRO-VIDEO-2X48-1RU-003

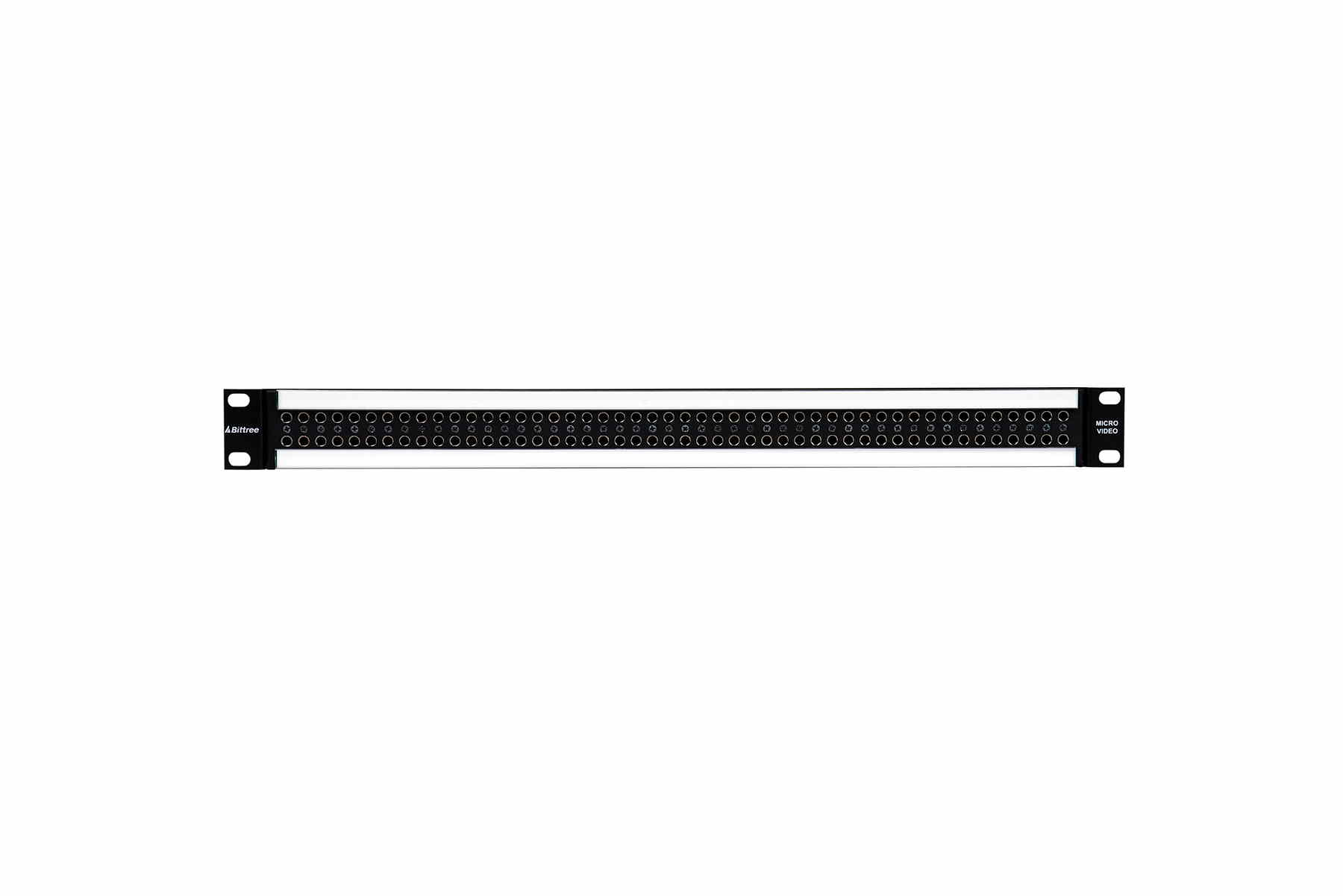

    42a-B96S-2MVTHD-HIGH-DENSITY-MICRO-VIDEO-2X48-1RU-003

  •  42a-B96S-2MVTHD-HIGH-DENSITY-MICRO-VIDEO-2X48-1RU-002

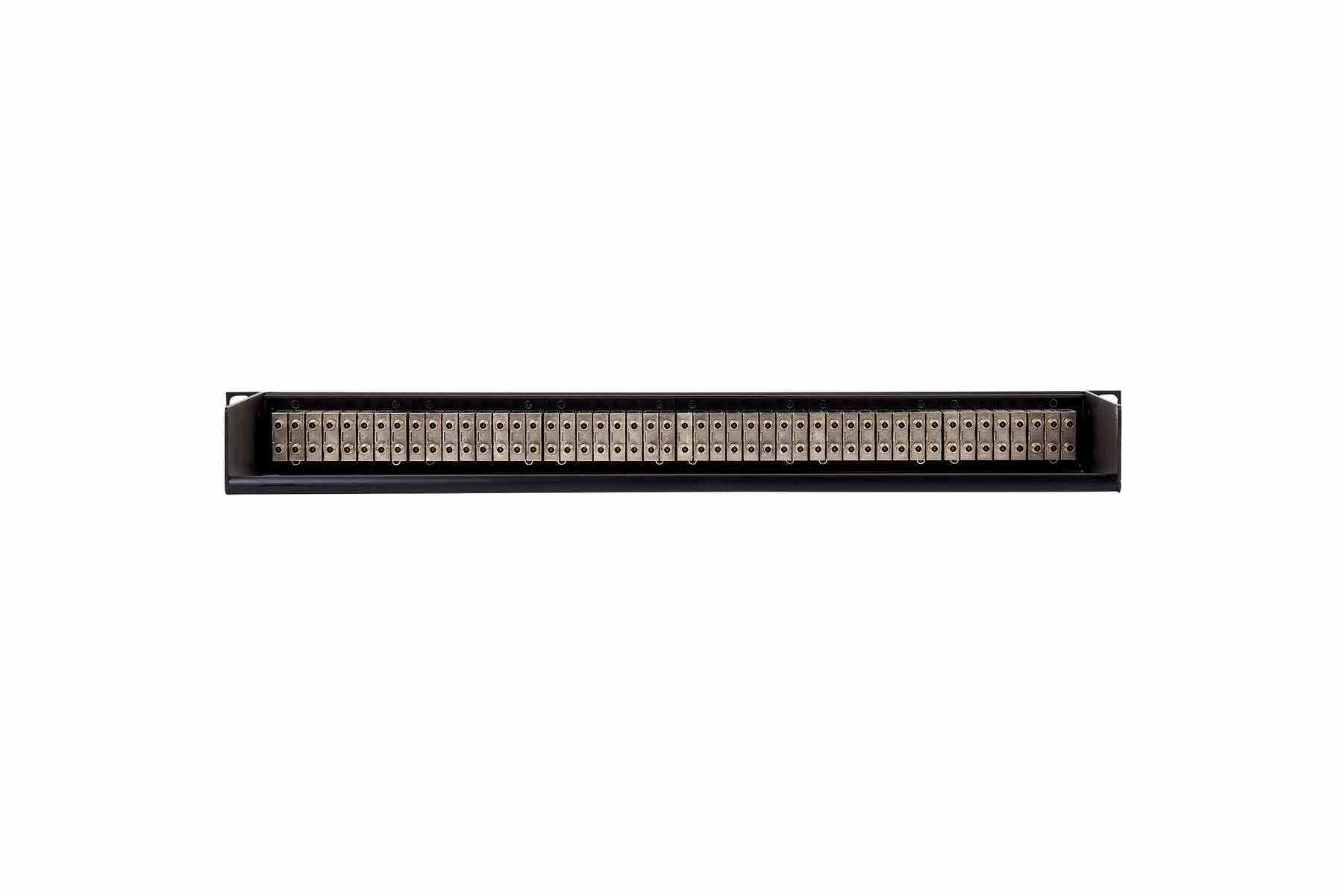

    42a-B96S-2MVTHD-HIGH-DENSITY-MICRO-VIDEO-2X48-1RU-002

  •  42a-B96S-2MVTHD-HIGH-DENSITY-MICRO-VIDEO-2X48-1RU-004

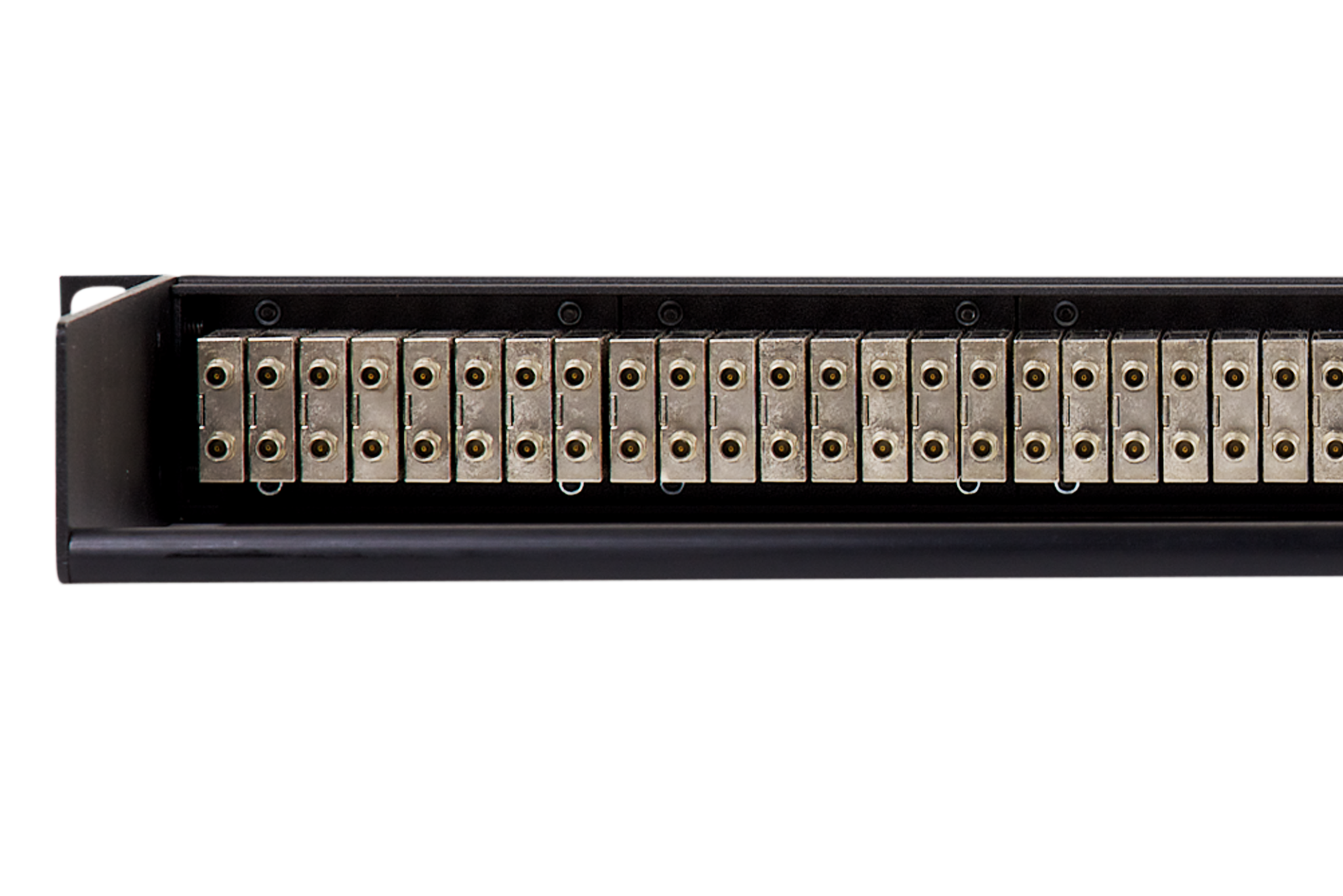

    42a-B96S-2MVTHD-HIGH-DENSITY-MICRO-VIDEO-2X48-1RU-004

Bittree High-Density Micro-Video Patchbay

The B96S-2MVTHD is a 1RU Midsize Video Patchbay with 2X48 jack configuration with Micro-Video jacks enclosed in a 1RU chassis. The jacks are 75 ohm impedance are compliant with SMPTE 259M, 292M and 424M.
Want your chassis grey? Just ask.

B96S-2MVTHD
Full Normal Terminated
1RU 96 Points

Price $2334.00
Add to Cart


B96S-1MVTHD
No Normal Terminated
1RU 96 Points

Price $2521.00
Add to Cart

B96S-2MVNHD
Full Normal Non-Terminated
1RU 96 Points

Price $2521.00
Add to Cart


B96S-1MVNHD
No Normal Non-Terminated
1RU 96 Points

Price $2521.00
Add to Cart


  • Micro-Video Video Jack Properties:
  • High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
  • SMPTE 259M, 292M and 424M compliant
  • True 75 ohm impedance with low return loss
  • Panel Features:
  • 1/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
  • Front panel can be recessed 1” into the rack to reduce patch cable protrusion
  • Jack module mounting screws captive to the front panel
  • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
  • 2 x DS430-10 Designation Strips: Extruded aluminum bars with clear plastic snap-over caps
  • Lacing/Tie Bar: Integrated 7” (177.8 mm) removable lacing bar for cable dressing
  • DIN 1.0/2.3 Rear Interface
  • Options:
  • Micro-Video jacks may be ordered as:
  • Dual body, self-normalling with 75 ohm termination (2MVTHD/S)
  • Dual body, self-normalling, non-terminating (2MVNHD/S)
  • Dual body, non-normalling (straight-through) with 75 ohm termination (1MVTHD/S)
  • Dual body, non-normalling (straight-through), non-terminating (1MVNHD/S)
  • RoHS Compliant
