Bittree High-Density Micro-Video Patchbay

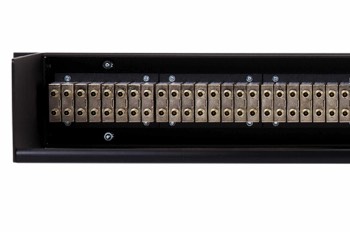

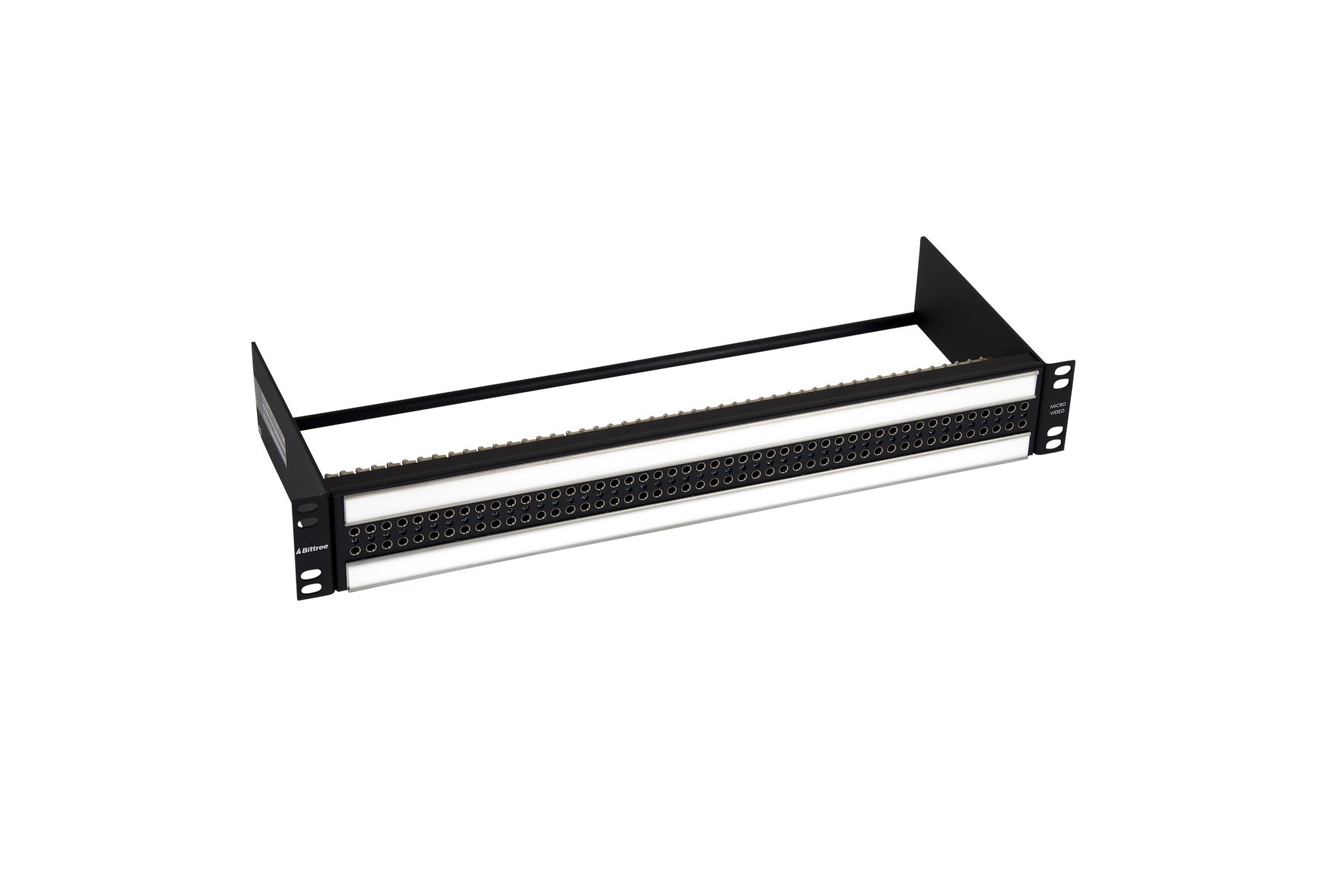

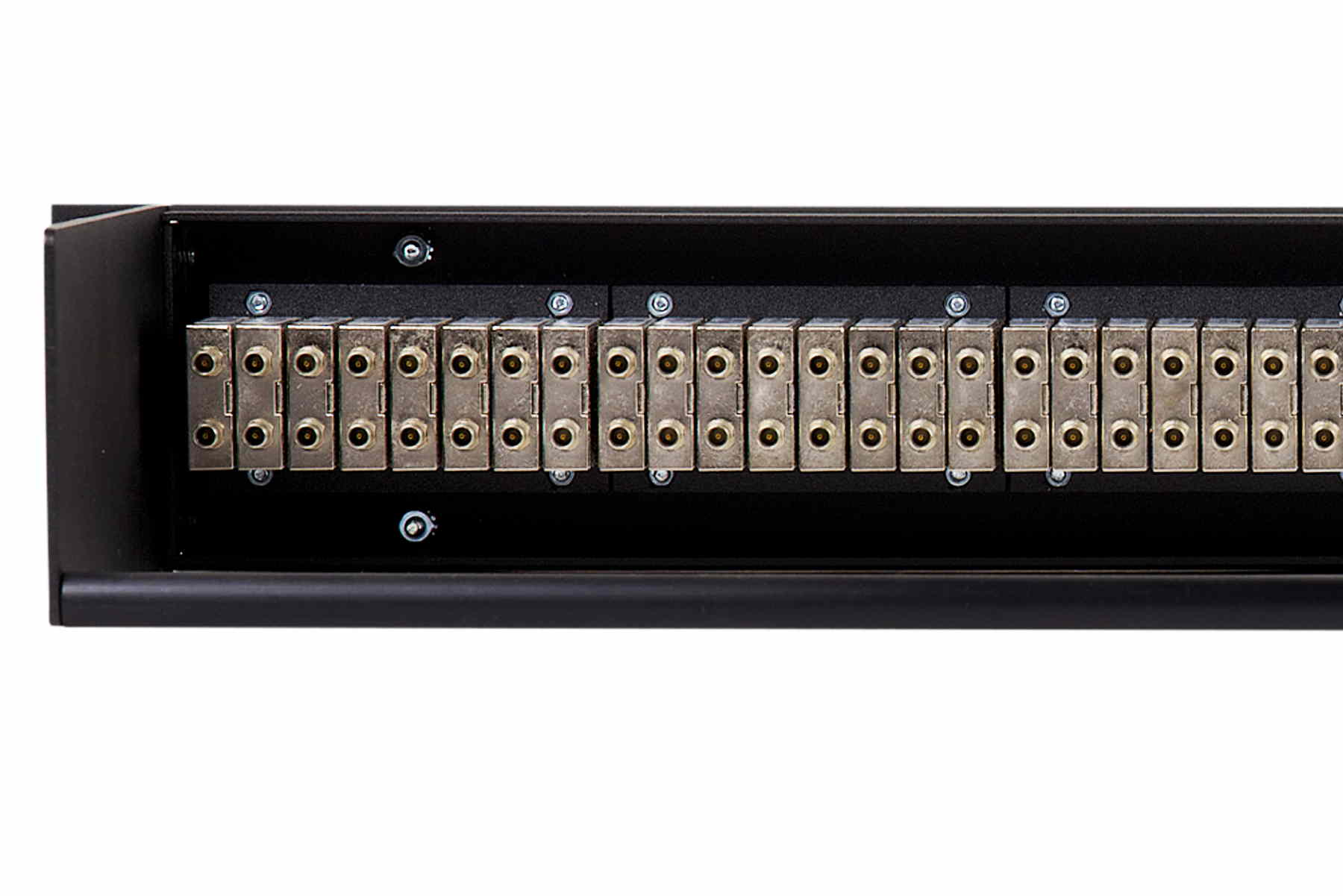

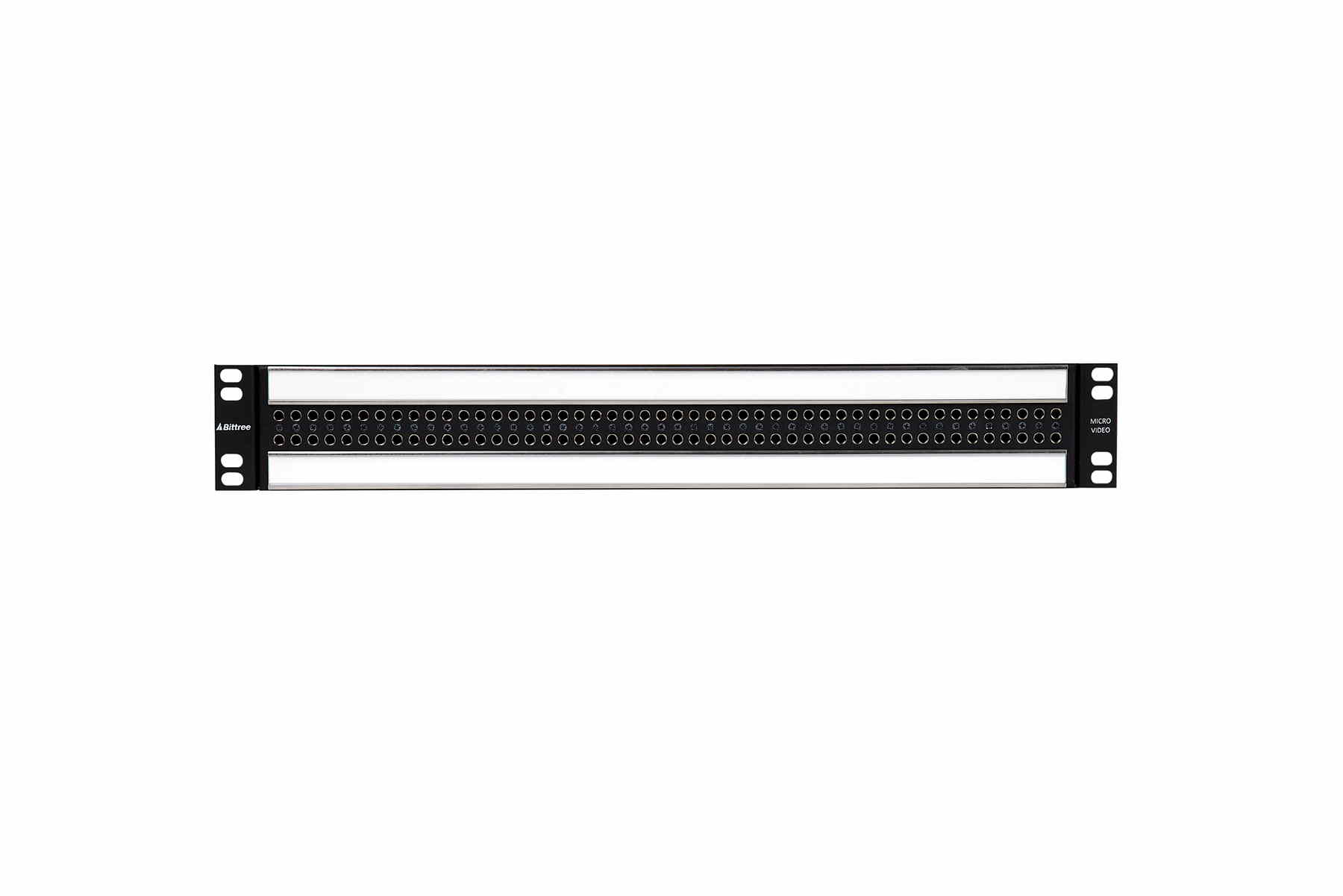

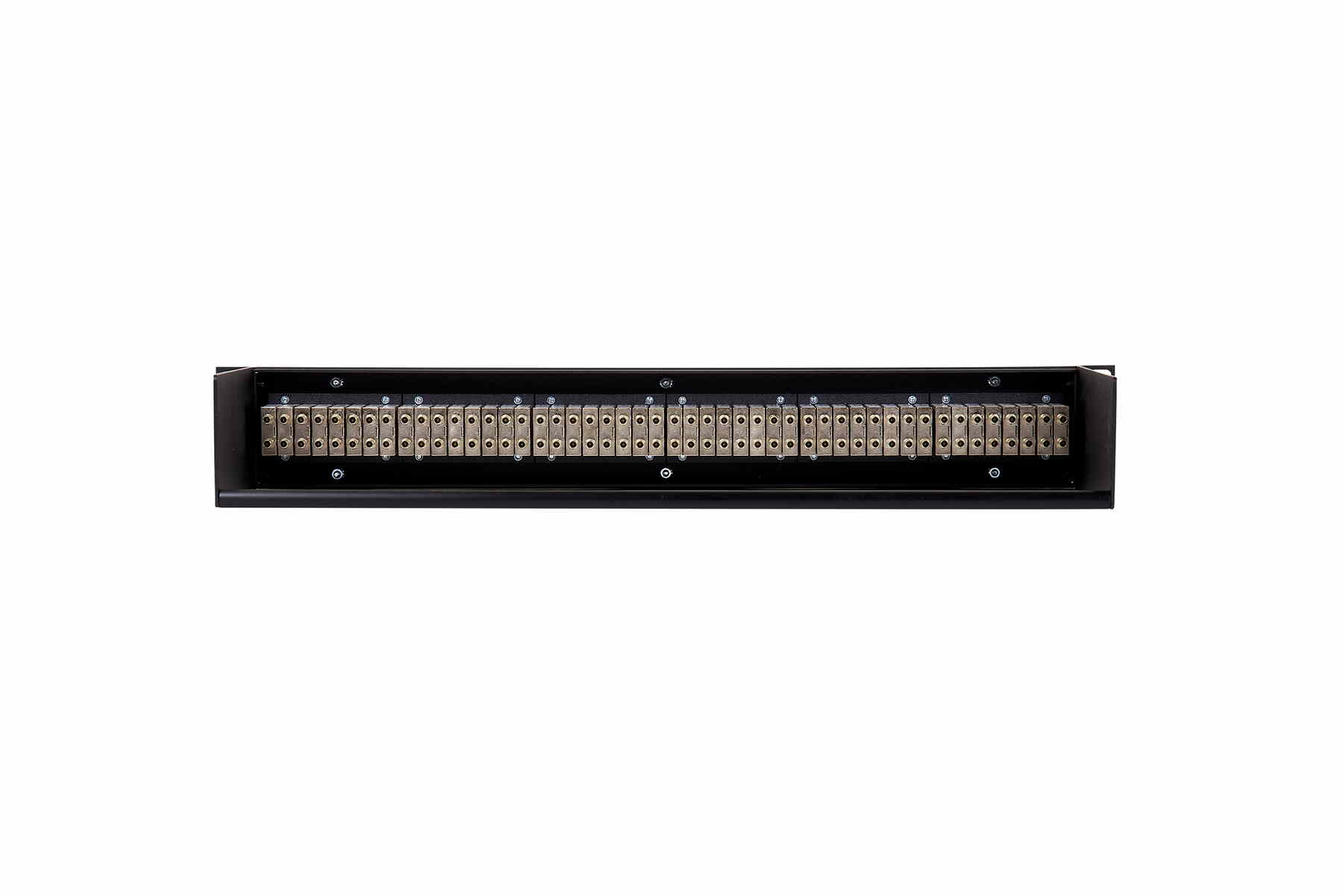

The B96H-2MVTHD is a 1.5RU Midsize Video Patchbay with 2X48 jack configuration with Micro-Video jacks enclosed in a 1.5RU chassis. The jacks are 75 ohm impedance are compliant with SMPTE 259M, 292M and 424M.
Want your chassis grey? Just ask.
B96H-2MVTHD
Full Normal Terminated
1.5RU 96 Points
Price $2334.00
Add to Cart
B96H-1MVTHD
No Normal Terminated
1.5RU 96 Points
Price $2521.00
Add to Cart
B96H-2MVNHD
Full Normal Non-Terminated
1.5RU 96 Points
Price $2521.00
Add to Cart
B96H-1MVNHD
No Normal Non-Terminated
1.5RU 96 Points
Price $2521.00
Add to Cart
- Micro-Video Video Jack Properties:
- High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
- SMPTE 259M, 292M and 424M compliant
- True 75 ohm impedance with low return loss
- Panel Features:
- 1/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
- Front panel can be recessed 1” into the rack to reduce patch cable protrusion
- Jack module mounting screws captive to the front panel
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- 2 x DS430-10 Designation Strips: Extruded aluminum bars with clear plastic snap-over caps
- Lacing/Tie Bar: Integrated 7” (177.8 mm) removable lacing bar for cable dressing
- DIN 1.0/2.3 Rear Interface
- Options:

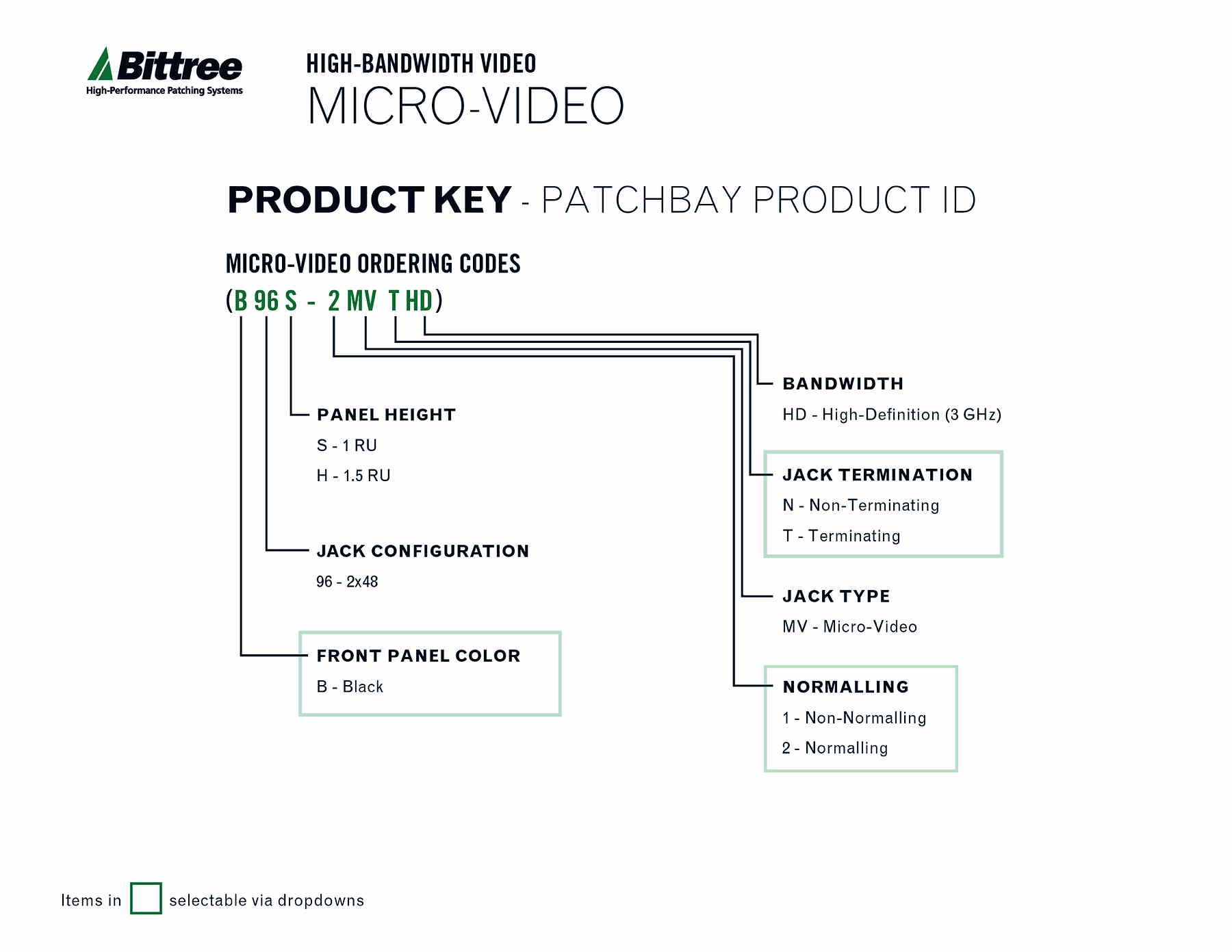

- Micro-Video jacks may be ordered as:
- Dual body, self-normalling with 75 ohm termination (2MVTHD/S)
- Dual body, self-normalling, non-terminating (2MVNHD/S)
- Dual body, non-normalling (straight-through) with 75 ohm termination (1MVTHD/S)
- Dual body, non-normalling (straight-through), non-terminating (1MVNHD/S)
- RoHS Compliant
