969-S

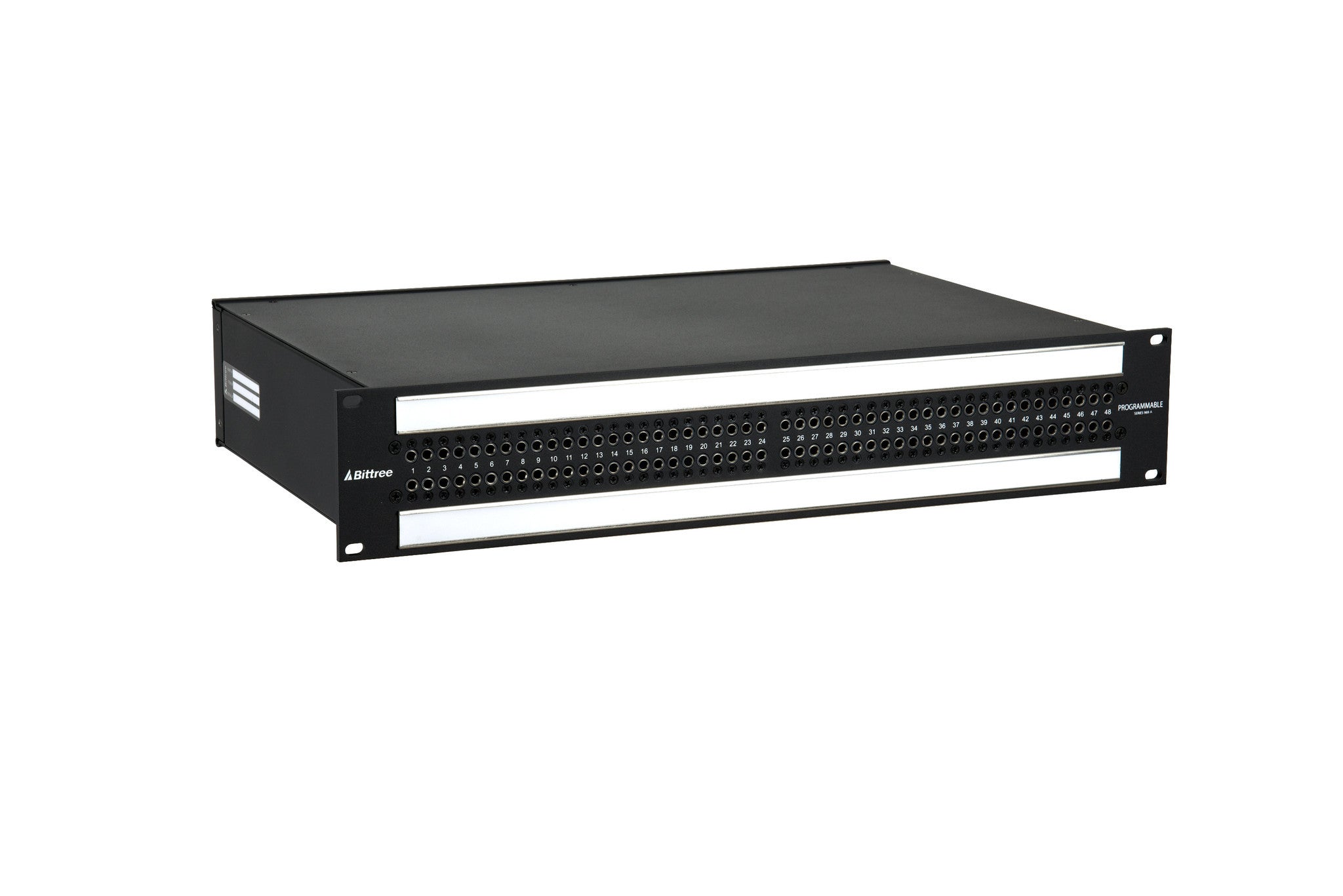

The Bittree B96DC-FNSST/D25 M2OU12B 96pt 1RU TT to DB-25 with SWITCHED GROUNDS Programmable Patchbays provides 96 channels of audio patching. This 2RU patchbay is available in five configurations. These patchbays have 2X48 TT jacks on the front and 12 DB-25 connectors on the rear. Db-25 pinout is the Tascam, ProTools standard. Normals and grounds are set at the factory saving you time but, you can change the configuration effortlessly.


12" Deep Chassis

2RU 96 Point TT to DB-25 Programable
B96DC-FNSST/D25 M2OU12B
Full Normal / Switched Grounds

Price $1,999.00
Add to Cart


2RU 96 Point TT to DB-25 Programable
B96DC-HNSST/D25 M2OU12B
Half Normal / Switched Grounds

Price $1,999.00
Add to Cart


2RU 96 Point TT to DB-25 Programable
B96DC-HNSST/D25 M2OU12B
No Normals / Switched Grounds

Price $1999.00
Add to Cart


7" Deep Chassis

2RU 96 Point TT to DB-25 Programable
B96DC-FNSST/D25 M2OU7B
Full Normal / Switched Grounds

Price $1999.00
Add to Cart


2RU 96 Point TT to DB-25 Programable
B96DC-HNSST/D25 M2OU7B
Half Normal / Switched Grounds

Price $1999.00
Add to Cart


2RU 96 Point TT to DB-25 Programable
B96DC-NNSST/D25 M2OU7B
No Normals / Switched Grounds

Price $1999.00
Add to Cart



  • High-density 2x48 jack configuration with mono (even) jack spacing
  • Selectable normalling and grounding:
  • Circuits can be easily changed via shunts under both designation strips
  • Digital AES wire used for internal wiring
  • 1-48 left-to-right numbering on front panel for easy circuit identification
  • 2 x DS800-10SA-ASSY designation strip assemblies, "Over/Under" orientation
  • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
  • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces:
  • Alternative 3" (7.62 cm) deep lacing bar available
  • Analog and Digital 110 ohm compatible
  • Options
  • Rear Interface – choose from four standard rear interfaces:
  • E3 (3 pin ELCO connectors)
  • DB25
  • E90 (90 pin ELCO connectors)
  • Normalling & Grounding
  • Normalling – circuits can be programmed to full normal, half normal or non- normal
  • Grounding – can be programmed to bussed, isolated, or looped
  • Chassis Depth:
  • 12" (30.48 cm) deep, fully enclosed
  • 7" (17.78 cm) deep, fully enclosed
  • RoHS Compliance
