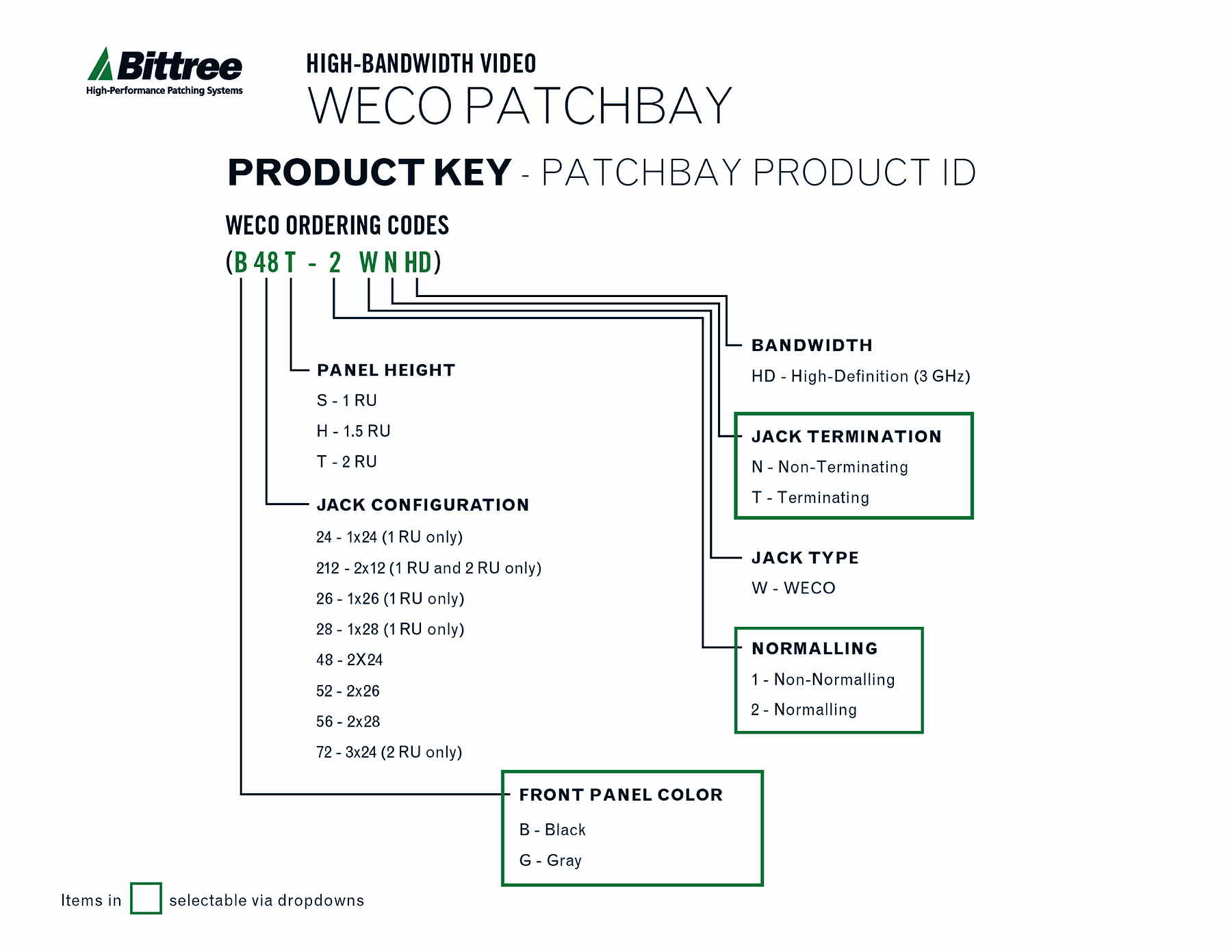

• Product-Key-Diagram-Standard-Weco-video-patchbay

    Product-Key-Diagram-Standard-Weco-video-patchbay

  • B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-01

    B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-01

  • B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-03

    B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-03

  • B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-02

    B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-02

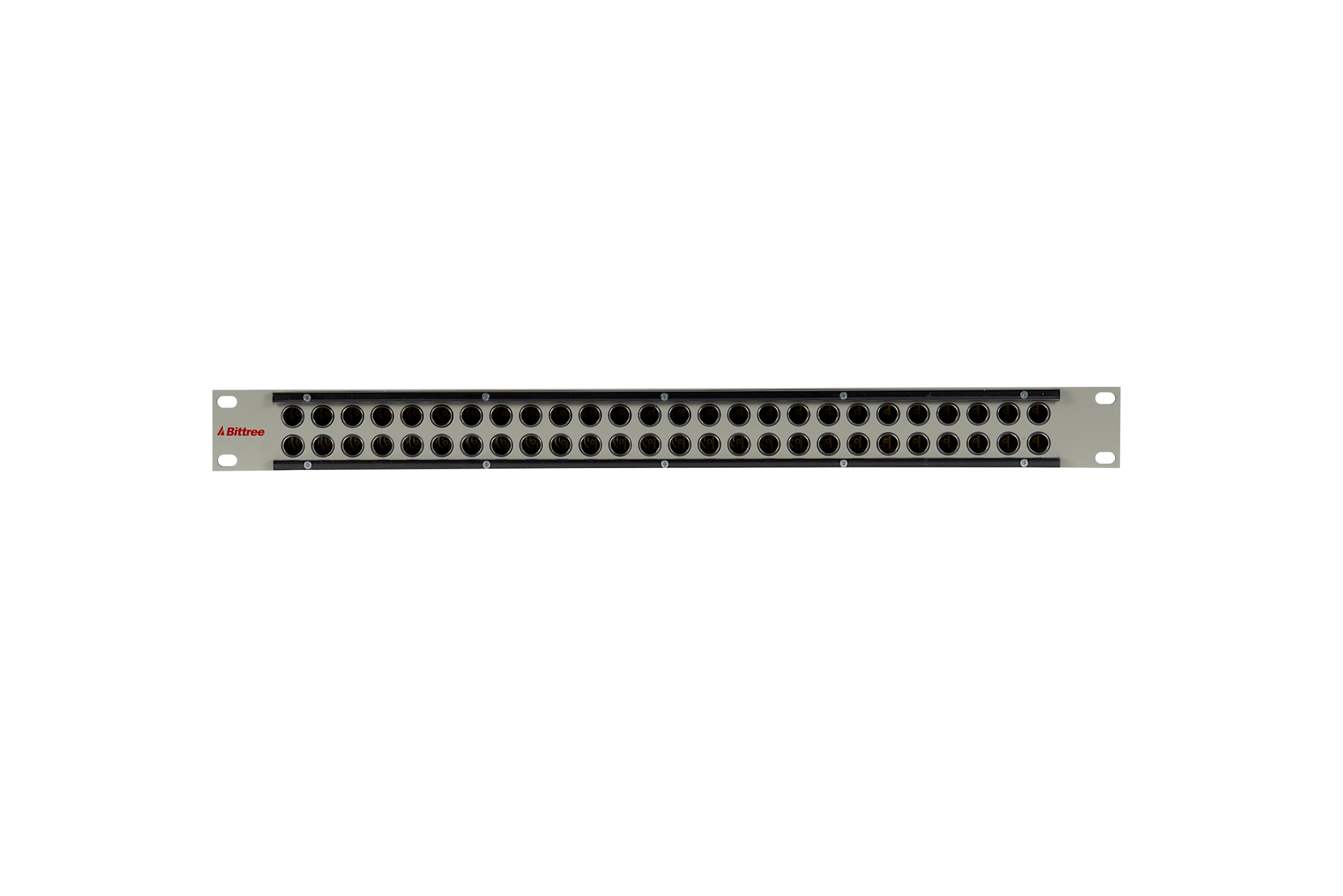

  • B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-04

    B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-04

  • B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-05

    B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-05

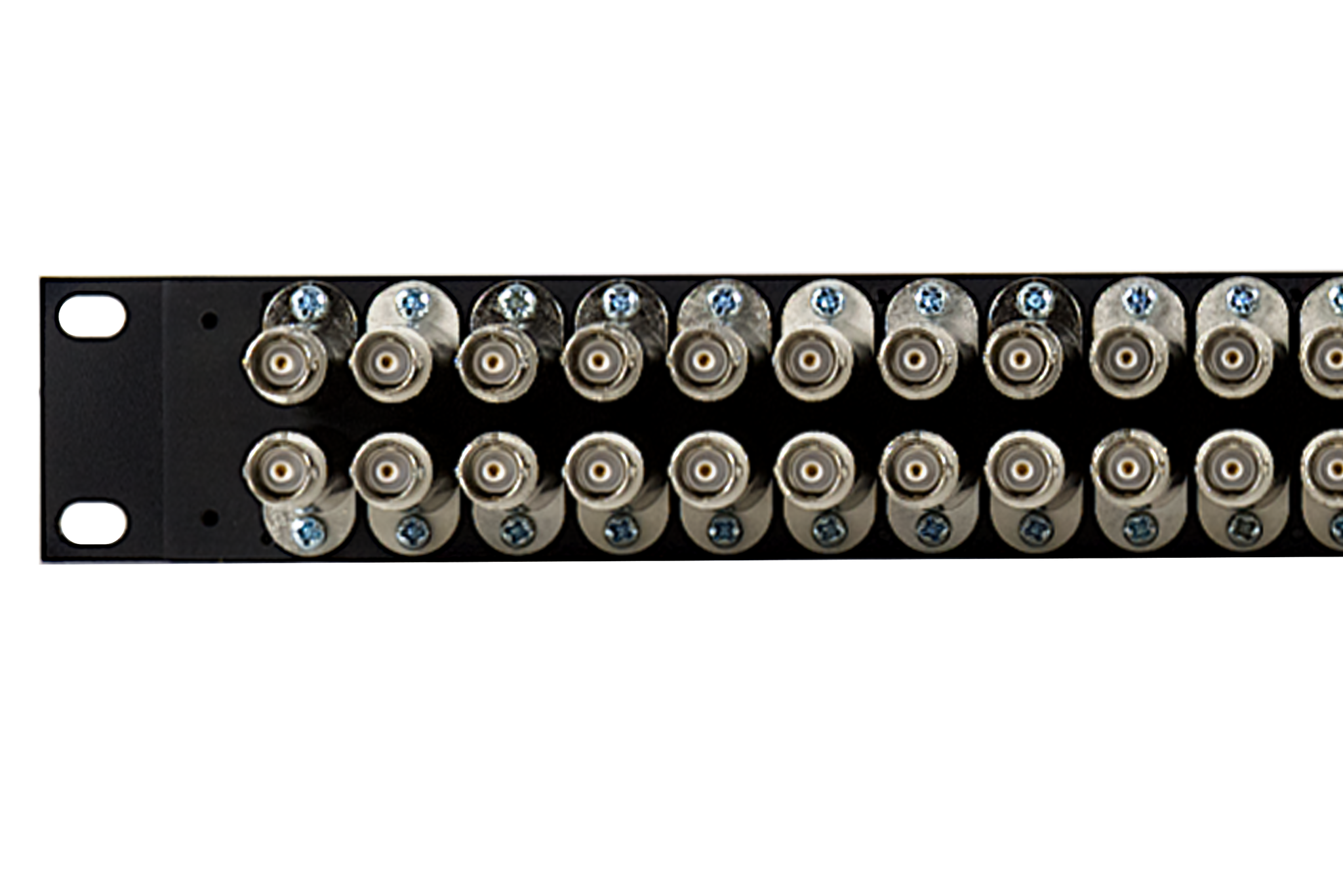

  • B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-08

    B52S-2WTHD 1RU 2x26 Low Density Standard Weco Video Patchbay-08

Bittree Low-Density Standard Weco Video Patchbay

The B52S-2WTHD is a 1RU Standard Size Video Patchbay with a 2X26 jack configuration with Standard Weco jacks enclosed in a 1RU chassis. The jacks are 75-ohm impedance and compliant with SMPTE 259M, 292M, and 424M.
Want your chassis grey? Just ask.

B52S-2WTHD
Full Normal Terminated
1RU 2X26 Points

Price $1084.00
Add to Cart


B52S2WNHD
Full Normal Non Terminating
1RU 2X26 Points

Price $1084.00
Add to Cart

B52S-1WTHD
No Normals Terminated
1RU 2X26 Points

Price $1084.00
Add to Cart


B52S-1WNHD
No Normals Non Terminated
1RU 2X26 Points

Price $1084.00
Add to Cart


  • Standard WECO Video Jack Properties:
  • High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
  • SMPTE 259M, 292M and 424M compliant
  • True 75 ohm impedance with low return loss
  • Panel Features:
  • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
  • Rear-mounted jack modules
  • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
  • 2 x DS870-10 Designation Strips:
  • Stainless-steel sliders with white styrene and non-glare Lexan inserts
  • BNC Rear Interface
  • Options:
  • Standard WECO video jacks may be ordered in four different configurations:
  • Dual body, self-normalling with 75 ohm termination (2WTHD)
  • Dual body, self-normalling, non-terminating (2WNHD)
  • Dual body, non-normalling (straight-through) with 75 ohm termination (1WTHD)
  • Single body, non-normalling (straight-through), non-terminating (1WNHD)
  • Front Panel Color – Black or Gray scratch resistant powder-coat finish
  • RoHS Compliant
