Bittree Low-Density Standard Weco Video Patchbay

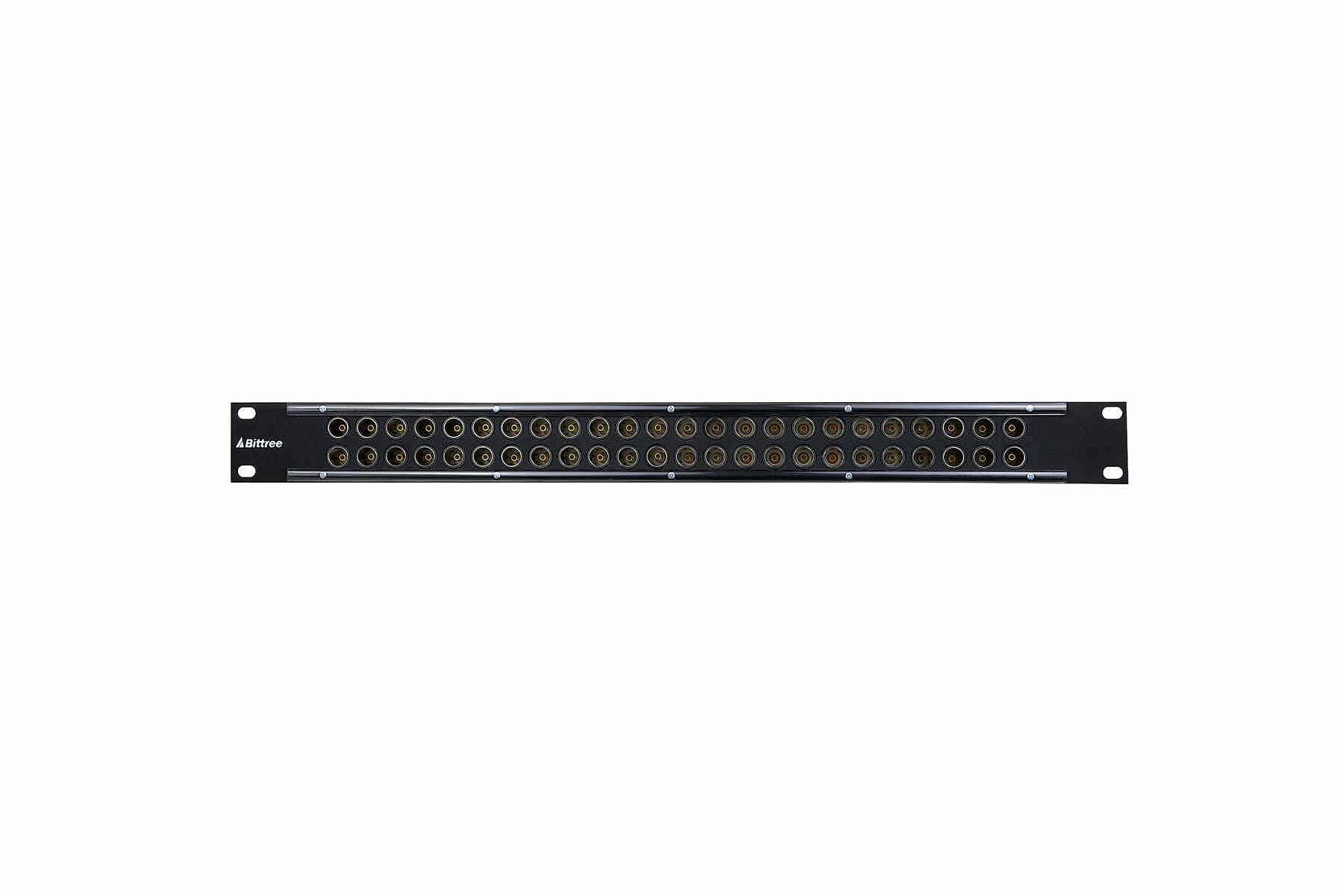

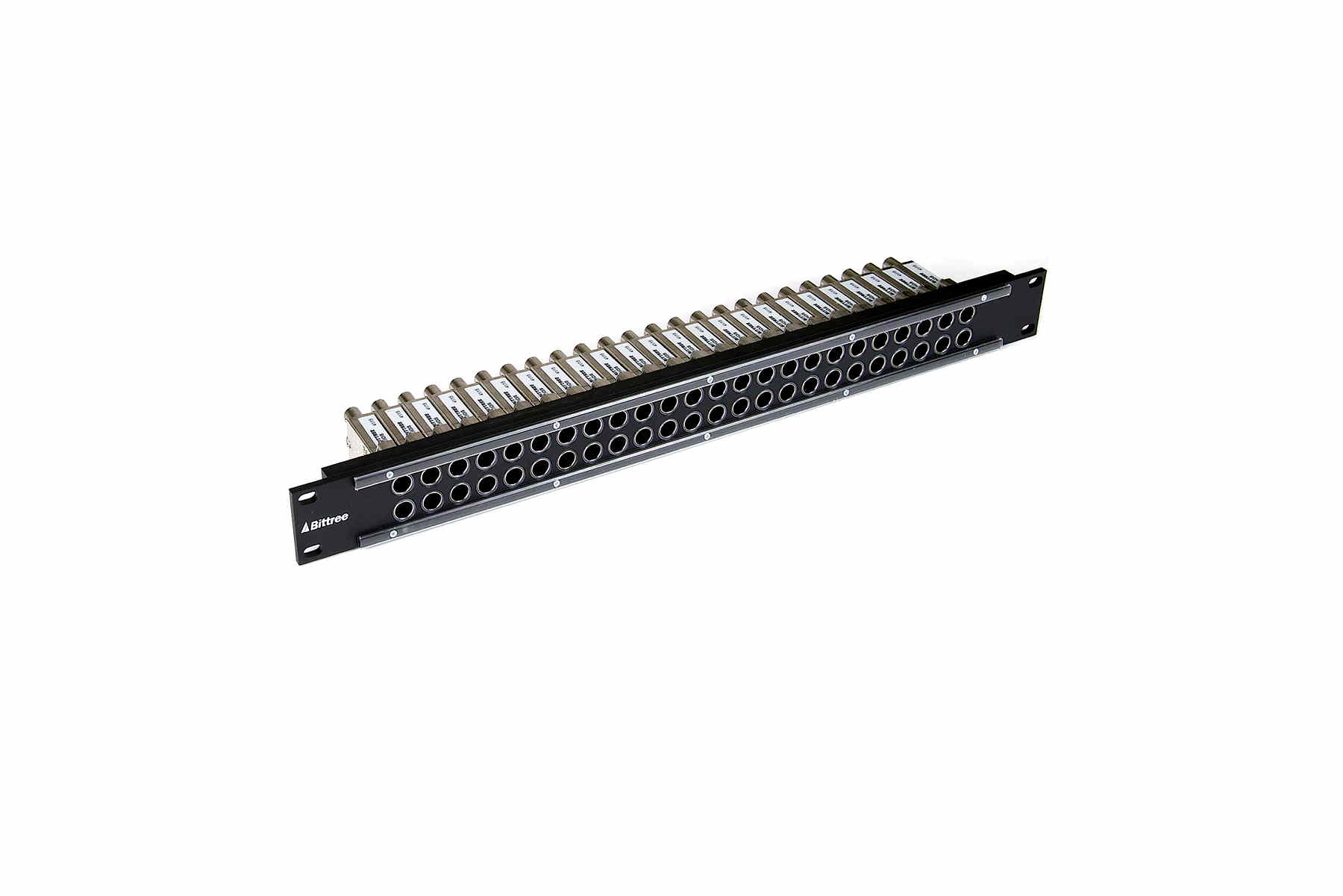

The B48S-2WTHD is a 1RU Standard Size Video Patchbay with a 2X24 jack configuration with Standard Weco jacks enclosed in a 1RU chassis. The jacks are 75-ohm impedance and compliant with SMPTE 259M, 292M, and 424M.
Want your chassis grey? Just ask.
B48S-2WTHD
Full Normal Terminated
1RU 2X24 Points
Price $1014.00
Add to Cart
B48S-2WNHD
Full Normal Non Terminating
1RU 2X24 Points
Price $1014.00
Add to Cart
B48S-1WTHD
No Normals Terminated
1RU 2X24 Points
Price $1014.00
Add to Cart
B48S-1WNHD
No Normals Non Terminated
1RU 2X24 Points
Price $1014.00
Add to Cart
- Standard WECO Video Jack Properties:
- High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
- SMPTE 259M, 292M and 424M compliant
- True 75 ohm impedance with low return loss
- Panel Features:
- 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish

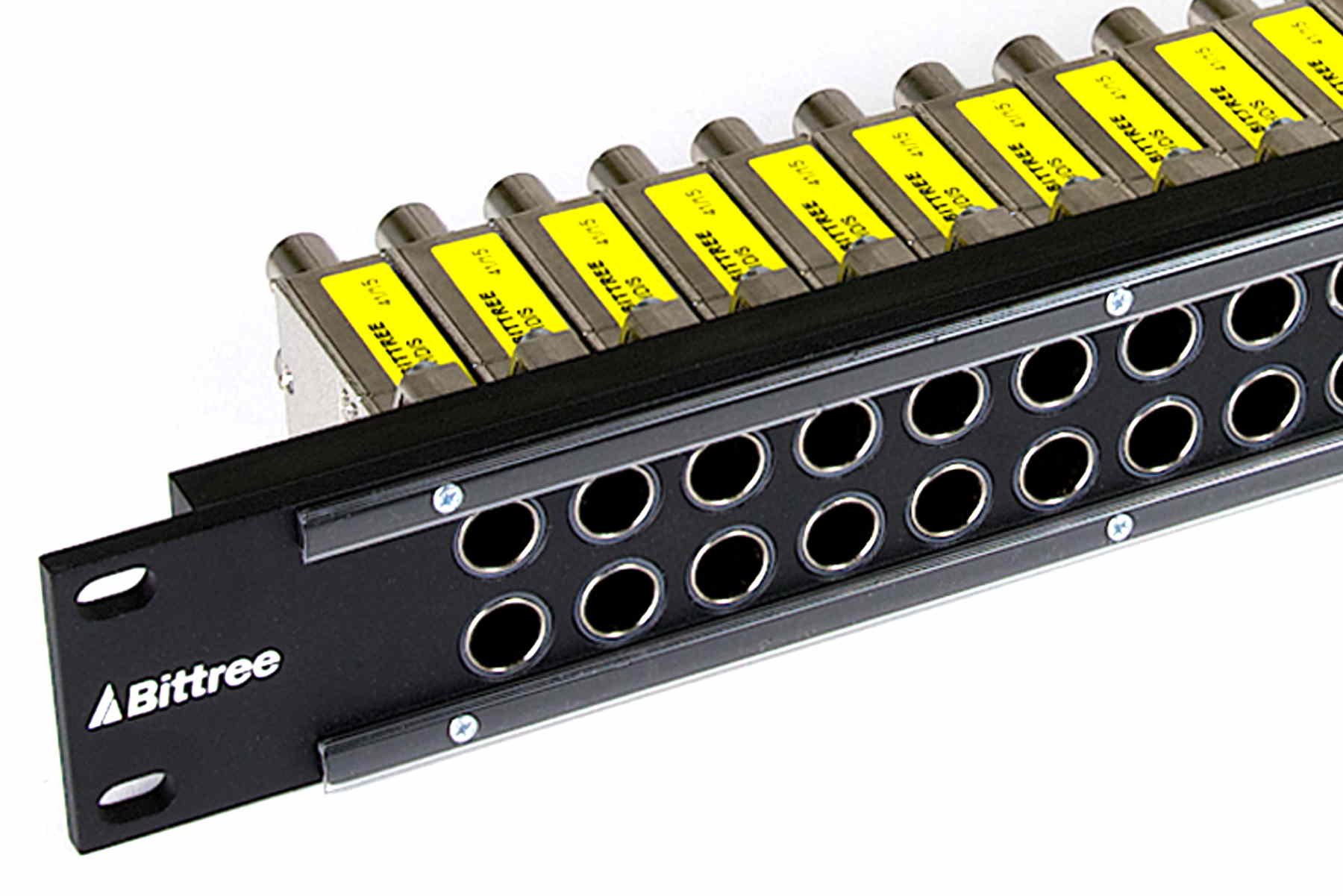

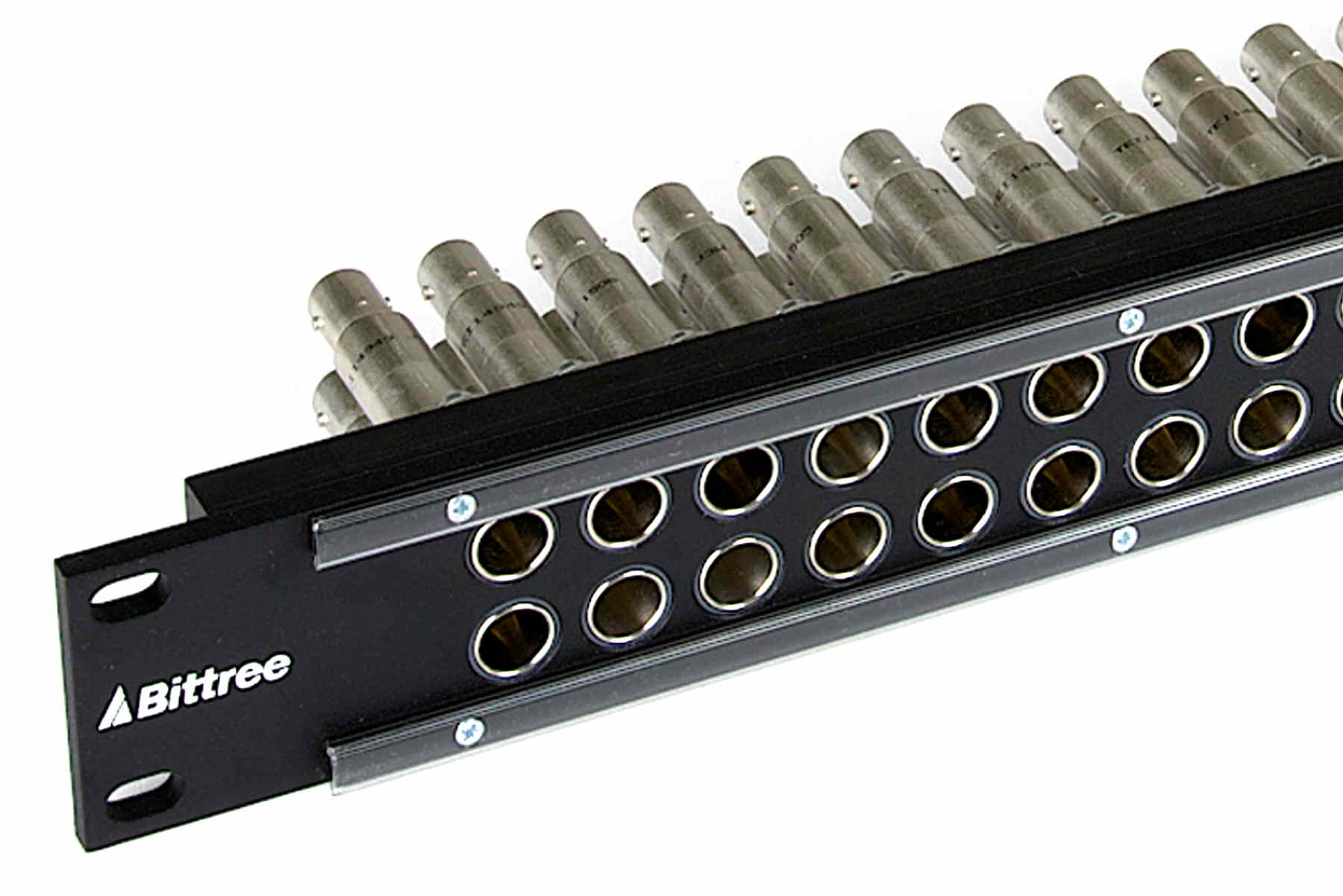

- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- 2 x DS250-10 Designation Strips:
- Stainless-steel sliders with white styrene and non-glare Lexan inserts

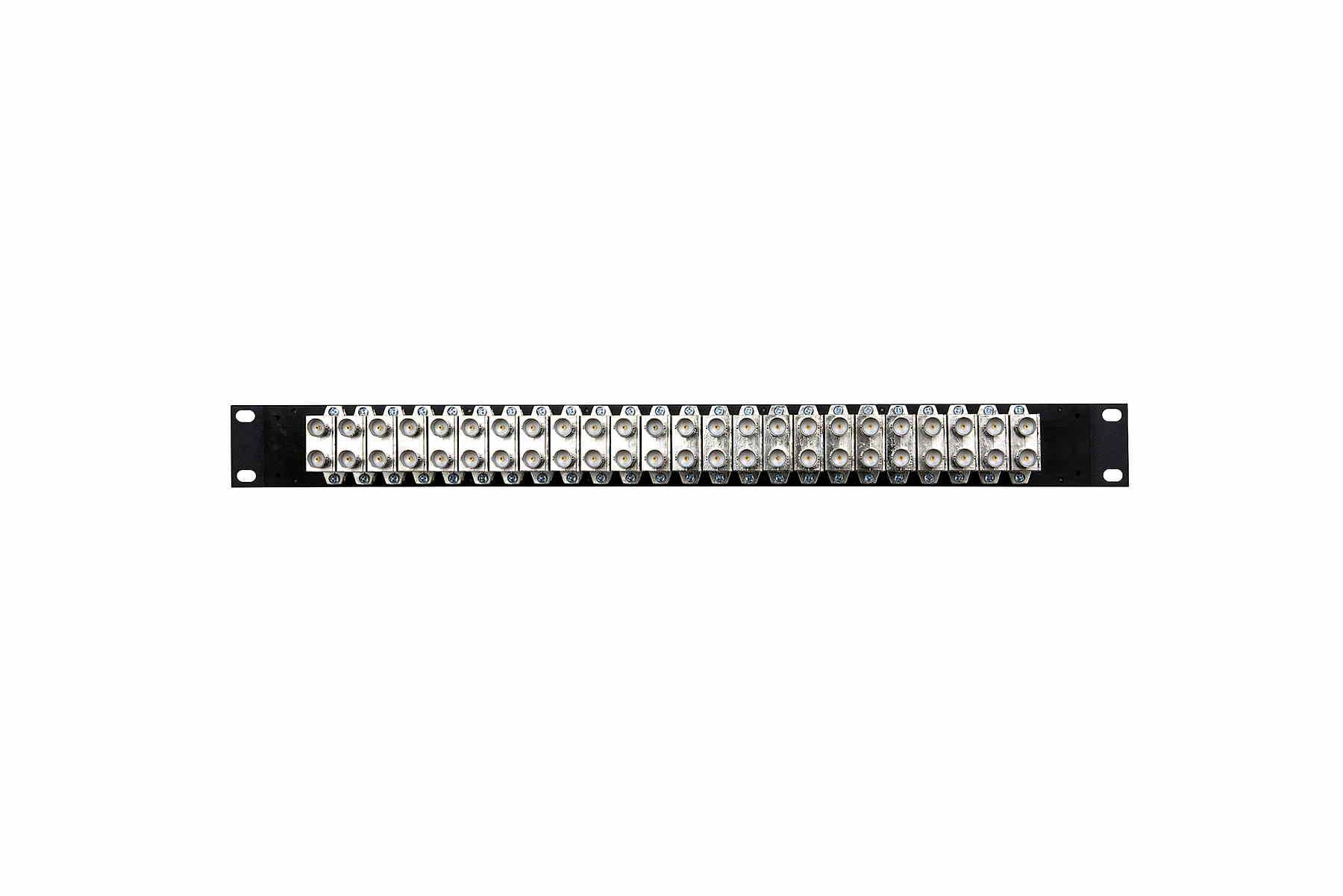

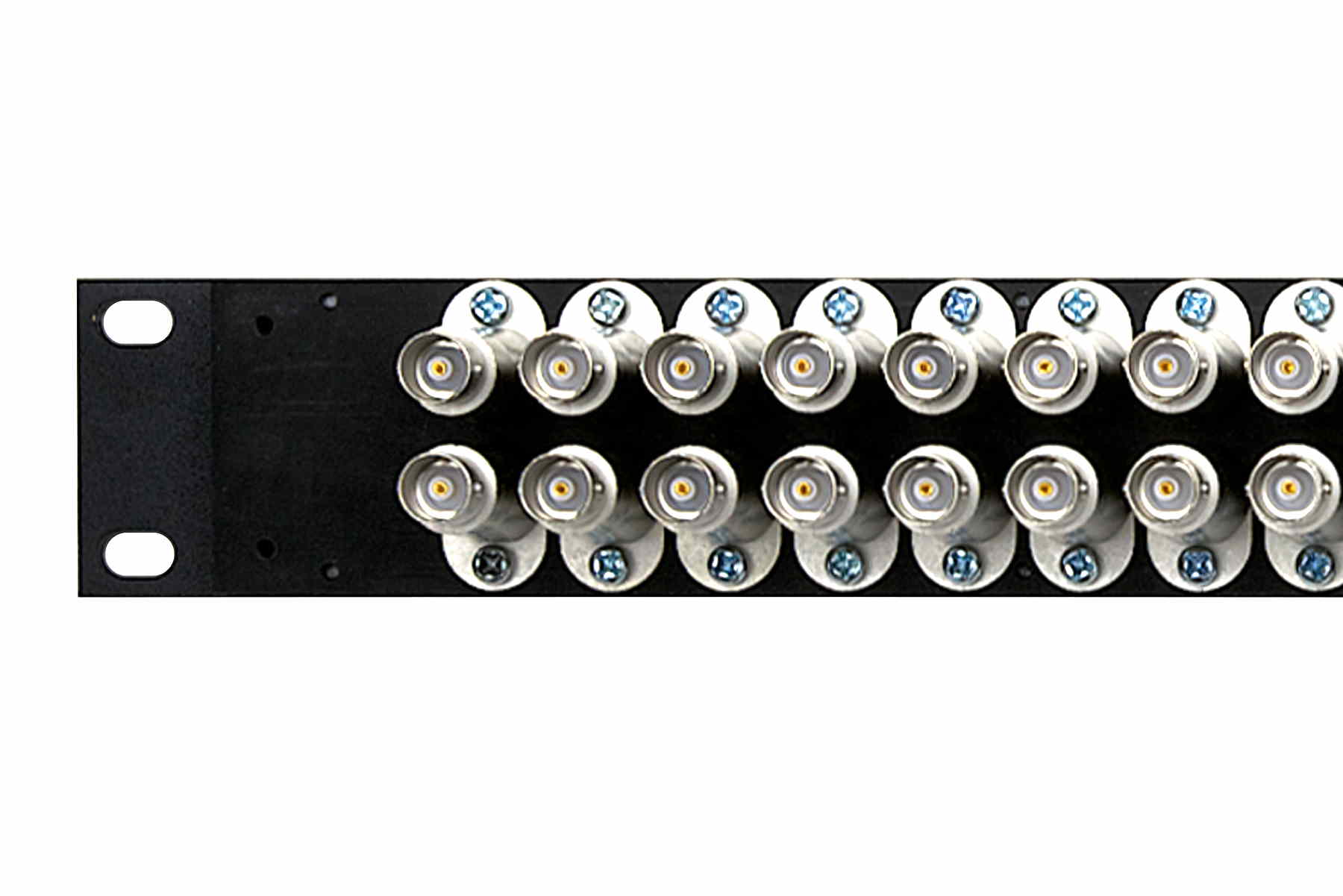

- BNC Rear Interface
- Options:

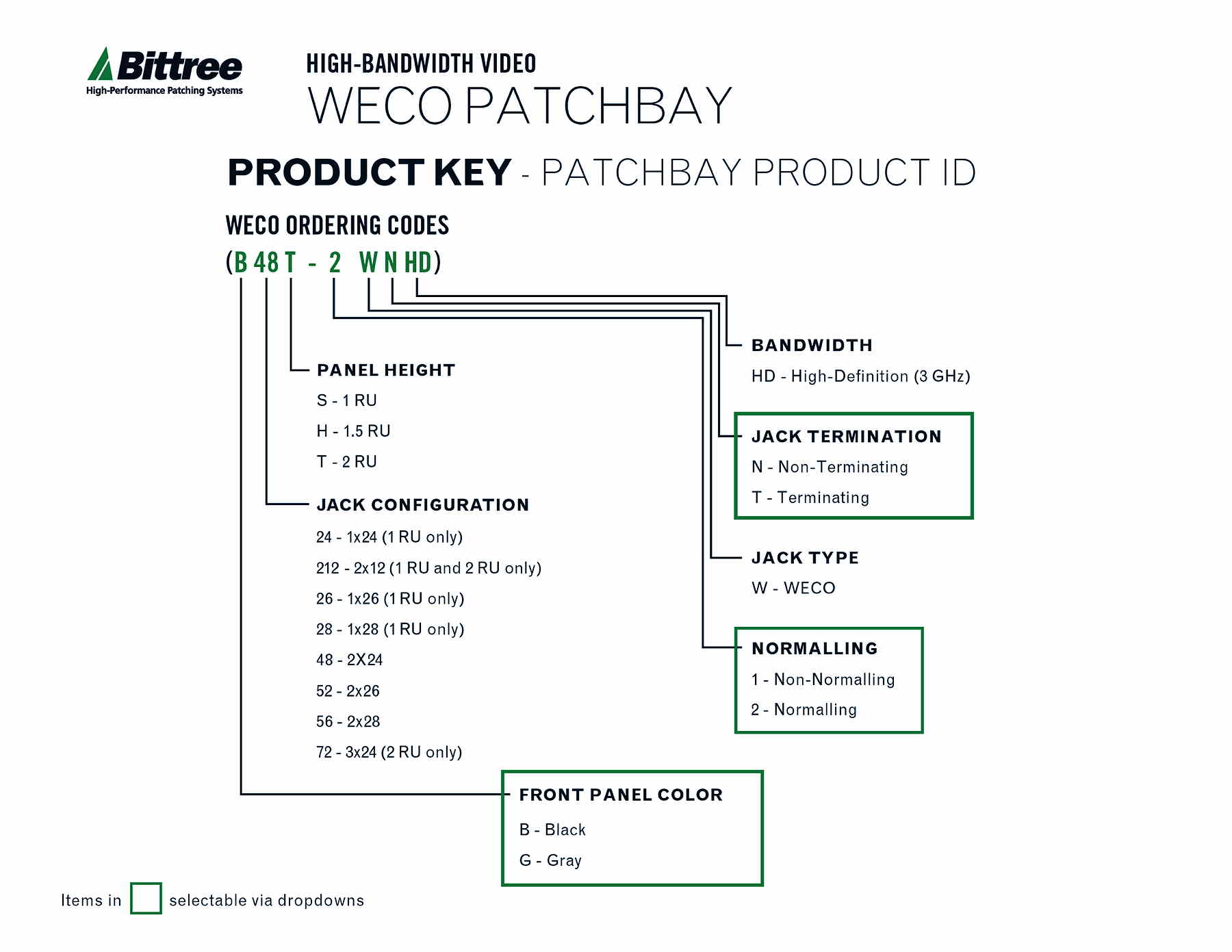

- Standard WECO video jacks may be ordered in four different configurations:
- Dual body, self-normalling with 75 ohm termination (2WTHD)
- Dual body, self-normalling, non-terminating (2WNHD)
- Dual body, non-normalling (straight-through) with 75 ohm termination (1WTHD)
- Single body, non-normalling (straight-through), non-terminating (1WNHD)

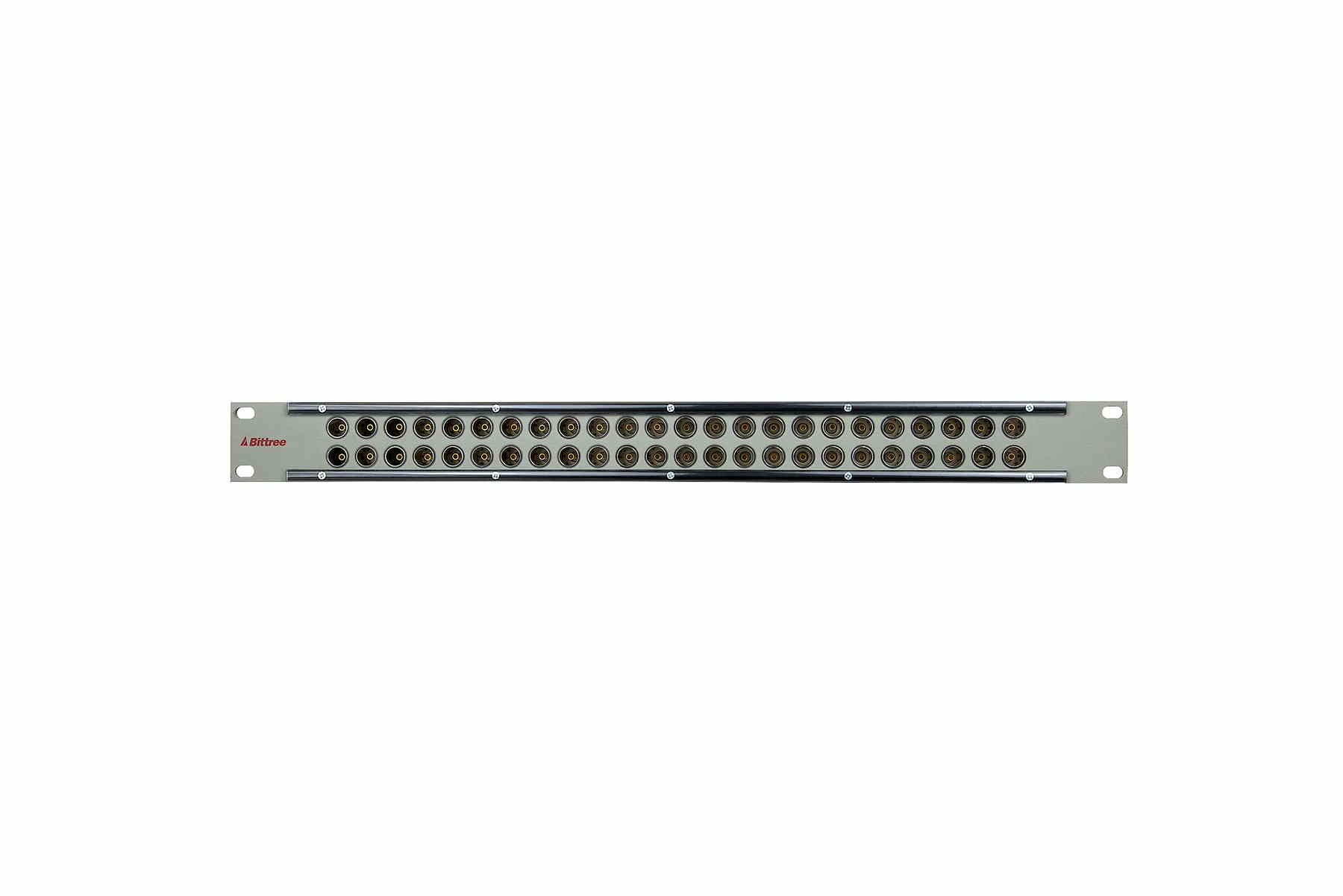

- Front Panel Color – Black or Gray scratch resistant powder-coat finish
- RoHS Compliant
