Bittree High-Density Micro-Video Patchbay

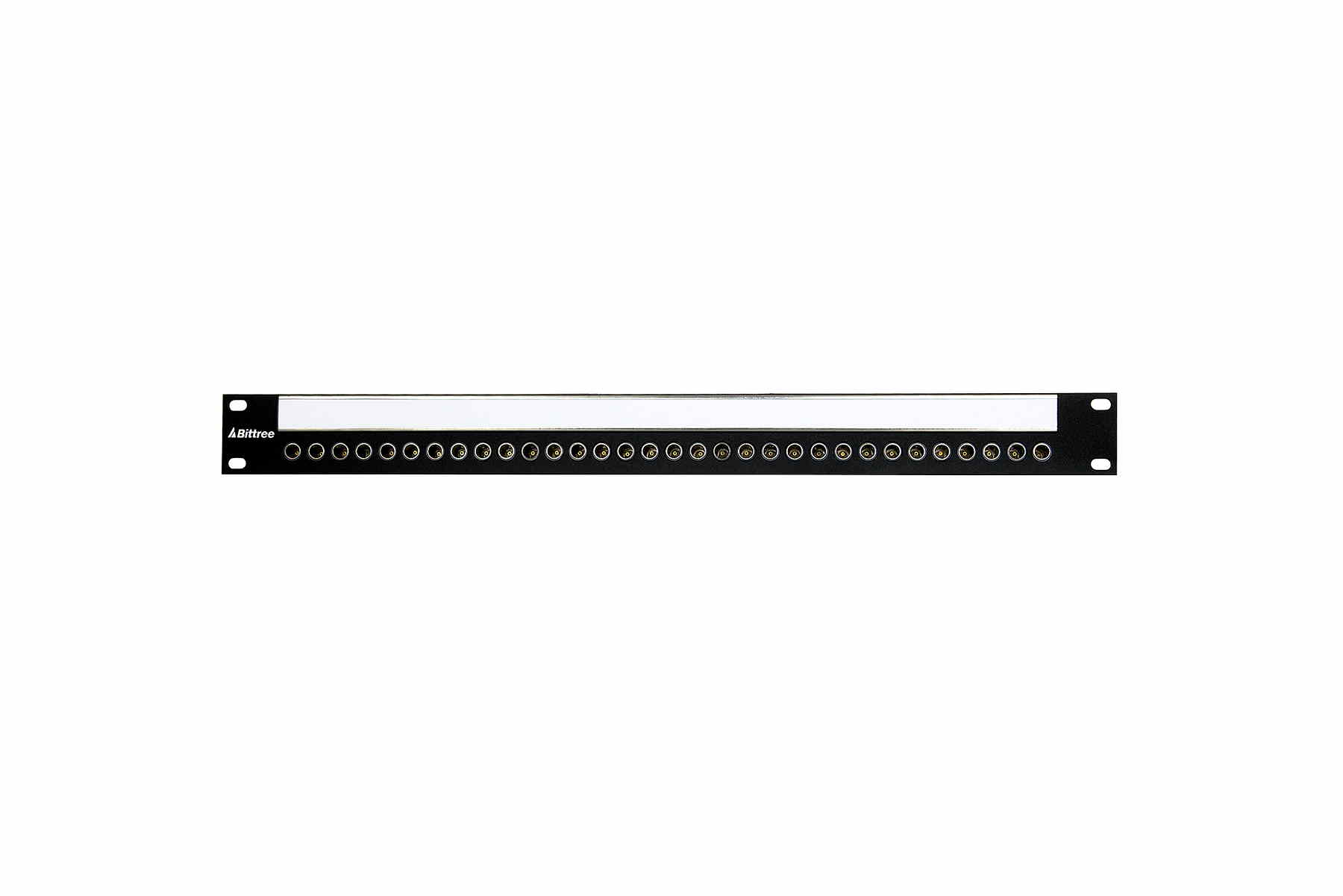

The B32S-1MWTHD is a 1.RU Midsize Video Patchbay with 1X32 jack configuration with Micro-Video jacks enclosed in a 1.RU chassis. The jacks are 75 ohm impedance are compliant with SMPTE 259M, 292M and 424M.
Want your chassis grey? Just ask.
B32S-1MWTHD
No Normal Terminated
1RU 32 Points
Price $1083.00
Add to Cart
B32S-1MWNHD
No Normal Non Terminated
1RU 32 Points
Price $869.00
Add to Cart
- Mini-WECO Video Jack Properties:
- High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
- SMPTE 259M, 292M and 424M compliant
- True 75 ohm impedance with low return loss
- Panel Features:
- 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- 1 x DS800-10 Designation Strip:
- Stainless-steel slider with white styrene and non-glare Lexan inserts

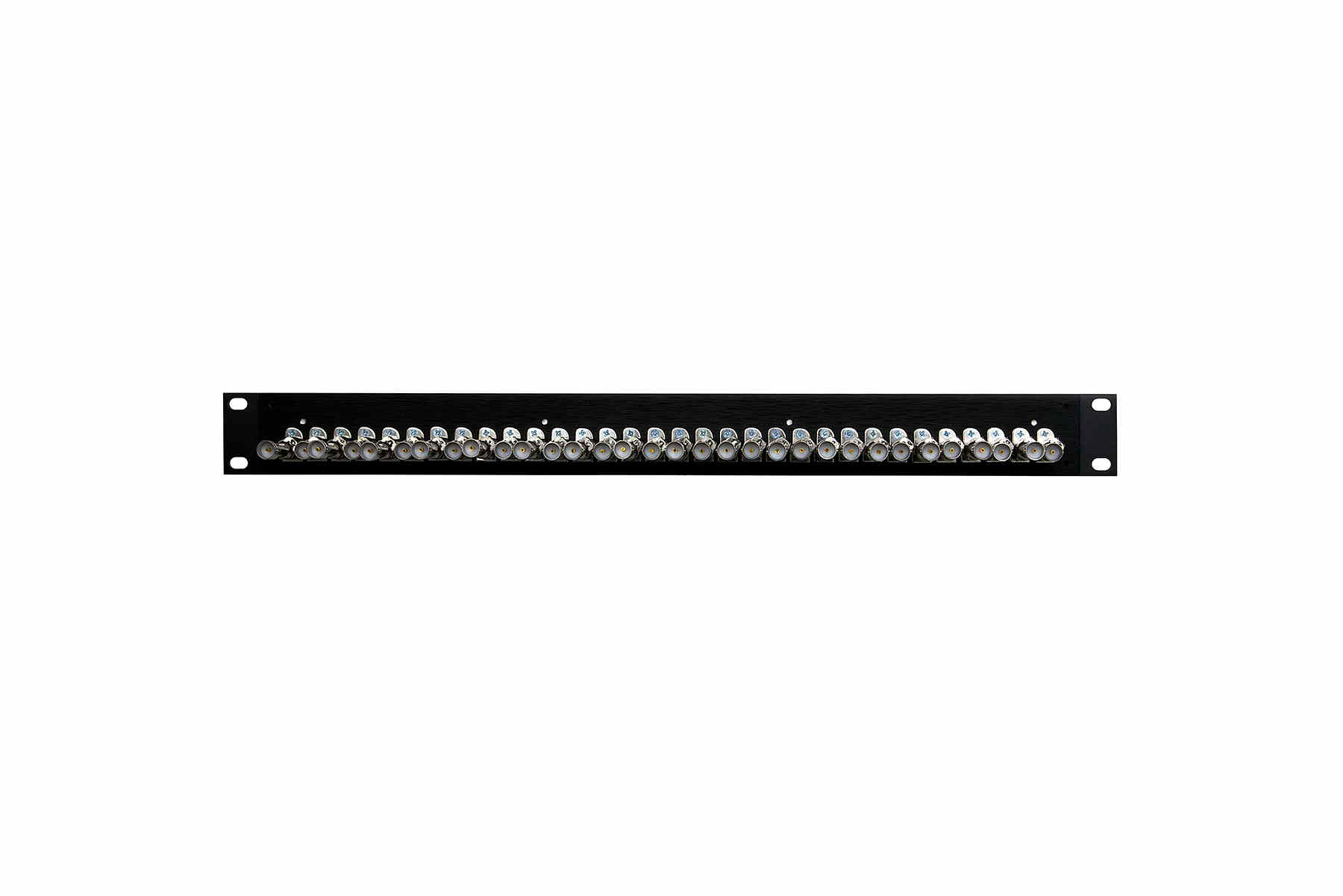

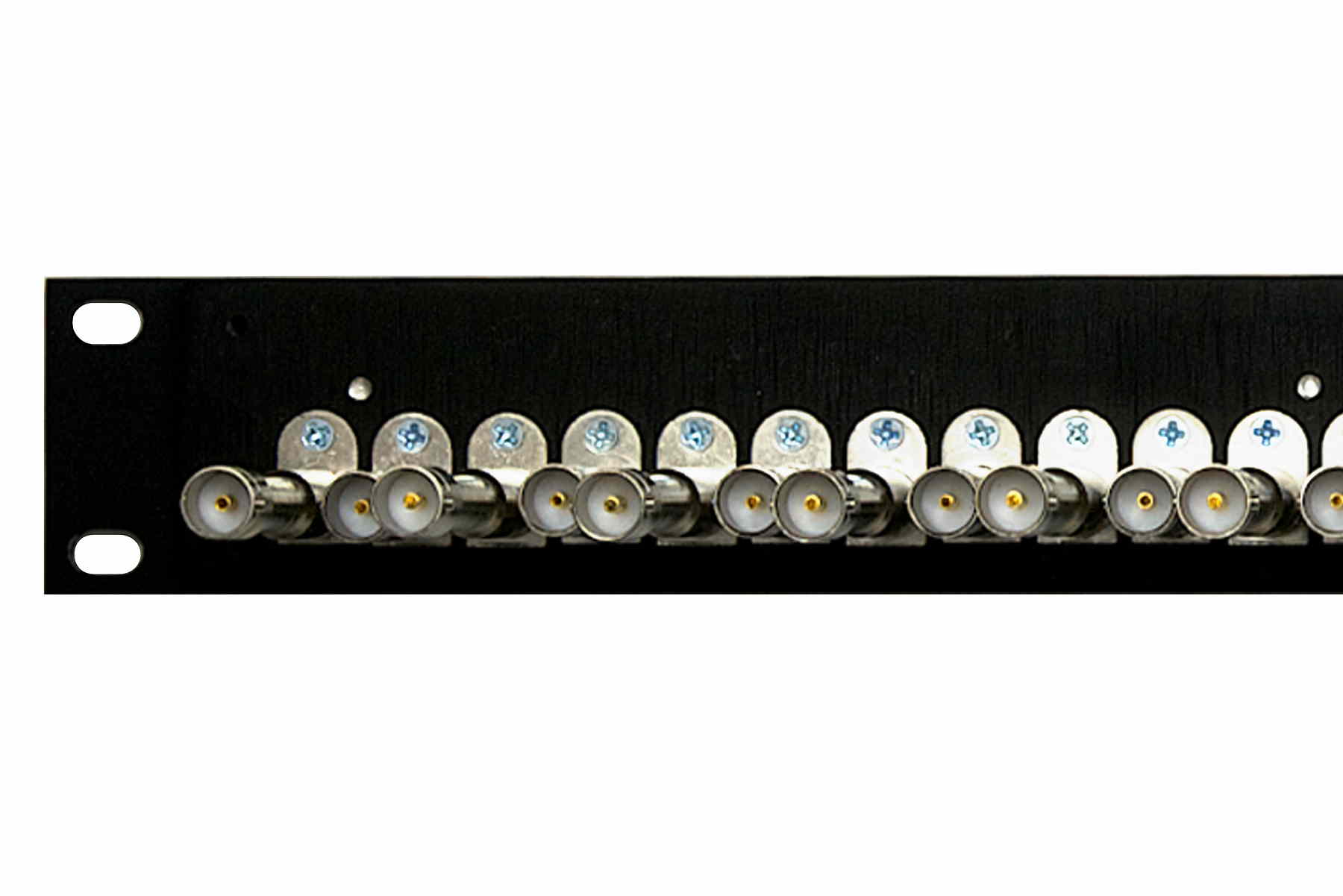

- Staggered BNC Rear Interface

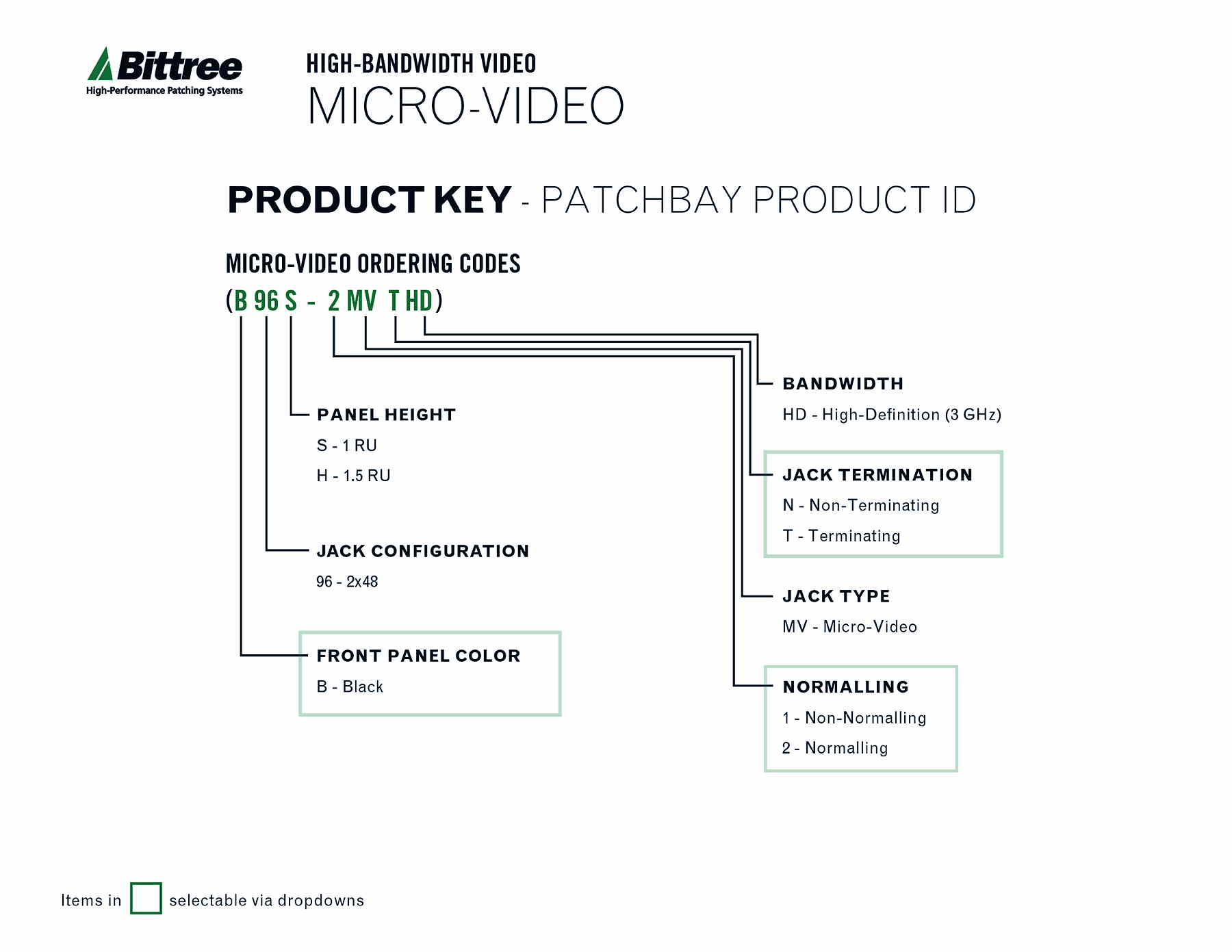

- Options:
- Mini-WECO video jacks may be ordered in two different configurations:
- Single body, non-normalling (straight-through) with 75 ohm termination (1MWTHD)
- Single body, non-normalling (straight-through), non-terminating (1MWNHD)

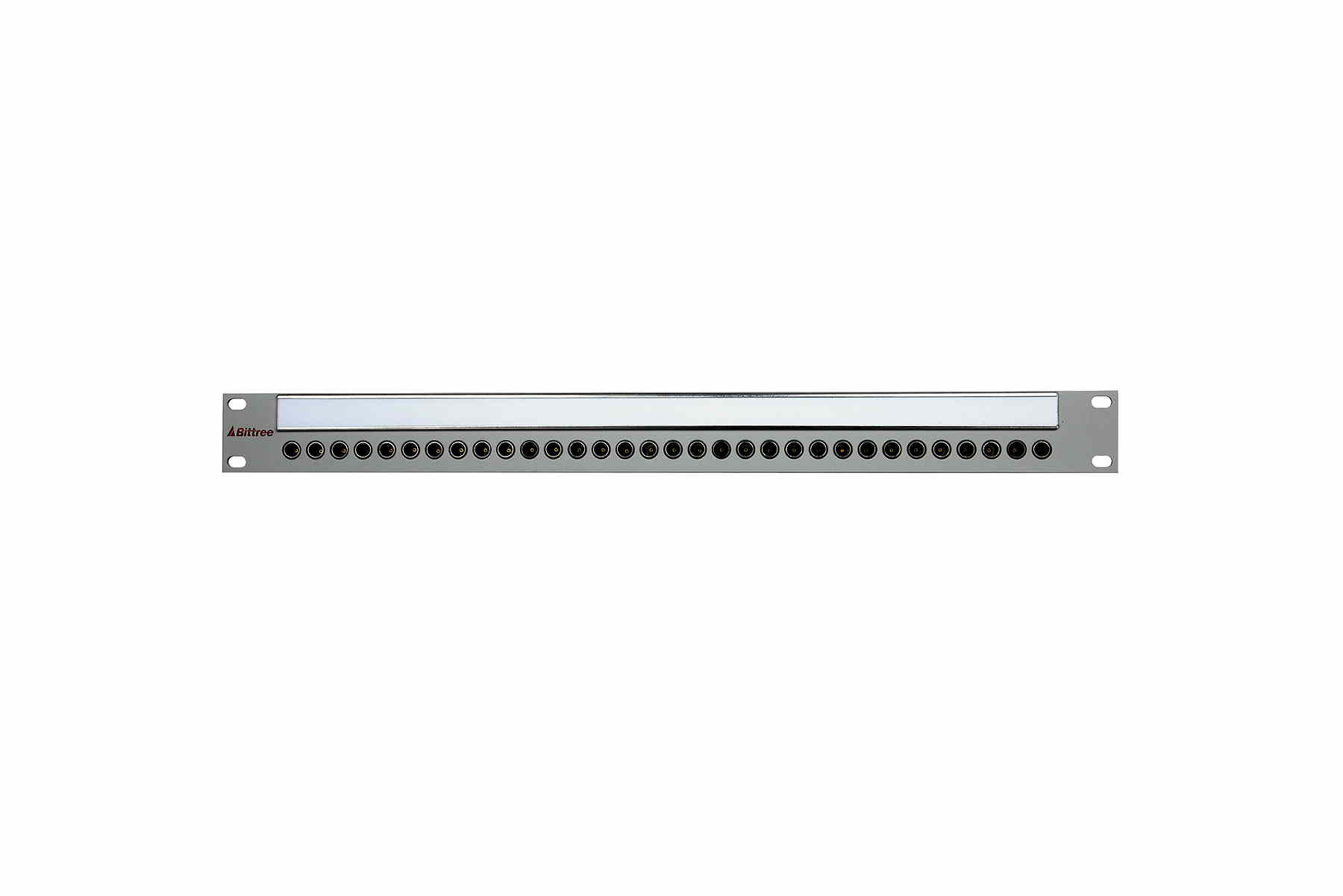

- Front Panel Color – Black or Gray scratch resistant powder-coat finish
- RoHS Compliant
