Bittree Low-Density Standard Weco Video Patchbay

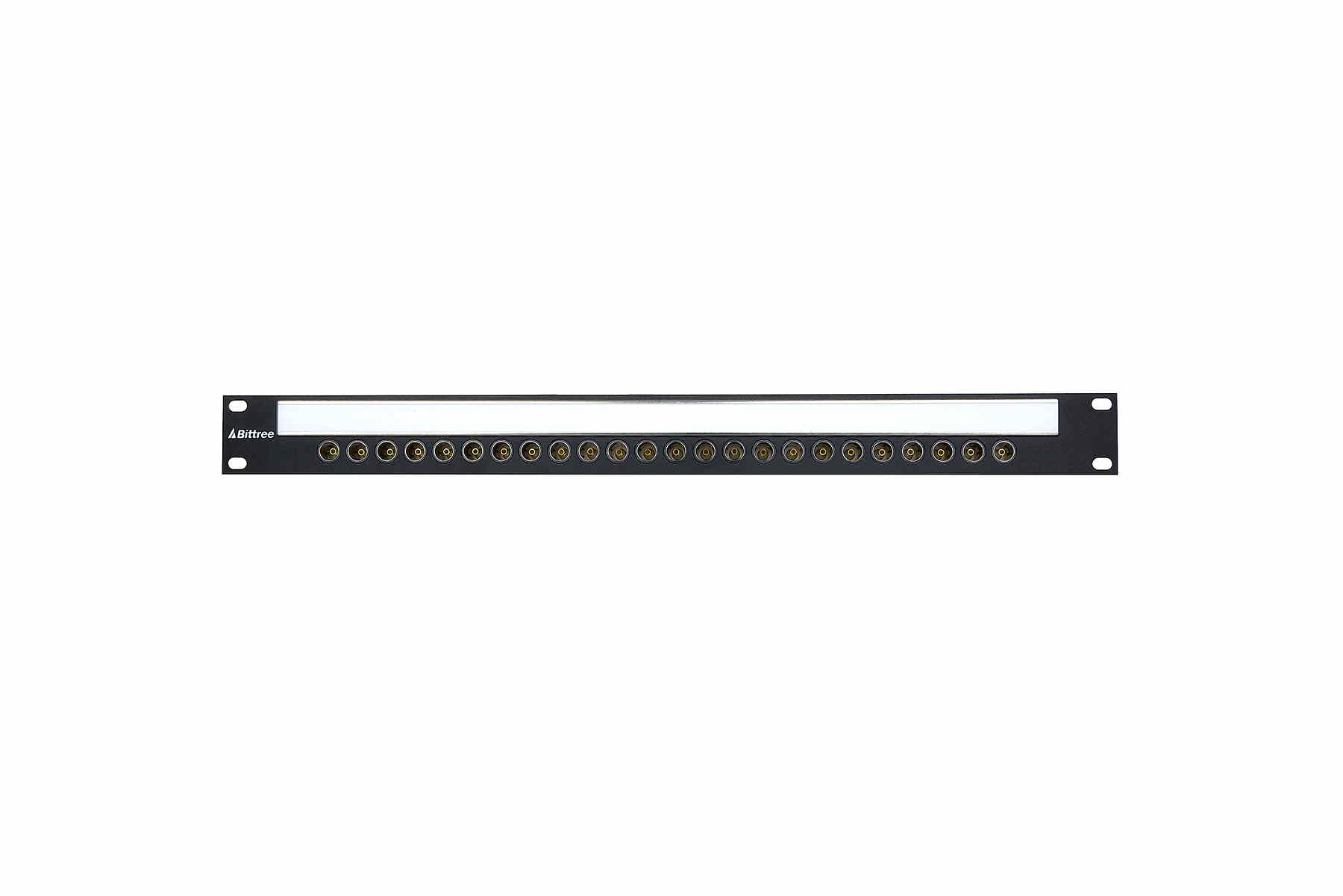

The B24S-1WNHD is a 1RU Standard Size Video Patchbay with a 1X24 jack configuration with Standard Weco jacks enclosed in a 1RU chassis. The jacks are 75-ohm impedance and compliant with SMPTE 259M, 292M, and 424M.
Want your chassis grey? Just ask.
B24S-1WNHD
No Normals NonTerminated
1RU 24 Points Black Chassis
Price $560.00
Add to Cart
B24S-1WNHD
No Normals Non Terminated
1RU 24 Points Grey Chassis
Price $560.00
Add to Cart
- Standard WECO Video Jack Properties:
- High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
- SMPTE 259M, 292M and 424M compliant
- True 75 ohm impedance with low return loss
- Panel Features:
- 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
- Rear-mounted jack modules
- Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
- 1 x DS800-10 Designation Strip:
- Stainless-steel sliders with white styrene and non-glare Lexan inserts
- BNC Rear Interface
- Options:

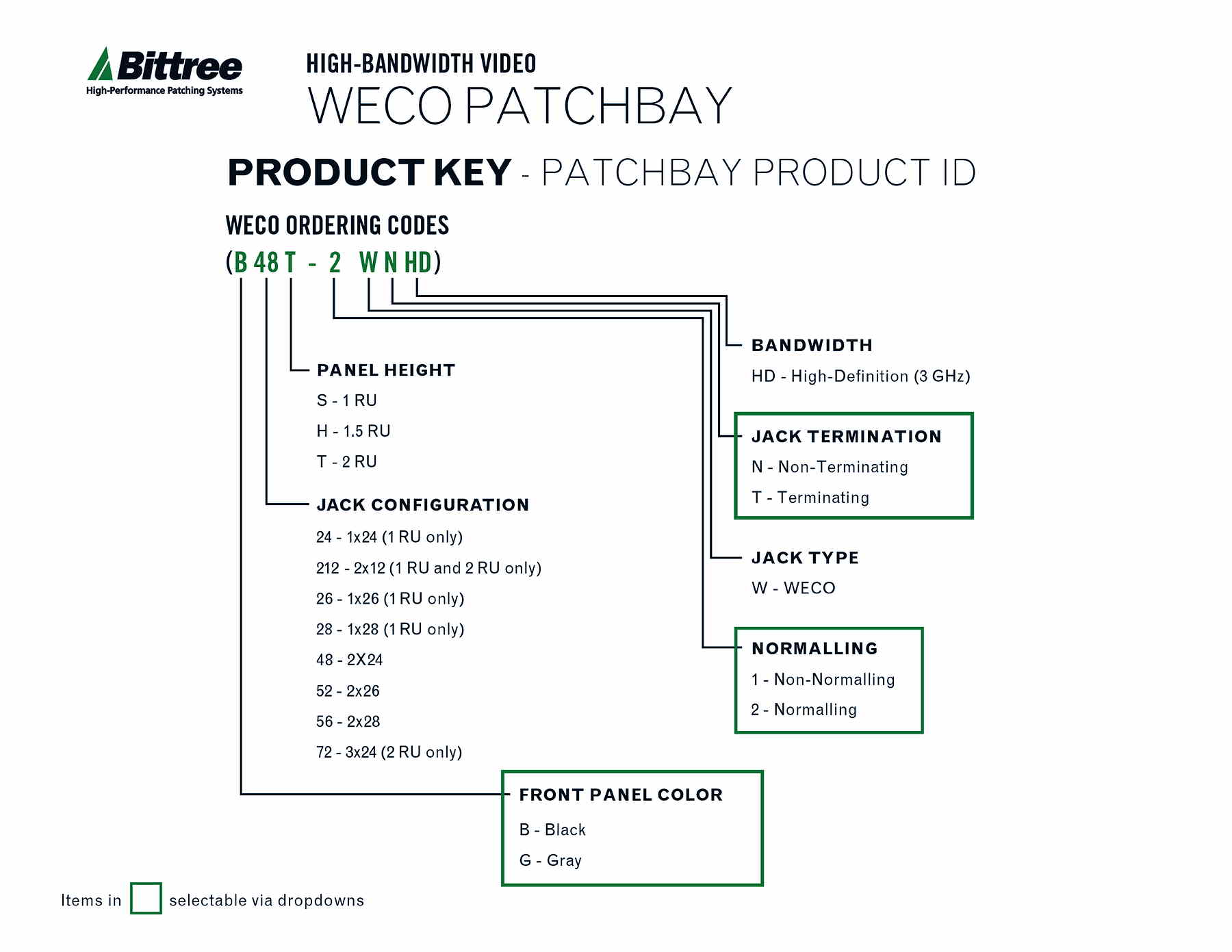

- Standard WECO video jacks may be ordered in two different configurations:
- Single body, non-normalling (straight-through) with 75 ohm termination (1WTHD)
- Single body, non-normalling (straight-through), non-terminating (1WNHD)
- Front Panel Color – Black or Gray scratch resistant powder-coat finish
- RoHS Compliant
