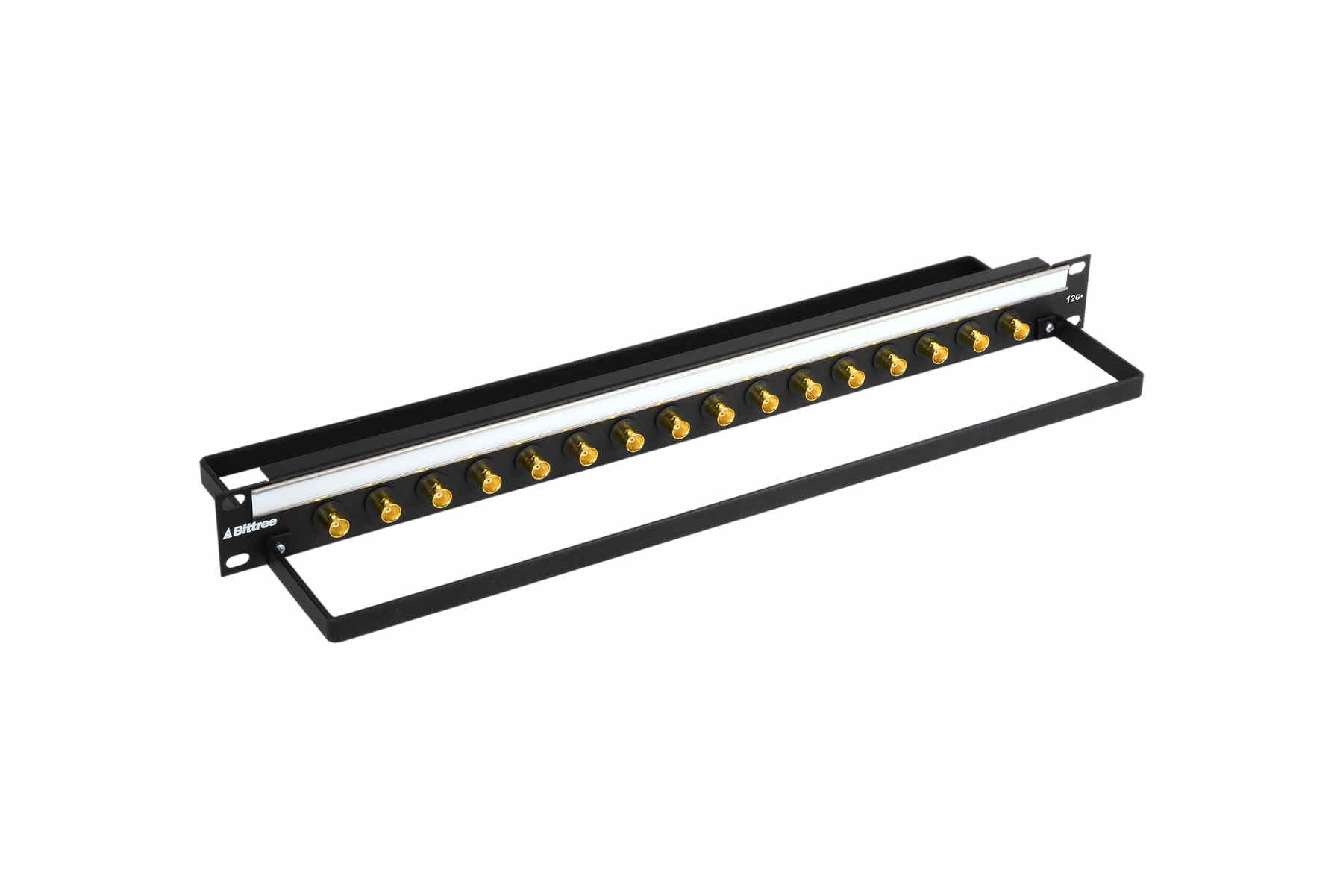

BITTREE 12G+ MINI-WECO COAXIAL BULKHEAD PATCH PANEL

The BH-B116A1B12 is a Midsize Video Patchbay 1X16 Mini-Weco Video Patchbay enclosed in a single space 1RU chassis. The 20 GHz high-bandwidth BNC jacks are for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications. The BNC jacks are 75 ohm impedance, these patchbays also pass SMPTE 292M, 424M, 2081-1, and are 2082-1 compliant.

BH-B116A1B12 BNC COAXIAL BULKHEAD PATCH PANEL
16 Channels 1Rack Space
Price $305.00
Add to Cart


  • BNC Jack Properties:
  • 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
  • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
  • 75 ohm impedance with low return loss
  • 500 Mating cycles
  • Operating temperature: -35 to +165°C
  • IP64 (mated)
  • Compliance:
  • RoHS Compliance
  • Panel Features:
  • 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
  • BNC connectors on both the front and back of the panel
  • Silk screened circuit numbering on both the front and back with optional designation strip available for the front
  • Two 3" (7.62 cm) deep lacing bars for cable dressing (both are removable)
  • Alternative 6" (15.24 cm) deep lacing bars available; please make a request at checkout if interested
  • Options:
  • Front Panel Circuit Identification:
  • Silk screened numbering only, or
  • 2 x DS580-10 Designation Strip (stainless-steel slider with white styrene and non-glare Lexan inserts)
