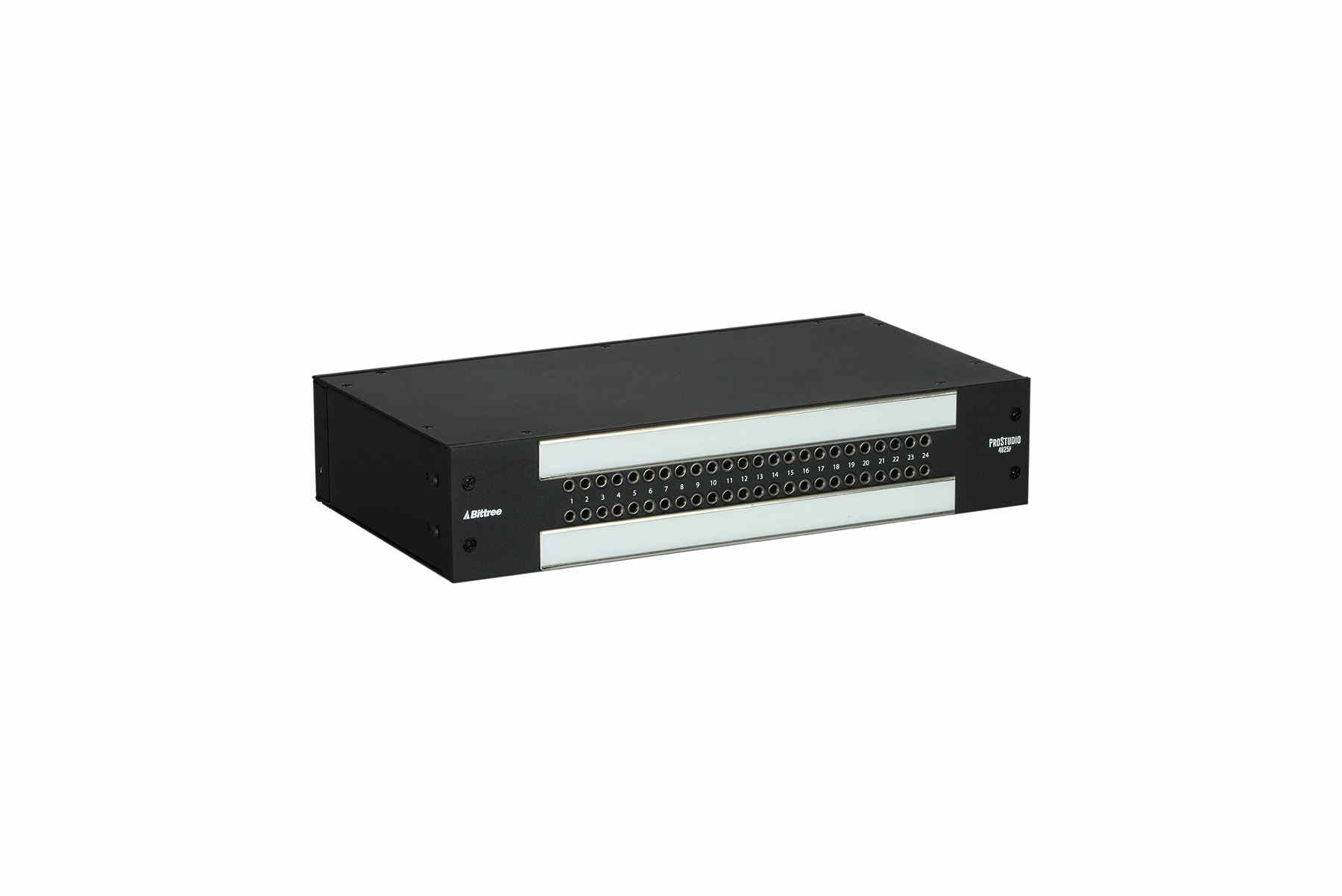

The Bittree PS48DB25F ProStudio 500 Series Desktop Patchbay provides 48 channels of desktop audio TT patching. With front selectable normaling, grounding and busses, it is easy to make changes quickly without having to remove the patchbay from your gear rack or access the rear if using in desktop mode. The unit has 2x24 TT channels on the front and Six DB-25 connectors on the rear. Db-25 pinout is the Tascam, ProTools standard.
Bittree ProStudio Desktop Patchbay
1.5RU 2x48 TT to DB-25
PS48DB25F
Price $839.00
Add to Cart

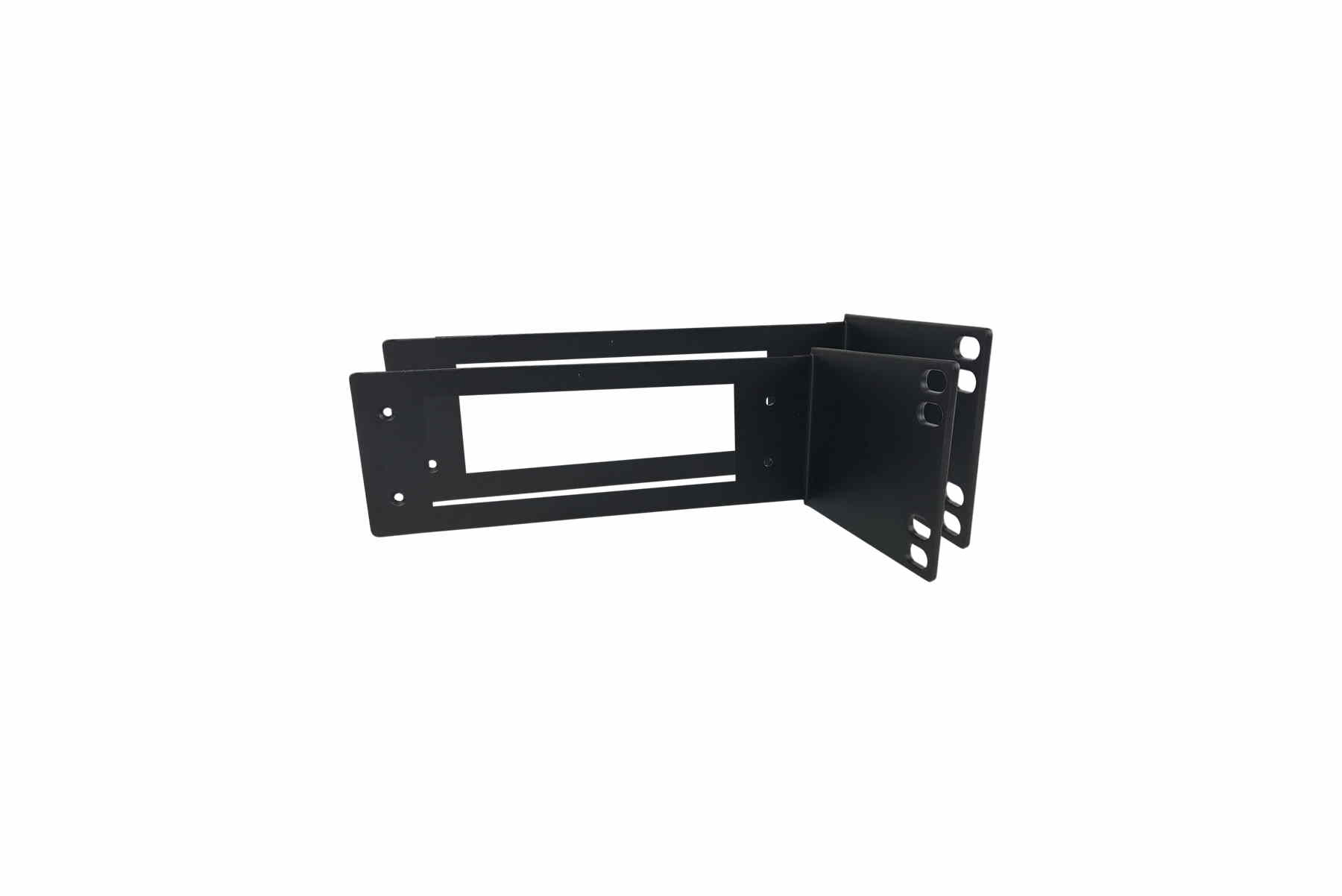

Optional Rack Ear Kit
Rack-Mount Kit for ProStudio 500
PSRME15D
Images & Options
Add to Cart
- Stand alone desktop patchbay with 4 rubber feet
- Designed to fit perfectly below the API® 500-6B 6-slot Lunchbox Chassis

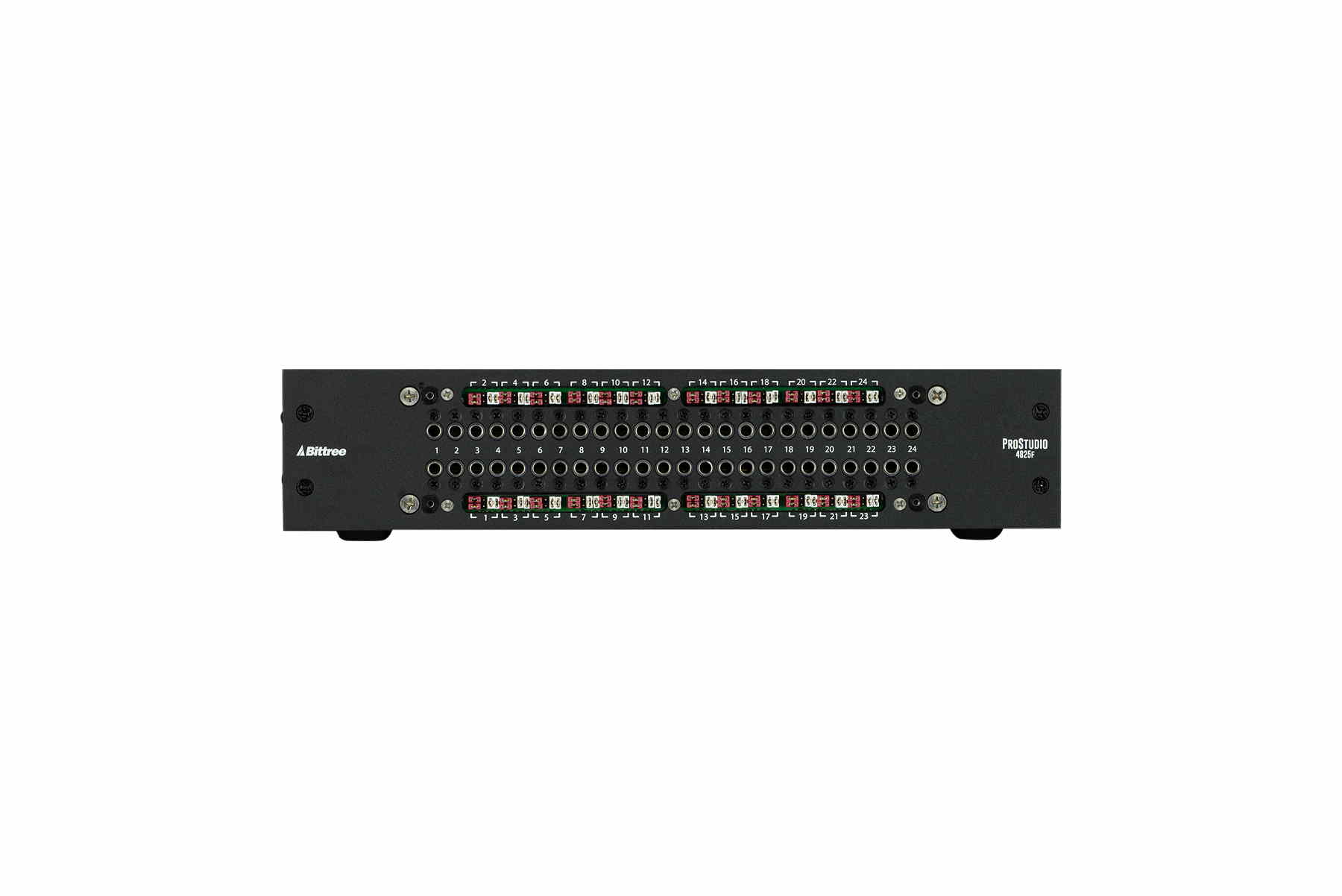

- 2x24 jack configuration with mono (even) jack spacing
- DB25 rear interface (6 x 25-pin female DB25 connectors)
- Protools®, Tascam® DB25 Pinout
- Selectable normalling and grounding
- Ships full normal with bussed grounds
- Optional
- Rack mount ear kit (PSRME15D)

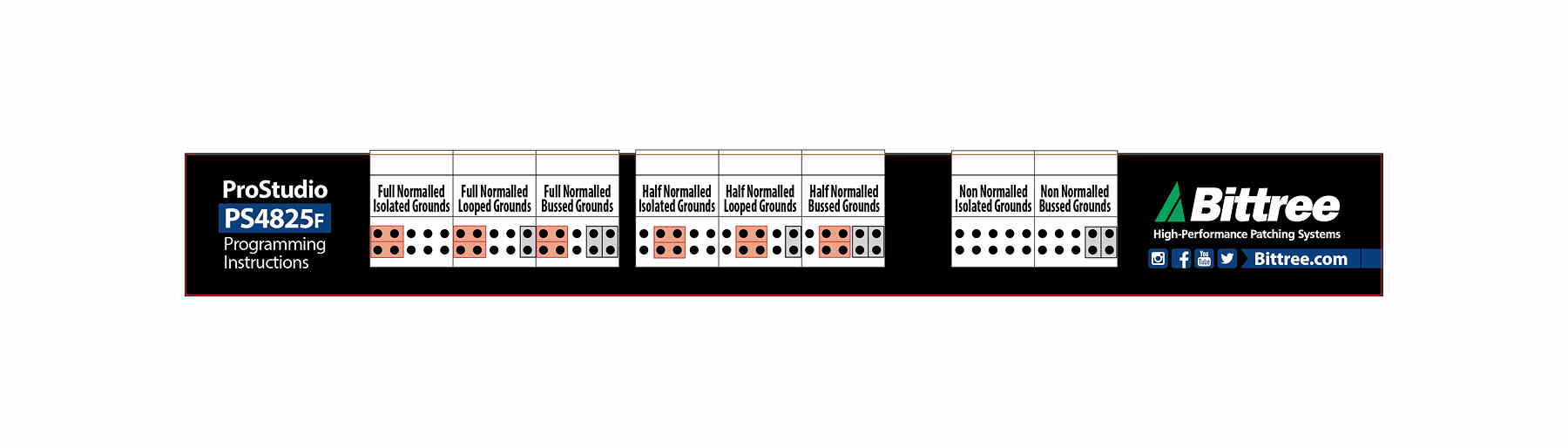

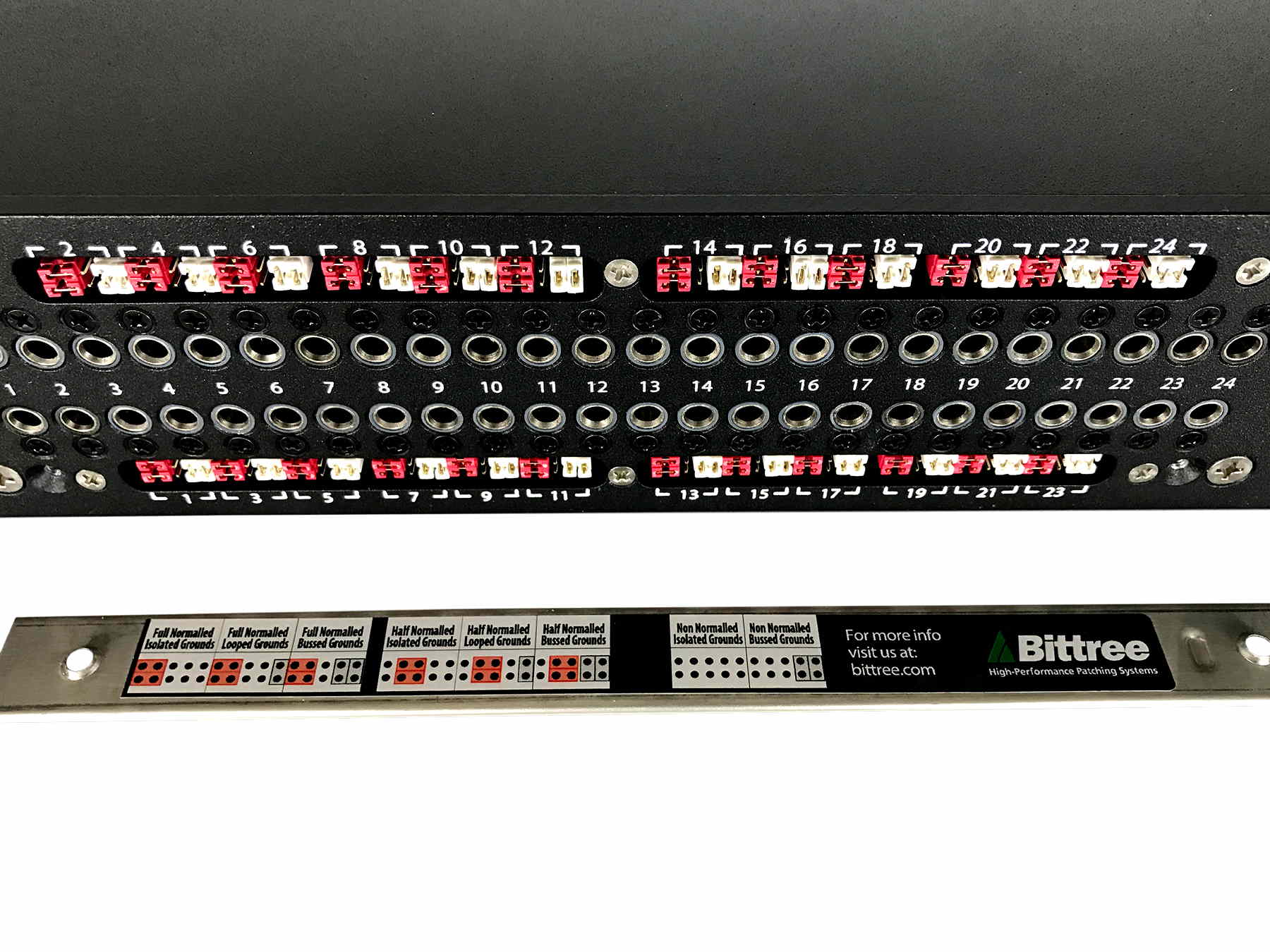

- Circuits can be easily changed via shunts under both designation strips
- Normalling – circuits can be set to full normal, half normal or non-normal
- Grounding – can be set to bussed, isolated, or looped
- Analog and Digital 110 ohm compatible
- 1-24 left-to-right numbering on front panel for easy circuit identification
- 2 x DS-PS4825/S designation strips, "Over/Under" orientation
- 7" (17.78 cm) deep fully enclosed chassis
- RoHS Compliant
